Front Bumper & Bumper Stay

25 part groups · 6 illustrations

Illustrations

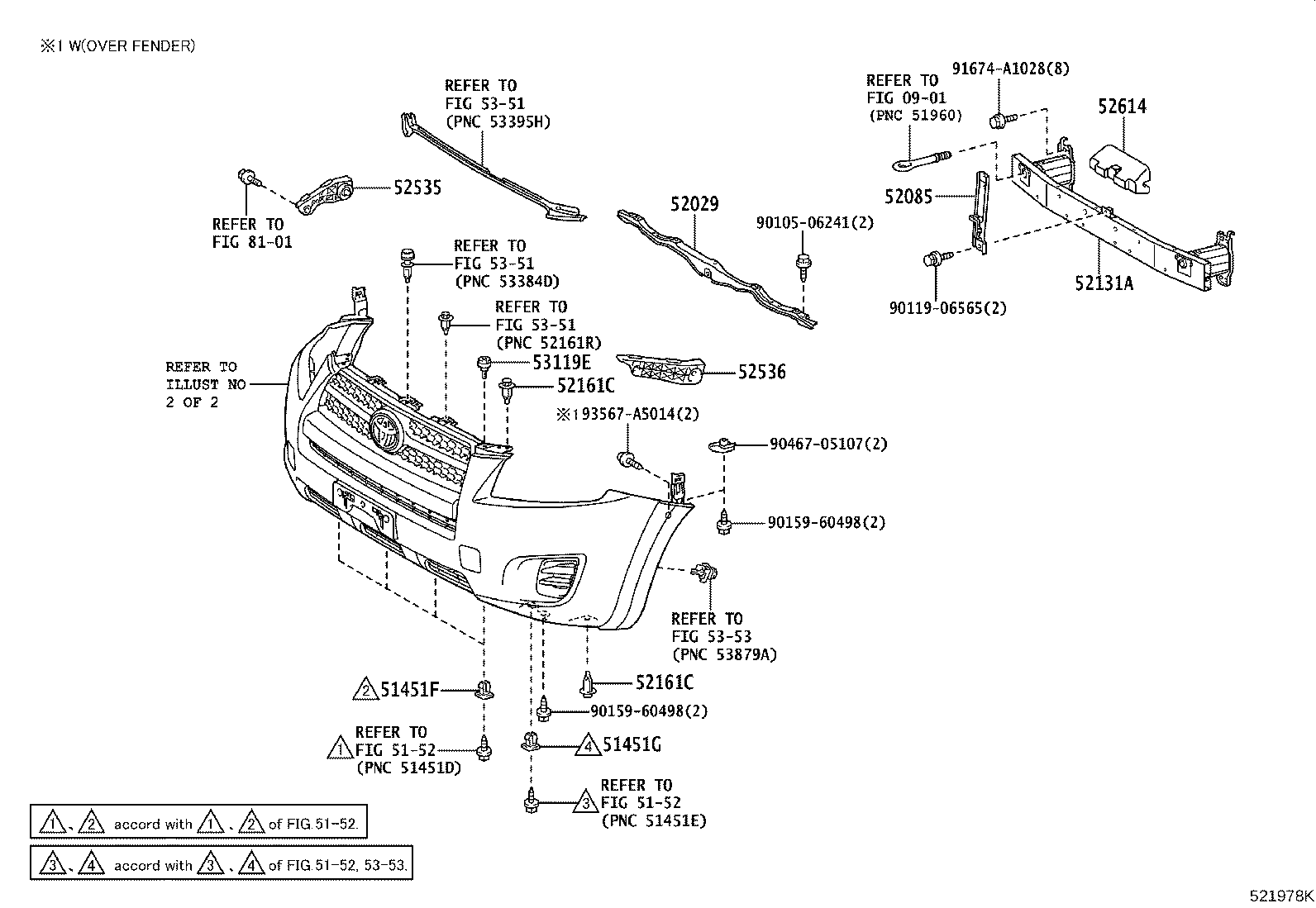

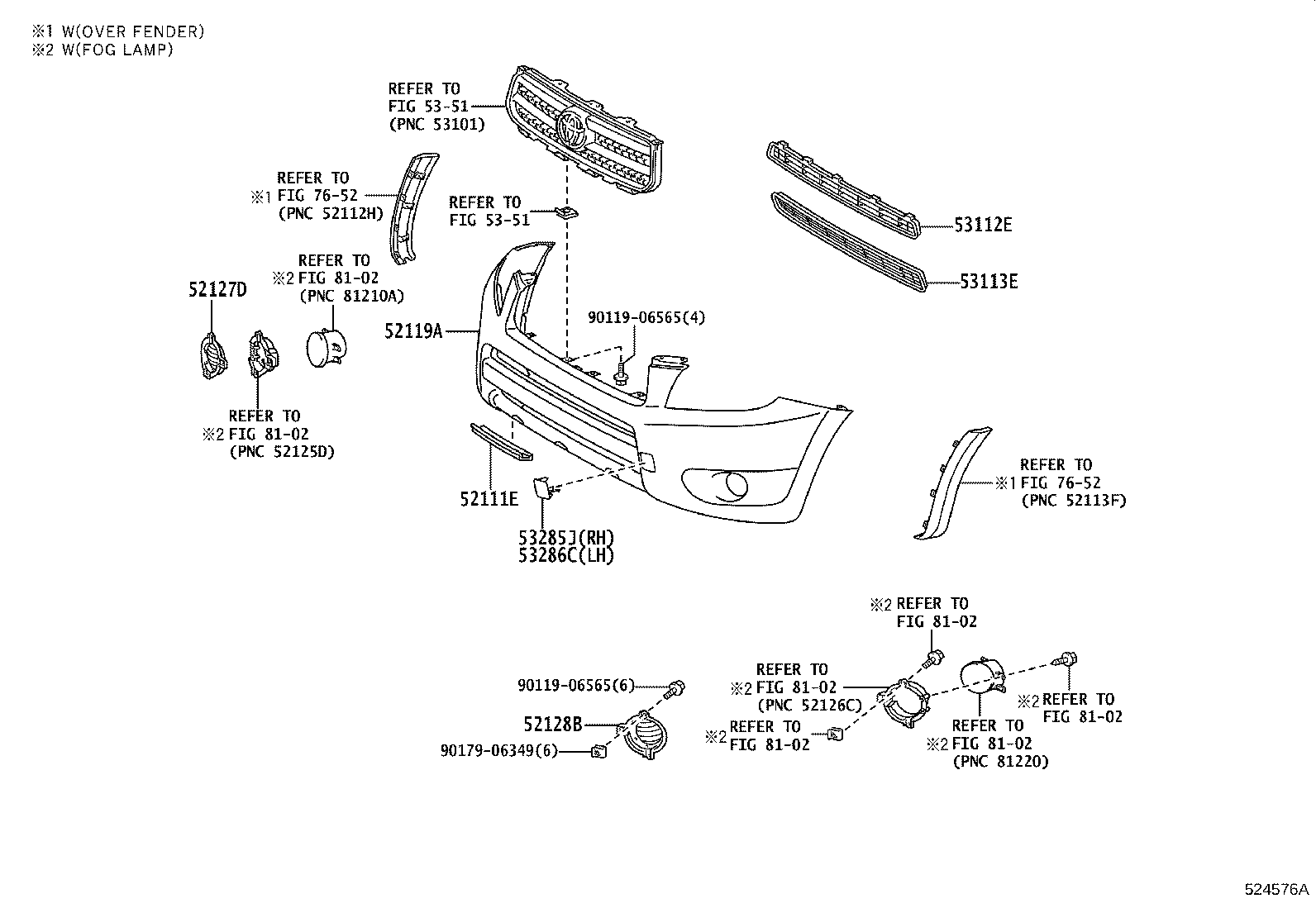

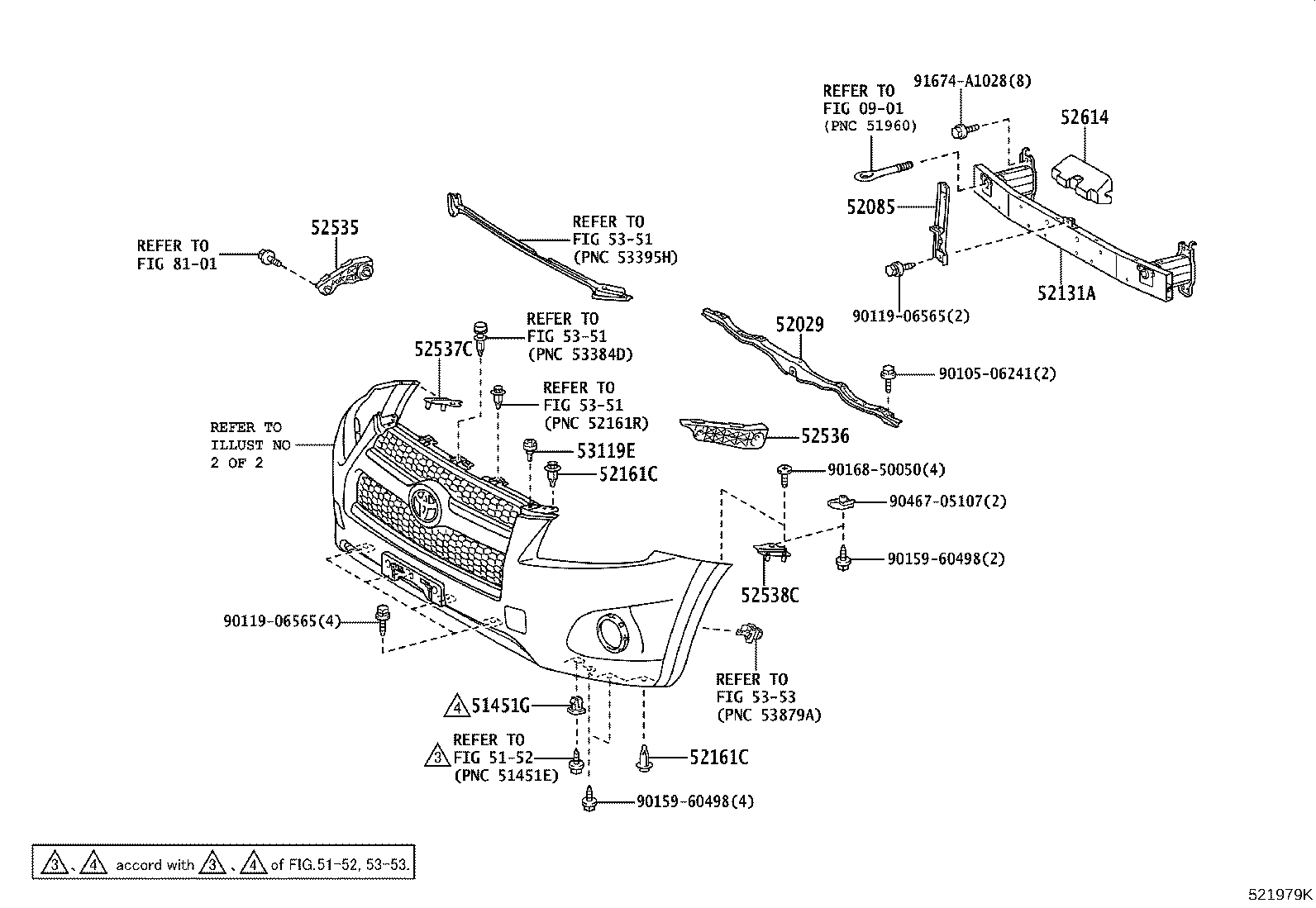

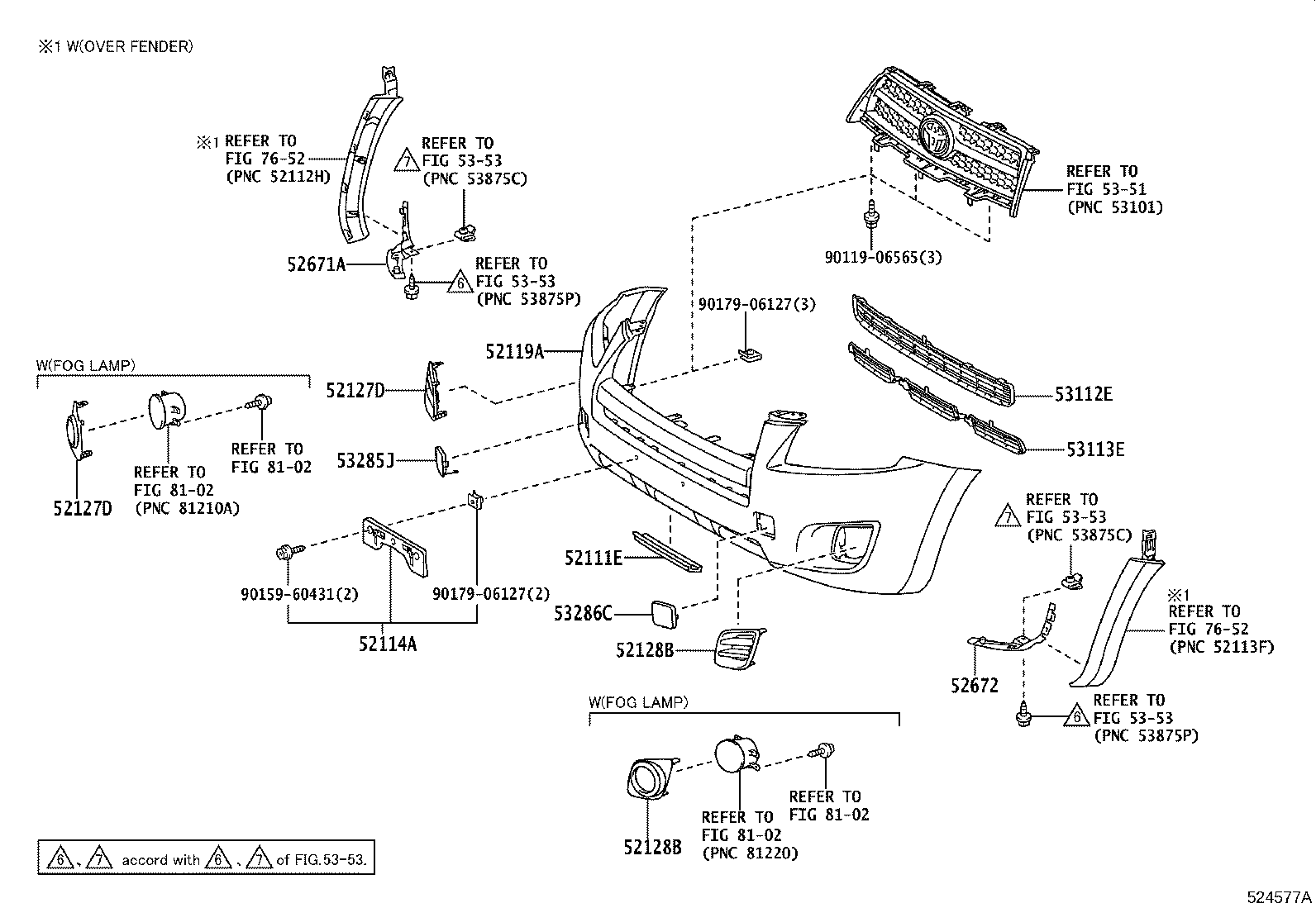

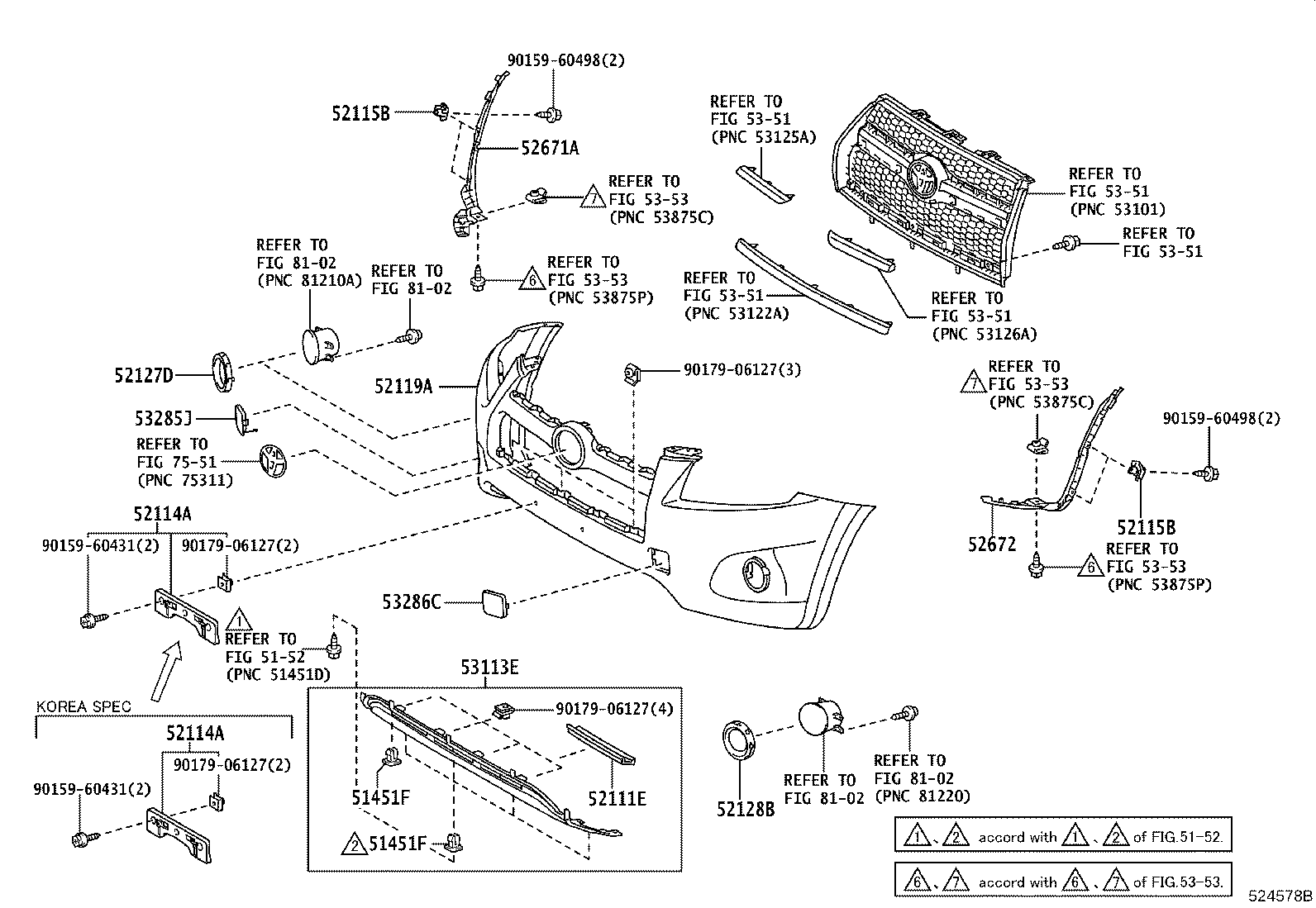

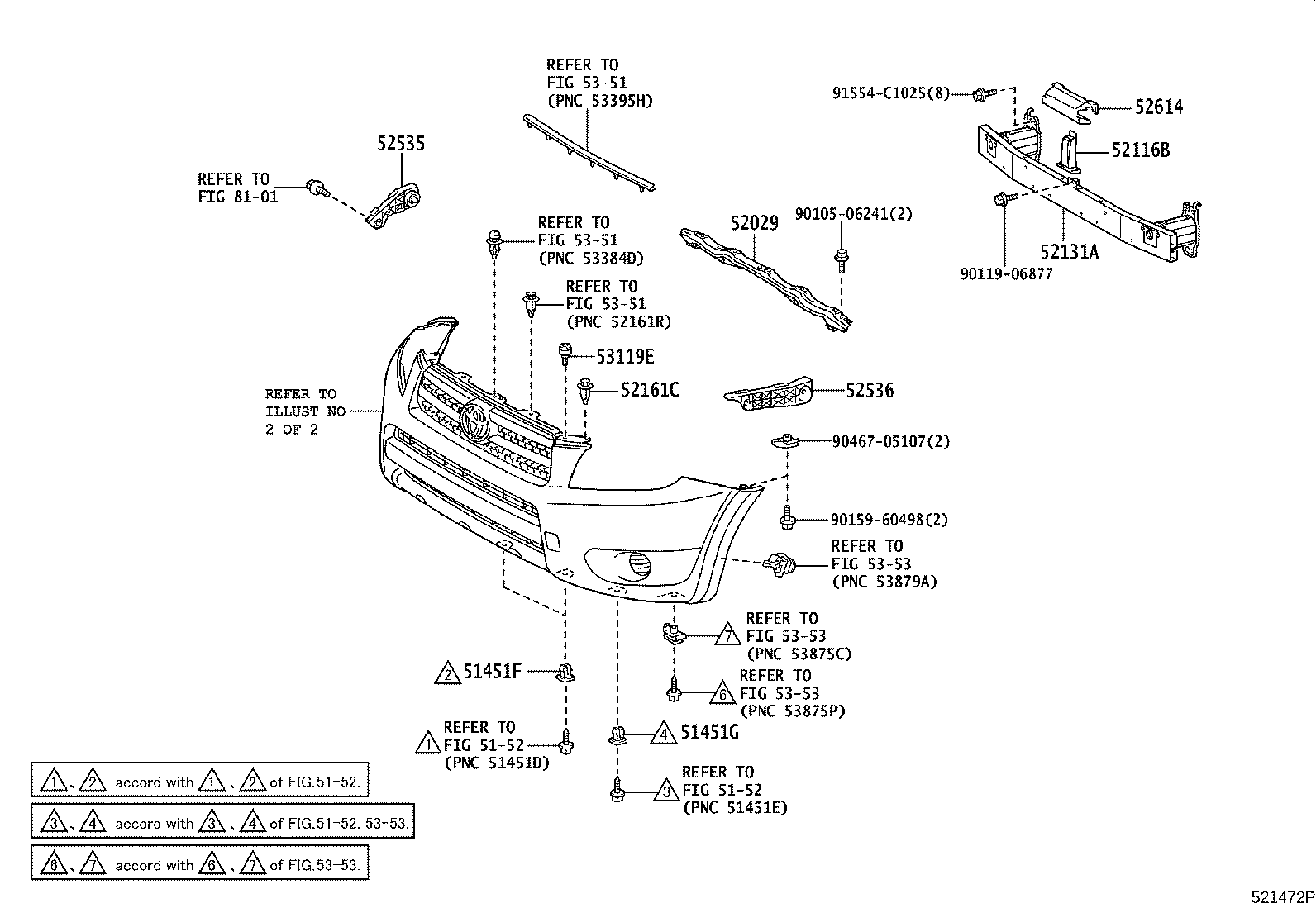

Figure 521472P 521472P 2005-11 → 2008-08 Figure 524576A 524576A 2005-11 → 2008-08 Figure 521978K 521978K 2008-08 → — Figure 524577A 524577A 2008-08 → — Figure 521979K 521979K 2008-08 → — Figure 524578B 524578B 2008-08 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451G Grommet, NO.2
52029 Reinforcement Sub-assy, Front Bumper, Upper
52085 Stay Sub-assy, Front Bumper, Center
52111E Bar, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115B Retainer, Front Bumper Extension, NO.1
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537C Retainer, Front Bumper Side, NO.2 RH
52538C Retainer, Front Bumper Side, NO.2 LH
52614 Absorber, Front Bumper Energy, NO.2
52671A Extension, Front Bumper Arm, RH
52672 Extension, Front Bumper Arm, LH
53112E Grille, Radiator, Lower NO.1
53113E Grille, Radiator, Lower NO.2
53119E Protector, Radiator Grille
53285J Cover, Front Bumper Arm Hole, RH
53286C Cover, Front Bumper Arm Hole, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
