Toyota RAV4 (JPP)

2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 3 illustrations

Illustrations

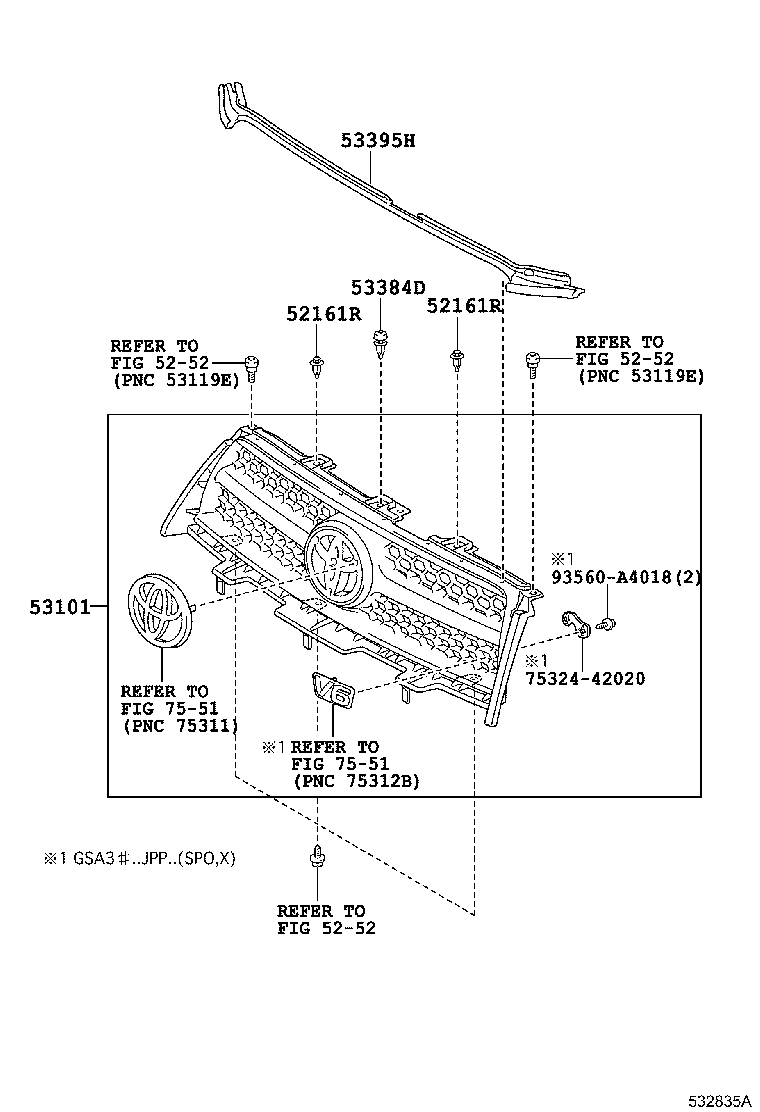

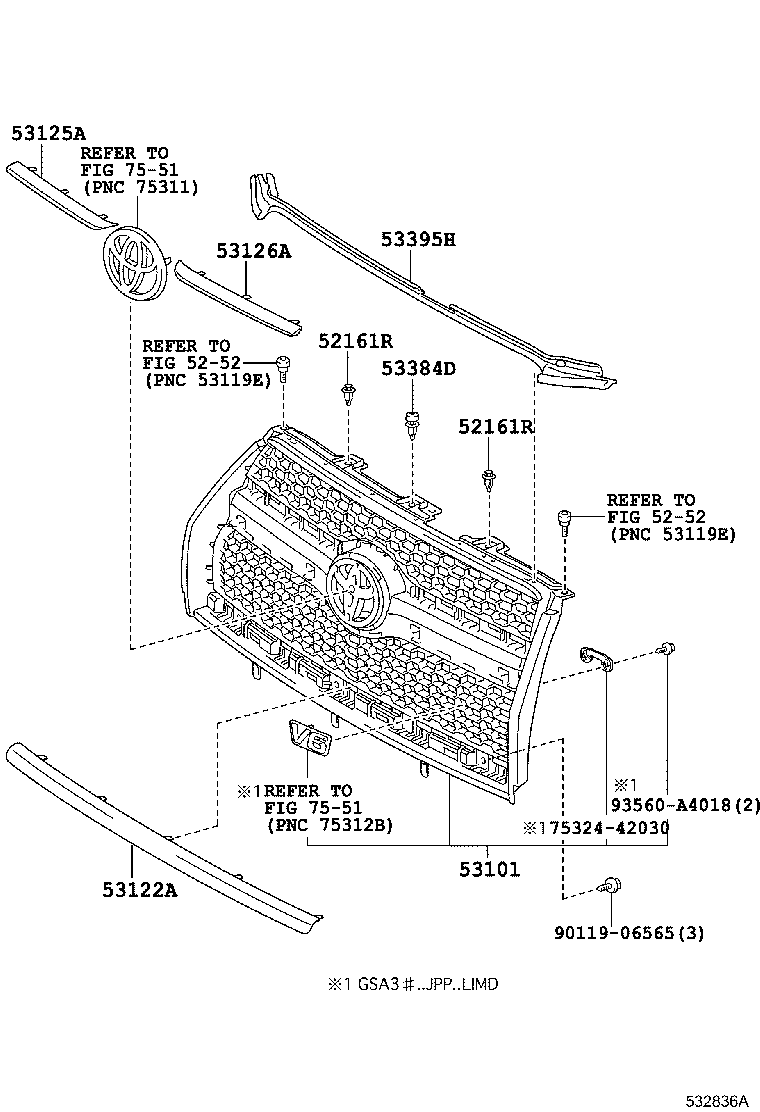

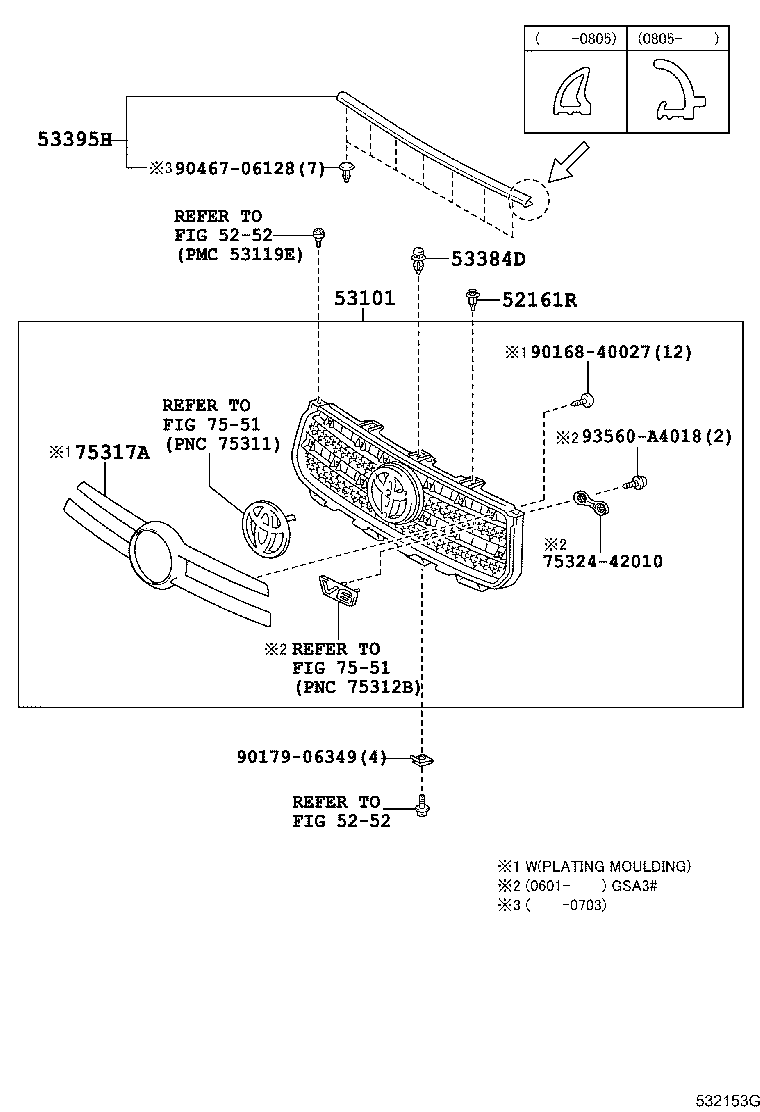

Figure 532153G 532153G 2005-11 → 2008-08 Figure 532835A 532835A 2008-08 → — Figure 532836A 532836A 2008-08 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53122A Moulding, Radiator Grille, Lower
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53384D Cushion, Hood, Center
53395H Seal, Hood TO Radiator Grille
75317A Plate, Radiator Grille Ornament
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
