Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07

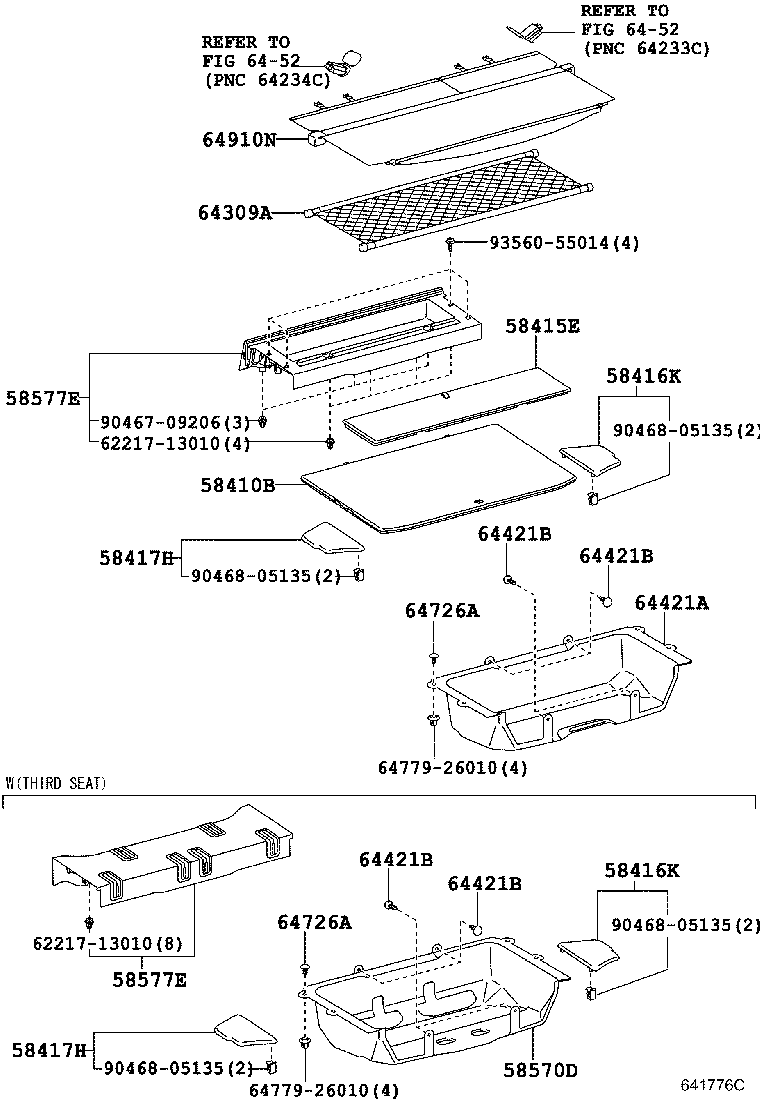

Deck Board & Deck Trim Cover
11 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 58410B | Board Assy, Deck |
| 58415E | Board, Rear Floor, NO.1 |
| 58416K | Board, Rear Floor, NO.2 |
| 58417H | Board, Rear Floor, NO.3 |
| 58570D | Carpet Assy, Rear Floor |
| 58577E | Plate, Rear Floor Mat Support Side, NO.1 |
| 64309A | Pocket Sub-assy, Package Tray Trim |
| 64421A | Tray, Luggage Compartment |
| 64421B | Clip(FOR LUGGAGE COMPARTMENT TRAY) |
| 64726A | Clip, Luggage Trim, Rear |
| 64910N | Cover Assy, Tonneau |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
