Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07
Rear Door Window Regulator & Hinge
11 part groups · 1 illustrations

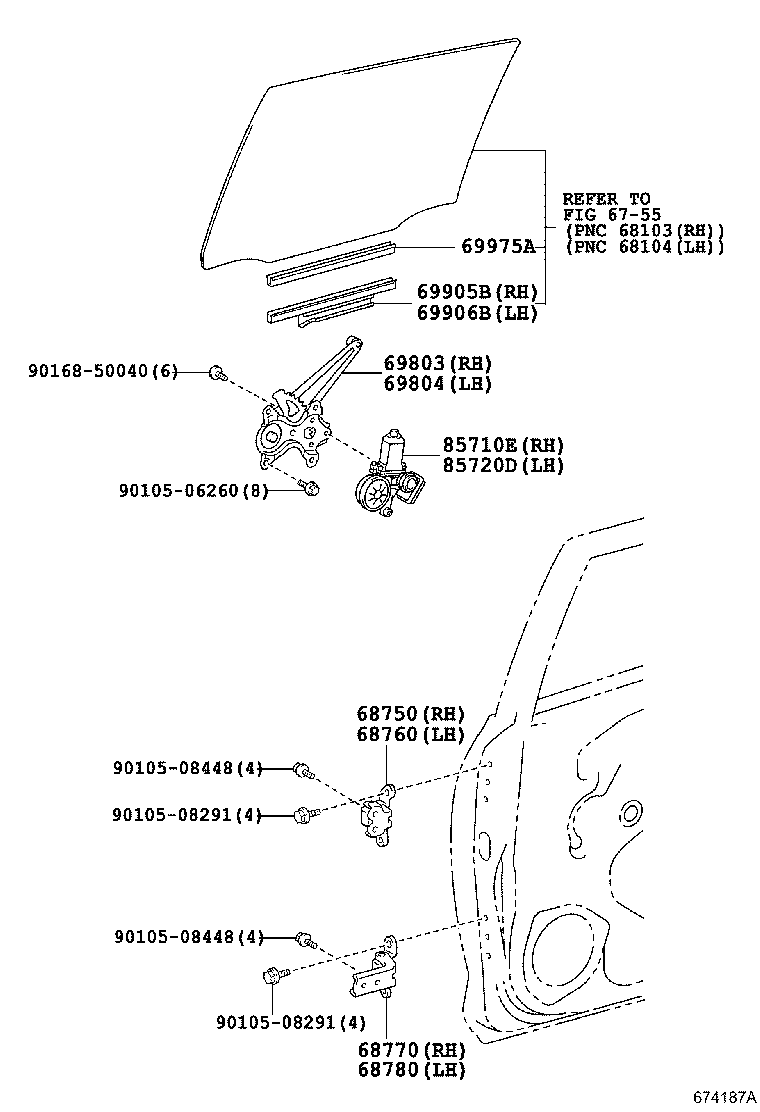

Illustrations
Part groups
| PNC | Description |
|---|---|
| 68750 | Hinge Assy, Rear Door, Upper RH |
| 68760 | Hinge Assy, Rear Door, Upper LH |
| 68770 | Hinge Assy, Rear Door, Lower RH |
| 68780 | Hinge Assy, Rear Door, Lower LH |
| 69803 | Regulator Sub-assy, Rear Door Window, RH |
| 69804 | Regulator Sub-assy, Rear Door Window, LH |
| 69905B | Channel Sub-assy, Rear Door Glass, RH |
| 69906B | Channel Sub-assy, Rear Door Glass, LH |
| 69975A | Filler, Rear Door Glass Channel |
| 85710E | Motor Assy, Power Window Regulator, RH |
| 85720D | Motor Assy, Power Window Regulator, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
