Toyota RAV4 (JPP)

2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

34 part groups · 6 illustrations

Illustrations

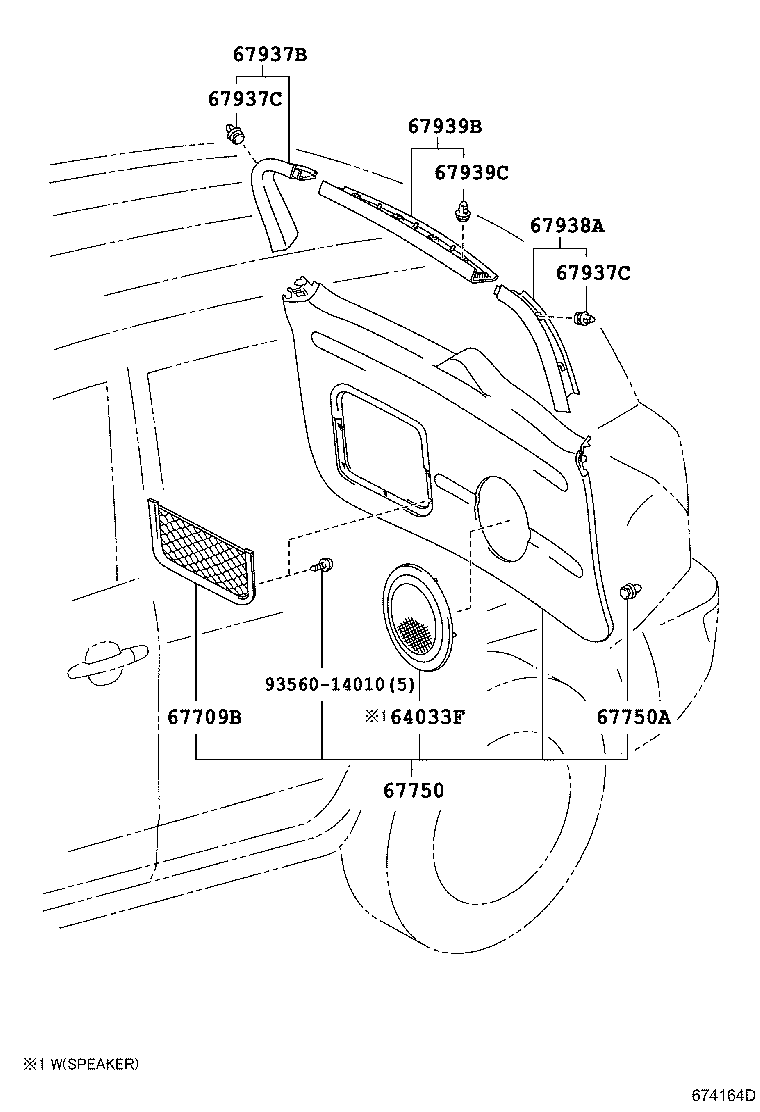

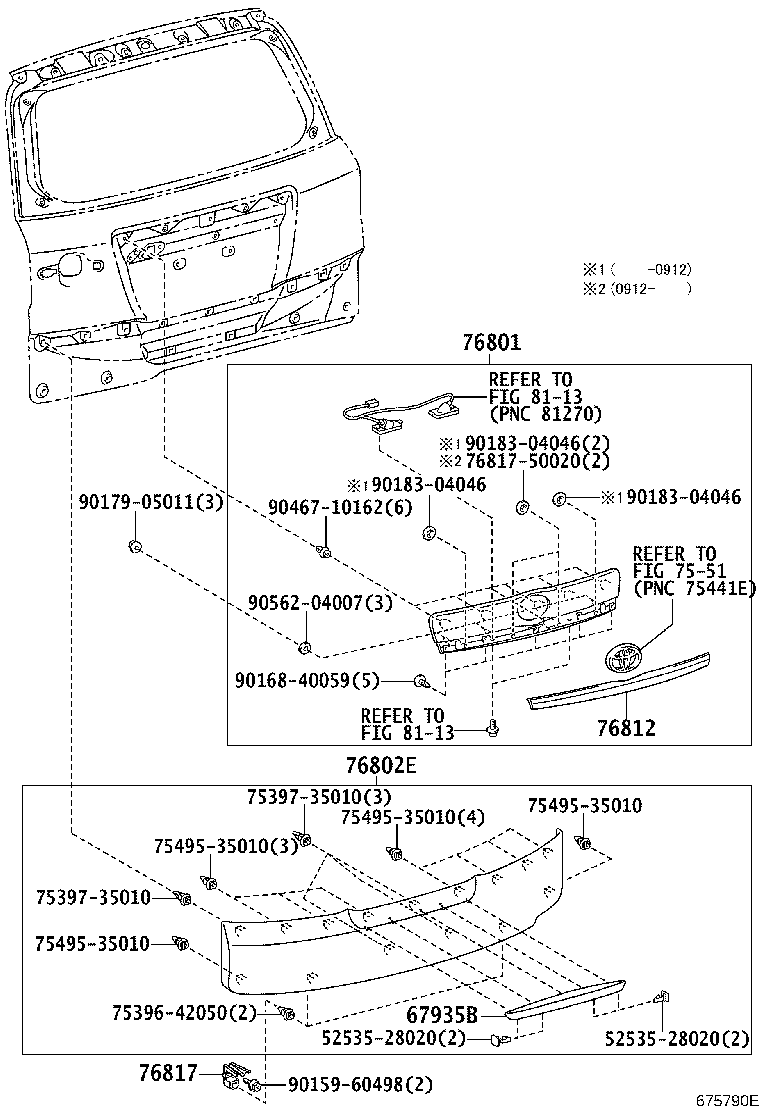

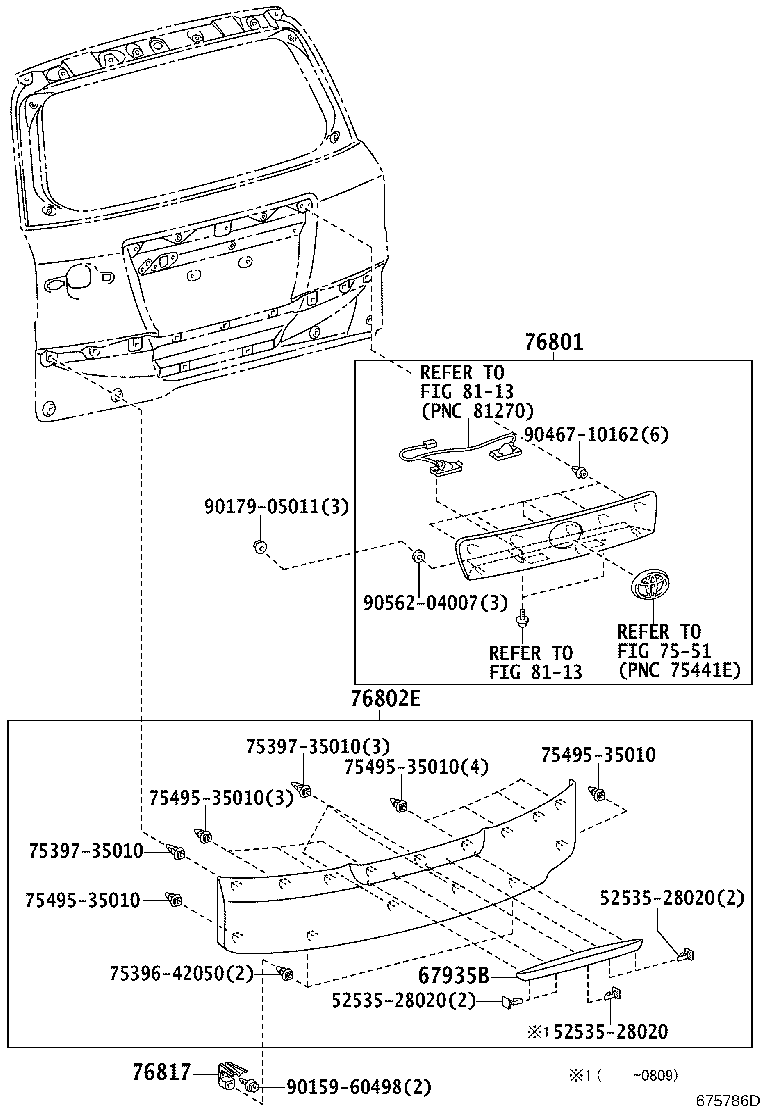

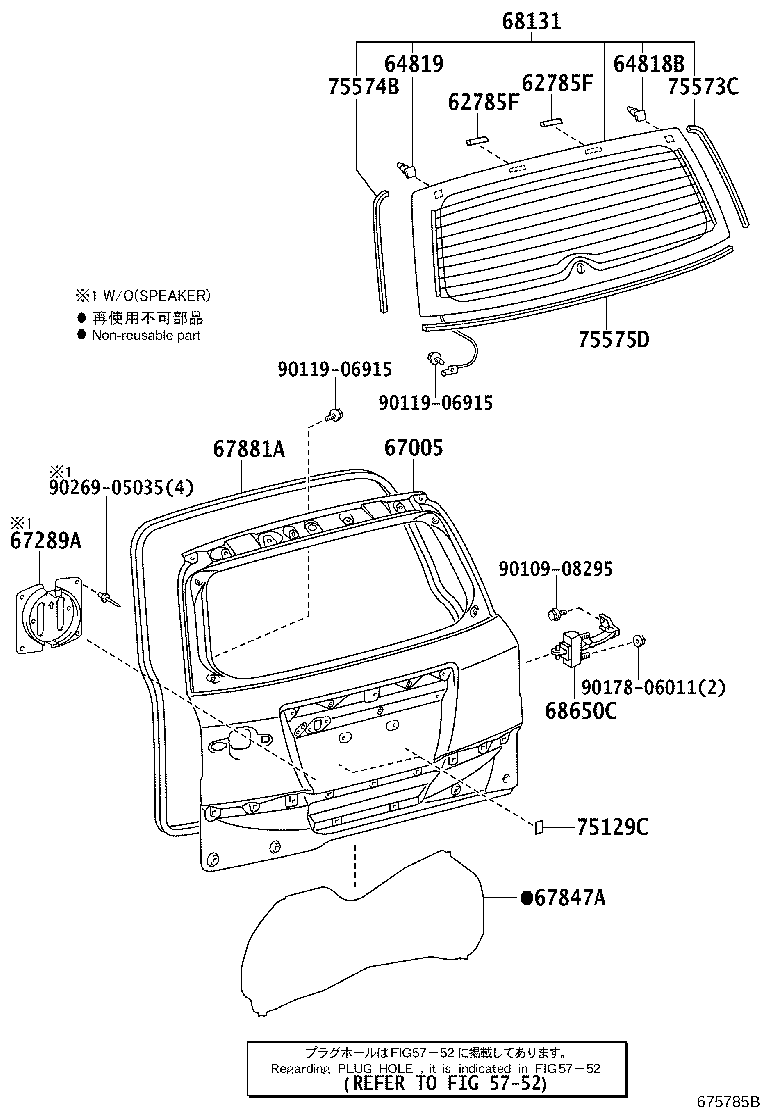

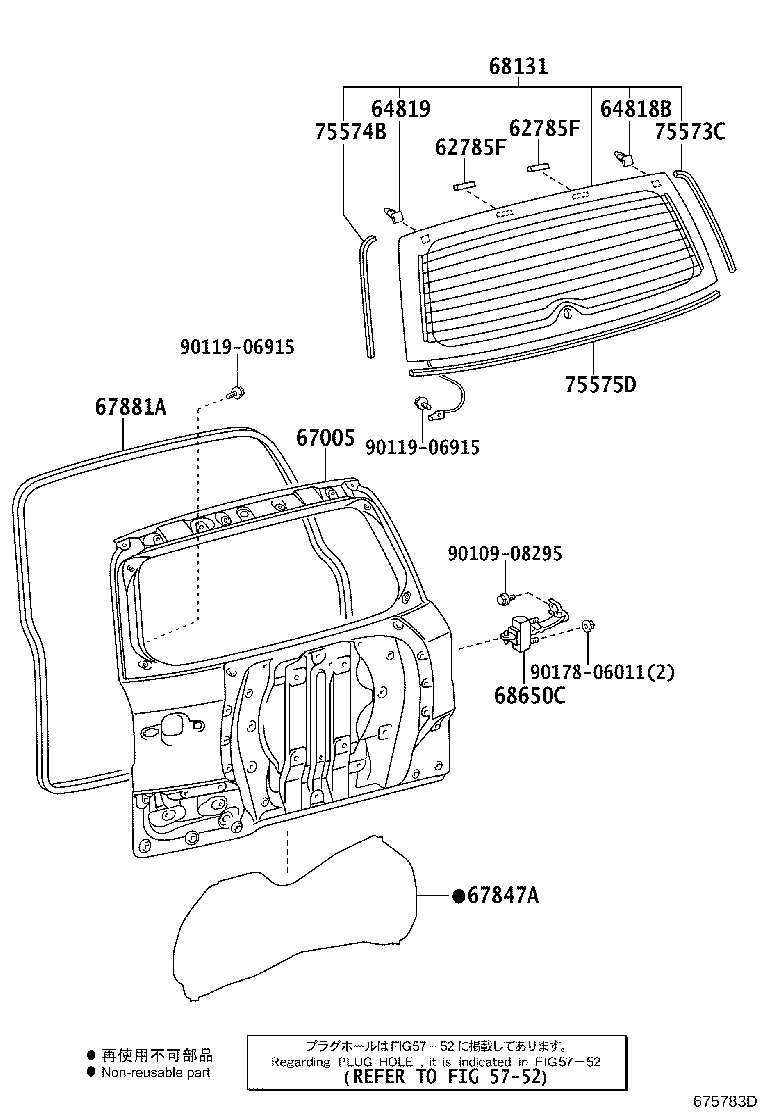

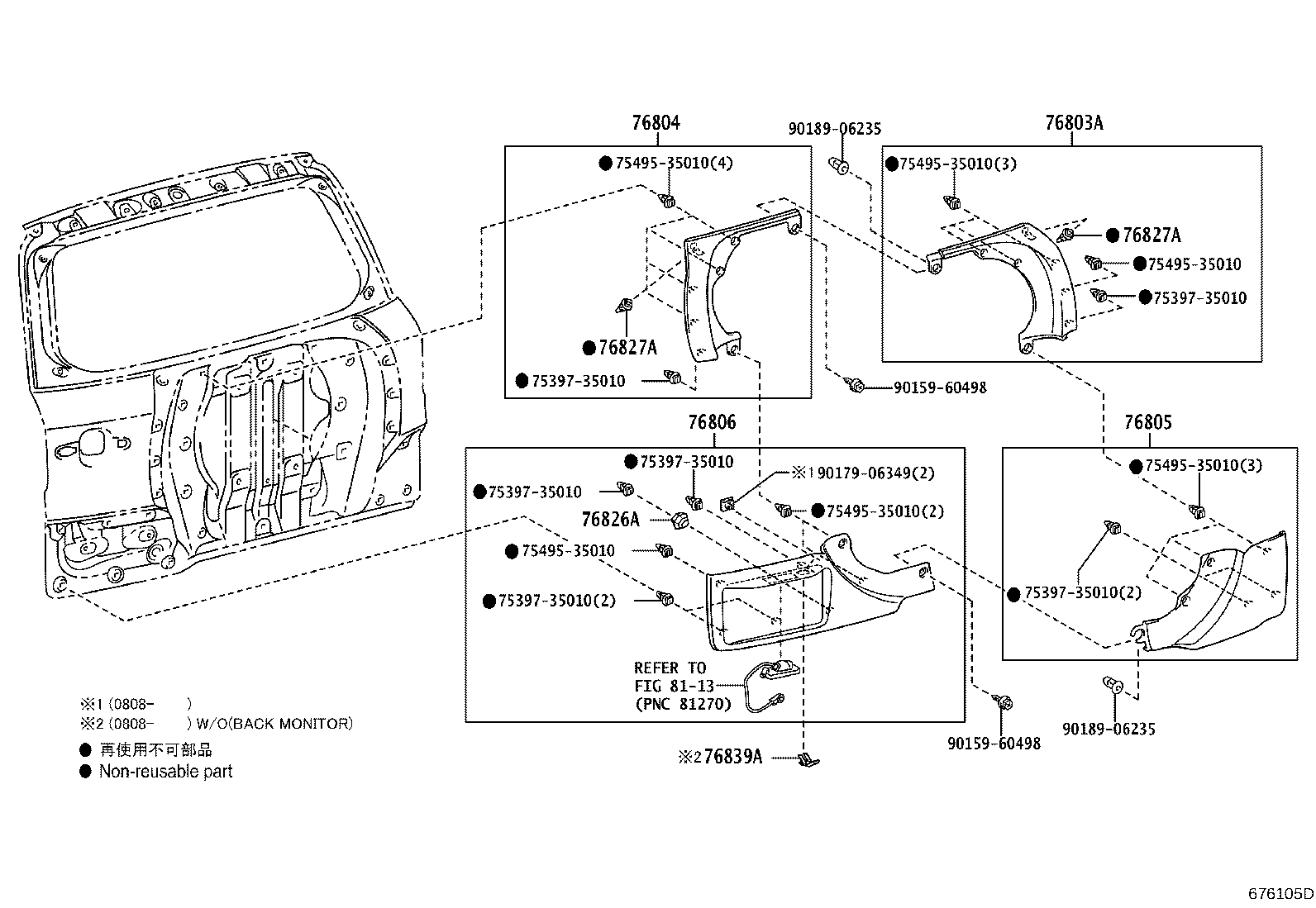

Figure 674164D 674164D 2005-11 → — Figure 675783D 675783D 2005-11 → — Figure 675785B 675785B 2008-08 → — Figure 676105D 676105D 2005-11 → — Figure 675786D 675786D 2008-08 → 2008-11 Figure 675790E 675790E 2008-11 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64033F Grille Sub-assy, Rear Speaker, RH
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67289A Damper, Back Door
67709B Pocket Sub-assy, Back Door Trim
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67935B Garnish, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
68650C Check Assy, Back Door, RH
75129C Cushion, Rear Licence Plate
75573C Moulding, Back Window, Outside
75574B Moulding, Back Window, Outside LH
75575D Moulding, Back Window, Lower
76801 Garnish Sub-assy, Back Door, Outside
76802E Garnish Sub-assy, Back Door, Outside Lower
76803A Garnish Sub-assy, Back Door, Outside Upper RH
76804 Garnish Sub-assy, Back Door, Outside Upper LH
76805 Garnish Sub-assy, Back Door, Outside Lower RH
76806 Garnish Sub-assy, Back Door, Outside Lower LH
76812 Garnish, Back Door, Outside Lower
76817 Clip, Back Door Outside Garnish
76826A Retainer, Back Door Garnish, NO.1
76827A Retainer, Back Door Garnish, NO.2
76839A Cover, Back Door Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
