Toyota RAV4 (JPP)

2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

174 part groups · 19 illustrations

Illustrations

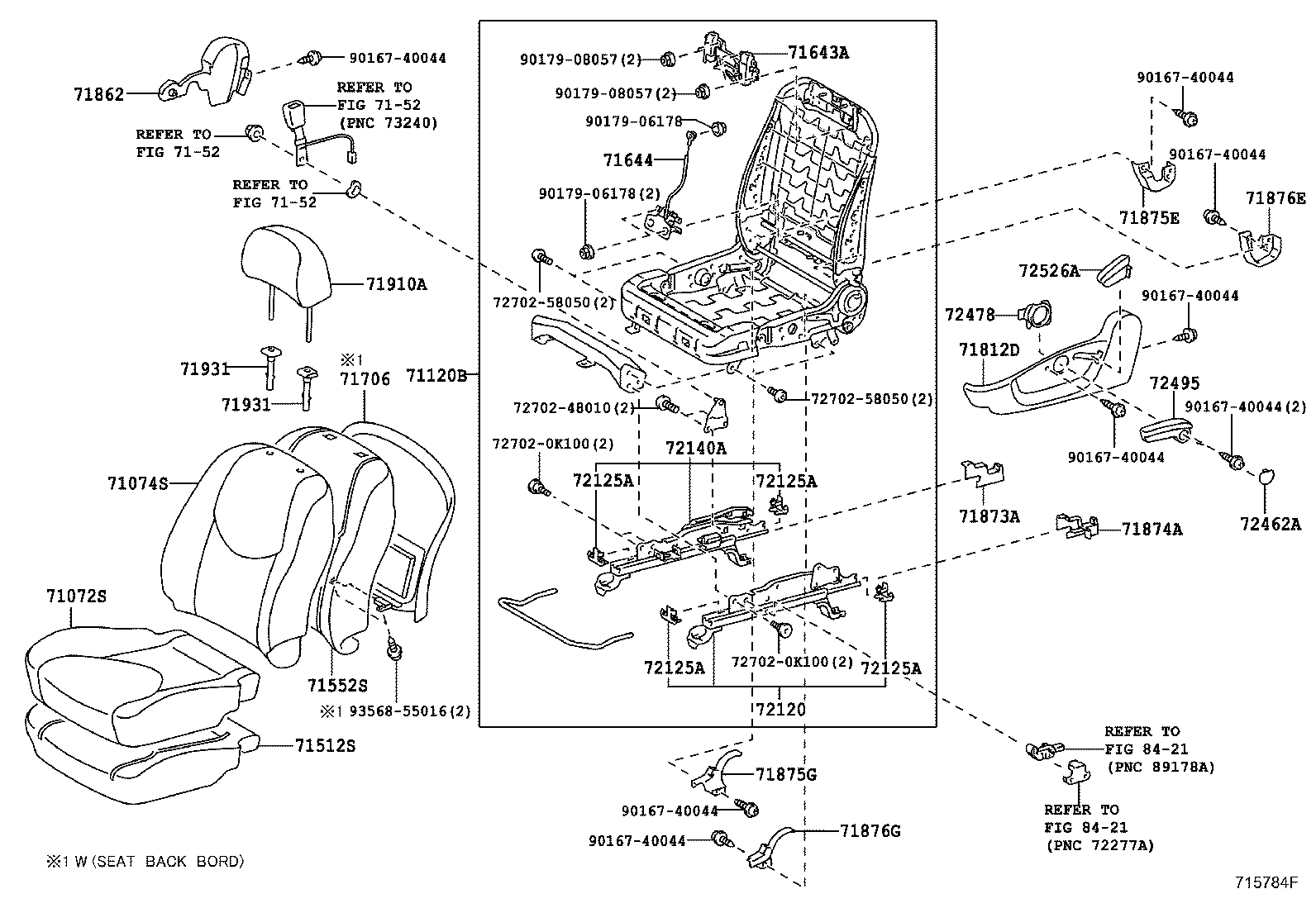

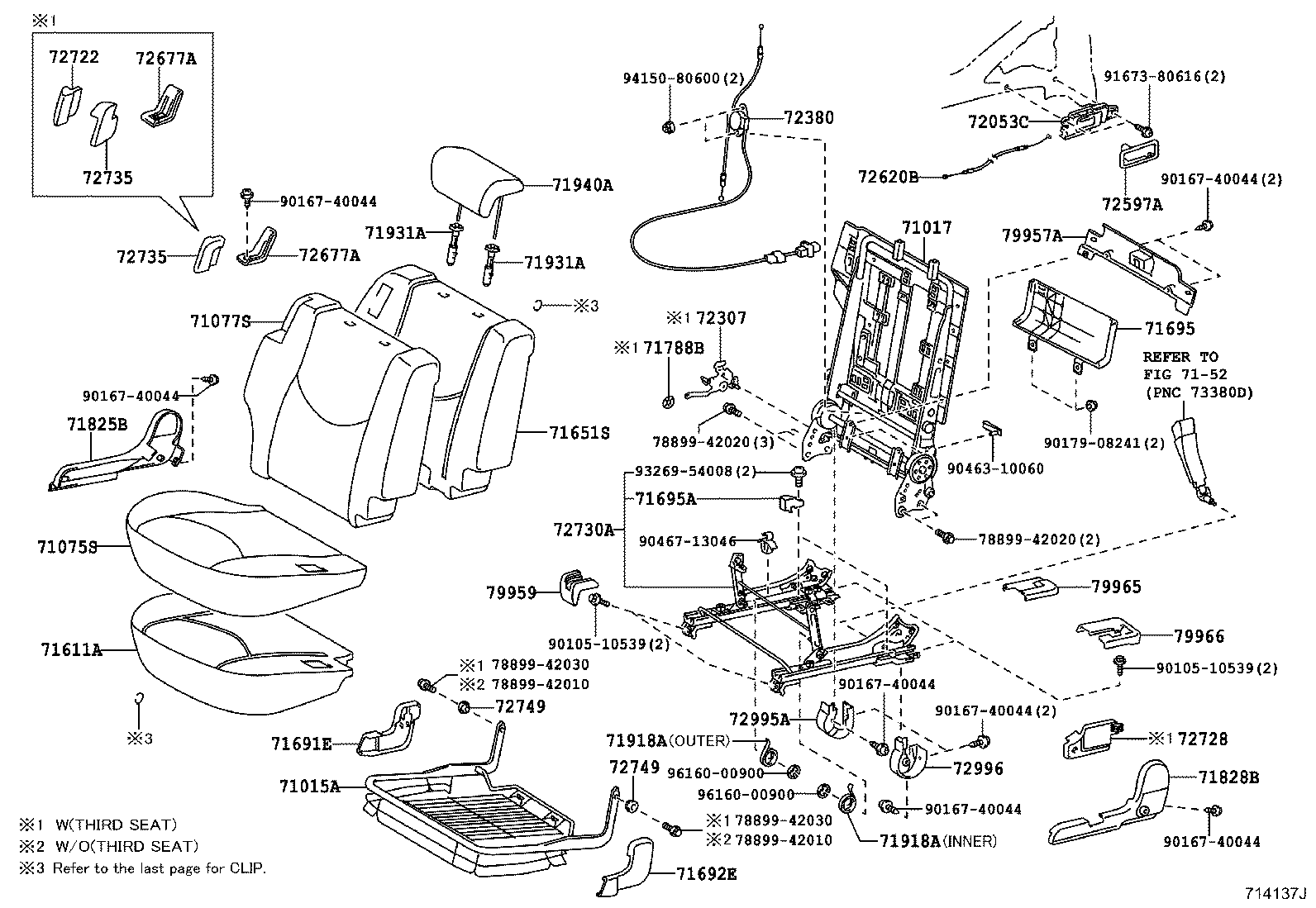

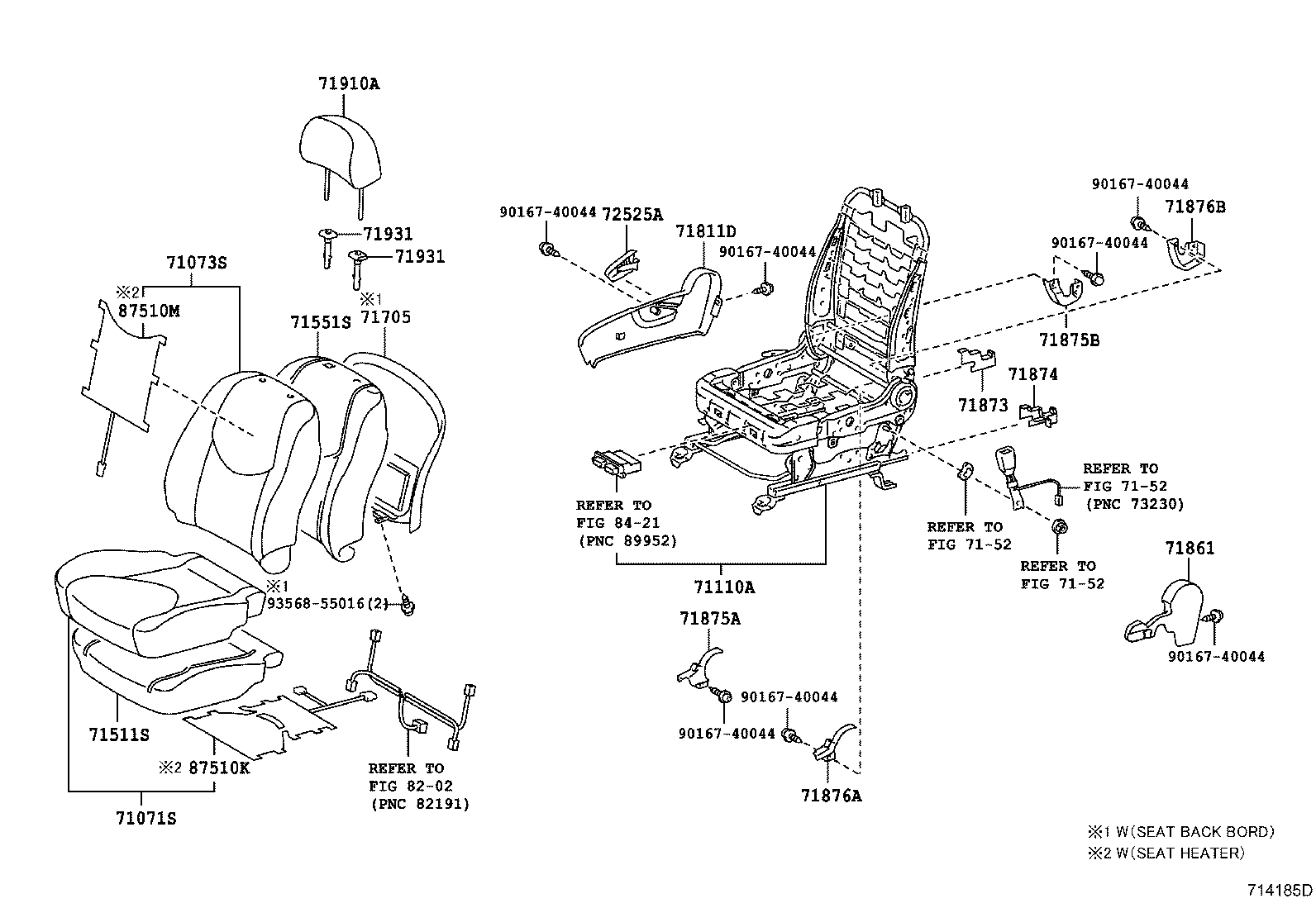

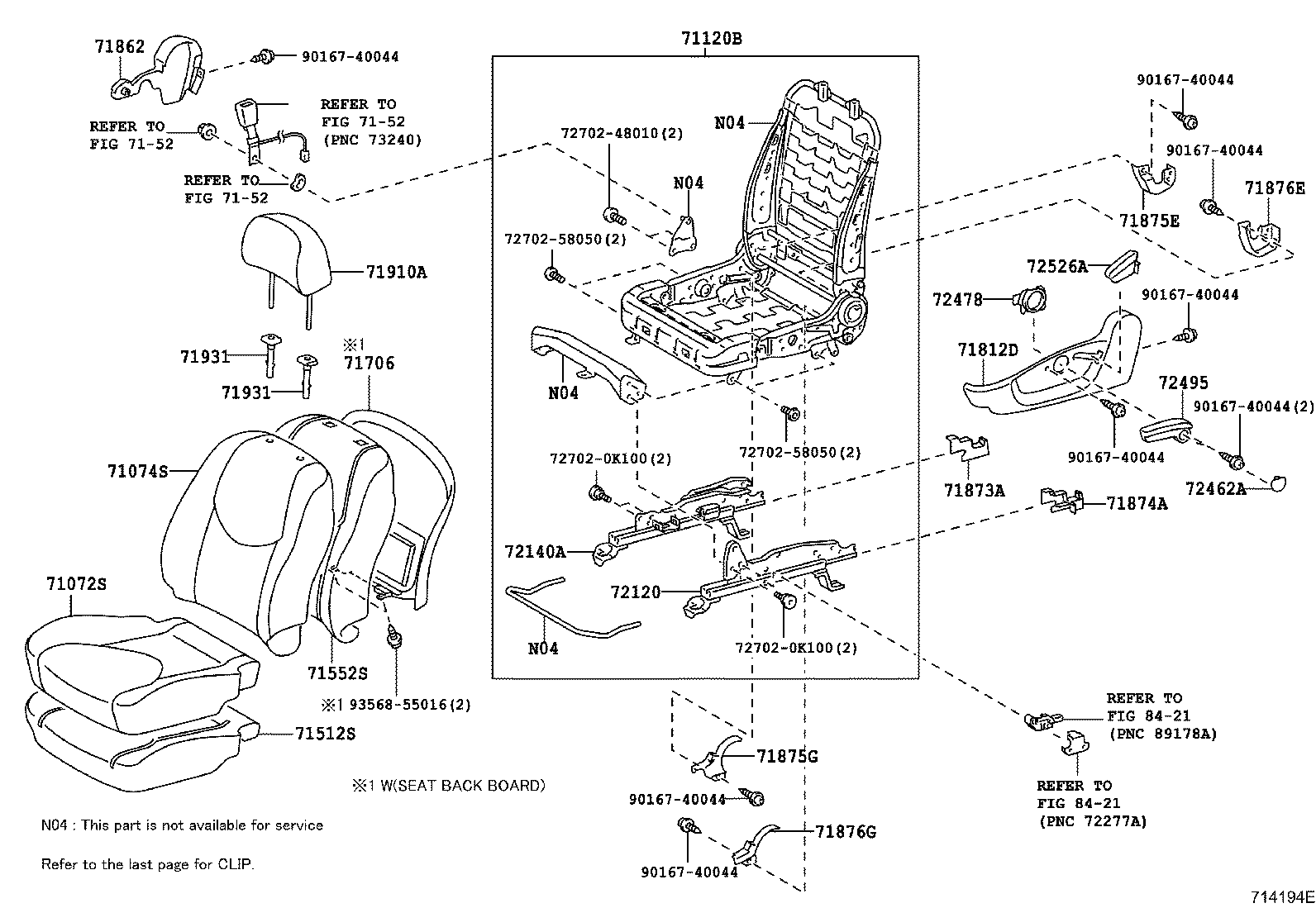

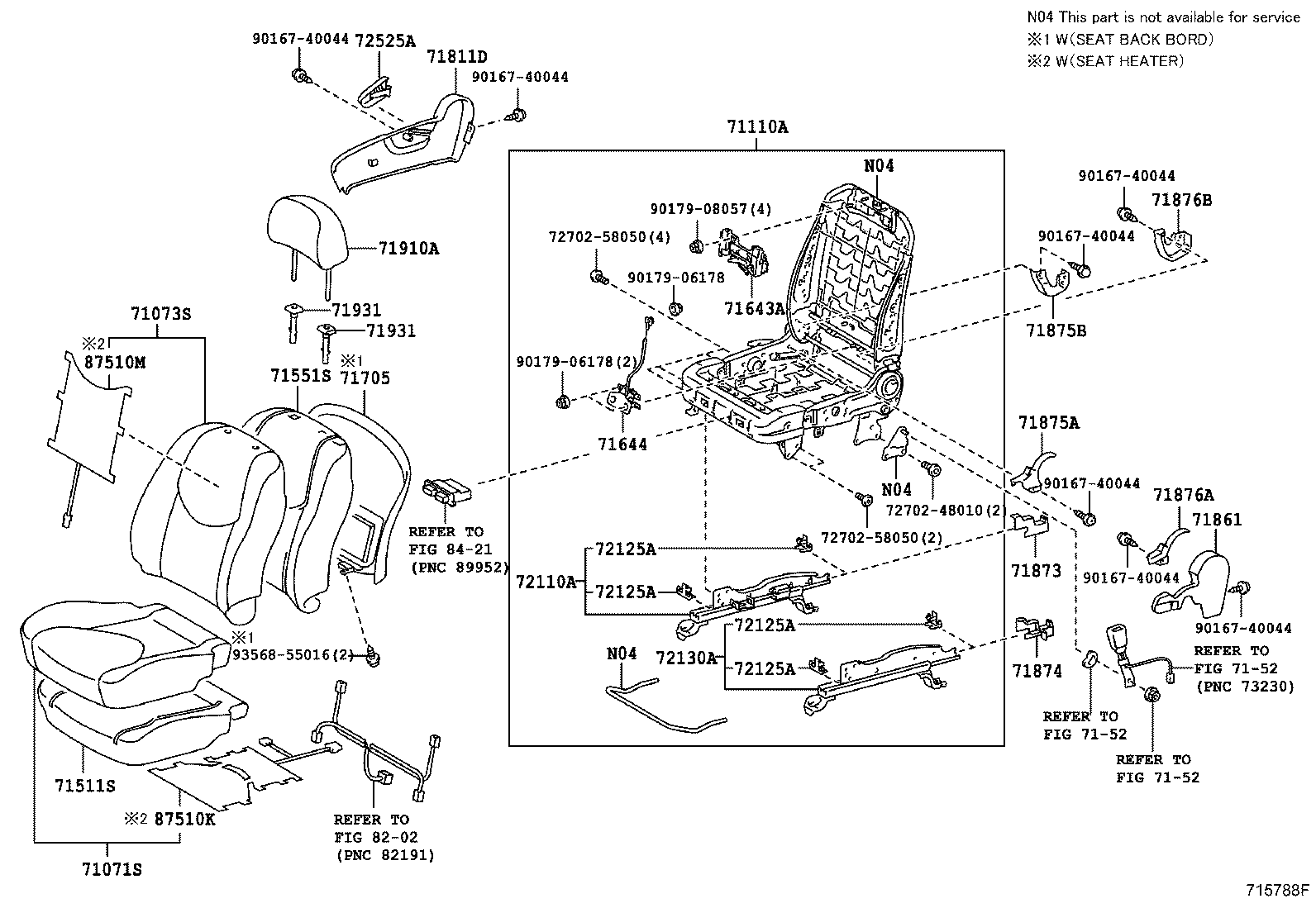

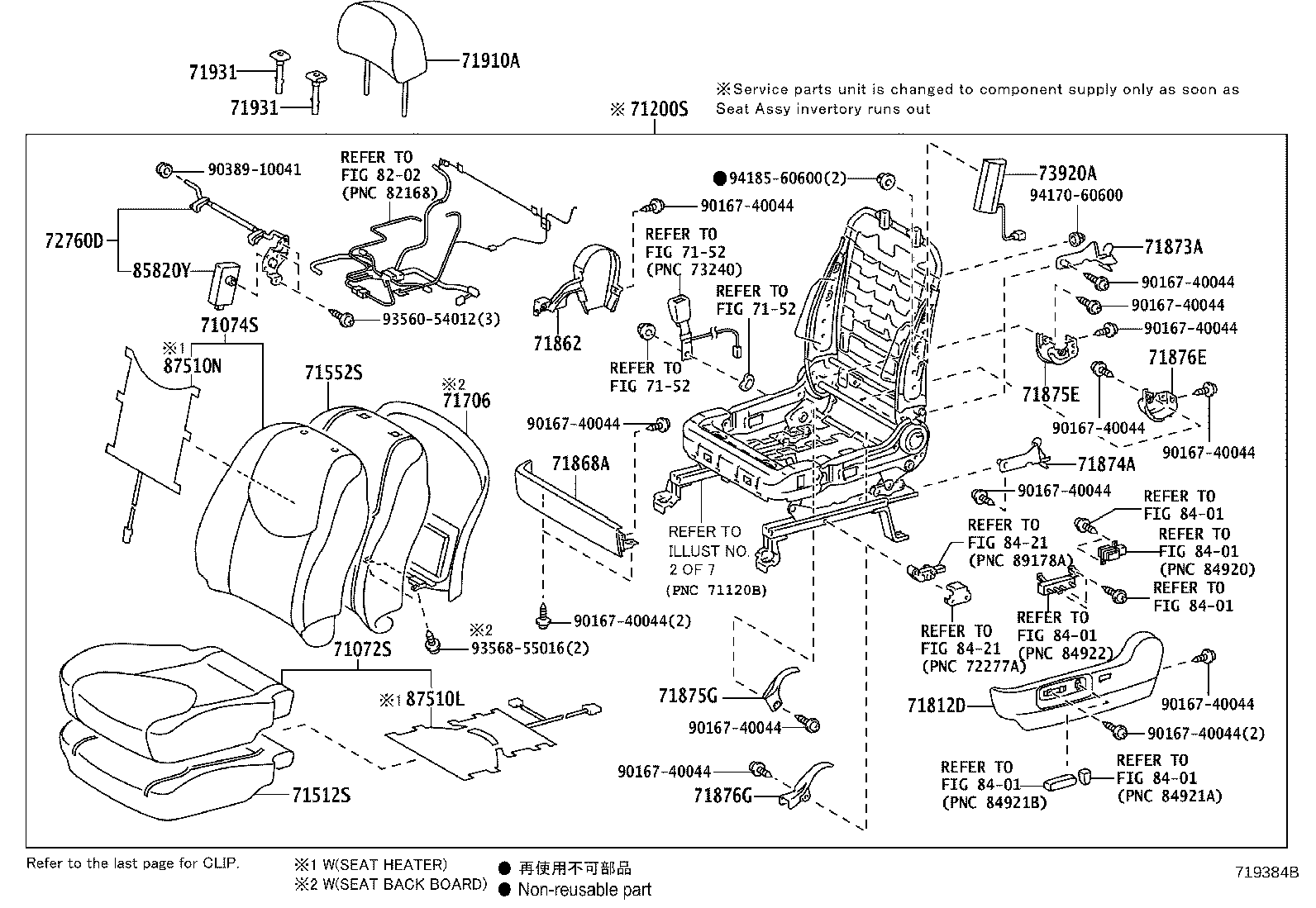

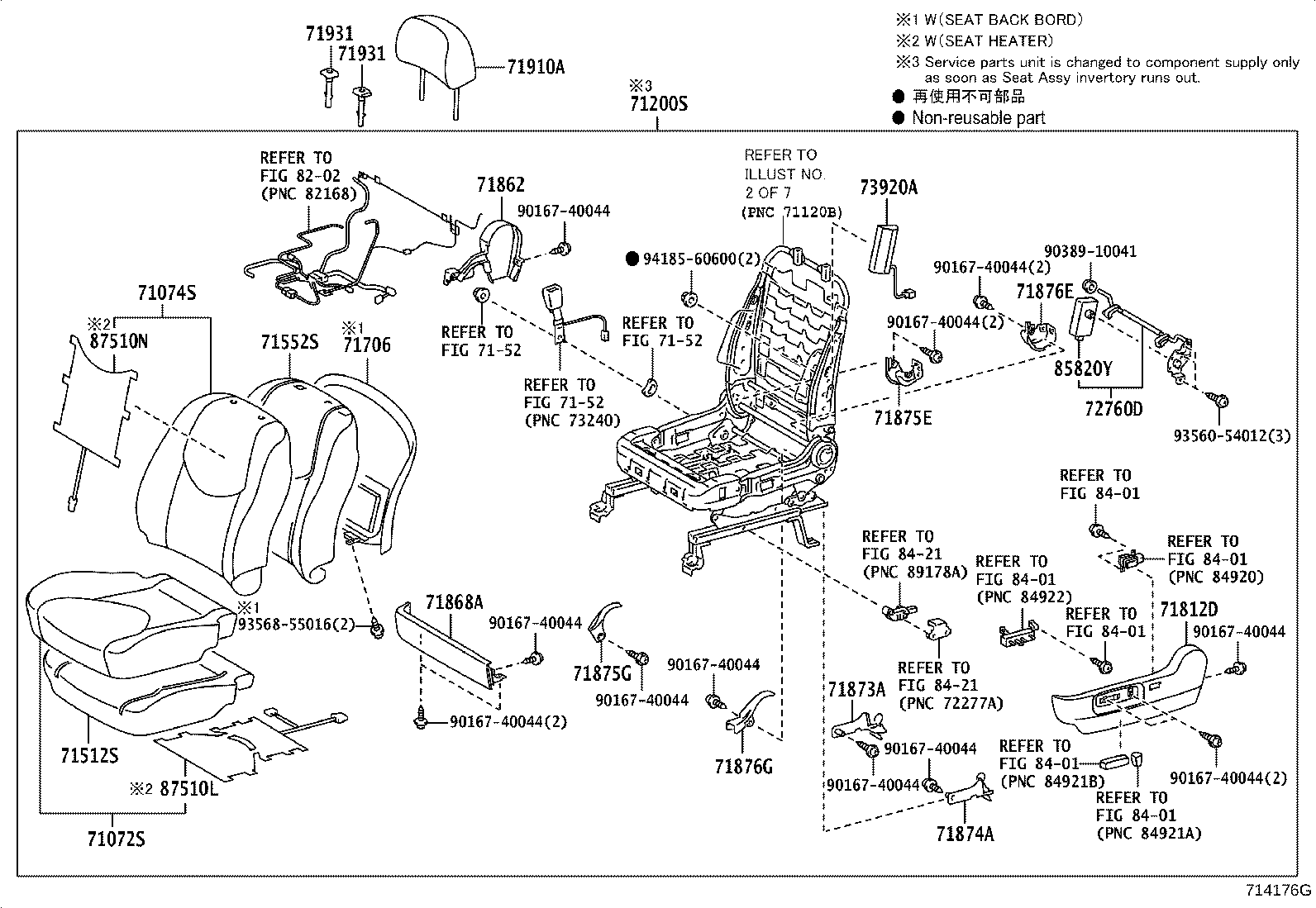

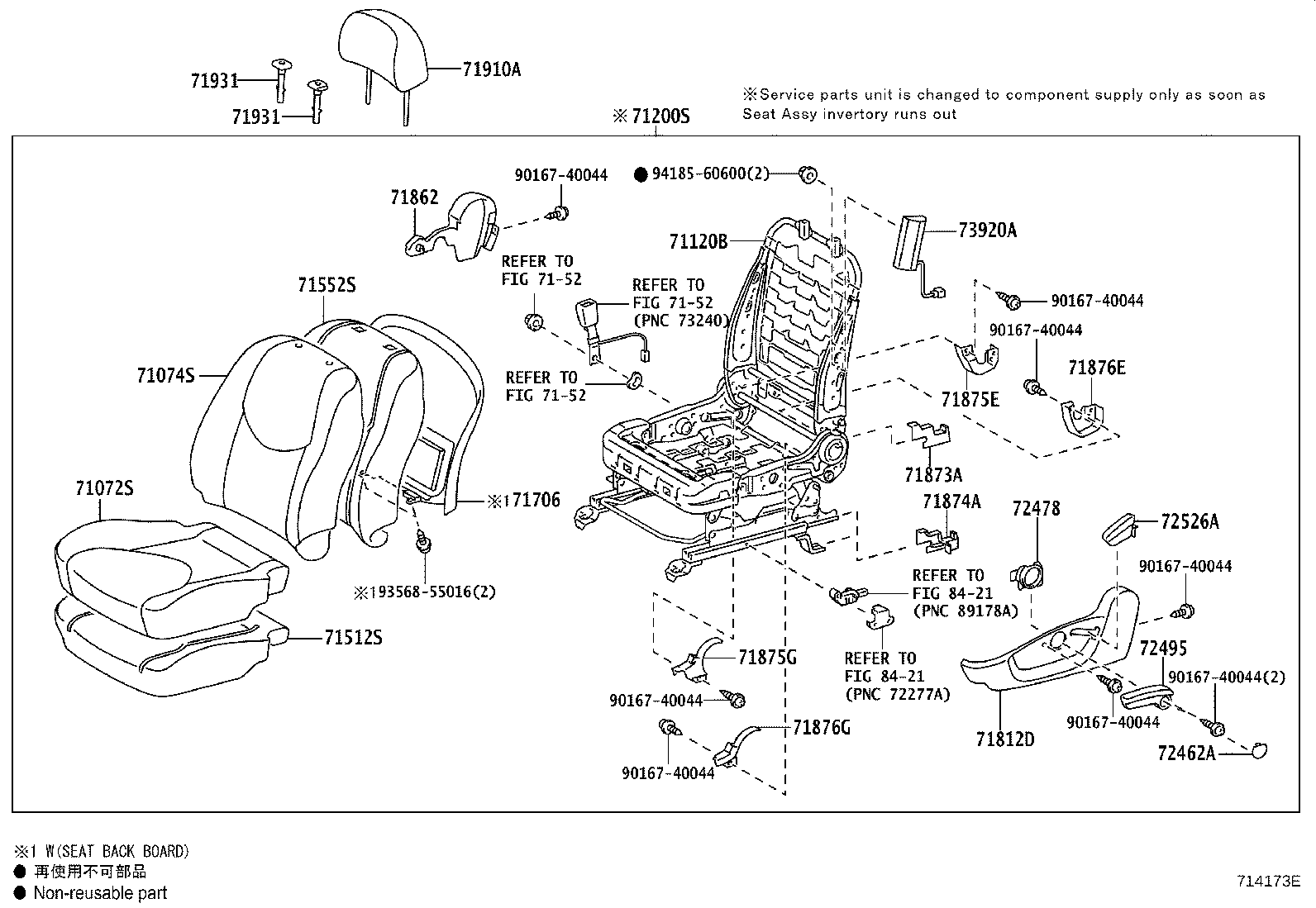

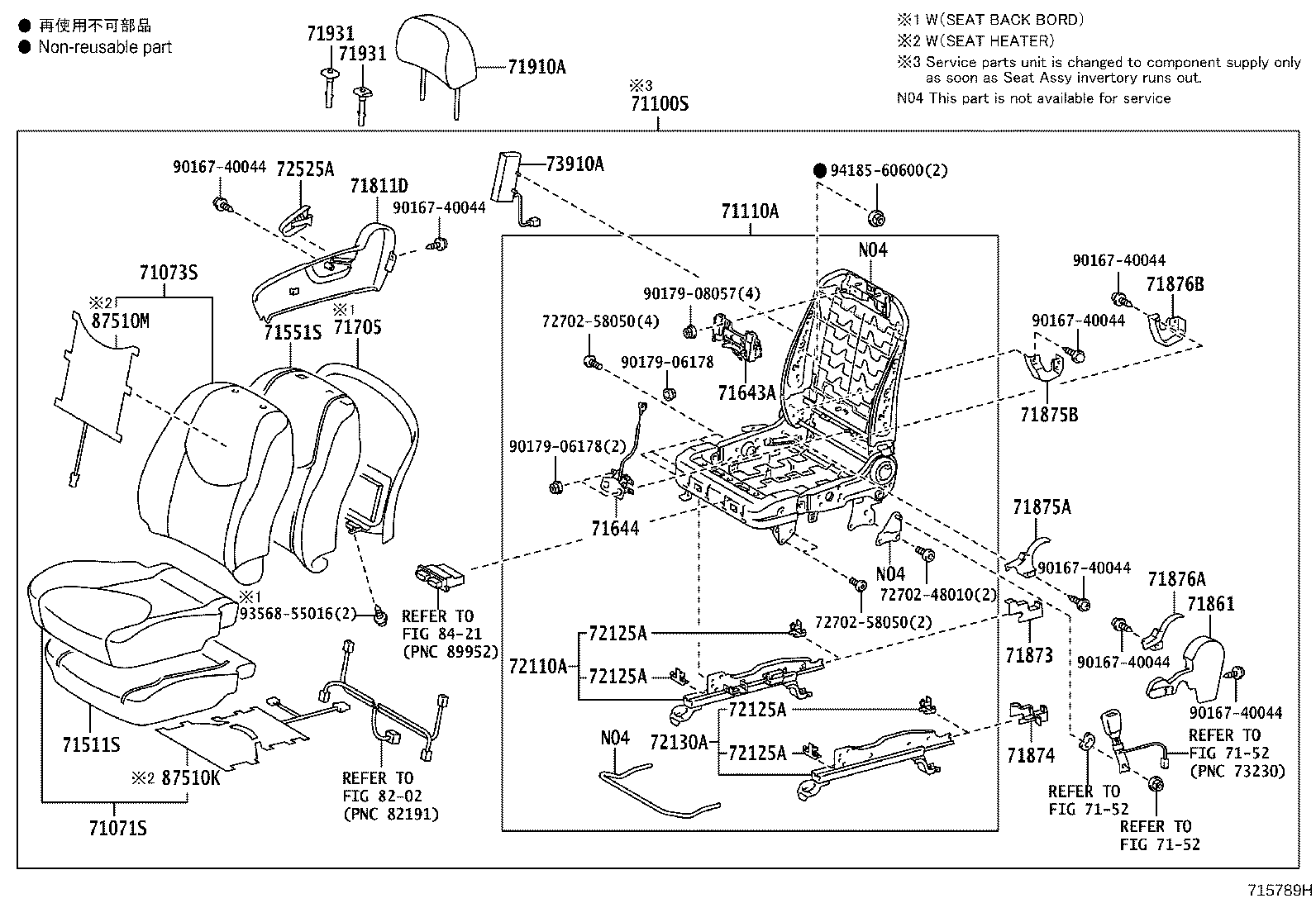

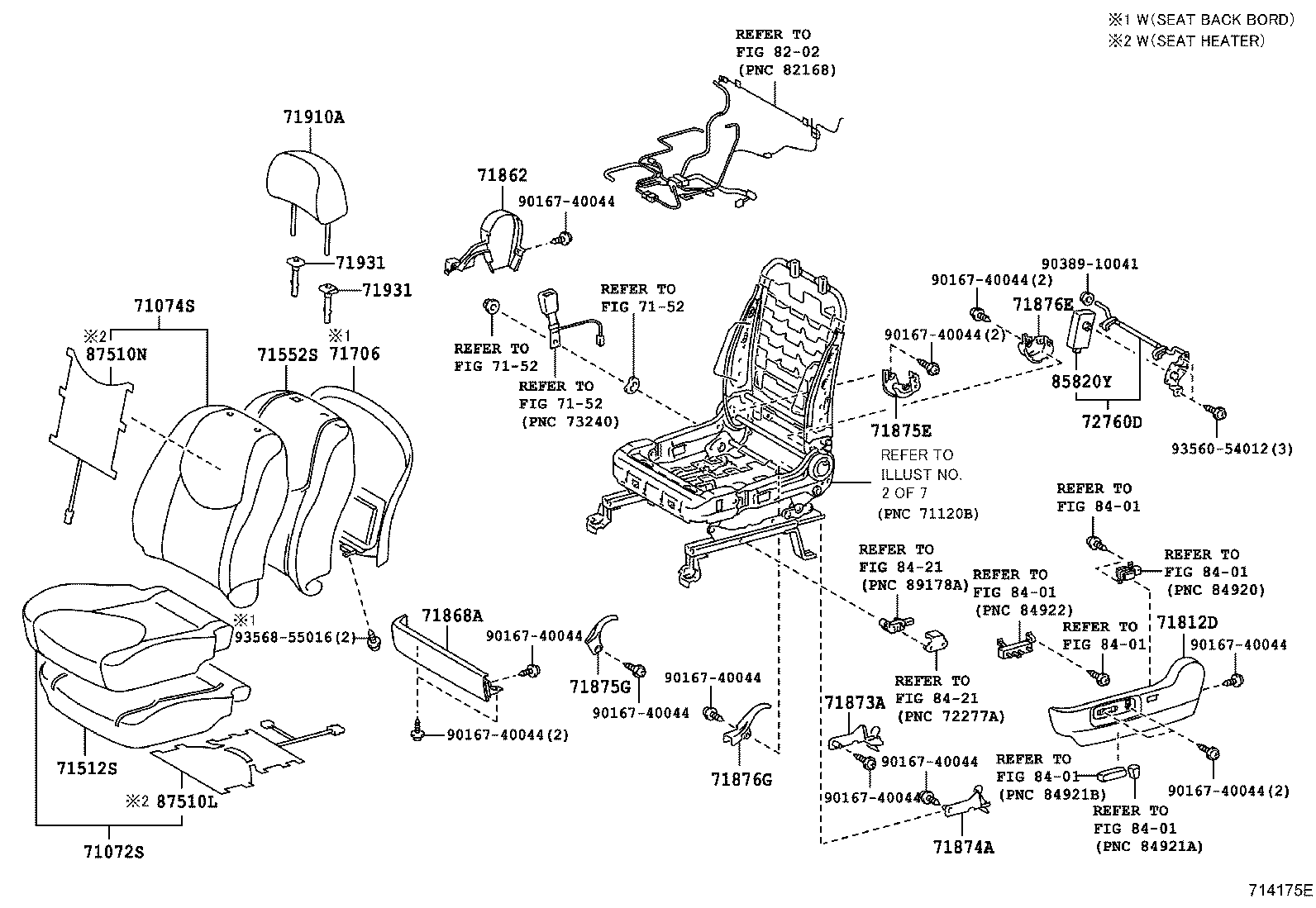

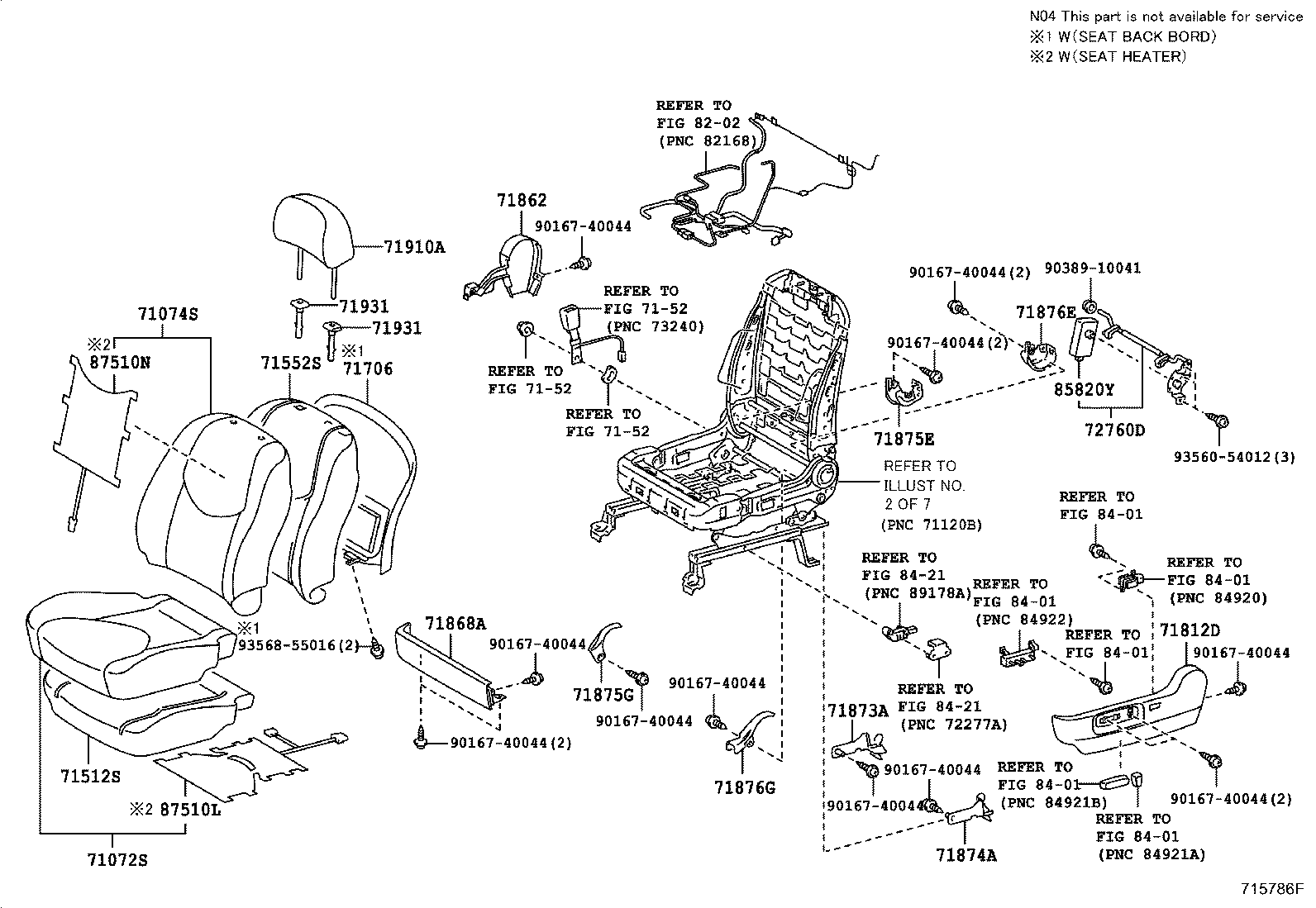

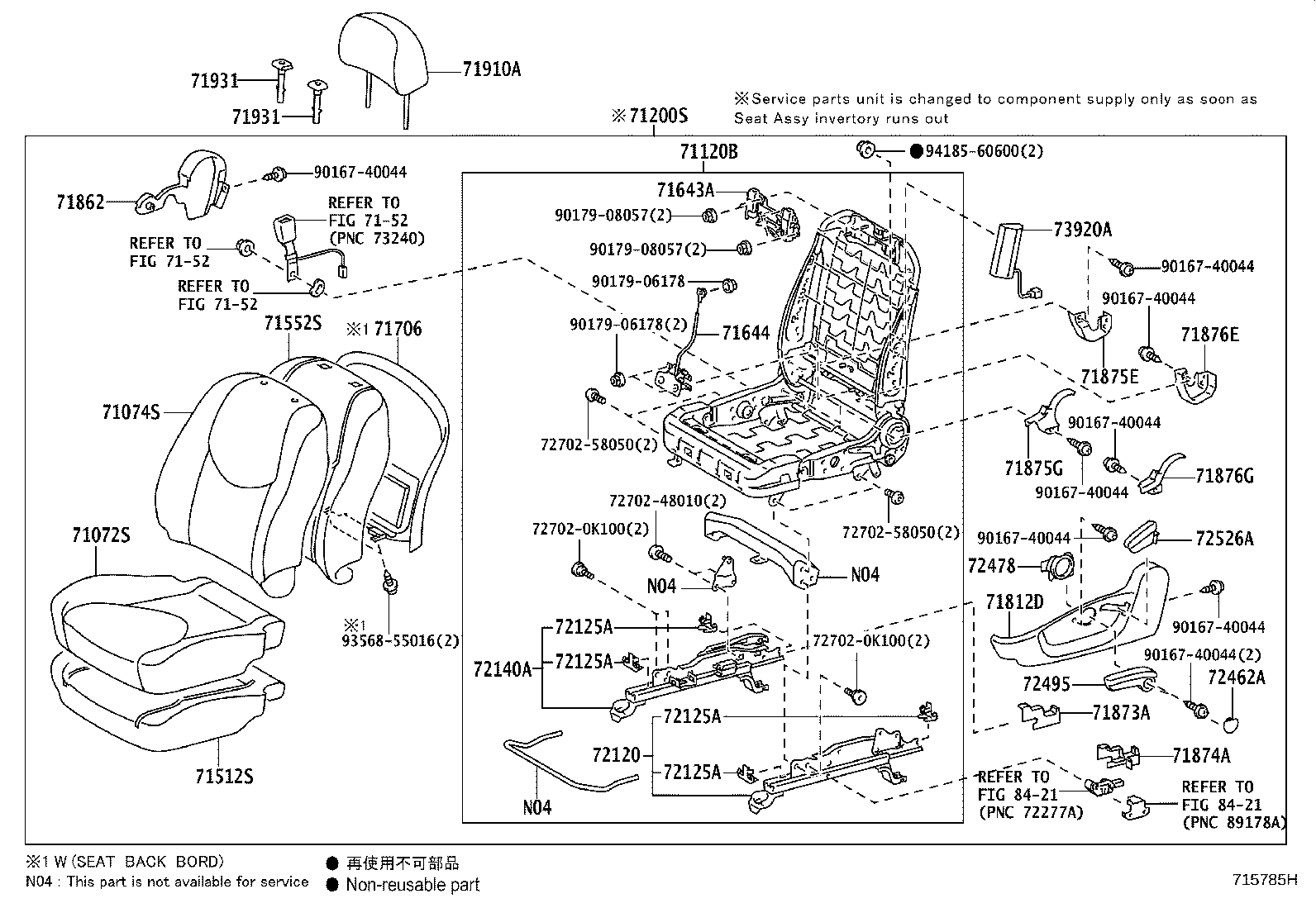

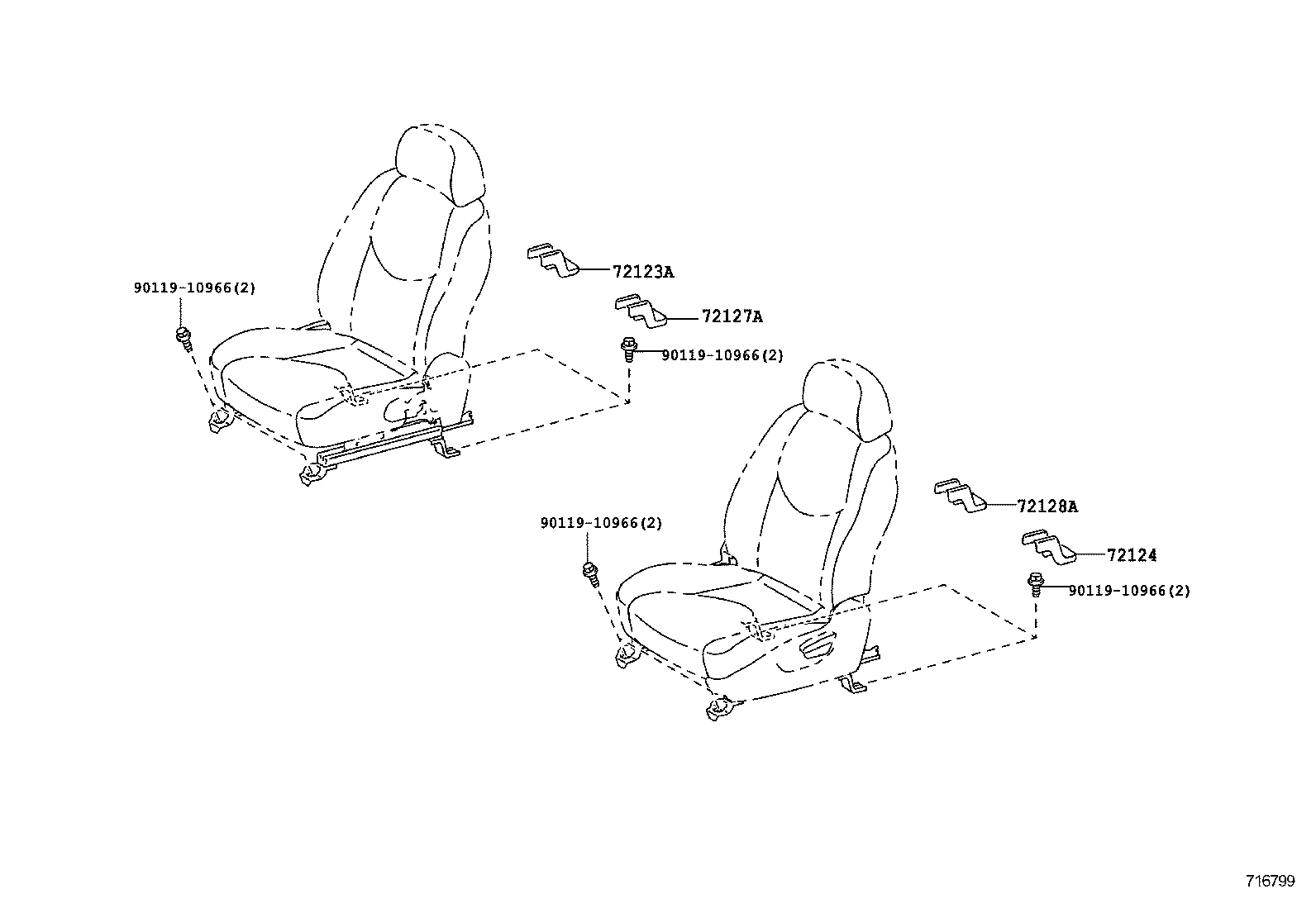

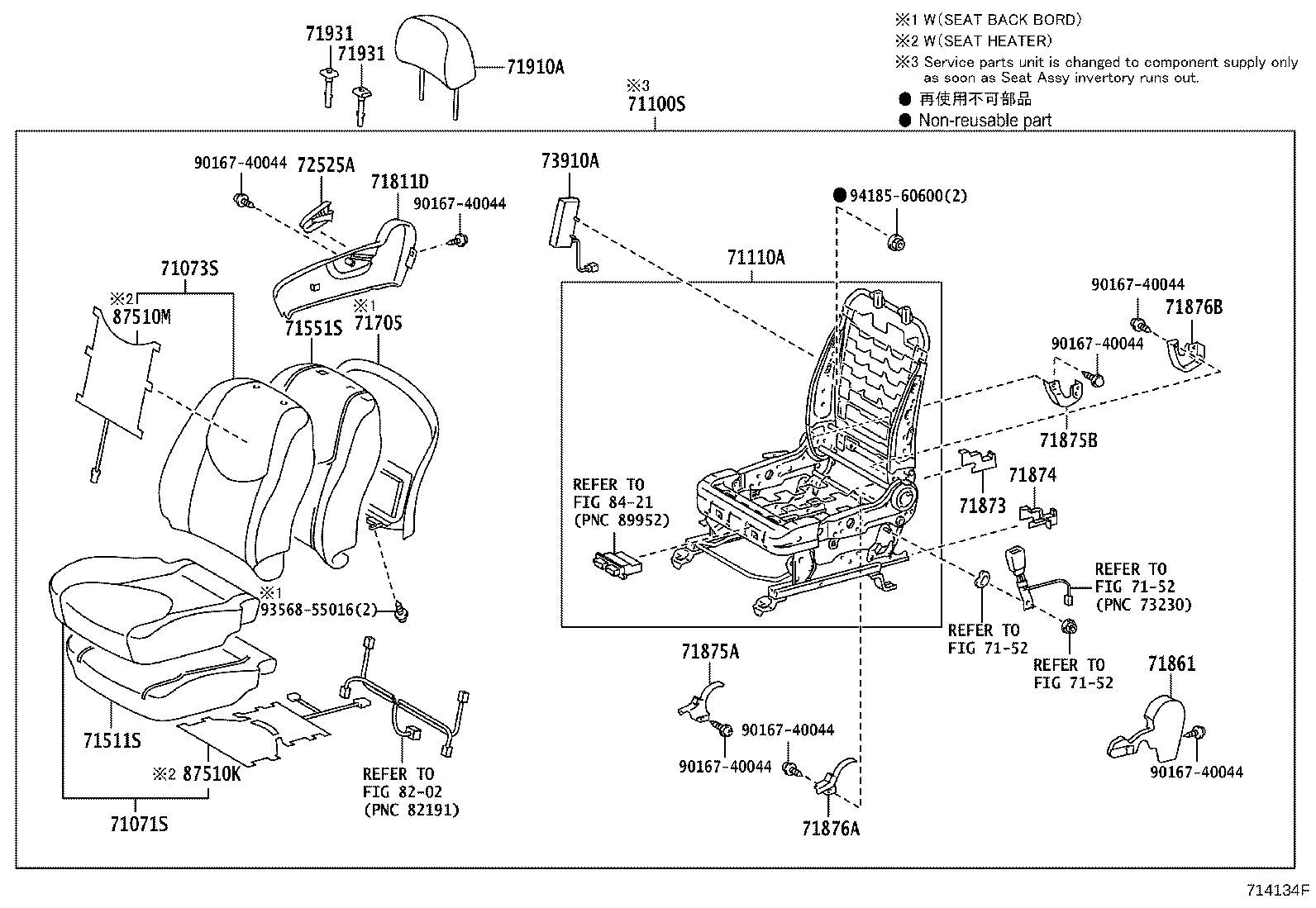

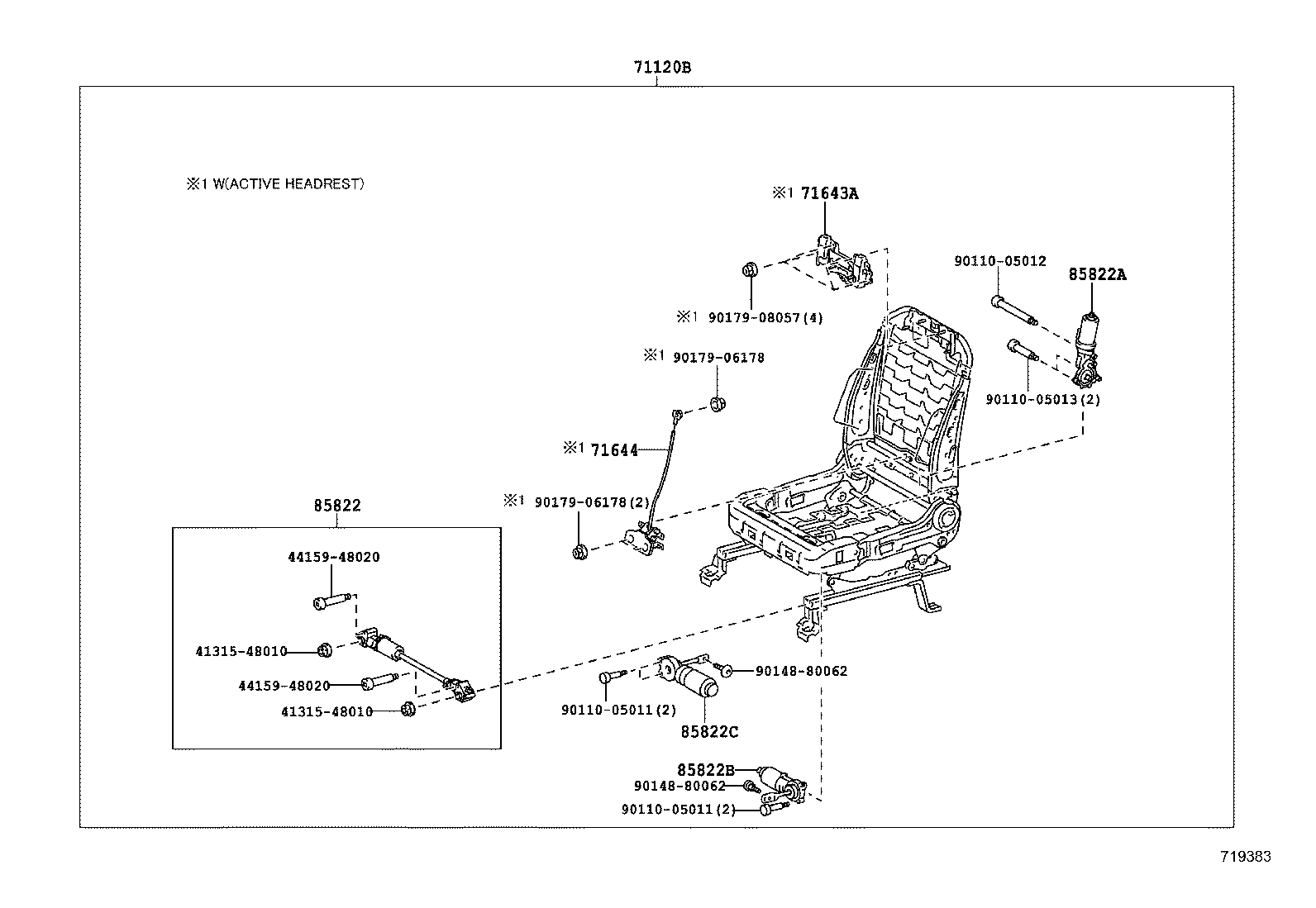

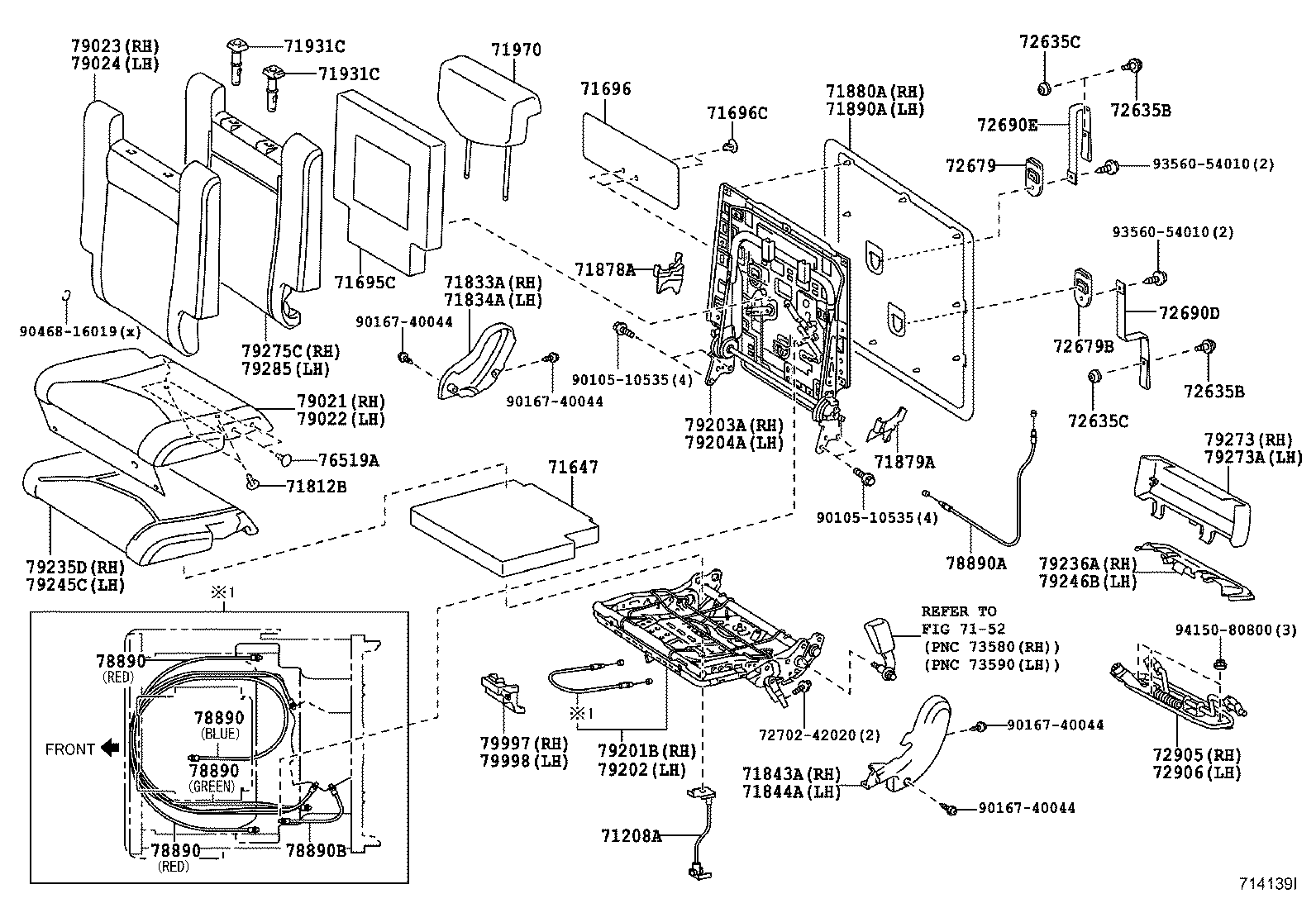

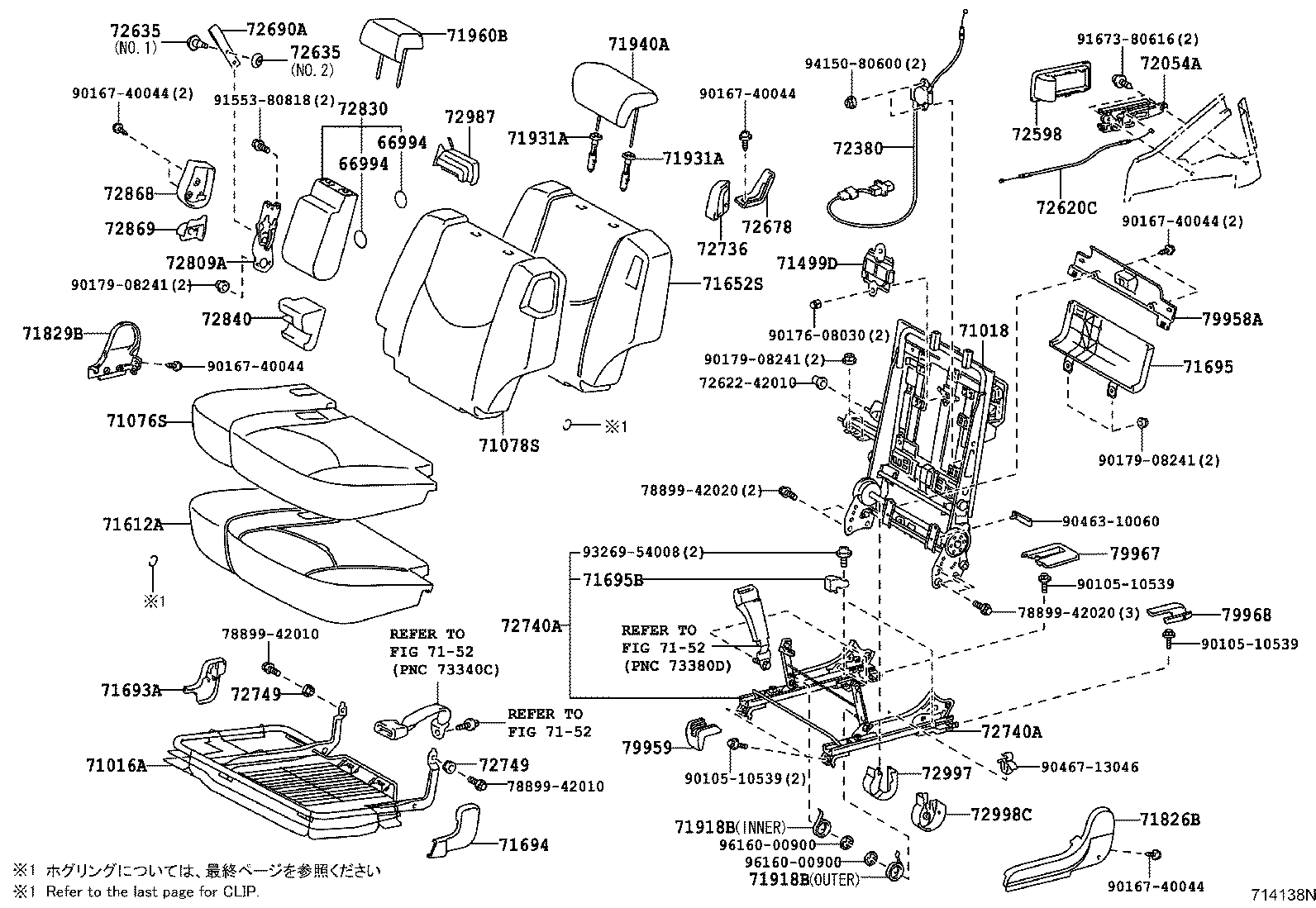

Figure 714194E 714194E 2005-11 → 2008-08 Figure 714173E 714173E 2005-11 → 2008-08 Figure 714175E 714175E 2005-11 → 2008-08 Figure 714176G 714176G 2005-11 → 2008-08 Figure 715784F 715784F 2008-08 → — Figure 715785H 715785H 2008-08 → — Figure 715786F 715786F 2008-08 → — Figure 719384B 719384B 2008-08 → — Figure 719383 719383 2005-11 → 2008-08 Figure 719383 719383 2008-08 → — Figure 714185D 714185D 2005-11 → 2008-08 Figure 714134F 714134F 2005-11 → 2008-08 Figure 715788F 715788F 2008-08 → — Figure 715789H 715789H 2008-08 → — Figure 716799 716799 2005-11 → — Figure 714137J 714137J 2005-11 → — Figure 714138N 714138N 2005-11 → — Figure 714139I 714139I 2005-11 → — Figure 718166C 718166C 2005-11 → —

Part groups

PNCDescription
66994 Cover, Cup Holder
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71208A Wire Sub-assy, Rear Seat Cushion
71499D Damper, Rear Seatback Spring
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71643A Unit, Active Headrest, Upr
71644 Unit, Active Headrest, Lwr
71647 Protector, Rear Seat Cushion Edge
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691E Cover, Rear Seat Cushion Hinge, NO.1
71692E Cover, Rear Seat Cushion Hinge, NO.2
71693A Cover, Rear Seat Cushion Hinge, NO.3
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71695 Protector, Rear Seatback
71695A Protector, Rear Seat, NO.1 RH
71695B Protector, Rear Seat, NO.1 LH
71695C Protector, Rear Seat, NO.1
71696 Protector, Rear Seat, NO.2
71696C Clip, Rear Seat Protector
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71788B Washer, Front Seatback Board Setting
71811D Shield, Front Seat Cushion, RH
71812B Clip(FOR REAR SEAT CUSHION COVER)
71812D Shield, Front Seat Cushion, LH
71825B Moulding, Rear Seat Cushion, RH
71826B Moulding, Rear Seat Cushion, LH
71828B Moulding, Rear Seat Cushion, Rear RH
71829B Moulding, Rear Seat Cushion, Rear LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876A Cover, Reclining Adjuster Inside, LH
71876B Cover, Reclining Adjuster Inside, LH
71876E Cover, Reclining Adjuster Inside, LH
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71878A Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71880A Carpet Assy, Rear Seatback Board, RH
71890A Carpet Assy, Rear Seatback Board, LH
71910A Headrest Assy, Front Seat
71918A Spring, Center Seat Cushion Catch
71918B Spring, Center Seat Cushion Catch, NO.2
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
72053C Lever Sub-assy, Reclining Remote Control, RH
72054A Lever Sub-assy, Reclining Remote Control, LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125A Cover, Seat Track, Upper Rear
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72130A Track Assy, Front Seat, Inner RH
72140A Track Assy, Front Seat,Inner LH
72307 Link Sub-assy, Reclining Control, RH
72380 Cable Assy, Seat Adjuster Control, NO.2
72462A Cover, Vertical Adjuster LH
72478 Bush, Vertical Adjuster
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72597A Bezel, Reclining Remote Control Lever, RH
72598 Bezel, Reclining Remote Control Lever, LH
72620B Cable Assy, Rear NO.1 Seat Lock
72620C Cable Assy, Rear NO.1 Seat Lock
72635 Hook, Rear Seatback Lock
72635B Hook, Rear Seatback Lock(MALE)
72635C Hook, Rear Seatback Lock(FEMALE)
72677A Base, Rear Seatback Lock Control Lever, RH
72678 Base, Rear Seatback Lock Control Lever, LH
72679 Bezel, Rear Seatback Lock Control
72679B Bezel, Rear Seatback Lock Control
72690A Strap Assy, Rear Seat Lock Release
72690D Lever Assy, Seat Cushion Lock Release, NO.1
72690E Lever Assy, Seat Cushion Lock Release, NO.2
72722 Lever, Rear Seat Reclining Control
72728 Protector, Rear Seat Reclining, Inner RH
72730A Adjuster Assy, Rear Seat Reclining, RH
72735 Lever, Rear Seat Reclining Release
72736 Lever, Rear Seat Reclining Release, LH
72740A Adjuster Assy, Rear Seat Reclining, LH
72749 Spacer, Rear Seat Reclining
72760D Adjuster Assy, Lumbar Support, LH
72809A Lock Sub-assy, Center Armrest
72830 Armrest Assy, Rear Seat, Center
72840 Armrest Assy, Rear NO.1 Seat, LH
72868 Cover, Center Armrest Hinge, RH
72869 Cover, Center Armrest Hinge, LH
72905 Link Sub-assy, 3RD Seat, RH
72906 Link Sub-assy, 3RD Seat, LH
72987 Cover, Rear Seat Center Armrest
72995A Cover, Rear Seat
72996 Cover, Rear Seatback, RH
72997 Cover, Rear Seatback, LH
72998C Cover, Rear Seat, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
76519A Clip, Rear Seat Cushion Cover
78890 Cable Assy, Sub Seat Lock Control
78890A Cable Assy, Sub-seat Lock Control
78890B Cable Assy, Sub-seat Lock Control
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79203A Frame Sub-assy, NO.2 Seatback, RH
79204A Frame Sub-assy, NO.2 Seatback, LH
79235D Pad, NO.2 Seat Cushion, RH
79236A Cover, NO.2 Seat Leg
79245C Pad, NO.2 Seat Cushion, LH
79246B Cover, NO.2 Seat Leg, B
79273 Cover, NO.2 Seat Hinge
79273A Cover, NO.2 Seat Hinge, NO.2
79275C Pad, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79957A Cover, Rear Seat Rear Bracket, RH
79958A Cover, Rear Seat Rear Bracket, LH
79959 Cover, RR Seat Leg
79965 Cover, Rear Seat Leg Side, NO.2
79966 Cover, Rear Seat Leg Side, NO.3
79967 Cover, Rear Seat Leg Side, NO.4
79968 Cover, Rear Seat Leg Side, NO.5
79997 Protector, Seat Leg Box, NO.1
79998 Protector, Seat Leg Box, NO.2
85820Y Motor Assy, Power Seat
85822 Motor Assy, Power Seat Slide, LH
85822A Motor Assy, Power Seat Reclining, LH
85822B Motor Assy, Power Seat Tilt, LH
85822C Motor Assy, Power Seat Lifter, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
