Toyota RAV4 (JPP)

2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

11 part groups · 1 illustrations

Illustrations

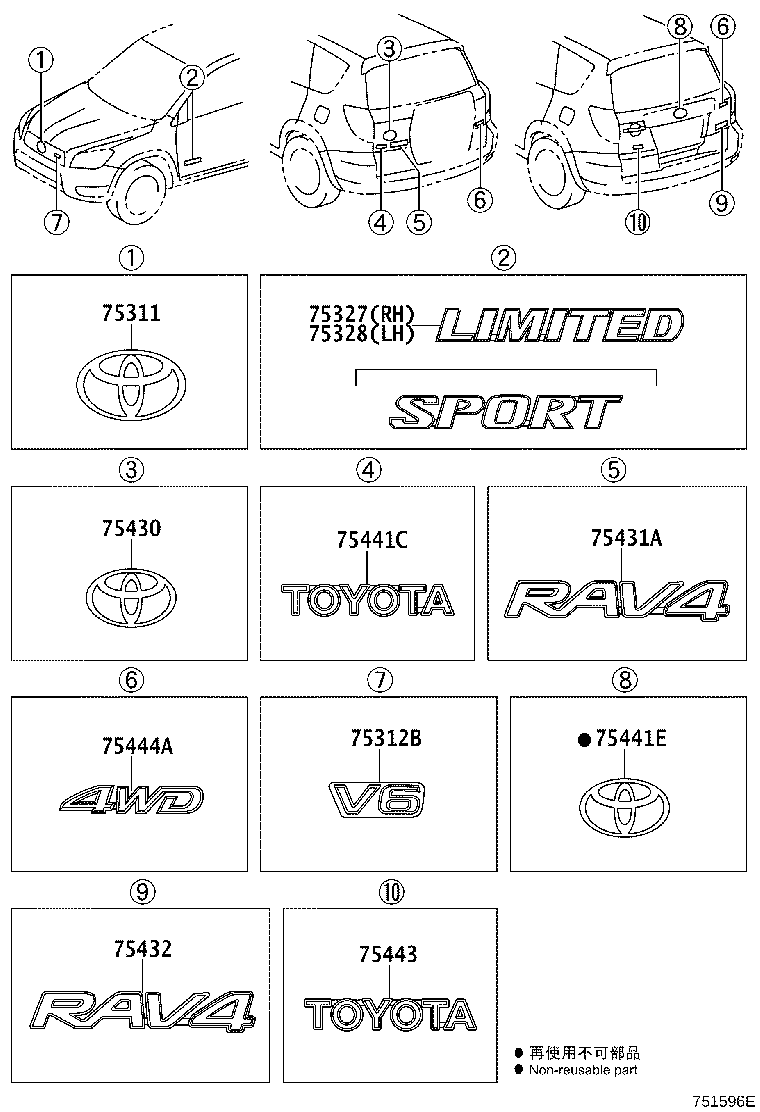

Figure 751596E 751596E 2005-11 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312B Emblem, Radiator Grille, NO.2
75327 Mark, Front Door, RH
75328 Mark, Front Door, LH
75430 Emblem Assy, Back Door, NO.1
75431A Emblem, Back Door, NO.1
75432 Emblem, Back Door, NO.2
75441C Plate, Back Door Name
75441E Plate, Back Door Name, NO.1
75443 Plate, Back Door Name, NO.3
75444A Plate, Back Door Name, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
