Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07
Moulding
19 part groups · 1 illustrations

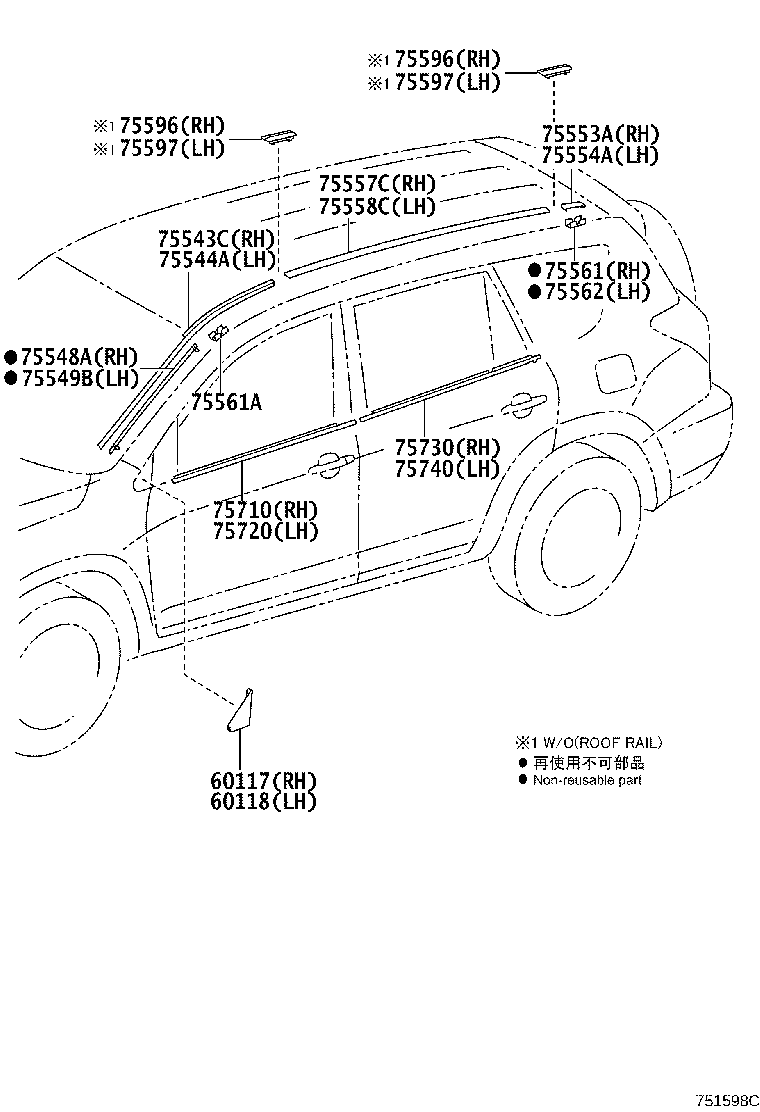

Illustrations
Part groups
| PNC | Description |
|---|---|
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 75543C | Moulding, Windshield, Outside NO.2 RH |
| 75544A | Moulding, Windshield, Outside NO.2 LH |
| 75548A | Fastener, Windshield Outside Moulding, NO.1 |
| 75549B | Fastener, Windshield Outside Moulding, NO.2 |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75557C | Moulding, Roof Drip Side Finish, Center NO.2 RH |
| 75558C | Moulding, Roof Drip Side Finish, Center NO.2 LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75562 | Clip, Roof Drip Side Finish Moulding, NO.2 |
| 75596 | Cover, Roof Drip Side Finish Moulding Joint, RH |
| 75597 | Cover, Roof Drip Side Finish Moulding Joint, LH |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
