Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07

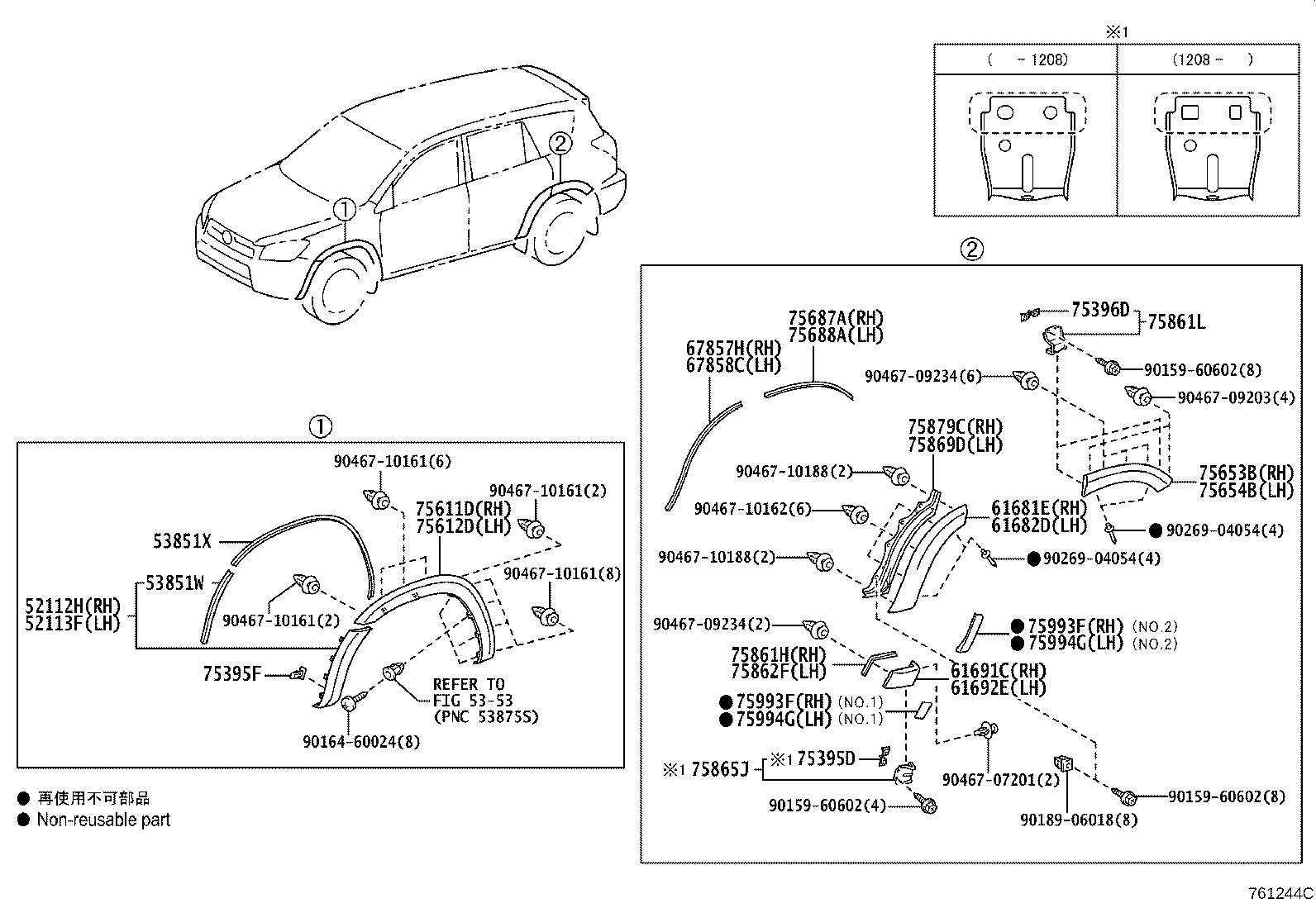

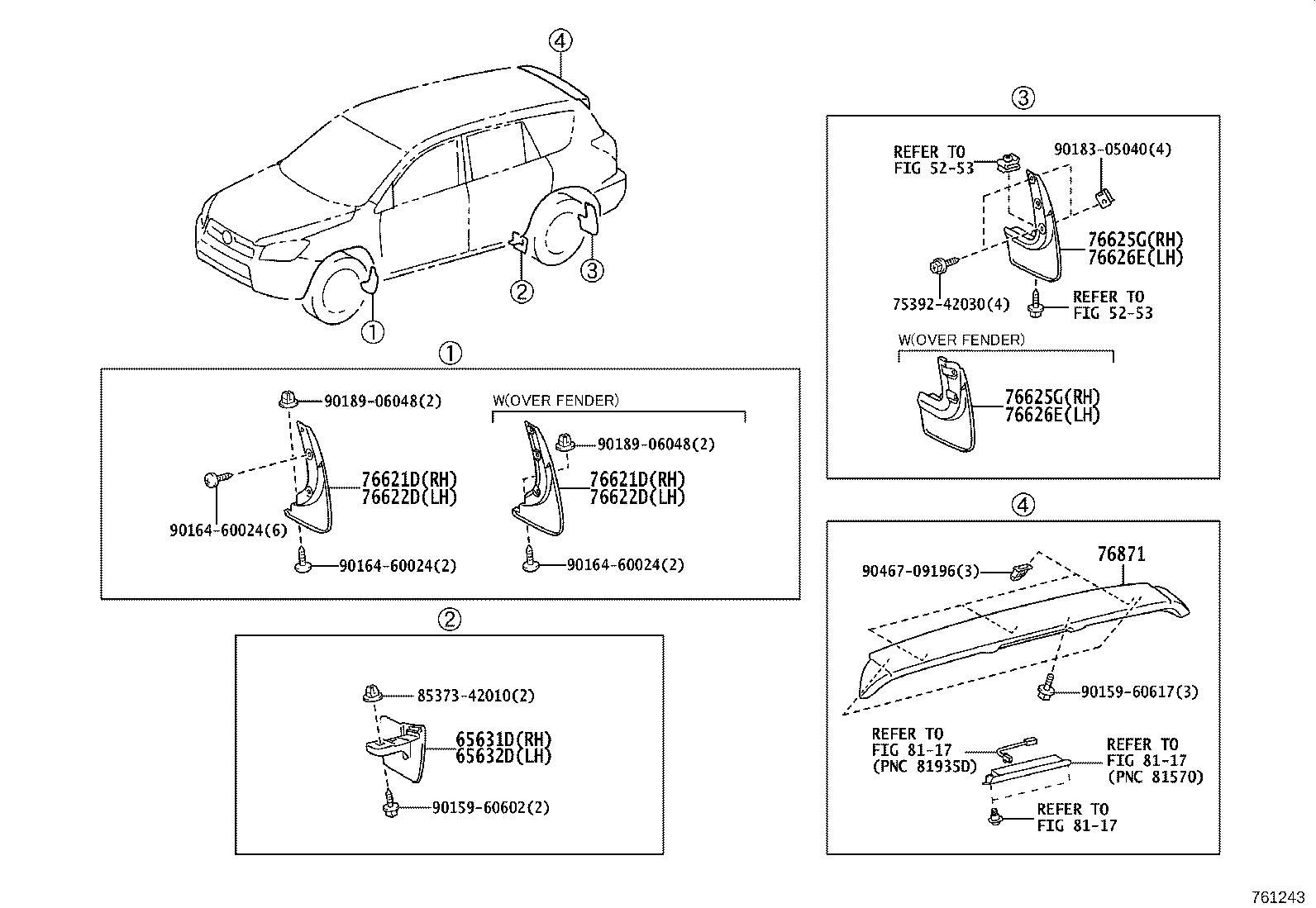

Spoiler & Side Mudguard
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52112H | Extension, Front Bumper, RH |
| 52113F | Extension, Front Bumper, LH |
| 53851W | Pad, Front Wheel Opening Extension, NO.1 |
| 53851X | Pad, Front Wheel Opening Extension, NO.1 |
| 61681E | Extension, Rear Wheel Opening, NO.1 RH |
| 61682D | Extension, Rear Wheel Opening, NO.1 LH |
| 61691C | Extension, Rear Wheel Opening, NO.2 RH |
| 61692E | Extension, Rear Wheel Opening, NO.2 LH |
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 67857H | Protector, Rear Door Panel, RH |
| 67858C | Protector, Rear Door Panel, LH |
| 75395D | Clip, Outside Moulding, NO.1 |
| 75395F | Clip, Outside Moulding, NO.1 |
| 75396D | Clip, Outside Moulding, NO.2 |
| 75611D | Moulding, Front Fender, Outside Front RH |
| 75612D | Moulding, Front Fender, Outside Front LH |
| 75653B | Moulding, Quarter Outside, RH NO.3 |
| 75654B | Moulding, Quarter, Outside NO.4 |
| 75687A | Protector, Quarter Moulding, Lower Rear RH |
| 75688A | Protector, Quarter Moulding, Lower Rear LH |
| 75861H | Protector, Rocker Panel Moulding, NO.1 |
| 75861L | Retainer, Rocker Panel Moulding, NO.1 |
| 75862F | Protector, Rocker Panel Moulding, NO.2 |
| 75865J | Retainer, Rocker Panel Moulding, NO.2 |
| 75869D | Retainer, Quarter Opening, LH |
| 75879C | Retainer, Quarter Opening, RH |
| 75993F | Stripe, Quarter, Front RH |
| 75994G | Stripe, Quarter, Front LH |
| 76621D | Mudguard, Front Fender, RH |
| 76622D | Mudguard, Front Fender, LH |
| 76625G | Mudguard, Quarter Panel, Rear RH |
| 76626E | Mudguard, Quarter Panel, Rear LH |
| 76871 | Spoiler, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
