Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07

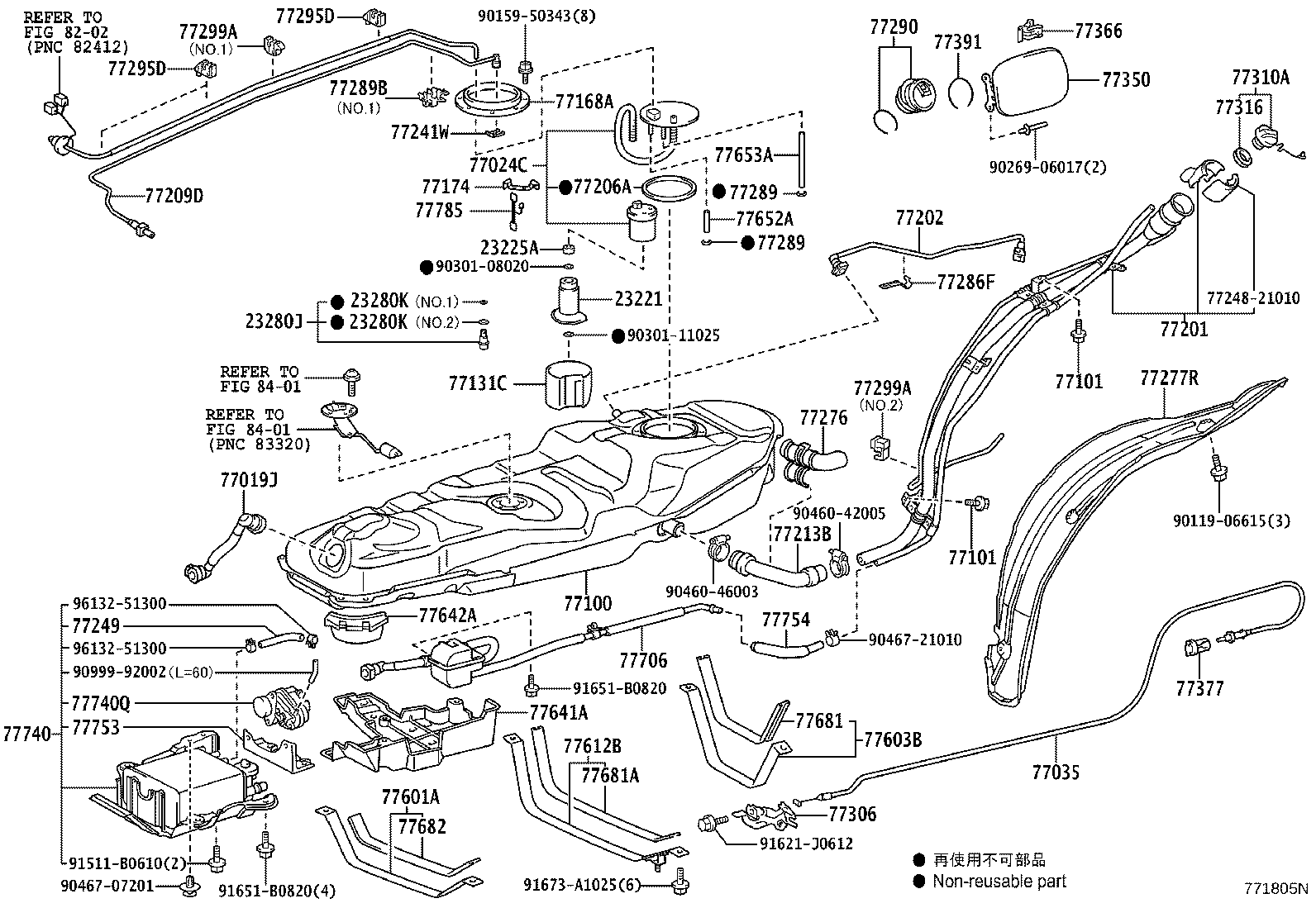

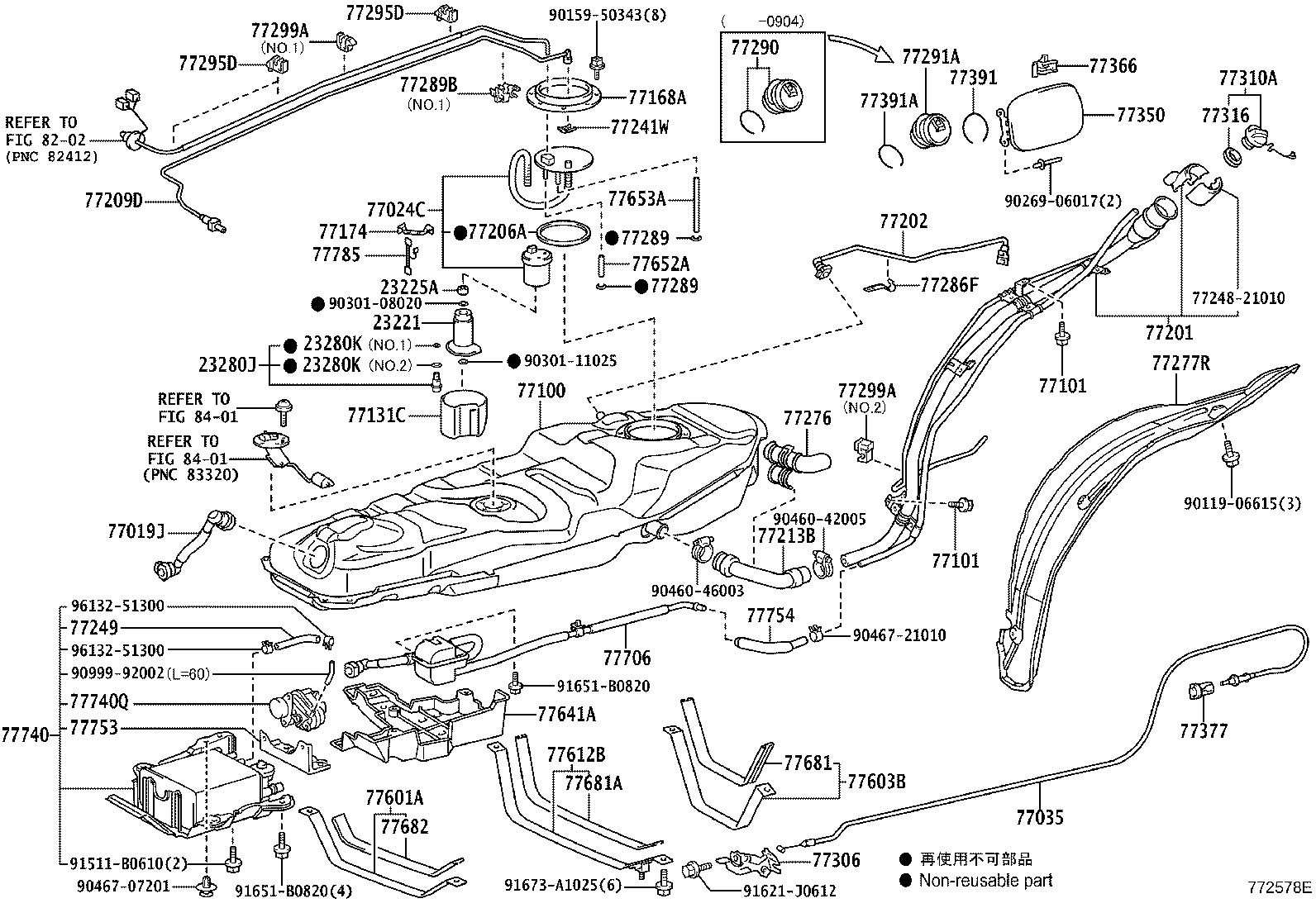

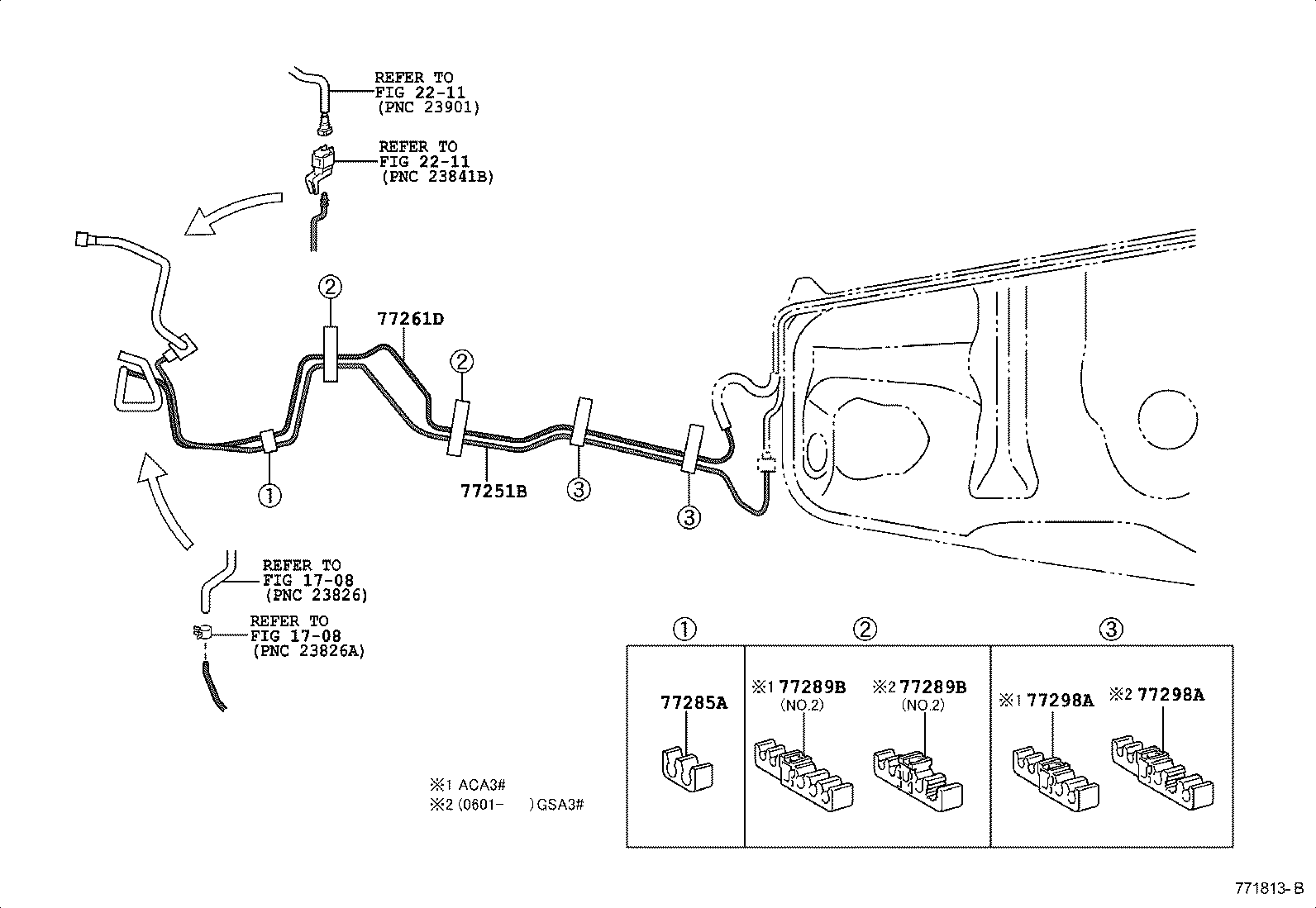

Fuel Tank & Tube
56 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 77019J | Tube Sub-assy, Fuel Tank TO Canister |
| 77024C | Plate Sub-assy, Fuel Suction W/Fuel Filter |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77101 | Plug(FOR FUEL SUB-TANK) |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202 | Tube Sub-assy, Breather |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77241W | Clip, Tube Joint |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77261D | Tube, Fuel Tank TO Canister |
| 77276 | Protector, Fuel Hose |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285A | Support, Fuel Return And Main Tube |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77295D | Grommet, Fuel Tube |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603B | Band Sub-assy, Fuel Tank, NO.2 RH |
| 77612B | Band, Fuel Tank, NO.2 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77681A | Seat, Fuel Tank Band |
| 77682 | Seat, Fuel Tank Band, LH |
| 77706 | Filter Sub-assy, Charcoal Canister |
| 77740 | Canister Assy, Charcoal |
| 77740Q | Leak Detection Pump Sub-assy, Charcoal Canister |
| 77753 | Bracket, Charcoal Canister, NO.3 |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
