Toyota RAV4 (JPP)

2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States

Supported model Data version 2013-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 2 illustrations

Illustrations

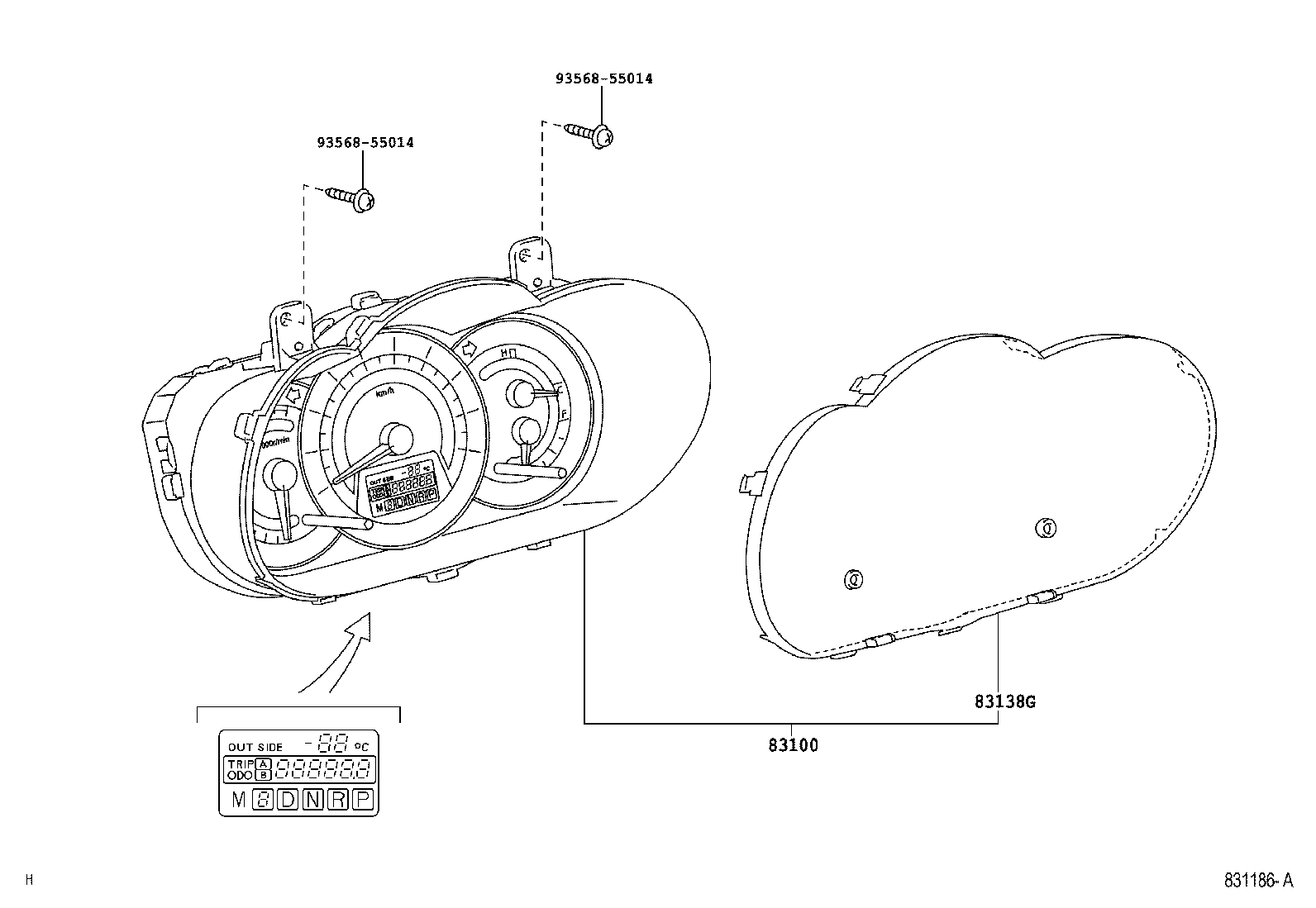

Figure 831186A

831186A 2005-11 → —

Figure 831187D

831187D 2005-11 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83138G	Glass, Combination Meter
83902	Clock Sub-assy
83911C	Ornament, Clock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
