Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07
Abs & Vsc

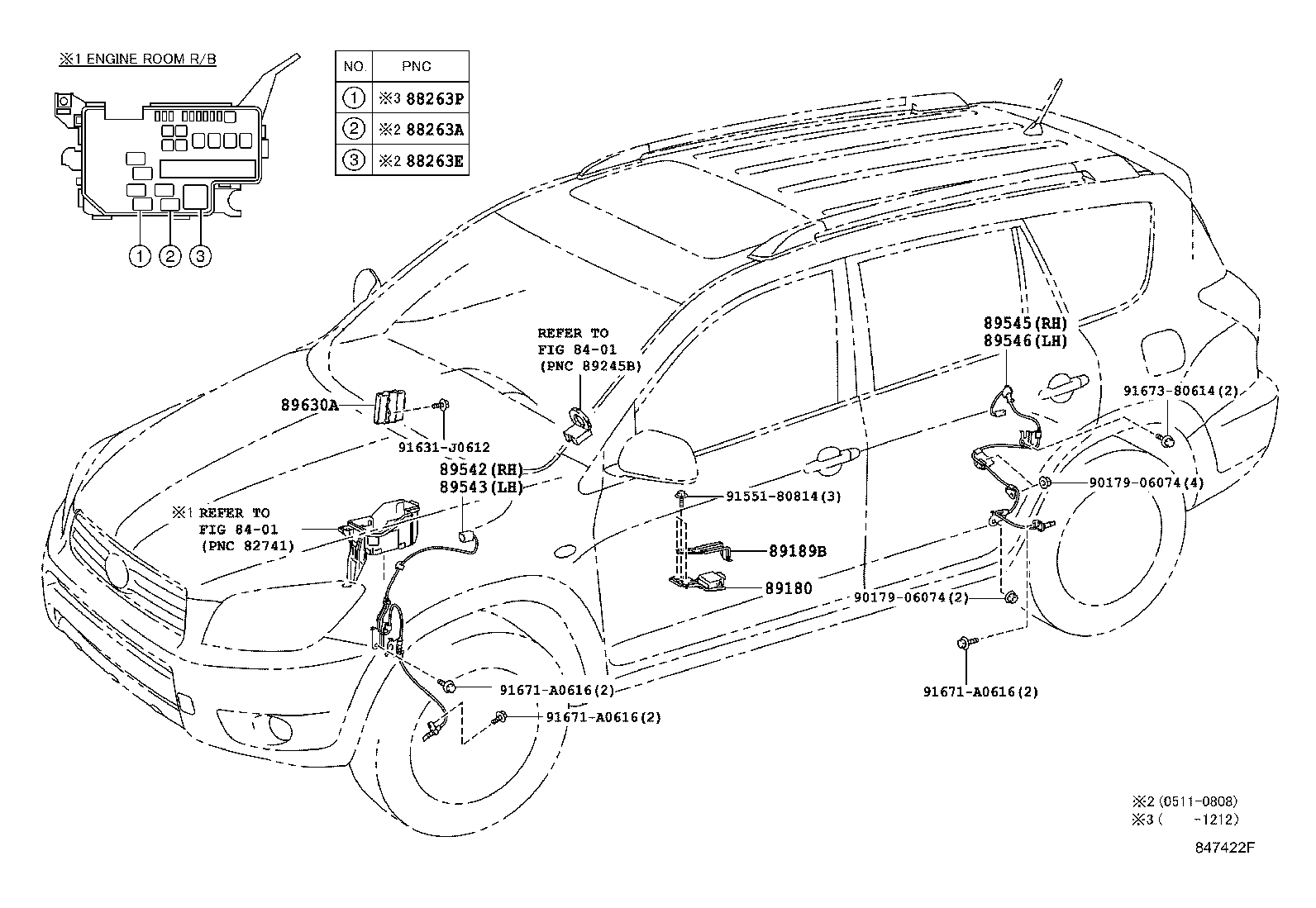

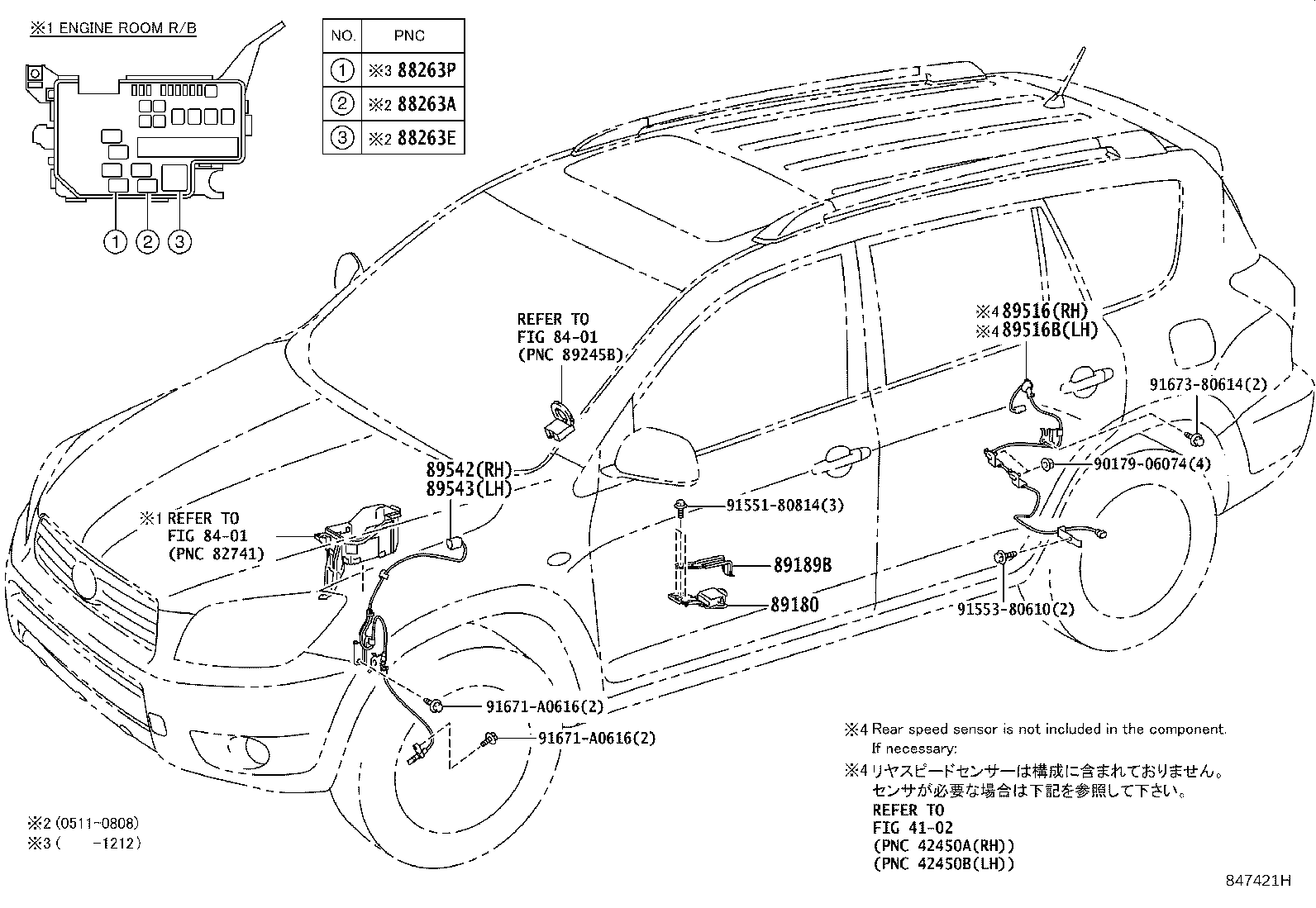

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 88263P | Relay, Stop Lamp Control |
| 89180 | Sensor Assy, Yawrate |
| 89189B | Bracket, Yawrate Sensor |
| 89516 | Wire, Skid Control Sensor |
| 89516B | Wire, Skid Control Sensor |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89630A | Computer Assy, 4WD |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
