Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07

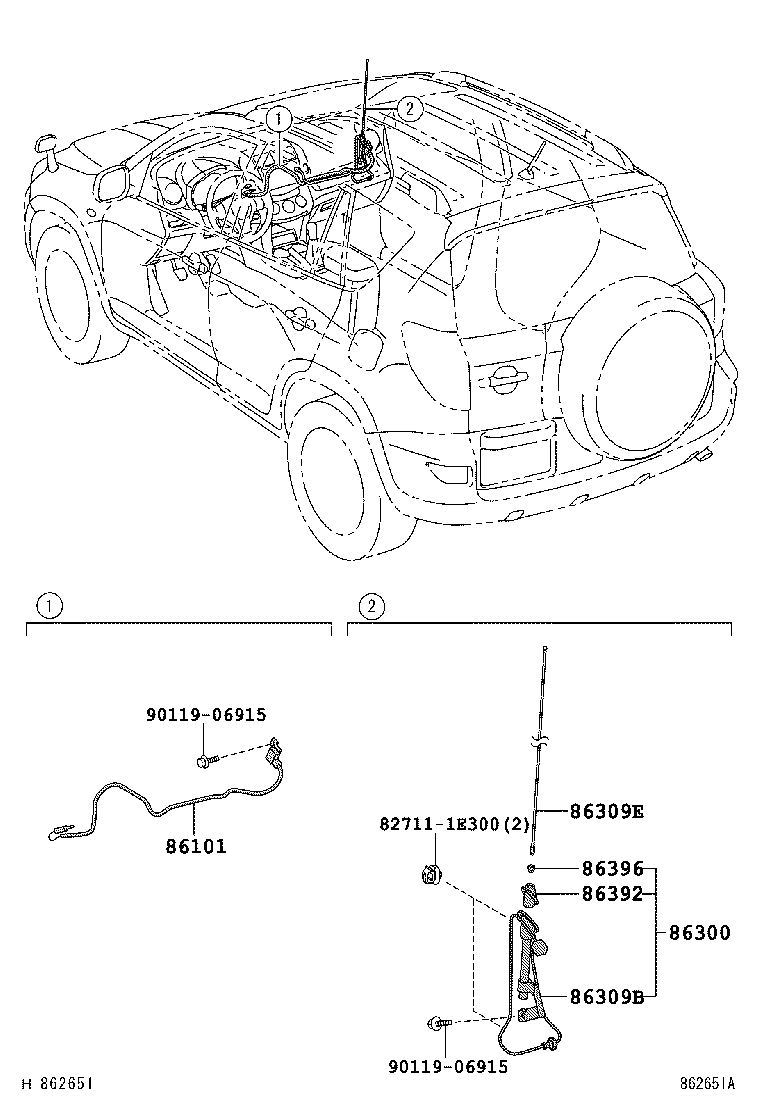

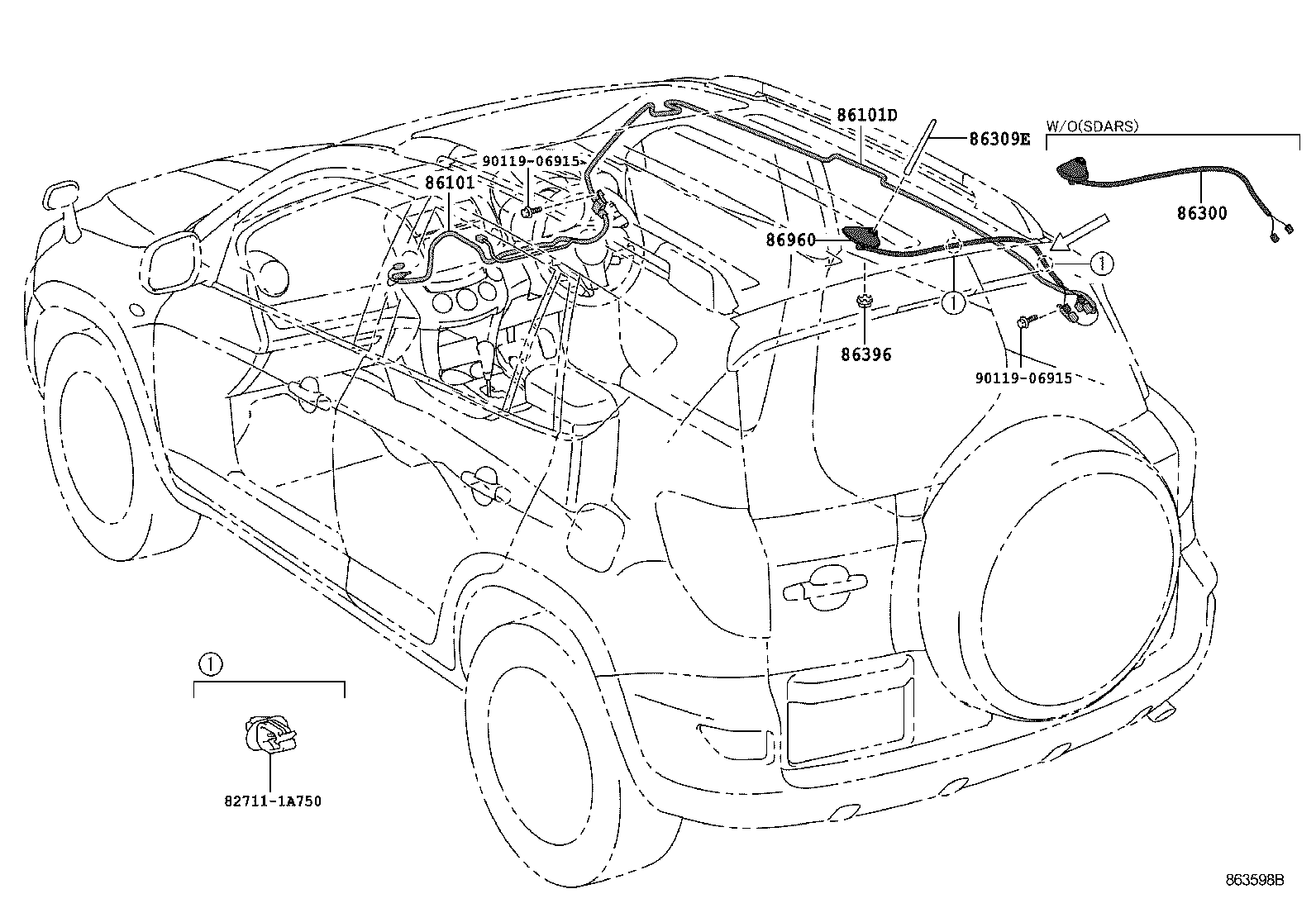

Antenna
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86300 | Antenna Assy, W/Holder |
| 86309B | Pole Sub-assy, Pull Top Antenna |
| 86309E | Pole Sub-assy, Roof Antenna |
| 86392 | Ornament, Antenna |
| 86396 | Nut, Antenna |
| 86960 | Antenna Assy, Satellite Radio |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
