Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07
Camera & Rear Monitor Display
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|

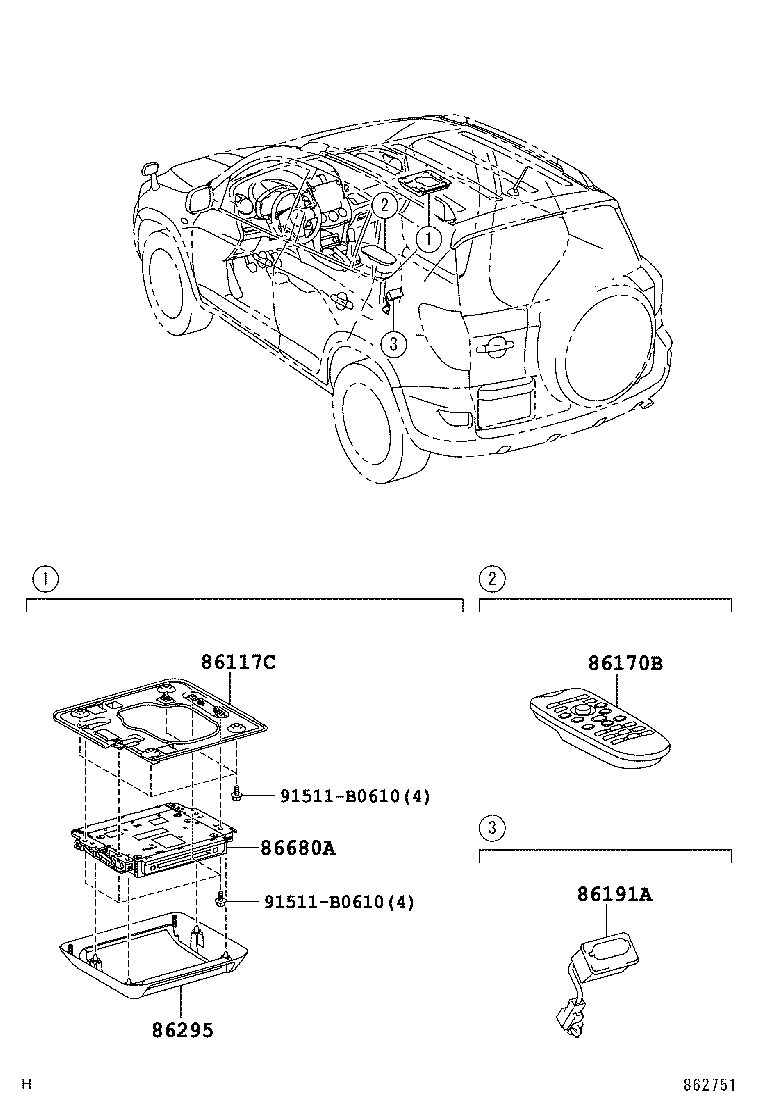

| 86117C | Bracket, Multi-display Controller, NO.2 |
| 86170B | Switch & Volume Assy, Television |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |

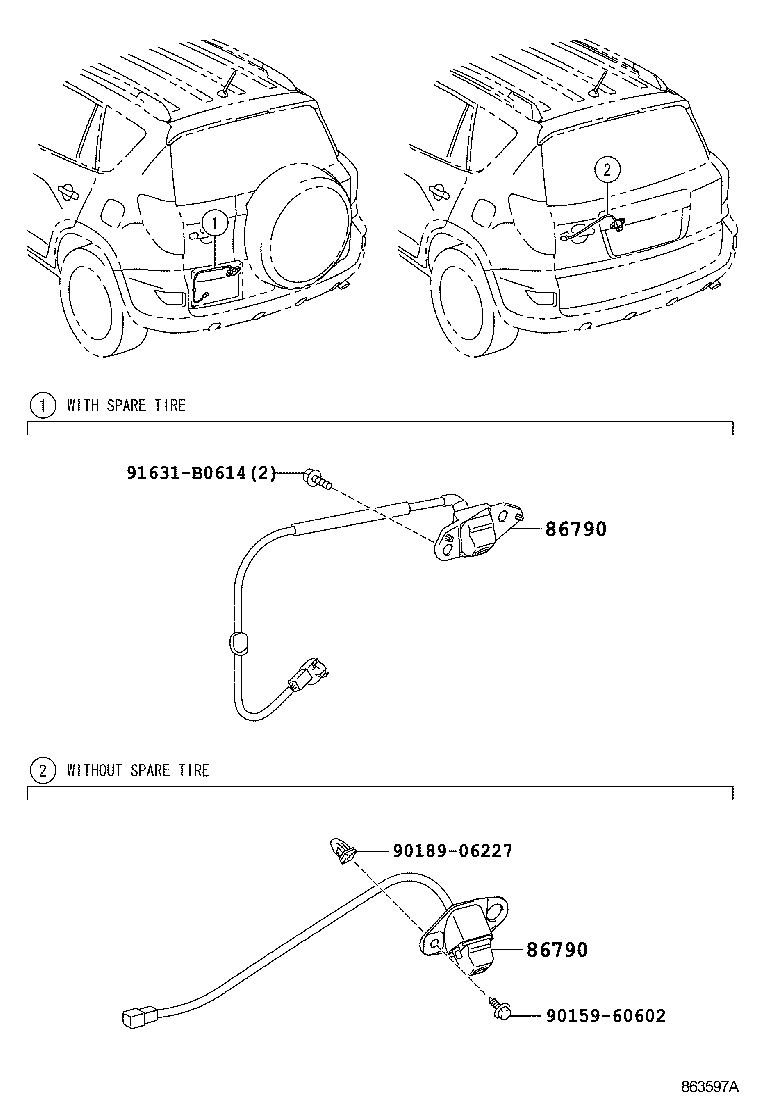

| 86790 | Camera Assy, Television |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
