Toyota RAV4 (JPP)

2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

2 part groups · 2 illustrations

Illustrations

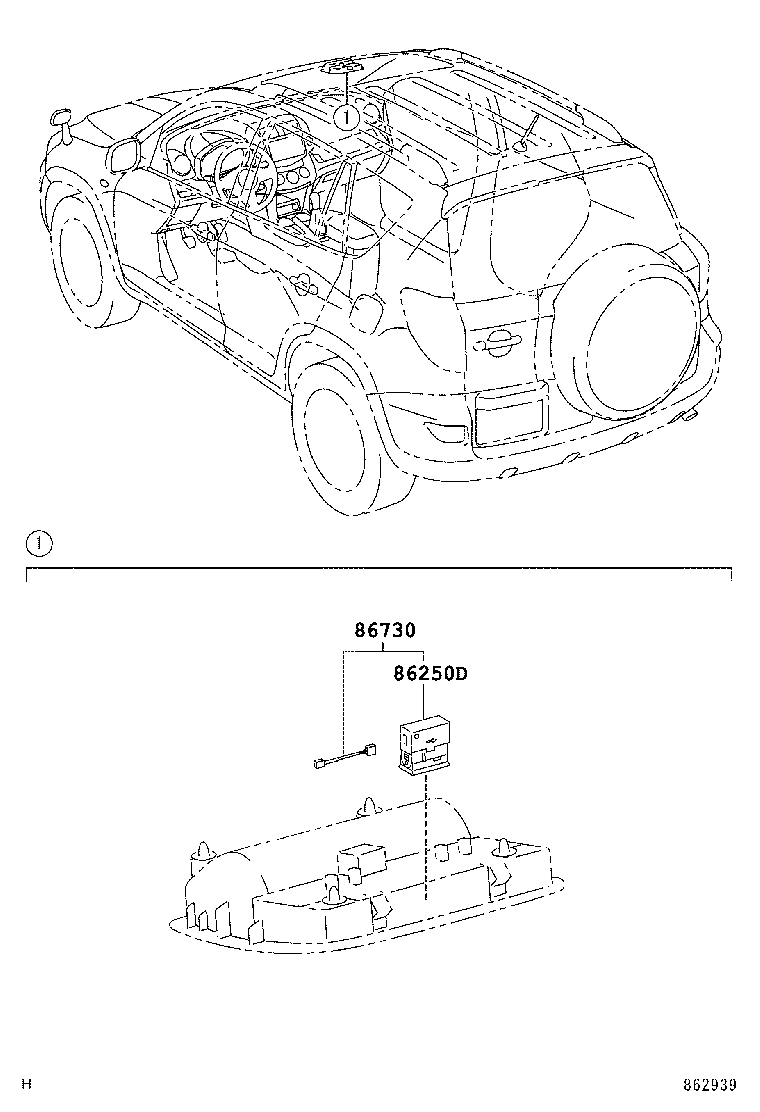

Figure 862939 862939 2006-08 → 2011-12 Figure 862939 862939 2011-12 → —

Part groups

PNCDescription
86250D Microphone Assy, Amplifier
86730 Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
