Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07

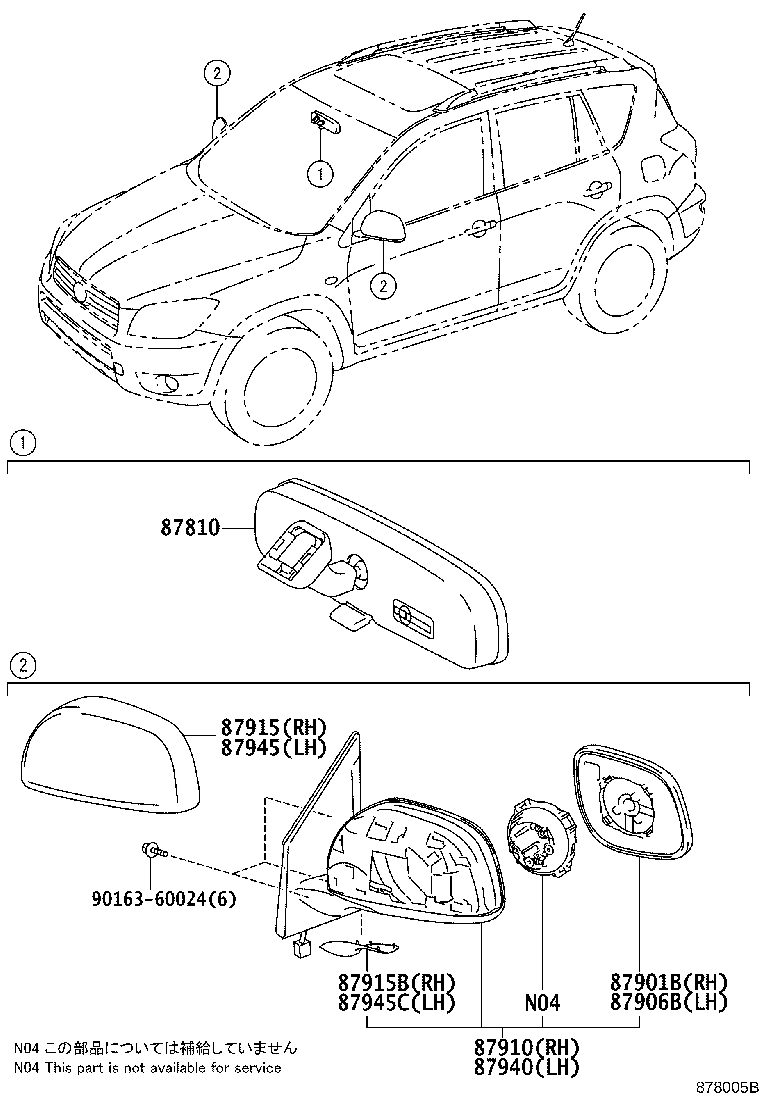

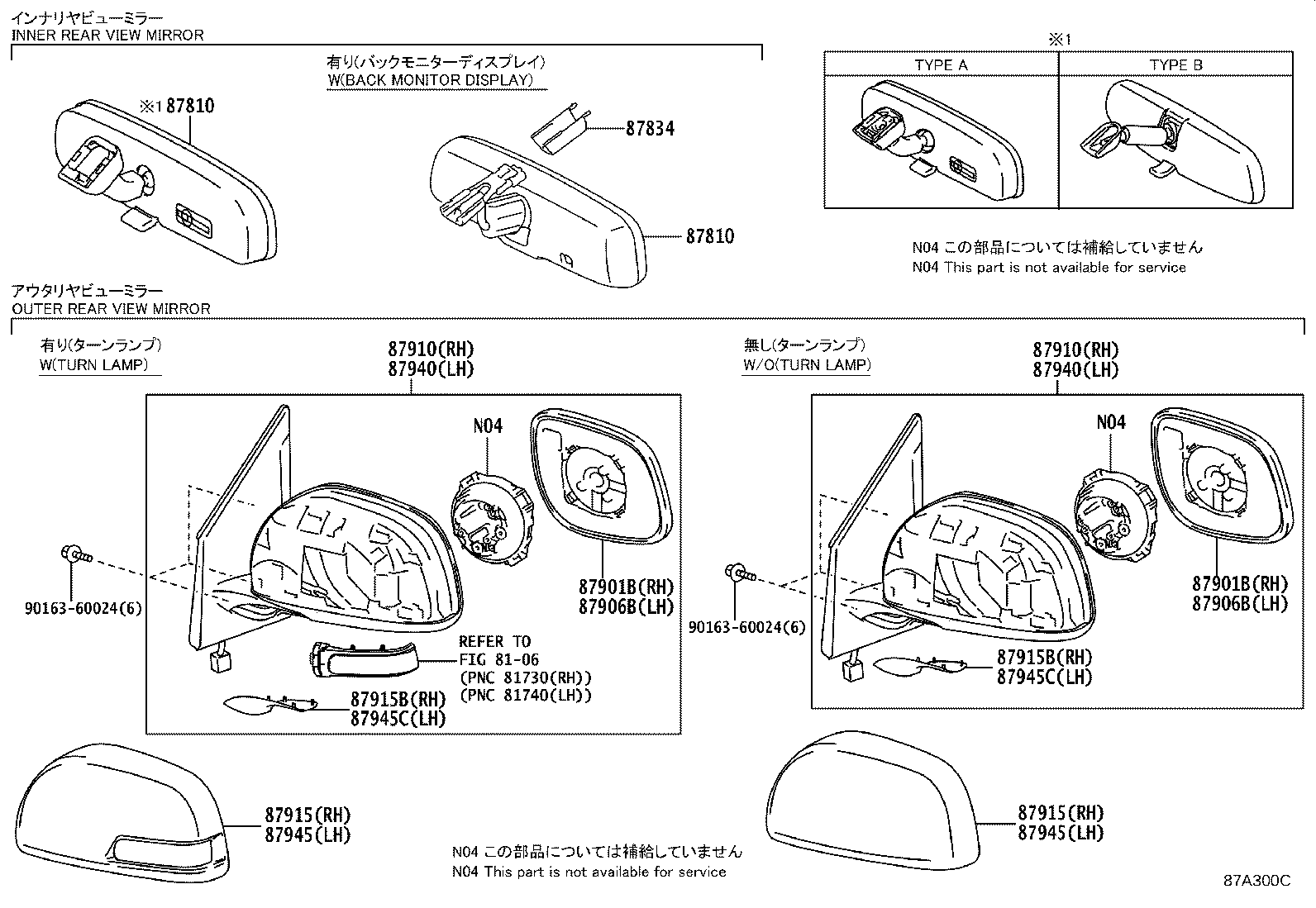

Mirror
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915B | Cover, Outer Mirror, Lower RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945C | Cover, Outer Mirror, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
