Toyota RAV4 (JPP)

2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

8 part groups · 5 illustrations

Illustrations

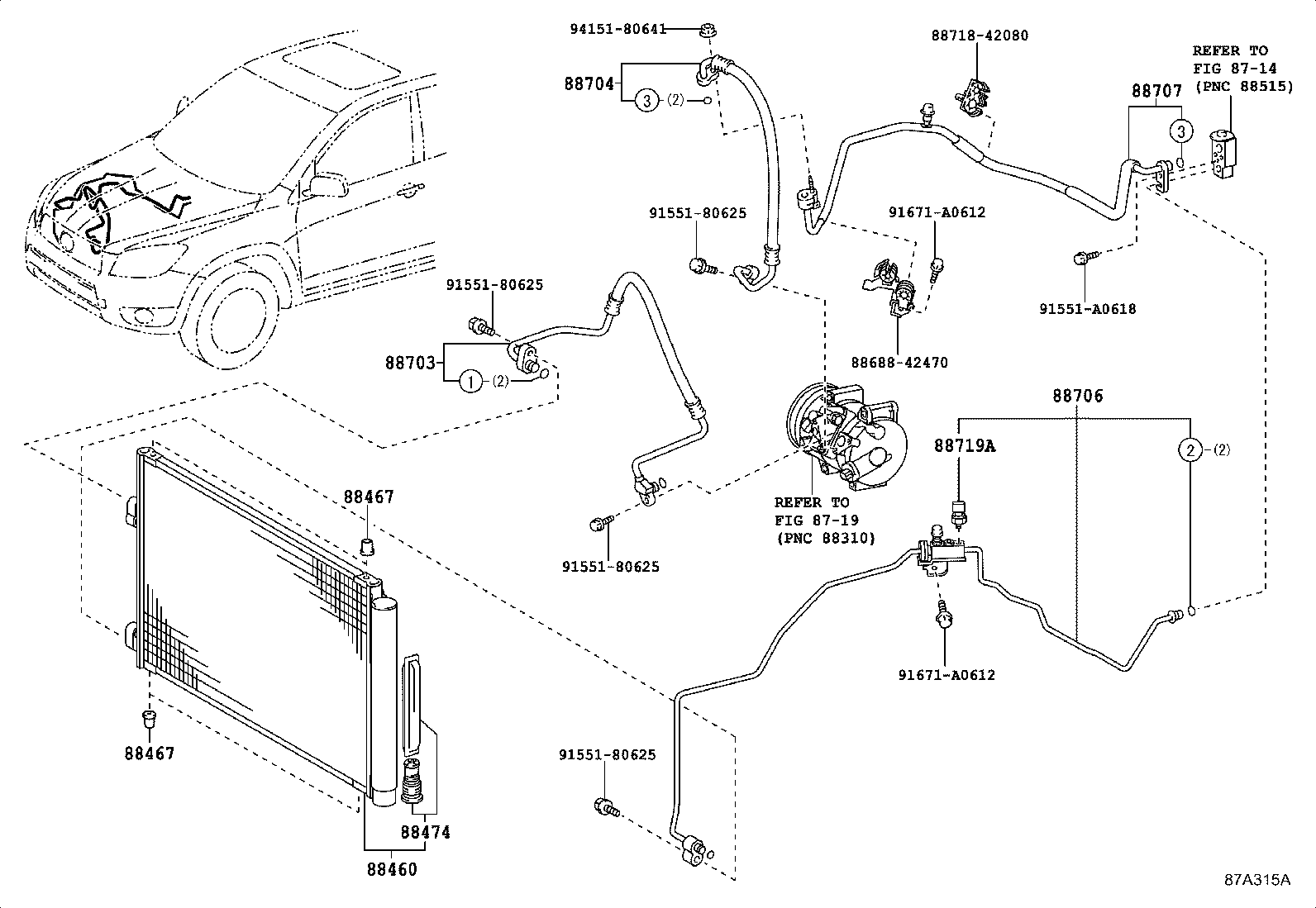

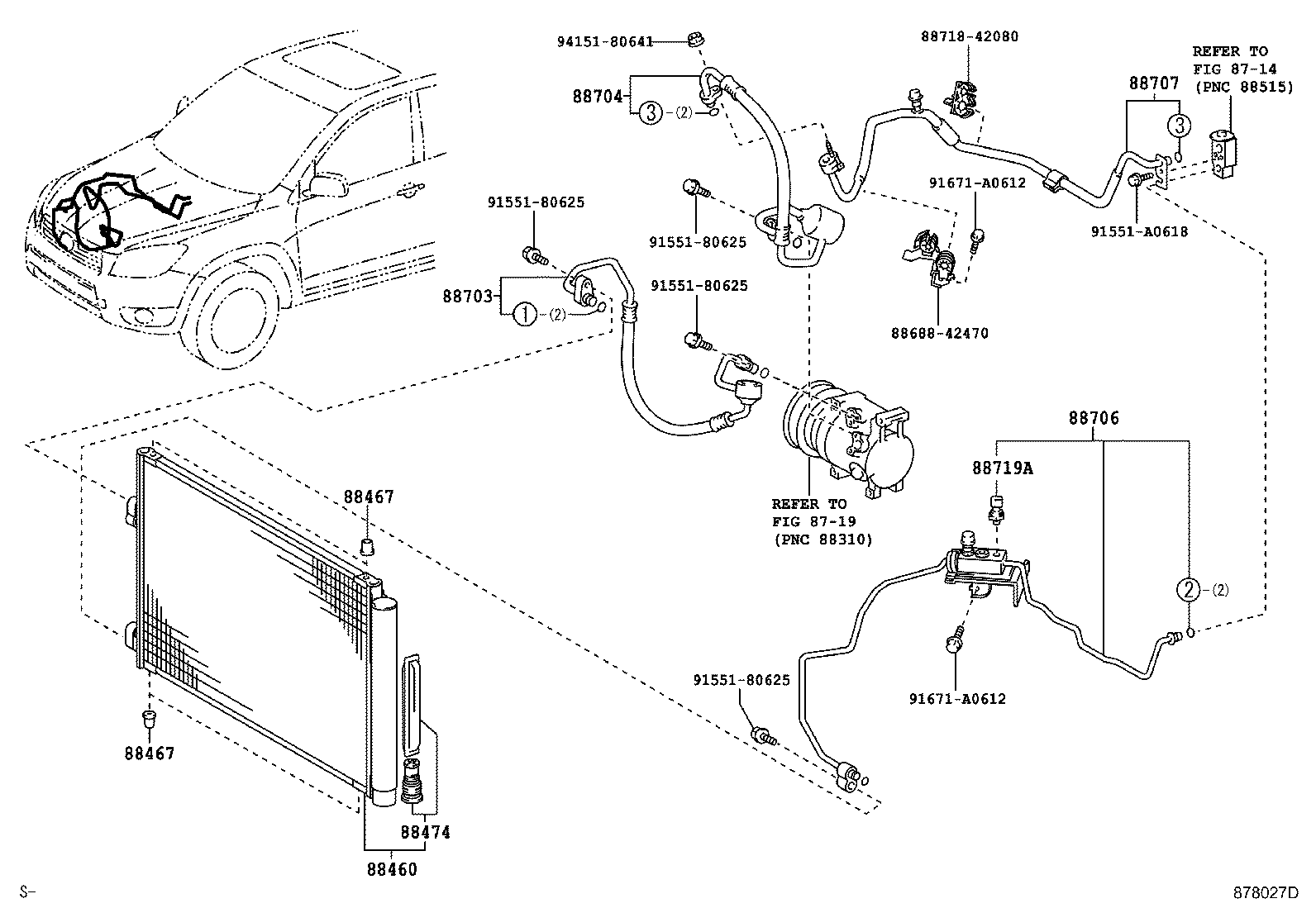

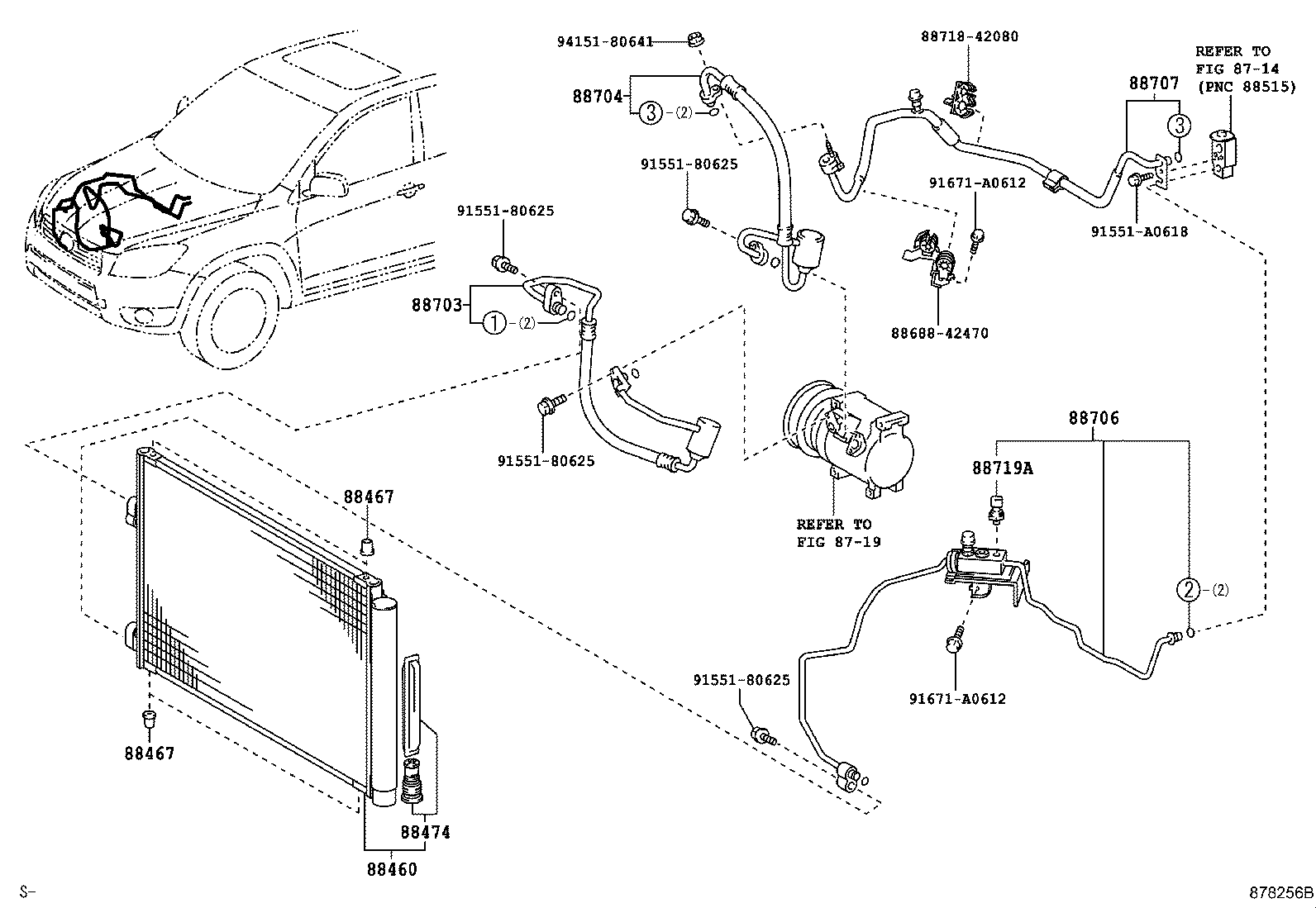

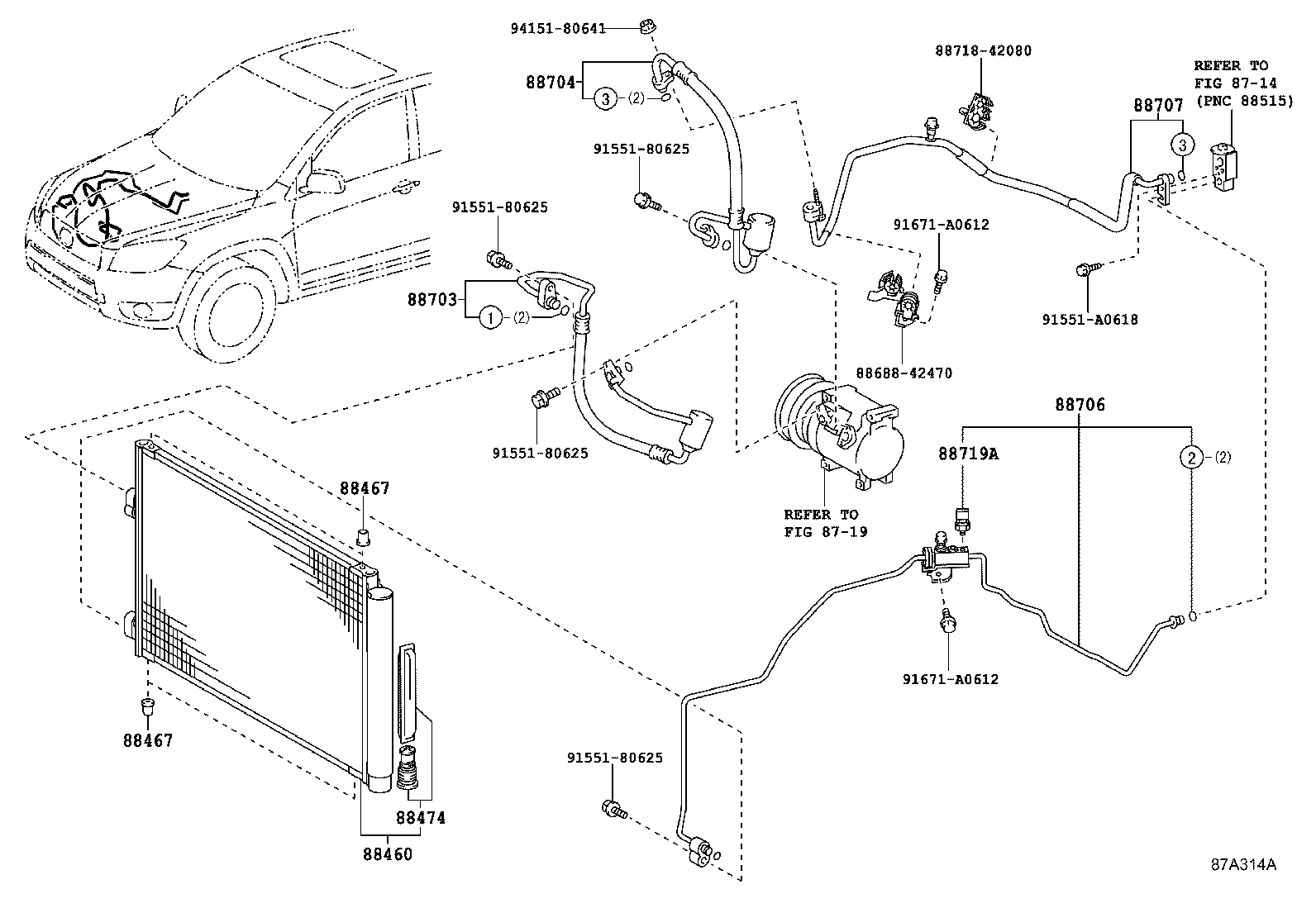

Figure 878027D 878027D 2005-11 → 2008-08 Figure 87A315A 87A315A 2008-08 → — Figure 878256B 878256B 2006-01 → 2008-08 Figure 87A314A 87A314A 2008-08 → — Figure 878028A 878028A 2005-11 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706 Pipe Sub-assy, Liquid
88707 Pipe Sub-assy, Suction
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
