Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

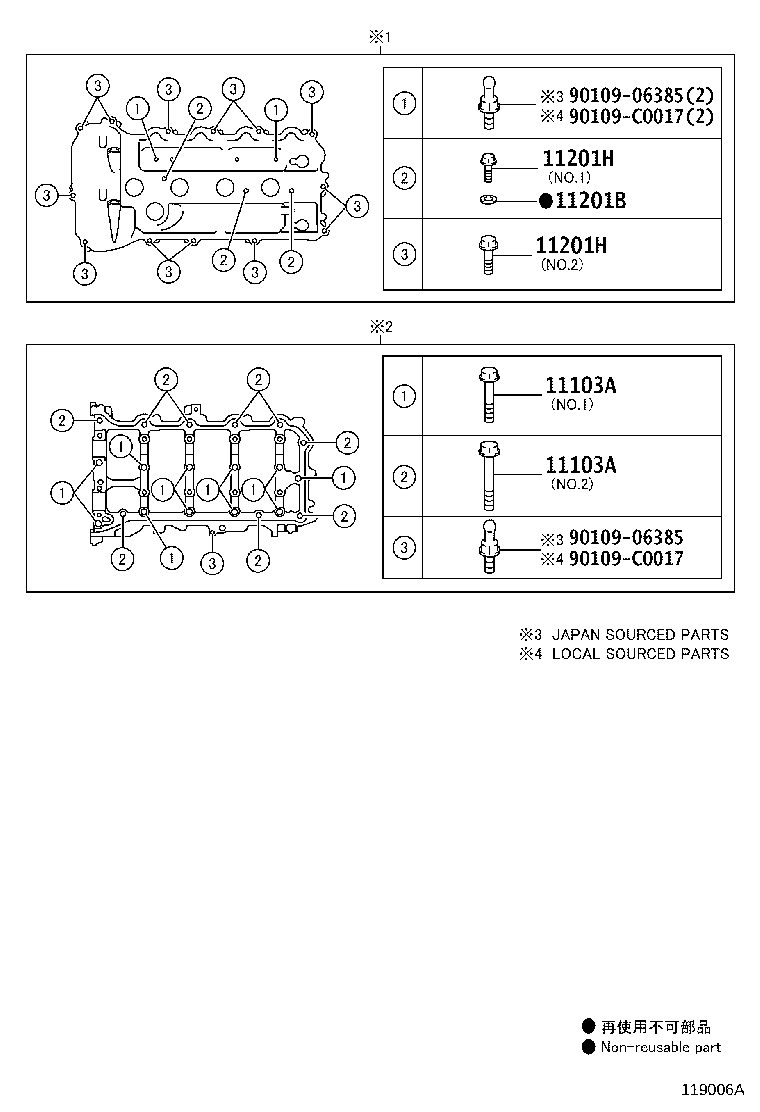

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11103A — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90105-C0074 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90105-C0167 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 90105-C0074 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 90105-C0167 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 90210-05008 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90210-05008 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90210-05008 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2015-10 → 2017-05
ended
|
2AR# ASA4#,AVA44 | — | |
| 90210-05008 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2017-05 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 90210-05008 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 90210-C0003 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2017-05 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 90105-C0072 note |
Bolt(FOR CYLINDER HEAD COVER)
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90105-C0084 note |
Bolt(FOR CYLINDER HEAD COVER)
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 91551-80635 note |
Bolt(FOR CYLINDER HEAD COVER)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90105-C0072 note |
Bolt(FOR CYLINDER HEAD COVER)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 90105-C0084 note |
Bolt(FOR CYLINDER HEAD COVER)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 91551-80635 note |
Bolt(FOR CYLINDER HEAD COVER)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
