Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

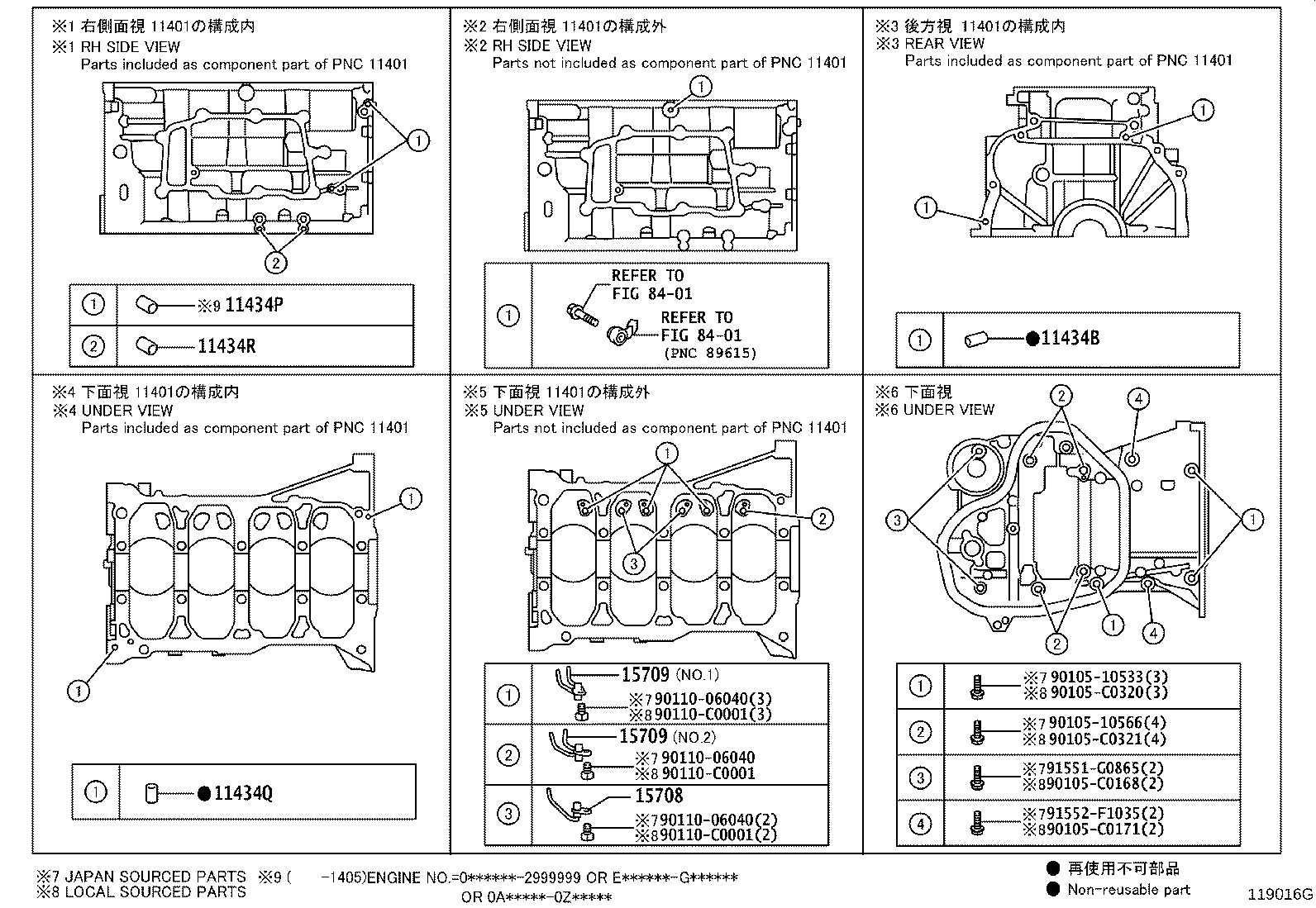

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11434B — Pin, Straight(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2014-01 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2013-12 → 2014-01
ended
|
2ARFE ASA4# | — | |
| 90250-C0012 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2014-01 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 90250-C0012 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 11434P — Pin, Straight(FOR OIL PUMP SET) | ||||
| 90250-06003 note |
Pin, Straight(FOR OIL PUMP SET)
2012-12 → 2014-05
ended
|
2ARFE ASA4# | — | |
| 11434Q — Pin, Straight(FOR CRANKCASE) | ||||
| 90250-06003 note |
Pin, Straight(FOR CRANKCASE)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90250-06003 note |
Pin, Straight(FOR CRANKCASE)
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90250-06003 note |
Pin, Straight(FOR CRANKCASE)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 11434R — Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90250-06003 note |
Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90250-06003 note |
Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90250-06003 note |
Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 15708 — Nozzle Sub-assy, Oil, NO.1 | ||||
| 15708-36010 note |
Nozzle Sub-assy, Oil, NO.1
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15708-36010 note |
Nozzle Sub-assy, Oil, NO.1
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15708-0V020 note |
Nozzle Sub-assy, Oil, NO.1
2017-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 15708-36010 note |
Nozzle Sub-assy, Oil, NO.1
2015-10 → 2017-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 15708-36010 note |
Nozzle Sub-assy, Oil, NO.1
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 15708-36010 note |
Nozzle Sub-assy, Oil, NO.1
2017-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 15709 — Nozzle Sub-assy, Oil, NO.2 | ||||
| 15709-36010 note |
Nozzle Sub-assy, Oil, NO.2
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15709-36010 note |
Nozzle Sub-assy, Oil, NO.2
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15709-36020 note |
Nozzle Sub-assy, Oil, NO.2
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15709-36020 note |
Nozzle Sub-assy, Oil, NO.2
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15709-36010 note |
Nozzle Sub-assy, Oil, NO.2
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 15709-36020 note |
Nozzle Sub-assy, Oil, NO.2
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
