Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

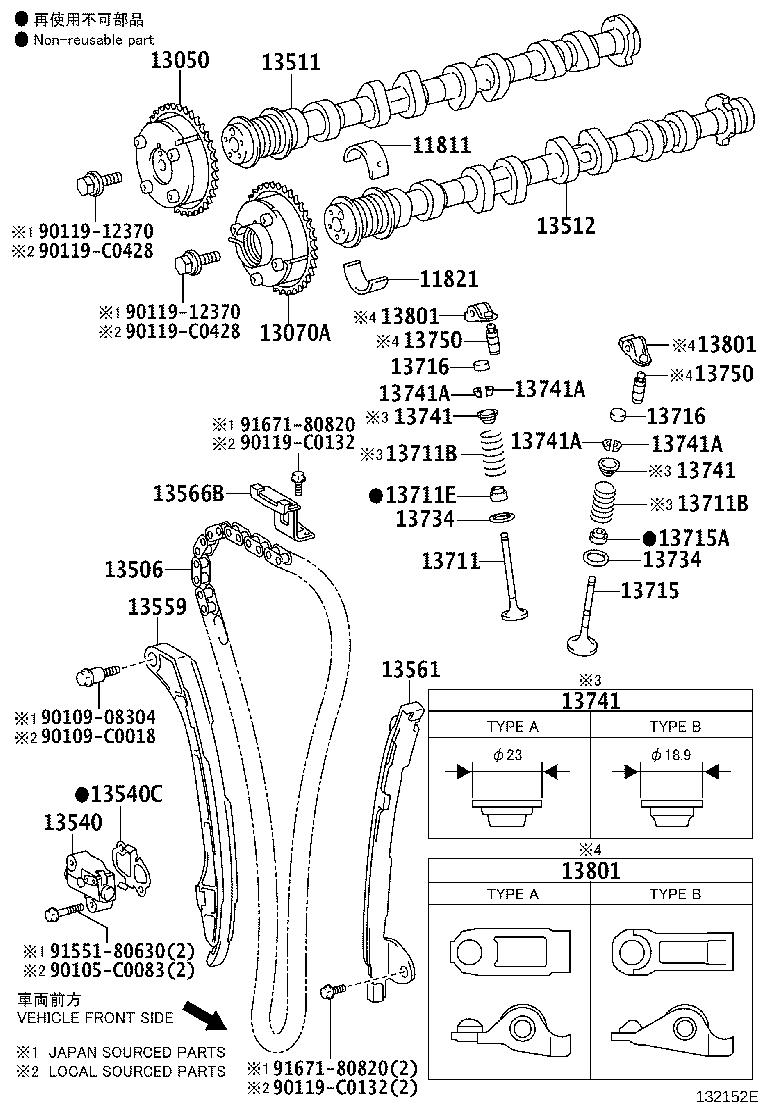

Exploded illustration 132152E 13512 — CAMSHAFT, NO.2 (6 parts) 13540 — TENSIONER ASSY, CHAIN, NO.1 (6 parts) 13540C — GASKET(FOR CHAIN TENSIONER) (4 parts) 13506 — CHAIN SUB-ASSY (5 parts) 13561 — DAMPER, CHAIN VIBRATION, NO.1 (5 parts) 13559 — SLIPPER, CHAIN TENSIONER (5 parts) 13566B — GUIDE, TIMING CHAIN (4 parts) 13511 — CAMSHAFT (6 parts) 13050 — GEAR ASSY, CAMSHAFT TIMING (6 parts) 13070A — GEAR ASSY, CAMSHAFT TIMING EXHAUST (4 parts) 11811 — BEARING, CAMSHAFT, NO.1 (4 parts) 11821 — BEARING, CAMSHAFT, NO.2 (4 parts) 90119C0132 — not listed in this catalogue 9167180820 — not listed in this catalogue 9167180820 — not listed in this catalogue 90119C0132 — not listed in this catalogue 9010908304 — not listed in this catalogue 90109C0018 — not listed in this catalogue 9155180630 — not listed in this catalogue 90105C0083 — not listed in this catalogue 13741 — RETAINER, VALVE SPRING (10 parts) 13750 — ADJUSTER ASSY, VALVE LASH (6 parts) 13750 — ADJUSTER ASSY, VALVE LASH (6 parts) 13716 — CAP, VALVE STEM (6 parts) 13716 — CAP, VALVE STEM (6 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (6 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (6 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (6 parts) 13715A — SEAL, EXHAUST VALVE STEM OIL (4 parts) 13734 — SEAT, VALVE SPRING (4 parts) 13715 — VALVE, EXHAUST (4 parts) 13741A — LOCK, VALVE SPRING RETAINER (6 parts) 13741A — LOCK, VALVE SPRING RETAINER (6 parts) 13741 — RETAINER, VALVE SPRING (10 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (6 parts) 13711E — SEAL, INTAKE VALVE STEM OIL (4 parts) 13734 — SEAT, VALVE SPRING (4 parts) 13711 — VALVE, INTAKE (4 parts) 13741A — LOCK, VALVE SPRING RETAINER (6 parts) 13741A — LOCK, VALVE SPRING RETAINER (6 parts) 13741 — RETAINER, VALVE SPRING (10 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (6 parts) 9011912370 — not listed in this catalogue 90119C0428 — not listed in this catalogue 9011912370 — not listed in this catalogue 90119C0428 — not listed in this catalogue
132152E · 34 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
119 parts on this figure
Part number Description Fitment Price
11811 — Bearing, Camshaft, NO.1
11811-0V010 note Bearing, Camshaft, NO.1
2013-12 → 2015-10 ended
2ARFE ASA4# —
11811-36010 note Bearing, Camshaft, NO.1
2012-12 → 2015-10 ended
2ARFE ASA4# —
11811-0V010 note Bearing, Camshaft, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
11811-36010 note Bearing, Camshaft, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
11821 — Bearing, Camshaft, NO.2
11821-0V010 note Bearing, Camshaft, NO.2
2013-12 → 2015-10 ended
2ARFE ASA4# —
11821-36010 note Bearing, Camshaft, NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
11821-0V010 note Bearing, Camshaft, NO.2
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
11821-36010 note Bearing, Camshaft, NO.2
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13050 — Gear Assy, Camshaft Timing
13050-0V070 note Gear Assy, Camshaft Timing
2013-12 → 2015-10 ended
2ARFE ASA4# —
13050-36030 note Gear Assy, Camshaft Timing
2012-12 → 2015-10 ended
2ARFE ASA4# —
13050-0V070 note Gear Assy, Camshaft Timing
2015-10 → 2018-10 ended
2ARFE ASA4# —
13050-0V080 note Gear Assy, Camshaft Timing
2015-10 → 2018-10 ended
2ARFXE AVA44 —
13050-36020 note Gear Assy, Camshaft Timing
2015-10 → 2018-10 ended
2ARFXE AVA44 —
13050-36030 note Gear Assy, Camshaft Timing
2015-10 → 2018-10 ended
2ARFE ASA4# —
13070A — Gear Assy, Camshaft Timing Exhaust
13070-0V030 note Gear Assy, Camshaft Timing Exhaust
2013-12 → 2015-10 ended
2ARFE ASA4# —
13070-36030 note Gear Assy, Camshaft Timing Exhaust
2012-12 → 2015-10 ended
2ARFE ASA4# —
13070-0V030 note Gear Assy, Camshaft Timing Exhaust
2015-10 → 2018-10 ended
2ARFE ASA4# —
13070-36030 note Gear Assy, Camshaft Timing Exhaust
2015-10 → 2018-10 ended
2ARFE ASA4# —
13506 — Chain Sub-assy
13506-0V020 note Chain Sub-assy
2013-12 → 2015-10 ended
2ARFE ASA4# —
13506-36010 note Chain Sub-assy
2012-12 → 2014-07 ended
2ARFE ASA4# —
13506-36030 note Chain Sub-assy
2014-08 → 2015-10 ended
2ARFE ASA4# —
13506-0V020 note Chain Sub-assy
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13506-36030 note Chain Sub-assy
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13511 — Camshaft
13501-0V020 note Camshaft
2013-12 → 2015-10 ended
2ARFE ASA4# —
13501-36050 note Camshaft
2012-12 → 2015-10 ended
2ARFE ASA4# —
13501-0V020 note Camshaft
2015-10 → 2018-10 ended
2ARFE ASA4# —
13501-0V030 note Camshaft
2015-10 → 2018-10 ended
2ARFXE AVA44 —
13501-36030 note Camshaft
2015-10 → 2018-10 ended
2ARFXE AVA44 —
13501-36050 note Camshaft
2015-10 → 2018-10 ended
2ARFE ASA4# —
13512 — Camshaft, NO.2
13502-0V020 note Camshaft, NO.2
2013-12 → 2015-10 ended
2ARFE ASA4# —
13502-36030 note Camshaft, NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
13502-0V020 note Camshaft, NO.2
2015-10 → 2018-10 ended
2ARFE ASA4# —
13502-0V030 note Camshaft, NO.2
2015-10 → 2018-10 ended
2ARFXE AVA44 —
13502-36020 note Camshaft, NO.2
2015-10 → 2018-10 ended
2ARFXE AVA44 —
13502-36030 note Camshaft, NO.2
2015-10 → 2018-10 ended
2ARFE ASA4# —
13540 — Tensioner Assy, Chain, NO.1
13540-0V040 note Tensioner Assy, Chain, NO.1
2013-12 → 2015-10 ended
2ARFE ASA4# —
13540-36010 Tensioner Assy, Chain, NO.1
2012-12 → 2013-06 ended
2ARFE ASA4# —
13540-36040 note Tensioner Assy, Chain, NO.1
2013-06 → 2015-10 ended
2ARFE ASA4# —
13540-0V040 note Tensioner Assy, Chain, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13540-36040 note Tensioner Assy, Chain, NO.1
2015-10 → 2018-06 ended
2AR# ASA4#,AVA44 —
13540-36041 note Tensioner Assy, Chain, NO.1
2018-07 → 2018-10 ended
2AR# ASA4#,AVA44 —
13540C — Gasket(FOR CHAIN TENSIONER)
13552-0V020 note Gasket(FOR CHAIN TENSIONER)
2013-12 → 2015-10 ended
2ARFE ASA4# —
13552-36010 note Gasket(FOR CHAIN TENSIONER)
2012-12 → 2015-10 ended
2ARFE ASA4# —
13552-0V020 note Gasket(FOR CHAIN TENSIONER)
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13552-36010 note Gasket(FOR CHAIN TENSIONER)
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13559 — Slipper, Chain Tensioner
13559-0V020 note Slipper, Chain Tensioner
2013-12 → 2015-10 ended
2ARFE ASA4# —
13559-36010 note Slipper, Chain Tensioner
2012-12 → 2014-09 ended
2ARFE ASA4# —
13559-36040 note Slipper, Chain Tensioner
2014-09 → 2015-10 ended
2ARFE ASA4# —
13559-0V020 note Slipper, Chain Tensioner
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13559-36040 note Slipper, Chain Tensioner
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13561 — Damper, Chain Vibration, NO.1
13561-0V020 note Damper, Chain Vibration, NO.1
2013-12 → 2015-10 ended
2ARFE ASA4# —
13561-36010 note Damper, Chain Vibration, NO.1
2012-12 → 2014-09 ended
2ARFE ASA4# —
13561-36030 note Damper, Chain Vibration, NO.1
2014-09 → 2015-10 ended
2ARFE ASA4# —
13561-0V020 note Damper, Chain Vibration, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13561-36030 note Damper, Chain Vibration, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13566B — Guide, Timing Chain
13566-0V021 note Guide, Timing Chain
2013-12 → 2015-10 ended
2ARFE ASA4# —
13566-36011 note Guide, Timing Chain
2012-12 → 2015-10 ended
2ARFE ASA4# —
13566-0V021 note Guide, Timing Chain
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13566-36011 note Guide, Timing Chain
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13711 — Valve, Intake
13711-0V020 note Valve, Intake
2013-12 → 2015-10 ended
2ARFE ASA4# —
13711-36060 note Valve, Intake
2012-12 → 2015-10 ended
2ARFE ASA4# —
13711-0V020 note Valve, Intake
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13711-36060 note Valve, Intake
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13711B — Spring, Compression(FOR INNER)
90501-34016 note Spring, Compression(FOR INNER)
2012-12 → 2015-05 ended
2ARFE ASA4# —
90501-34022 note Spring, Compression(FOR INNER)
2015-05 → 2015-10 ended
2ARFE ASA4# —
90501-C0019 note Spring, Compression(FOR INNER)
2013-12 → 2015-10 ended
2ARFE ASA4# —
90501-34022 note Spring, Compression(FOR INNER)
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
90501-C0019 note Spring, Compression(FOR INNER)
2015-10 → 2016-02 ended
2AR# ASA4#,AVA44 —
90501-C0053 note Spring, Compression(FOR INNER)
2016-02 → 2018-10 ended
2AR# ASA4#,AVA44 —
13711E — Seal, Intake Valve Stem Oil
90913-02101 note Seal, Intake Valve Stem Oil
2012-12 → 2015-10 ended
2ARFE ASA4# —
90913-T2001 note Seal, Intake Valve Stem Oil
2013-12 → 2015-10 ended
2ARFE ASA4# —
90913-02101 note Seal, Intake Valve Stem Oil
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
90913-T2001 note Seal, Intake Valve Stem Oil
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13715 — Valve, Exhaust
13715-0V020 note Valve, Exhaust
2013-12 → 2015-10 ended
2ARFE ASA4# —
13715-36020 note Valve, Exhaust
2012-12 → 2015-10 ended
2ARFE ASA4# —
13715-0V020 note Valve, Exhaust
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13715-36020 note Valve, Exhaust
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13715A — Seal, Exhaust Valve Stem Oil
90913-02112 note Seal, Exhaust Valve Stem Oil
2012-12 → 2015-10 ended
2ARFE ASA4# —
90913-T2003 note Seal, Exhaust Valve Stem Oil
2013-12 → 2015-10 ended
2ARFE ASA4# —
90913-02112 note Seal, Exhaust Valve Stem Oil
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
90913-T2003 note Seal, Exhaust Valve Stem Oil
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13716 — Cap, Valve Stem
13716-0Y010 note Cap, Valve Stem
2014-01 → 2015-10 ended
2ARFE ASA4# —
13716-75020 note Cap, Valve Stem
2013-12 → 2014-01 ended
2ARFE ASA4# —
13716-75020 note Cap, Valve Stem
2012-12 → 2015-10 ended
2ARFE ASA4# —
13716-75020 note Cap, Valve Stem
2014-01 → 2015-10 ended
2ARFE ASA4# —
13716-0Y010 note Cap, Valve Stem
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13716-75020 note Cap, Valve Stem
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13734 — Seat, Valve Spring
13734-0P020 note Seat, Valve Spring
2013-12 → 2015-10 ended
2ARFE ASA4# —
13734-62020 note Seat, Valve Spring
2012-12 → 2015-10 ended
2ARFE ASA4# —
13734-0P020 note Seat, Valve Spring
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13734-62020 note Seat, Valve Spring
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13741 — Retainer, Valve Spring
13741-0Y020 note Retainer, Valve Spring
2014-05 → 2015-10 ended
2ARFE ASA4# —
13741-20021 note Retainer, Valve Spring
2012-12 → 2015-05 ended
2ARFE ASA4# —
13741-20021 note Retainer, Valve Spring
2014-05 → 2015-10 ended
2ARFE ASA4# —
13741-20021 note Retainer, Valve Spring
2013-12 → 2014-05 ended
2ARFE ASA4# —
13741-36010 note Retainer, Valve Spring
2015-05 → 2015-10 ended
2ARFE ASA4# —
13741-0Y020 note Retainer, Valve Spring
2015-10 → 2016-02 ended
2AR# ASA4#,AVA44 —
13741-0Y050 note Retainer, Valve Spring
2016-02 → 2018-10 ended
2AR# ASA4#,AVA44 —
13741-20021 note Retainer, Valve Spring
2015-10 → 2016-02 ended
2AR# ASA4#,AVA44 —
13741-36010 note Retainer, Valve Spring
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13741-36010 note Retainer, Valve Spring
2016-02 → 2018-10 ended
2AR# ASA4#,AVA44 —
13741A — Lock, Valve Spring Retainer
90913-03028 note Lock, Valve Spring Retainer
2013-12 → 2014-05 ended
2ARFE ASA4# —
90913-03028 note Lock, Valve Spring Retainer
2012-12 → 2015-10 ended
2ARFE ASA4# —
90913-03028 note Lock, Valve Spring Retainer
2014-05 → 2015-10 ended
2ARFE ASA4# —
90913-C3002 note Lock, Valve Spring Retainer
2014-05 → 2015-10 ended
2ARFE ASA4# —
90913-03028 note Lock, Valve Spring Retainer
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
90913-C3002 note Lock, Valve Spring Retainer
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13750 — Adjuster Assy, Valve Lash
13750-0V020 note Adjuster Assy, Valve Lash
2013-12 → 2015-10 ended
2ARFE ASA4# —
13750-31030 note Adjuster Assy, Valve Lash
2012-12 → 2015-05 ended
2ARFE ASA4# —
13750-36020 note Adjuster Assy, Valve Lash
2015-05 → 2015-10 ended
2ARFE ASA4# —
13750-0V020 note Adjuster Assy, Valve Lash
2015-10 → 2016-02 ended
2AR# ASA4#,AVA44 —
13750-0V030 note Adjuster Assy, Valve Lash
2016-02 → 2018-10 ended
2AR# ASA4#,AVA44 —
13750-36020 note Adjuster Assy, Valve Lash
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
13801 — Arm Sub-assy, Valve Rocker, NO.1
13801-0P020 note Arm Sub-assy, Valve Rocker, NO.1
2013-12 → 2015-10 ended
2ARFE ASA4# —
13801-23011 note Arm Sub-assy, Valve Rocker, NO.1
2012-12 → 2015-05 ended
2ARFE ASA4# —
13801-36020 note Arm Sub-assy, Valve Rocker, NO.1
2015-05 → 2015-10 ended
2ARFE ASA4# —
13801-0P020 note Arm Sub-assy, Valve Rocker, NO.1
2015-10 → 2016-02 ended
2AR# ASA4#,AVA44 —
13801-0V020 note Arm Sub-assy, Valve Rocker, NO.1
2016-02 → 2018-10 ended
2AR# ASA4#,AVA44 —
13801-36020 note Arm Sub-assy, Valve Rocker, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
