Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

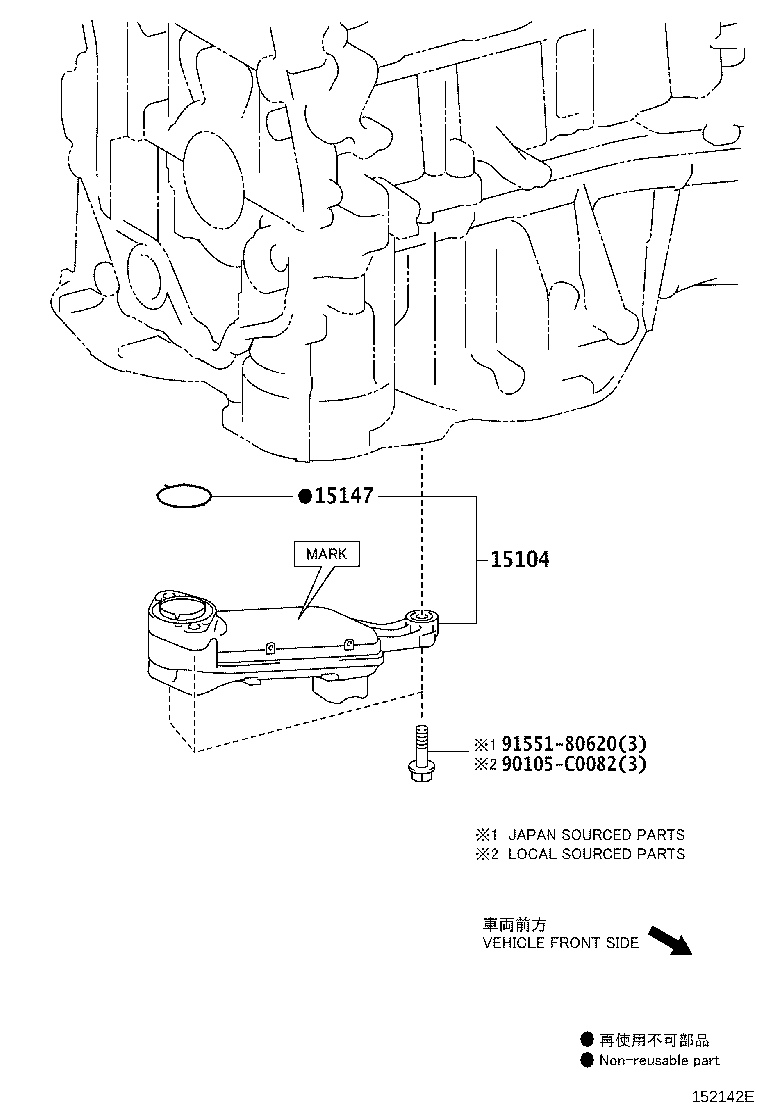

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-0V020 note |
Strainer Sub-assy, Oil
2014-08 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15104-36030 note |
Strainer Sub-assy, Oil
2013-12 → 2014-08
ended
|
2ARFE ASA4# | — | |
| 15104-36030 note |
Strainer Sub-assy, Oil
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15104-36030 note |
Strainer Sub-assy, Oil
2014-08 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15104-0V020 note |
Strainer Sub-assy, Oil
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 15104-36030 note |
Strainer Sub-assy, Oil
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 15147 — Gasket, Oil Strainer | ||||
| 15147-0V010 note |
Gasket, Oil Strainer
2014-08 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15147-36010 note |
Gasket, Oil Strainer
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15147-36010 note |
Gasket, Oil Strainer
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 15147-0V010 note |
Gasket, Oil Strainer
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 15147-36010 note |
Gasket, Oil Strainer
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
