Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

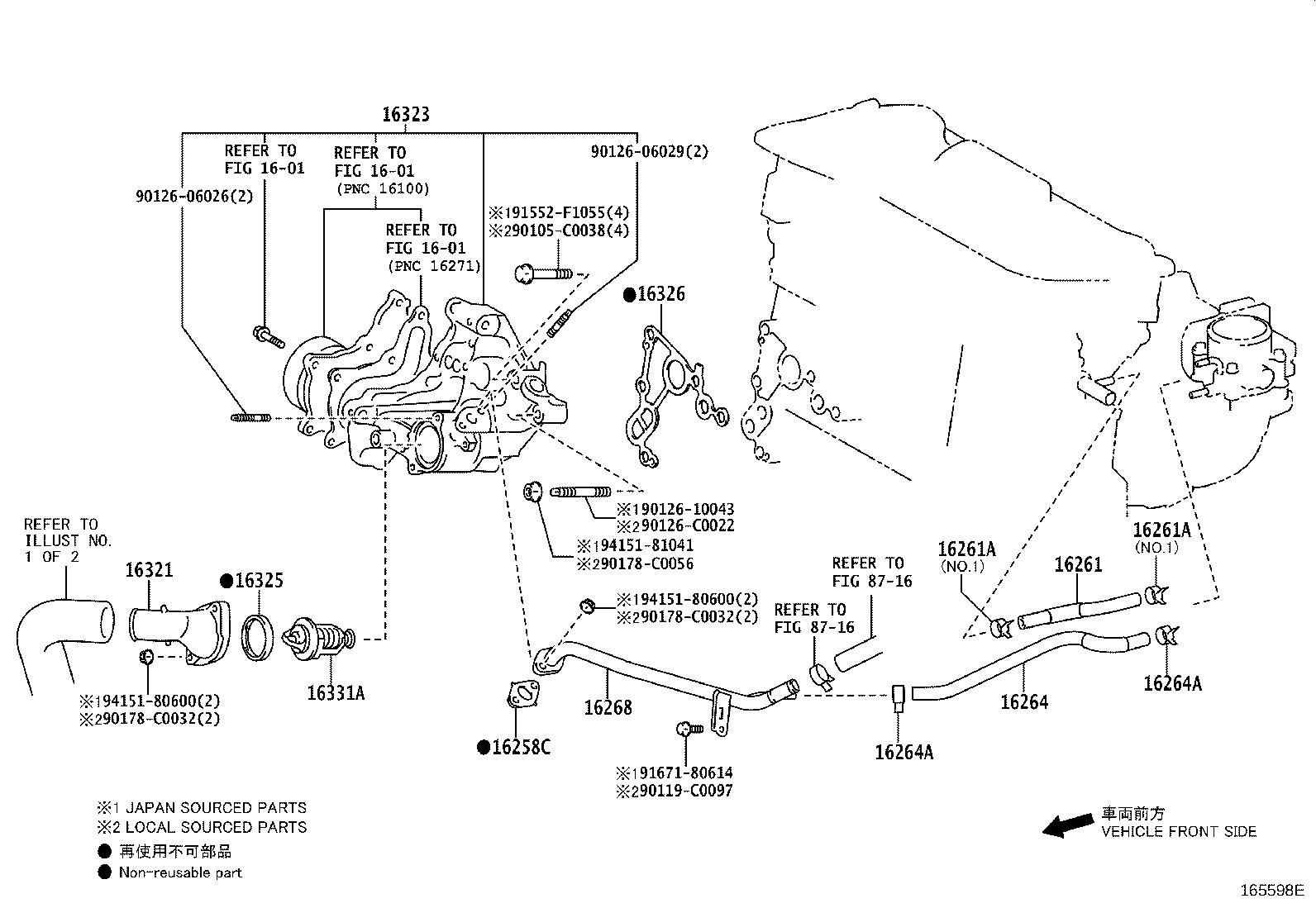

Exploded illustration 165598E 16264 — HOSE, WATER BY-PASS, NO.2 (5 parts) 16268 — PIPE, WATER BY-PASS, NO.1 (5 parts) 16258C — GASKET(FOR WATER BY-PASS PIPE) (5 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (5 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (5 parts) 16261 — HOSE, WATER BY-PASS (5 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (9 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (9 parts) 16323 — HOUSING, WATER INLET (5 parts) 1601 — not listed in this catalogue 8716 — not listed in this catalogue 90105C0038 — not listed in this catalogue 91552F1055 — not listed in this catalogue 9012606029 — not listed in this catalogue 9012606026 — not listed in this catalogue 9415181041 — not listed in this catalogue 90178C0056 — not listed in this catalogue 9167180614 — not listed in this catalogue 90119C0097 — not listed in this catalogue 16321 — INLET, WATER (5 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (3 parts) 16325 — GASKET, WATER INLET HOUSING, NO.1 (6 parts) 16331A — THERMOSTAT (5 parts) 9415180600 — not listed in this catalogue 90178C0032 — not listed in this catalogue 9415180600 — not listed in this catalogue 90178C0032 — not listed in this catalogue 1601 — not listed in this catalogue 1601 — not listed in this catalogue 8716 — not listed in this catalogue 9012610043 — not listed in this catalogue 90126C0022 — not listed in this catalogue
165598E · 13 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
16258C — Gasket(FOR WATER BY-PASS PIPE)
16258-0V010 note Gasket(FOR WATER BY-PASS PIPE)
2013-12 → 2015-10 ended
2ARFE ASA4# —
16258-36010 note Gasket(FOR WATER BY-PASS PIPE)
2012-12 → 2015-10 ended
2ARFE ASA4# —
16258-0V010 note Gasket(FOR WATER BY-PASS PIPE)
2015-10 → 2018-10 ended
2ARFE ASA4# —
16258-36010 note Gasket(FOR WATER BY-PASS PIPE)
2015-10 → 2018-10 ended
2ARFE ASA4# —
16258-36100 note Gasket(FOR WATER BY-PASS PIPE)
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16261 — Hose, Water By-pass
16261-0V030 note Hose, Water By-pass
2013-12 → 2015-10 ended
2ARFE ASA4# —
16261-36010 note Hose, Water By-pass
2012-12 → 2015-10 ended
2ARFE ASA4# —
16261-0V030 note Hose, Water By-pass
2015-10 → 2018-10 ended
2ARFE ASA4# —
16261-36010 note Hose, Water By-pass
2015-10 → 2018-10 ended
2ARFE ASA4# —
16261-36050 Hose, Water By-pass
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
90466-C0026 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2013-12 → 2015-10 ended
2ARFE ASA4# —
90467-15022 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-12 → 2015-10 ended
2ARFE ASA4# —
96137-41501 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-12 → 2015-10 ended
2ARFE ASA4# —
96137-41501 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2013-12 → 2015-10 ended
2ARFE ASA4# —
90466-C0026 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-10 → 2018-10 ended
2ARFE ASA4# —
90467-15022 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-10 → 2018-10 ended
2ARFXE AVA44 —
90467-15022 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-10 → 2018-10 ended
2ARFE ASA4# —
96136-41901 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-10 → 2018-10 ended
2ARFXE AVA44 —
96137-41501 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-10 → 2018-10 ended
2ARFE ASA4# —
16264 — Hose, Water By-pass, NO.2
16264-0V040 note Hose, Water By-pass, NO.2
2013-12 → 2015-10 ended
2ARFE ASA4# —
16264-36010 note Hose, Water By-pass, NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
16264-0V040 note Hose, Water By-pass, NO.2
2015-10 → 2018-10 ended
2ARFE ASA4# —
16264-36010 note Hose, Water By-pass, NO.2
2015-10 → 2018-10 ended
2ARFE ASA4# —
16264-36080 note Hose, Water By-pass, NO.2
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
90466-C0026 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2013-12 → 2015-10 ended
2ARFE ASA4# —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-12 → 2015-10 ended
2ARFE ASA4# —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2013-12 → 2015-10 ended
2ARFE ASA4# —
90466-C0026 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
16268 — Pipe, Water By-pass, NO.1
16268-0V090 note Pipe, Water By-pass, NO.1
2013-12 → 2015-10 ended
2ARFE ASA4# —
16268-36010 note Pipe, Water By-pass, NO.1
2012-12 → 2015-10 ended
2ARFE ASA4# —
16268-0V090 note Pipe, Water By-pass, NO.1
2015-10 → 2018-10 ended
2ARFE ASA4# —
16268-36010 note Pipe, Water By-pass, NO.1
2015-10 → 2018-10 ended
2ARFE ASA4# —
16268-36190 note Pipe, Water By-pass, NO.1
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16321 — Inlet, Water
16321-0V020 note Inlet, Water
2013-12 → 2015-10 ended
2ARFE ASA4# —
16321-36010 note Inlet, Water
2012-12 → 2015-10 ended
2ARFE ASA4# —
16321-0V020 note Inlet, Water
2015-10 → 2018-10 ended
2ARFE ASA4# —
16321-36010 note Inlet, Water
2015-10 → 2018-10 ended
2ARFE ASA4# —
16321-36060 note Inlet, Water
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16323 — Housing, Water Inlet
16032-0V030 note Housing, Water Inlet
2013-12 → 2015-10 ended
2ARFE ASA4# —
16032-36011 note Housing, Water Inlet
2012-12 → 2015-10 ended
2ARFE ASA4# —
16032-0V030 note Housing, Water Inlet
2015-10 → 2018-10 ended
2ARFE ASA4# —
16032-36011 note Housing, Water Inlet
2015-10 → 2018-10 ended
2ARFE ASA4# —
16032-36040 note Housing, Water Inlet
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16325 — Gasket, Water Inlet Housing, NO.1
16325-0H030 note Gasket, Water Inlet Housing, NO.1
2014-03 → 2015-10 ended
2ARFE ASA4# —
16325-28010 note Gasket, Water Inlet Housing, NO.1
2013-12 → 2014-03 ended
2ARFE ASA4# —
16325-28010 note Gasket, Water Inlet Housing, NO.1
2014-03 → 2015-10 ended
2ARFE ASA4# —
16325-28010 note Gasket, Water Inlet Housing, NO.1
2012-12 → 2015-10 ended
2ARFE ASA4# —
16325-0H030 note Gasket, Water Inlet Housing, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
16325-28010 note Gasket, Water Inlet Housing, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
16326 — Gasket, Water Inlet Housing, NO.2
16326-36010 note Gasket, Water Inlet Housing, NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
16326-36010 note Gasket, Water Inlet Housing, NO.2
2013-12 → 2015-10 ended
2ARFE ASA4# —
16326-36010 note Gasket, Water Inlet Housing, NO.2
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
16331A — Thermostat
90916-03129 note Thermostat
2012-12 → 2015-10 ended
2ARFE ASA4# —
90916-C3001 note Thermostat
2013-12 → 2015-10 ended
2ARFE ASA4# —
90916-03129 note Thermostat
2015-10 → 2018-10 ended
2ARFE ASA4# —
90916-03148 note Thermostat
2015-10 → 2018-10 ended
2ARFXE AVA44 —
90916-C3001 note Thermostat
2015-10 → 2018-10 ended
2ARFE ASA4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
