Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

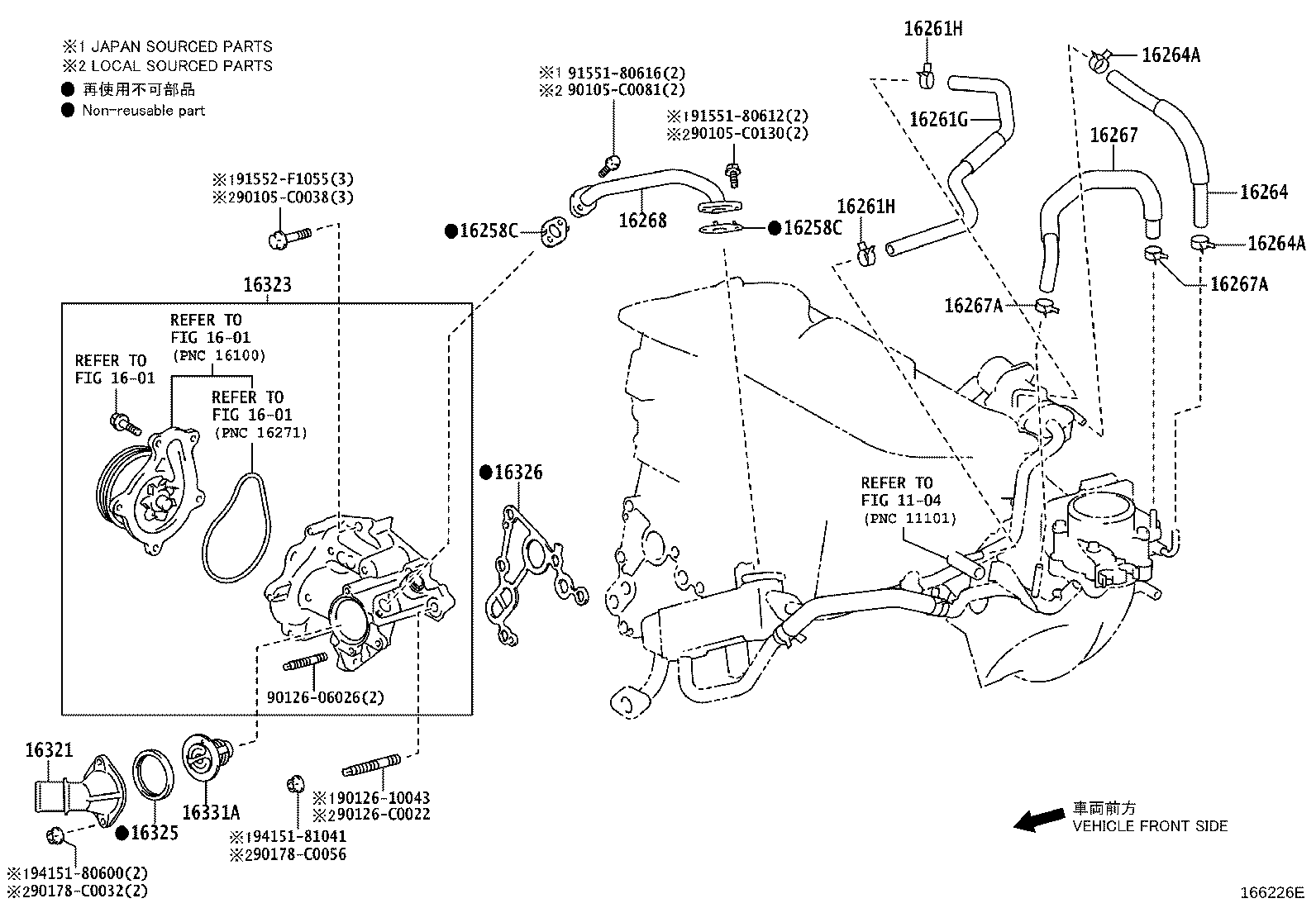

Exploded illustration 166226E 9012606026 — not listed in this catalogue 16326 — GASKET, WATER INLET HOUSING, NO.2 (3 parts) 16331A — THERMOSTAT (5 parts) 16325 — GASKET, WATER INLET HOUSING, NO.1 (6 parts) 16321 — INLET, WATER (5 parts) 16323 — HOUSING, WATER INLET (5 parts) 1601 — not listed in this catalogue 1601 — not listed in this catalogue 1601 — not listed in this catalogue 16261G — HOSE, WATER BY-PASS, NO.1 (3 parts) 16267 — HOSE, WATER BY-PASS, NO.3 (1 parts) 16264 — HOSE, WATER BY-PASS, NO.2 (5 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (5 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (5 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (2 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (2 parts) 16261H — CLIP(FOR WATER BY-PASS HOSE NO.1) (2 parts) 16261H — CLIP(FOR WATER BY-PASS HOSE NO.1) (2 parts) 1104 — not listed in this catalogue 16258C — GASKET(FOR WATER BY-PASS PIPE) (5 parts) 16258C — GASKET(FOR WATER BY-PASS PIPE) (5 parts) 16268 — PIPE, WATER BY-PASS, NO.1 (5 parts) 9415180600 — not listed in this catalogue 90178C0032 — not listed in this catalogue 9415181041 — not listed in this catalogue 90178C0056 — not listed in this catalogue 90105C0038 — not listed in this catalogue 91552F1055 — not listed in this catalogue 9155180612 — not listed in this catalogue 90105C0130 — not listed in this catalogue 90105C0081 — not listed in this catalogue 9155180616 — not listed in this catalogue 9012610043 — not listed in this catalogue 90126C0022 — not listed in this catalogue
166226E · 17 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
16258C — Gasket(FOR WATER BY-PASS PIPE)
16258-0V010 note Gasket(FOR WATER BY-PASS PIPE)
2013-12 → 2015-10 ended
2ARFE ASA4# —
16258-36010 note Gasket(FOR WATER BY-PASS PIPE)
2012-12 → 2015-10 ended
2ARFE ASA4# —
16258-0V010 note Gasket(FOR WATER BY-PASS PIPE)
2015-10 → 2018-10 ended
2ARFE ASA4# —
16258-36010 note Gasket(FOR WATER BY-PASS PIPE)
2015-10 → 2018-10 ended
2ARFE ASA4# —
16258-36100 note Gasket(FOR WATER BY-PASS PIPE)
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16261G — Hose, Water By-pass, NO.1
16261-36050 Hose, Water By-pass, NO.1
2012-12 → 2015-10 ended
2ARFE ASA4# —
16261-36040 note Hose, Water By-pass, NO.1
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16261-36050 Hose, Water By-pass, NO.1
2015-10 → 2018-10 ended
2ARFE ASA4# —
16261H — Clip(FOR WATER BY-PASS HOSE NO.1)
90466-C0026 note Clip(FOR WATER BY-PASS HOSE NO.1)
2015-10 → 2018-10 ended
2ARFXE AVA44 —
96137-41501 note Clip(FOR WATER BY-PASS HOSE NO.1)
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16264 — Hose, Water By-pass, NO.2
16264-0V040 note Hose, Water By-pass, NO.2
2013-12 → 2015-10 ended
2ARFE ASA4# —
16264-36010 note Hose, Water By-pass, NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
16264-0V040 note Hose, Water By-pass, NO.2
2015-10 → 2018-10 ended
2ARFE ASA4# —
16264-36010 note Hose, Water By-pass, NO.2
2015-10 → 2018-10 ended
2ARFE ASA4# —
16264-36080 note Hose, Water By-pass, NO.2
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
90466-C0026 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2013-12 → 2015-10 ended
2ARFE ASA4# —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-12 → 2015-10 ended
2ARFE ASA4# —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2013-12 → 2015-10 ended
2ARFE ASA4# —
90466-C0026 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
16267 — Hose, Water By-pass, NO.3
16267-36080 note Hose, Water By-pass, NO.3
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
90466-C0026 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-10 → 2018-10 ended
2ARFXE AVA44 —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16268 — Pipe, Water By-pass, NO.1
16268-0V090 note Pipe, Water By-pass, NO.1
2013-12 → 2015-10 ended
2ARFE ASA4# —
16268-36010 note Pipe, Water By-pass, NO.1
2012-12 → 2015-10 ended
2ARFE ASA4# —
16268-0V090 note Pipe, Water By-pass, NO.1
2015-10 → 2018-10 ended
2ARFE ASA4# —
16268-36010 note Pipe, Water By-pass, NO.1
2015-10 → 2018-10 ended
2ARFE ASA4# —
16268-36190 note Pipe, Water By-pass, NO.1
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16321 — Inlet, Water
16321-0V020 note Inlet, Water
2013-12 → 2015-10 ended
2ARFE ASA4# —
16321-36010 note Inlet, Water
2012-12 → 2015-10 ended
2ARFE ASA4# —
16321-0V020 note Inlet, Water
2015-10 → 2018-10 ended
2ARFE ASA4# —
16321-36010 note Inlet, Water
2015-10 → 2018-10 ended
2ARFE ASA4# —
16321-36060 note Inlet, Water
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16323 — Housing, Water Inlet
16032-0V030 note Housing, Water Inlet
2013-12 → 2015-10 ended
2ARFE ASA4# —
16032-36011 note Housing, Water Inlet
2012-12 → 2015-10 ended
2ARFE ASA4# —
16032-0V030 note Housing, Water Inlet
2015-10 → 2018-10 ended
2ARFE ASA4# —
16032-36011 note Housing, Water Inlet
2015-10 → 2018-10 ended
2ARFE ASA4# —
16032-36040 note Housing, Water Inlet
2015-10 → 2018-10 ended
2ARFXE AVA44 —
16325 — Gasket, Water Inlet Housing, NO.1
16325-0H030 note Gasket, Water Inlet Housing, NO.1
2014-03 → 2015-10 ended
2ARFE ASA4# —
16325-28010 note Gasket, Water Inlet Housing, NO.1
2012-12 → 2015-10 ended
2ARFE ASA4# —
16325-28010 note Gasket, Water Inlet Housing, NO.1
2014-03 → 2015-10 ended
2ARFE ASA4# —
16325-28010 note Gasket, Water Inlet Housing, NO.1
2013-12 → 2014-03 ended
2ARFE ASA4# —
16325-0H030 note Gasket, Water Inlet Housing, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
16325-28010 note Gasket, Water Inlet Housing, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
16326 — Gasket, Water Inlet Housing, NO.2
16326-36010 note Gasket, Water Inlet Housing, NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
16326-36010 note Gasket, Water Inlet Housing, NO.2
2013-12 → 2015-10 ended
2ARFE ASA4# —
16326-36010 note Gasket, Water Inlet Housing, NO.2
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
16331A — Thermostat
90916-03129 note Thermostat
2012-12 → 2015-10 ended
2ARFE ASA4# —
90916-C3001 note Thermostat
2013-12 → 2015-10 ended
2ARFE ASA4# —
90916-03129 note Thermostat
2015-10 → 2018-10 ended
2ARFE ASA4# —
90916-03148 note Thermostat
2015-10 → 2018-10 ended
2ARFXE AVA44 —
90916-C3001 note Thermostat
2015-10 → 2018-10 ended
2ARFE ASA4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
