Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

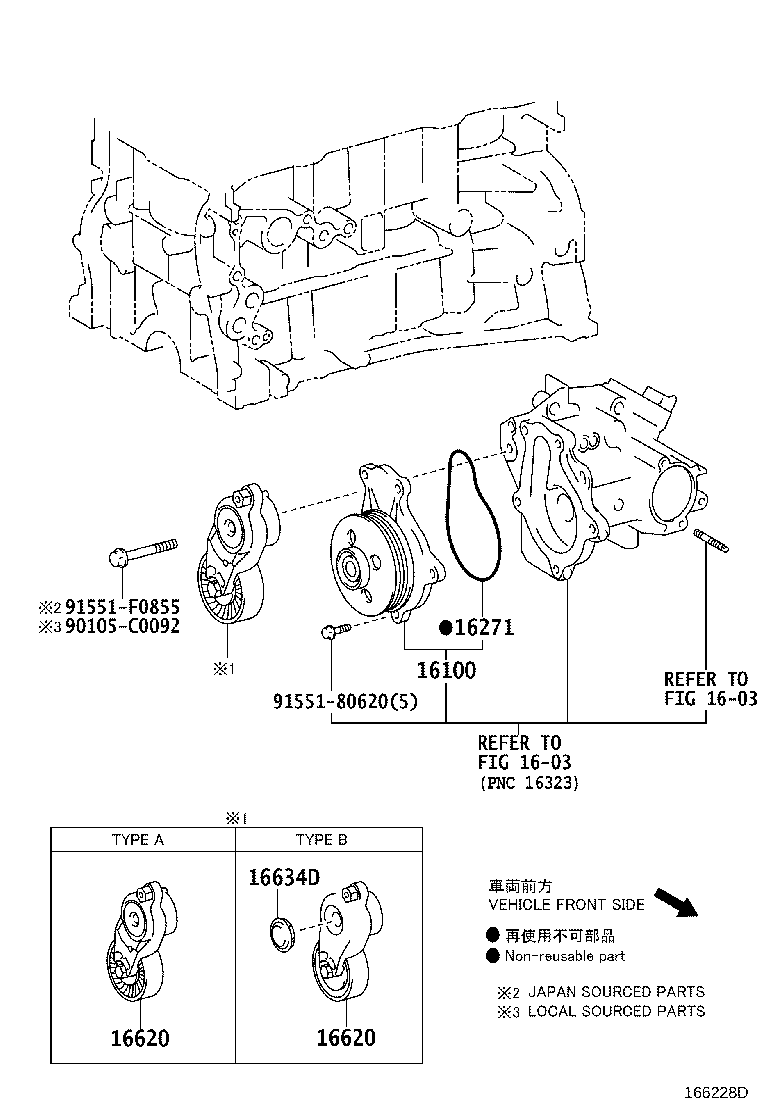

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-09600 note |
Pump Assy, Engine Water
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16100-39515 note |
Pump Assy, Engine Water
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16100-09600 note |
Pump Assy, Engine Water
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16100-39515 note |
Pump Assy, Engine Water
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16100-39575 note |
Pump Assy, Engine Water
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-36010 note |
Gasket, Water Pump
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16271-36010 note |
Gasket, Water Pump
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16271-36010 note |
Gasket, Water Pump
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16271-36030 note |
Gasket, Water Pump
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16620 — Tensioner Assy, V-ribbed Belt | ||||
| 16620-0V041 note |
Tensioner Assy, V-ribbed Belt
2013-12 → 2014-01
ended
|
2ARFE ASA4# | — | |
| 16620-0V042 note |
Tensioner Assy, V-ribbed Belt
2014-01 → 2014-10
ended
|
2ARFE ASA4# | — | |
| 16620-0V042 note |
Tensioner Assy, V-ribbed Belt
2014-10 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16620-0V050 note |
Tensioner Assy, V-ribbed Belt
2014-10 → 2015-08
ended
|
2ARFE ASA4# | — | |
| 16620-0V051 note |
Tensioner Assy, V-ribbed Belt
2015-09 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16620-36010 note |
Tensioner Assy, V-ribbed Belt
2012-12 → 2014-02
ended
|
2ARFE ASA4# | — | |
| 16620-36011 note |
Tensioner Assy, V-ribbed Belt
2014-02 → 2015-09
ended
|
2ARFE ASA4# | — | |
| 16620-0V042 note |
Tensioner Assy, V-ribbed Belt
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 16620-0V051 note |
Tensioner Assy, V-ribbed Belt
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 16620-36012 note |
Tensioner Assy, V-ribbed Belt
2015-10 → 2017-12
ended
|
2AR# ASA4#,AVA44 | — | |
| 16620-36013 note |
Tensioner Assy, V-ribbed Belt
2018-01 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 16634D — Cover, Dust | ||||
| 16628-0V010 note |
Cover, Dust
2014-10 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16628-0V010 note |
Cover, Dust
2015-10 → —
|
2AR# ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
