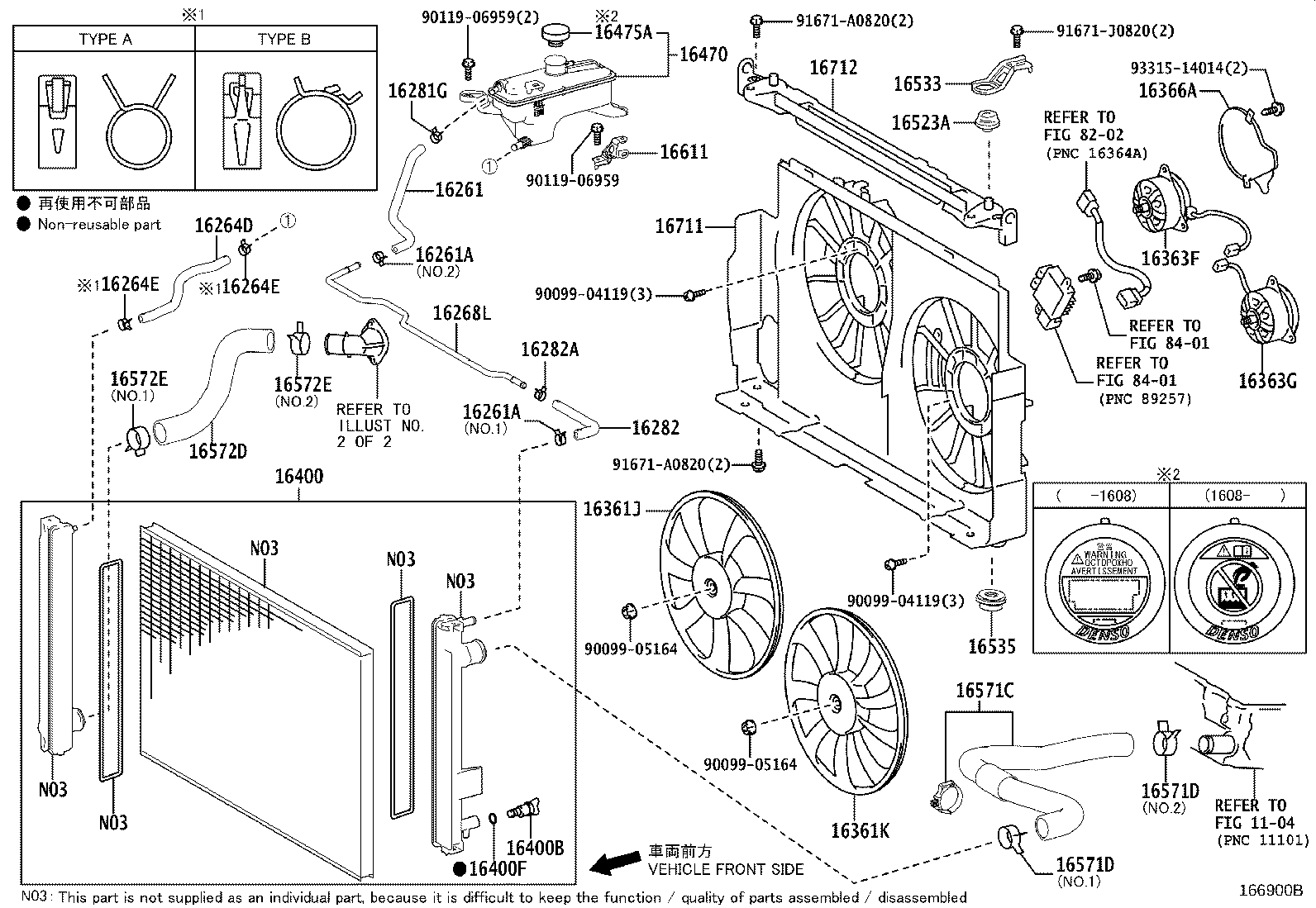

Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-0V030 note |
Hose, Water By-pass
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16261-36010 note |
Hose, Water By-pass
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16261-0V030 note |
Hose, Water By-pass
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16261-36010 note |
Hose, Water By-pass
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16261-36050 |
Hose, Water By-pass
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0026 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90467-15022 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 96137-41501 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 96137-41501 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90466-C0026 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 90467-15022 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 90467-15022 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 96136-41901 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 96137-41501 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16264D — Hose, Water By-pass, NO.2 | ||||
| 16264-36040 |
Hose, Water By-pass, NO.2
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16264-36040 |
Hose, Water By-pass, NO.2
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16264-36130 |
Hose, Water By-pass, NO.2
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16264E — Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96134-51700 |
Clip(FOR WATER BY-PASS HOSE NO.2)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 96134-51700 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 96134-51700 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 96136-41901 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 96136-41901 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16268L — Pipe, Water By-pass | ||||
| 16268-36070 |
Pipe, Water By-pass
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16268-36070 |
Pipe, Water By-pass
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16268-36120 |
Pipe, Water By-pass
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16281G — Clip(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
Clip(FOR WATER BY-PASS HOSE NO.5)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16282 — Hose, Water By-pass, NO.5 | ||||
| 16282-36030 |
Hose, Water By-pass, NO.5
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16282-36030 |
Hose, Water By-pass, NO.5
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16282-36060 |
Hose, Water By-pass, NO.5
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16361J — Fan, RH | ||||
| 16361-36150 |
Fan, RH
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16361K — Fan, LH | ||||
| 16361-36140 |
Fan, LH
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16363F — Motor, Cooling Fan, RH | ||||
| 16363-36190 |
Motor, Cooling Fan, RH
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16363G — Motor, Cooling Fan, LH | ||||
| 16363-36180 |
Motor, Cooling Fan, LH
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16366A — Insulator, Cooling Fan Motor | ||||
| 16366-36150 |
Insulator, Cooling Fan Motor
2015-10 → 2017-12
ended
|
2ARFXE AVA44 | — | |
| 16366-36170 |
Insulator, Cooling Fan Motor
2017-12 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16400 — Radiator Assy | ||||
| 16400-28570 |
Radiator Assy
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16400-28570 |
Radiator Assy
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16400-36090 |
Radiator Assy
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-30170 |
Plug, Radiator Drain Cock
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16417-21280 |
Plug, Radiator Drain Cock
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16417-30170 |
Plug, Radiator Drain Cock
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
Packing(FOR RADIATOR DRAIN COCK)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16418-15520 |
Packing(FOR RADIATOR DRAIN COCK)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16470-28111 |
Tank Assy, Radiator Reserve
2012-12 → 2014-09
ended
|
2ARFE ASA4# | — | |
| 16470-28112 |
Tank Assy, Radiator Reserve
2014-10 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16470-28112 |
Tank Assy, Radiator Reserve
2015-10 → 2016-07
ended
|
2AR# ASA4#,AVA44 | — | |
| 16470-28113 |
Tank Assy, Radiator Reserve
2016-08 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 16475A — Cap, Reserve Tank | ||||
| 16475-37010 |
Cap, Reserve Tank
2012-12 → 2014-09
ended
|
2ARFE ASA4# | — | |
| 16475-37011 |
Cap, Reserve Tank
2014-10 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16475-28140 |
Cap, Reserve Tank
2016-08 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 16475-37011 |
Cap, Reserve Tank
2015-10 → 2016-08
ended
|
2AR# ASA4#,AVA44 | — | |
| 16523A — Cushion, Radiator Support | ||||
| 16523-28030 |
Cushion, Radiator Support
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16523-28030 |
Cushion, Radiator Support
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 16533 — Support, Radiator, Upper | ||||
| 16533-26070 |
Support, Radiator, Upper
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16535 — Support, Radiator, Lower | ||||
| 16535-28060 |
Support, Radiator, Lower
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16535-28060 |
Support, Radiator, Lower
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 16571C — Hose, Radiator, NO.1 | ||||
| 16571-36240 |
Hose, Radiator, NO.1
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16571D — Clip, Radiator Hose, NO.1 | ||||
| 96136-44301 note |
Clip, Radiator Hose, NO.1
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 96136-44801 note |
Clip, Radiator Hose, NO.1
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.1
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 96136-44801 note |
Clip, Radiator Hose, NO.1
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 16572D — Hose, Radiator, NO.2 | ||||
| 16572-36130 |
Hose, Radiator, NO.2
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16572-36130 |
Hose, Radiator, NO.2
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16572-36160 |
Hose, Radiator, NO.2
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16572E — Clip, Radiator Hose, NO.2 | ||||
| 96136-44301 note |
Clip, Radiator Hose, NO.2
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 96136-44801 note |
Clip, Radiator Hose, NO.2
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.2
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 96136-44801 note |
Clip, Radiator Hose, NO.2
2015-10 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 16611 — Bracket, Radiator Reserve Tank | ||||
| 16611-28030 |
Bracket, Radiator Reserve Tank
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16611-28030 |
Bracket, Radiator Reserve Tank
2015-10 → 2017-05
ended
|
2AR# ASA4#,AVA44 | — | |
| 16611-36010 |
Bracket, Radiator Reserve Tank
2017-06 → 2018-10
ended
|
2AR# ASA4#,AVA44 | — | |
| 16711 — Shroud, Fan | ||||
| 16711-36150 |
Shroud, Fan
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16711-36150 |
Shroud, Fan
2015-10 → 2018-07
ended
|
2ARFE ASA4# | — | |
| 16711-36151 |
Shroud, Fan
2018-07 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16711-36180 |
Shroud, Fan
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 16712 — Shroud, Fan, NO.2 | ||||
| 16712-36030 |
Shroud, Fan, NO.2
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 16712-36030 |
Shroud, Fan, NO.2
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 16712-36080 |
Shroud, Fan, NO.2
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
