Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

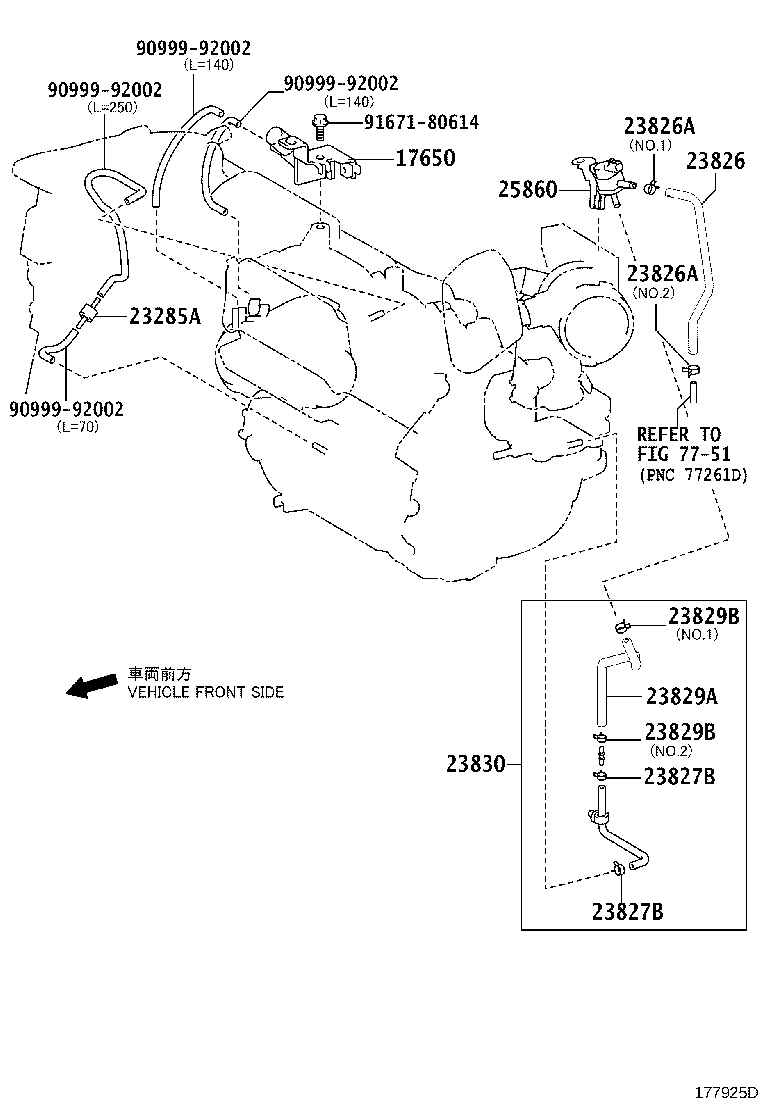

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17650 — Valve Assy, Vacuum Switching | ||||
| 25860-36010 note |
Valve Assy, Vacuum Switching
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 25860-36010 note |
Valve Assy, Vacuum Switching
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 25860-36010 note |
Valve Assy, Vacuum Switching
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 23285A — Valve, Check, NO.1 | ||||
| 90917-10065 note |
Valve, Check, NO.1
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90917-10065 note |
Valve, Check, NO.1
2013-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90917-10065 note |
Valve, Check, NO.1
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23826-36080 |
Hose, Fuel Vapor Feed, NO.1
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 23826-36080 |
Hose, Fuel Vapor Feed, NO.1
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 23826-36150 |
Hose, Fuel Vapor Feed, NO.1
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 23826A — Clip(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 90466-11003 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 96132-51300 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90466-11003 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 90467-19021 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 96132-51300 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 96136-41901 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 23827B — Clip(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 96136-41901 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 96136-51901 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 23829A — Hose, Fuel Vapor Feed | ||||
| 23826-36100 |
Hose, Fuel Vapor Feed
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 23826-36100 |
Hose, Fuel Vapor Feed
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 23829B — Clip(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-13004 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 96132-51300 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90466-13004 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 96132-51300 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 23830 — Hose Assy, Fuel Vapor Feed, NO.2 | ||||
| 23830-36110 |
Hose Assy, Fuel Vapor Feed, NO.2
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 23830-36110 |
Hose Assy, Fuel Vapor Feed, NO.2
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 23830-36120 |
Hose Assy, Fuel Vapor Feed, NO.2
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-36090 |
Valve Assy, Vacuum Switching, NO.1
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 25860-36090 |
Valve Assy, Vacuum Switching, NO.1
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 25860-36100 |
Valve Assy, Vacuum Switching, NO.1
2015-10 → 2018-10
ended
|
2ARFXE AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
