Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

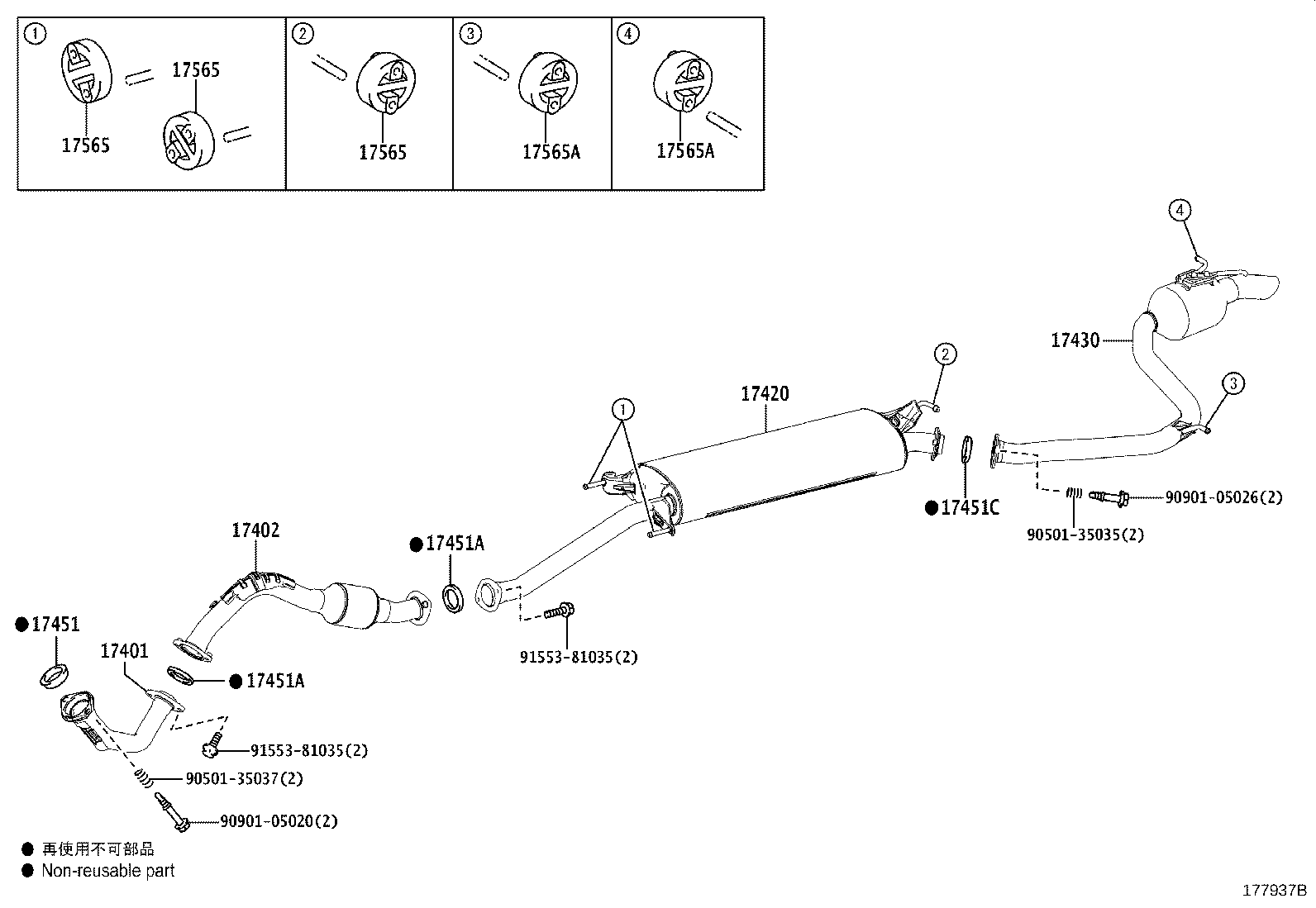

Exploded illustration 177937B 17451 — GASKET, EXHAUST PIPE (3 parts) 17451C — GASKET, EXHAUST PIPE, NO.3 (2 parts) 17451A — GASKET, EXHAUST PIPE, NO.2 (3 parts) 17402 — PIPE SUB-ASSY, EXHAUST, FRONT NO.2 (2 parts) 17401 — PIPE SUB-ASSY, EXHAUST, FRONT (2 parts) 17451A — GASKET, EXHAUST PIPE, NO.2 (3 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (5 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (5 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (2 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (2 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (2 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (2 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (2 parts) 9050135035 — not listed in this catalogue 9050135037 — not listed in this catalogue 9090105020 — not listed in this catalogue 9090105026 — not listed in this catalogue 9155381035 — not listed in this catalogue 9155381035 — not listed in this catalogue
177937B · 13 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
17401 — Pipe Sub-assy, Exhaust, Front
17401-36010 Pipe Sub-assy, Exhaust, Front
2012-12 → 2015-10 ended
2ARFE ASA4# —
17401-36010 Pipe Sub-assy, Exhaust, Front
2015-10 → 2018-10 ended
2ARFE ASA4# —
17402 — Pipe Sub-assy, Exhaust, Front NO.2
17402-36010 Pipe Sub-assy, Exhaust, Front NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
17402-36010 Pipe Sub-assy, Exhaust, Front NO.2
2015-10 → 2018-10 ended
2ARFE ASA4# —
17420 — Pipe Assy, Exhaust, Center
17420-36170 Pipe Assy, Exhaust, Center
2012-12 → 2013-07 ended
2ARFE ASA4# —
17420-36180 Pipe Assy, Exhaust, Center
2013-07 → 2013-10 ended
2ARFE ASA4# —
17420-36181 Pipe Assy, Exhaust, Center
2013-11 → 2015-10 ended
2ARFE ASA4# —
17420-36181 Pipe Assy, Exhaust, Center
2015-10 → 2018-10 ended
2ARFE ASA4# —
17420-36220 Pipe Assy, Exhaust, Center
2015-10 → 2018-10 ended
2ARFXE AVA44 —
17430 — Pipe Assy, Exhaust, Tail
17430-36210 Pipe Assy, Exhaust, Tail
2012-12 → 2013-07 ended
2ARFE ASA4# —
17430-36220 Pipe Assy, Exhaust, Tail
2013-07 → 2013-10 ended
2ARFE ASA4# —
17430-36221 Pipe Assy, Exhaust, Tail
2013-11 → 2015-10 ended
2ARFE ASA4# —
17430-36420 Pipe Assy, Exhaust, Tail
2015-10 → 2018-10 ended
2ARFXE AVA44 —
17430-36490 Pipe Assy, Exhaust, Tail
2015-10 → 2018-10 ended
2ARFE ASA4# —
17451 — Gasket, Exhaust Pipe
17451-28070 Gasket, Exhaust Pipe
2012-12 → 2015-10 ended
2ARFE ASA4# —
17451-28040 Gasket, Exhaust Pipe
2015-10 → 2018-10 ended
2ARFXE AVA44 —
17451-28070 Gasket, Exhaust Pipe
2015-10 → 2018-10 ended
2ARFE ASA4# —
17451A — Gasket, Exhaust Pipe, NO.2
90917-06078 Gasket, Exhaust Pipe, NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
90917-06078 Gasket, Exhaust Pipe, NO.2
2015-10 → 2018-10 ended
2ARFE ASA4# —
90917-06090 Gasket, Exhaust Pipe, NO.2
2015-10 → 2018-10 ended
2ARFXE AVA44 —
17451C — Gasket, Exhaust Pipe, NO.3
17451-28022 Gasket, Exhaust Pipe, NO.3
2012-12 → 2015-10 ended
2ARFE ASA4# —
17451-28022 Gasket, Exhaust Pipe, NO.3
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
17565 — Support, Exhaust Pipe, NO.5
17565-22040 Support, Exhaust Pipe, NO.5
2012-12 → 2015-10 ended
2ARFE ASA4# —
17565-22040 Support, Exhaust Pipe, NO.5
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
17565A — Support, Exhaust Pipe, NO.4
17565-22030 Support, Exhaust Pipe, NO.4
2012-12 → 2015-10 ended
2ARFE ASA4# —
17565-22030 Support, Exhaust Pipe, NO.4
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
