Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

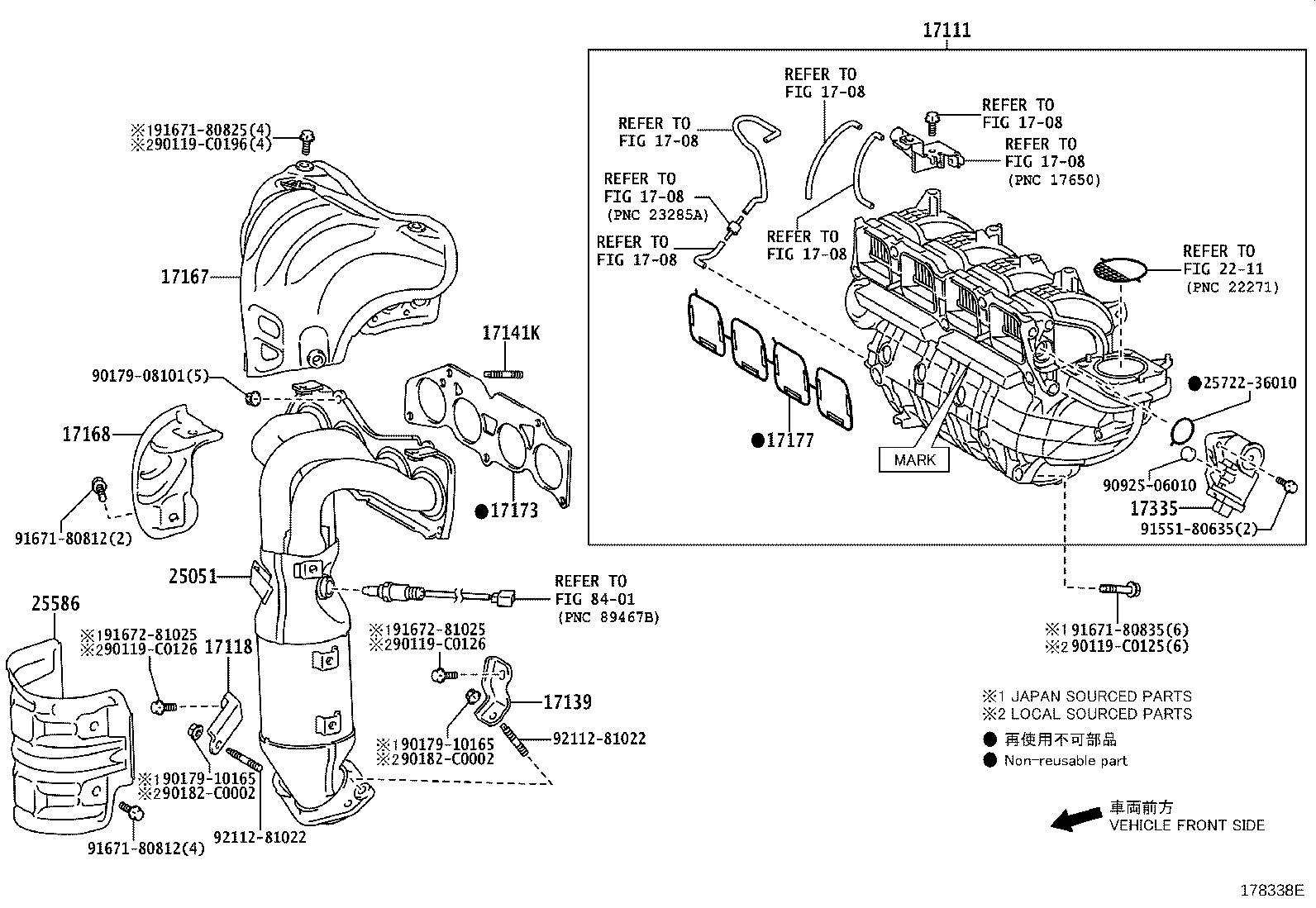

Exploded illustration 178338E 17139 — STAY, MANIFOLD, NO.2 (7 parts) 17118 — STAY, MANIFOLD (6 parts) 25586 — INSULATOR, MANIFOLD CONVERTER, NO.1 (4 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (3 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (4 parts) 17141K — BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) (6 parts) 17335 — ACTUATOR, INTAKE AIR CONTROL VALVE (3 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (5 parts) 17111 — MANIFOLD, INTAKE (9 parts) 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (4 parts) 25051 — CONVERTER SUB-ASSY, EXHAUST MANIFOLD (4 parts) 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 9211281022 — not listed in this catalogue 9017908101 — not listed in this catalogue 2572236010 — not listed in this catalogue 9167180835 — not listed in this catalogue 90119C0125 — not listed in this catalogue 9092506010 — not listed in this catalogue 9155180635 — not listed in this catalogue 9167281025 — not listed in this catalogue 90119C0126 — not listed in this catalogue 9167281025 — not listed in this catalogue 90119C0126 — not listed in this catalogue 9017910165 — not listed in this catalogue 90182C0002 — not listed in this catalogue 9017910165 — not listed in this catalogue 90182C0002 — not listed in this catalogue 9211281022 — not listed in this catalogue 9167180812 — not listed in this catalogue 9167180812 — not listed in this catalogue 9167180825 — not listed in this catalogue 90119C0196 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 8401 — not listed in this catalogue
178338E · 11 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17120-36010 note Manifold, Intake
2012-12 → 2015-10 ended
2ARFE ASA4# —
17120-36020 note Manifold, Intake
2013-12 → 2015-10 ended
2ARFE ASA4# —
17120-36010 note Manifold, Intake
2015-10 → 2016-10 ended
2ARFE ASA4# —
17120-36011 note Manifold, Intake
2016-11 → 2018-10 ended
2ARFE ASA4# —
17120-36011 note Manifold, Intake
2018-04 → 2018-10 ended
2ARFE ASA4# —
17120-36020 note Manifold, Intake
2015-10 → 2016-10 ended
2ARFE ASA4# —
17120-36021 note Manifold, Intake
2016-11 → 2018-04 ended
2ARFE ASA4# —
17120-36021 note Manifold, Intake
2018-04 → 2018-10 ended
2ARFE ASA4# —
17120-36050 note Manifold, Intake
2015-10 → 2018-10 ended
2ARFXE AVA44 —
17118 — Stay, Manifold
17118-0V020 note Stay, Manifold
2013-12 → 2015-10 ended
2ARFE ASA4# —
17118-36010 note Stay, Manifold
2012-12 → 2015-10 ended
2ARFE ASA4# —
17118-0V020 note Stay, Manifold
2015-10 → 2018-10 ended
2ARFE ASA4# —
17118-0V030 note Stay, Manifold
2015-10 → 2018-10 ended
2ARFXE AVA44 —
17118-36010 note Stay, Manifold
2015-10 → 2018-10 ended
2ARFE ASA4# —
17118-36020 note Stay, Manifold
2015-10 → 2018-10 ended
2ARFXE AVA44 —
17139 — Stay, Manifold, NO.2
17139-0V060 note Stay, Manifold, NO.2
2013-12 → 2015-10 ended
2ARFE ASA4# —
17139-36010 note Stay, Manifold, NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
17139-36010 note Stay, Manifold, NO.2
2013-12 → 2015-10 ended
2ARFE ASA4# —
17139-0V030 note Stay, Manifold, NO.2
2015-10 → 2018-10 ended
2ARFXE AVA44 —
17139-0V060 note Stay, Manifold, NO.2
2015-10 → 2018-10 ended
2ARFE ASA4# —
17139-36010 note Stay, Manifold, NO.2
2015-10 → 2018-10 ended
2ARFE ASA4# —
17139-36040 note Stay, Manifold, NO.2
2015-10 → 2018-10 ended
2ARFXE AVA44 —
17141K — Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08037 note Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2012-12 → 2015-10 ended
2ARFE ASA4# —
90126-08052 note Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2013-12 → 2015-10 ended
2ARFE ASA4# —
90126-08037 note Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
90126-08052 note Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2015-10 → 2017-09 ended
2AR# ASA4#,AVA44 —
90126-08052 note Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2017-09 → 2018-10 ended
2AR# ASA4#,AVA44 —
90126-C0010 note Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2017-09 → 2018-10 ended
2AR# ASA4#,AVA44 —
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-0V020 note Insulator, Exhaust Manifold Heat, NO.1
2013-12 → 2015-10 ended
2ARFE ASA4# —
17167-36011 note Insulator, Exhaust Manifold Heat, NO.1
2012-12 → 2015-10 ended
2ARFE ASA4# —
17167-0V020 note Insulator, Exhaust Manifold Heat, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
17167-36011 note Insulator, Exhaust Manifold Heat, NO.1
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-36010 note Insulator, Exhaust Manifold Heat, NO.2
2012-12 → 2015-10 ended
2ARFE ASA4# —
17168-36010 note Insulator, Exhaust Manifold Heat, NO.2
2013-12 → 2015-10 ended
2ARFE ASA4# —
17168-36010 note Insulator, Exhaust Manifold Heat, NO.2
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
17173 — Gasket, Exhaust Manifold TO Head
17173-0V020 note Gasket, Exhaust Manifold TO Head
2013-12 → 2015-10 ended
2ARFE ASA4# —
17173-36020 note Gasket, Exhaust Manifold TO Head
2012-12 → 2015-10 ended
2ARFE ASA4# —
17173-0V020 note Gasket, Exhaust Manifold TO Head
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
17173-36020 note Gasket, Exhaust Manifold TO Head
2015-10 → 2018-10 ended
2AR# ASA4#,AVA44 —
17177 — Gasket, Intake Manifold TO Head, NO.1
17171-36010 note Gasket, Intake Manifold TO Head, NO.1
2012-12 → 2015-10 ended
2ARFE ASA4# —
17171-36010 note Gasket, Intake Manifold TO Head, NO.1
2013-12 → 2015-10 ended
2ARFE ASA4# —
17171-36010 note Gasket, Intake Manifold TO Head, NO.1
2015-10 → 2016-10 ended
2ARFE ASA4# —
17171-36011 note Gasket, Intake Manifold TO Head, NO.1
2016-11 → 2018-10 ended
2ARFE ASA4# —
17171-36020 note Gasket, Intake Manifold TO Head, NO.1
2015-10 → 2018-10 ended
2ARFXE AVA44 —
17335 — Actuator, Intake Air Control Valve
17335-36010 note Actuator, Intake Air Control Valve
2012-12 → 2015-10 ended
2ARFE ASA4# —
17335-36010 note Actuator, Intake Air Control Valve
2013-12 → 2015-10 ended
2ARFE ASA4# —
17335-36010 note Actuator, Intake Air Control Valve
2015-10 → 2018-10 ended
2ARFE ASA4# —
25051 — Converter Sub-assy, Exhaust Manifold
25051-36150 note Converter Sub-assy, Exhaust Manifold
2012-12 → 2015-10 ended
2ARFE ASA4# —
25051-36150 note Converter Sub-assy, Exhaust Manifold
2013-12 → 2015-10 ended
2ARFE ASA4# —
25051-36080 note Converter Sub-assy, Exhaust Manifold
2015-10 → 2018-10 ended
2ARFXE AVA44 —
25051-36150 note Converter Sub-assy, Exhaust Manifold
2015-10 → 2018-10 ended
2ARFE ASA4# —
25586 — Insulator, Manifold Converter, NO.1
25586-36010 note Insulator, Manifold Converter, NO.1
2012-12 → 2015-10 ended
2ARFE ASA4# —
25586-36010 note Insulator, Manifold Converter, NO.1
2013-12 → 2015-10 ended
2ARFE ASA4# —
25586-36010 note Insulator, Manifold Converter, NO.1
2015-10 → 2018-10 ended
2ARFE ASA4# —
25586-36020 note Insulator, Manifold Converter, NO.1
2015-10 → 2018-10 ended
2ARFXE AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
