Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

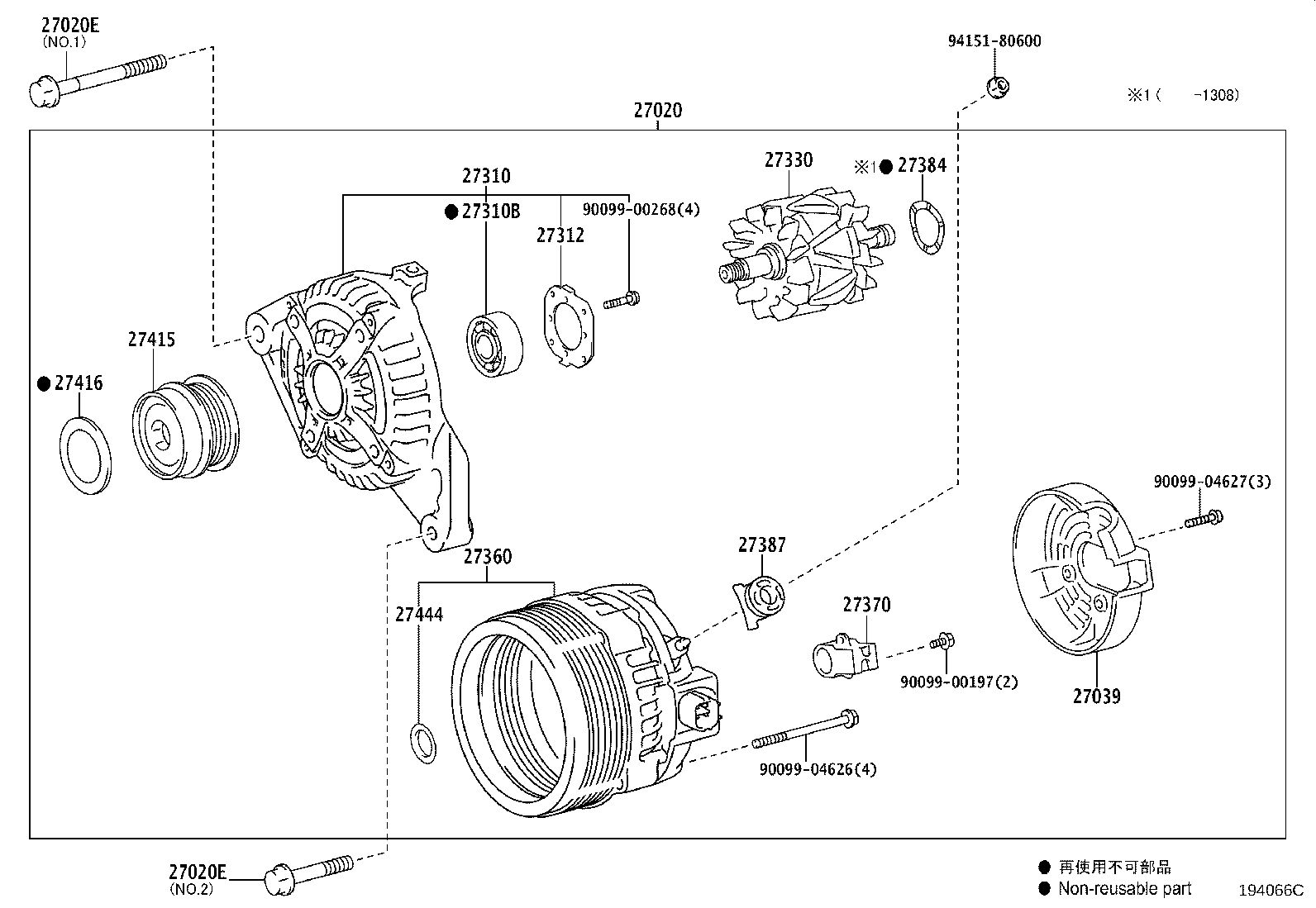

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-36080 note |
Alternator Assy
2012-12 → 2015-10
ended
|
2ARFE ASA44 | — | |
| 27060-36090 note |
Alternator Assy
2012-12 → 2015-10
ended
|
2ARFE ASA42 | — | |
| 27060-36080 note |
Alternator Assy
2015-10 → 2018-10
ended
|
2ARFE ASA44 | — | |
| 27060-36090 note |
Alternator Assy
2015-10 → 2018-10
ended
|
2ARFE ASA42 | — | |
| 27020E — Bolt(FOR ALTERNATOR) | ||||
| 90105-10562 note |
Bolt(FOR ALTERNATOR)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 91552-81045 note |
Bolt(FOR ALTERNATOR)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90105-10562 note |
Bolt(FOR ALTERNATOR)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 91552-81045 note |
Bolt(FOR ALTERNATOR)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 27039 — Cover, Alternator Rear End | ||||
| 27039-47330 |
Cover, Alternator Rear End
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 27039-47330 |
Cover, Alternator Rear End
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-36160 |
Frame Assy, Drive End, Alternator
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 27310-36160 |
Frame Assy, Drive End, Alternator
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 90099-10223 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 27312 — Plate, Retainer | ||||
| 27312-72100 |
Plate, Retainer
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 27312-72100 |
Plate, Retainer
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-47330 |
Rotor Assy, Alternator
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 27330-47330 |
Rotor Assy, Alternator
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 27360 — Coil Assy, Alternator | ||||
| 27360-36160 |
Coil Assy, Alternator
2012-12 → 2013-08
ended
|
2ARFE ASA44 | — | |
| 27360-36161 |
Coil Assy, Alternator
2013-08 → 2015-10
ended
|
2ARFE ASA44 | — | |
| 27360-36170 |
Coil Assy, Alternator
2012-12 → 2013-08
ended
|
2ARFE ASA42 | — | |
| 27360-36171 |
Coil Assy, Alternator
2013-08 → 2015-10
ended
|
2ARFE ASA42 | — | |
| 27360-36161 |
Coil Assy, Alternator
2015-10 → 2018-10
ended
|
2ARFE ASA44 | — | |
| 27360-36171 |
Coil Assy, Alternator
2015-10 → 2018-10
ended
|
2ARFE ASA42 | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-31220 |
Holder Assy, Alternator Brush
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 27370-31220 |
Holder Assy, Alternator Brush
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 27384 — Washer | ||||
| 27384-38130 |
Washer
2012-12 → 2013-08
ended
|
2ARFE ASA4# | — | |
| 27387 — Insulator, Terminal | ||||
| 27387-20130 |
Insulator, Terminal
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 27387-20130 |
Insulator, Terminal
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 27415 — Pulley, Alternator W/Clutch | ||||
| 27415-0W020 |
Pulley, Alternator W/Clutch
2012-12 → 2013-07
ended
|
2ARFE ASA4# | — | |
| 27415-0W021 |
Pulley, Alternator W/Clutch
2013-08 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 27415-0W021 |
Pulley, Alternator W/Clutch
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 27416 — Cap, Alternator Pulley | ||||
| 27416-0W050 |
Cap, Alternator Pulley
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 27444 — Packing, Alternator Bearing Cover | ||||
| 27444-21190 |
Packing, Alternator Bearing Cover
2013-08 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 27444-21190 |
Packing, Alternator Bearing Cover
2015-10 → 2018-10
ended
|
2ARFE ASA4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
