Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

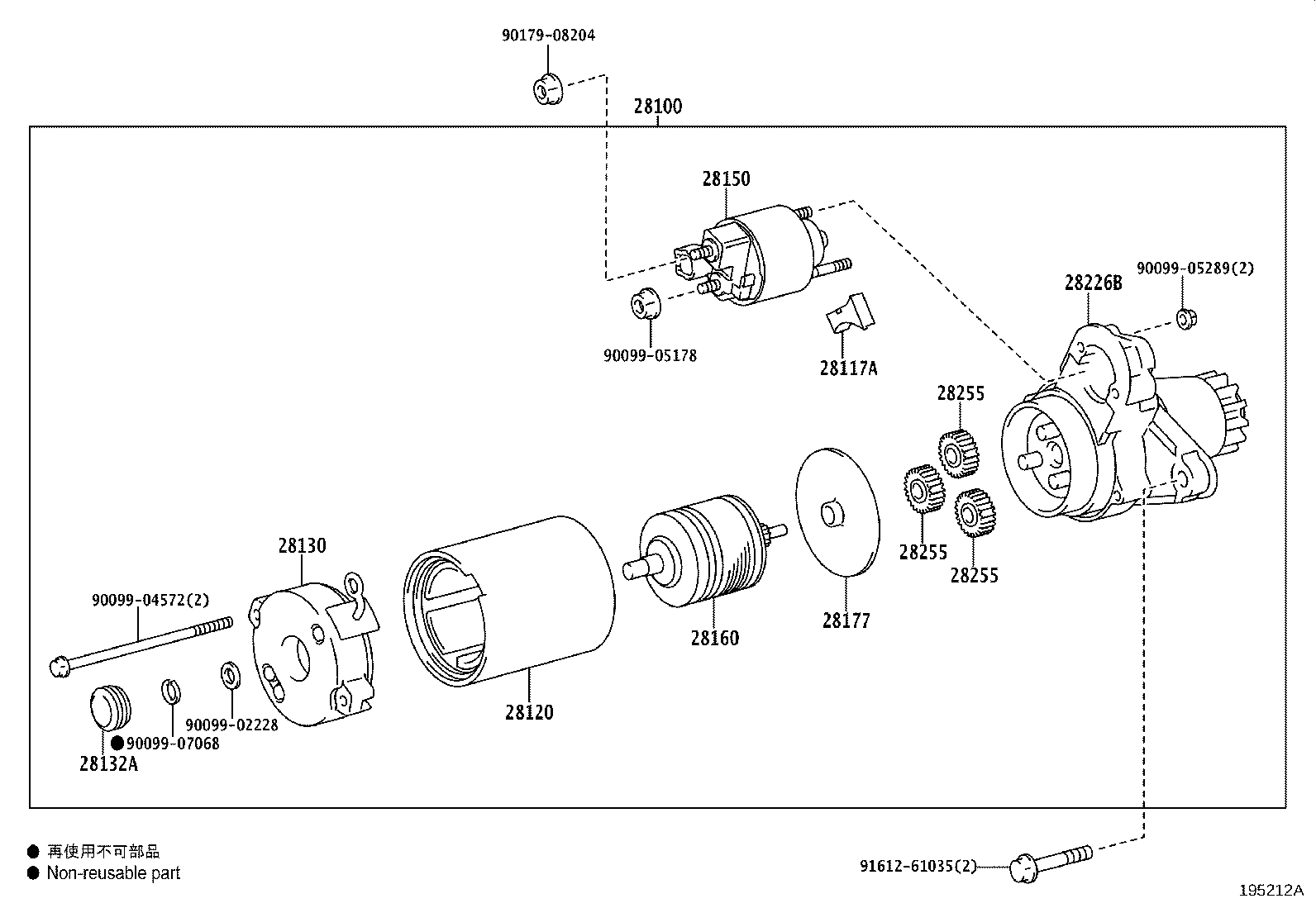

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28100 — Starter Assy | ||||
| 28100-20021 note |
Starter Assy
2012-12 → 2014-07
ended
|
2ARFE ASA4# | — | |
| 28100-20022 note |
Starter Assy
2014-08 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28100-20022 note |
Starter Assy
2015-10 → 2017-02
ended
|
2ARFE ASA4# | — | |
| 28100-28072 note |
Starter Assy
2017-03 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28117A — Seal, Rubber | ||||
| 28117-28060 |
Seal, Rubber
2017-03 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-28060 |
Yoke Assy, Starter
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28120-28060 |
Yoke Assy, Starter
2015-10 → 2017-03
ended
|
2ARFE ASA4# | — | |
| 28120-28060 |
Yoke Assy, Starter
2017-03 → 2017-05
ended
|
2ARFE ASA4# | — | |
| 28120-28060 |
Yoke Assy, Starter
2017-05 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28130 — Frame Assy, Starter Commutator End | ||||
| 28130-20020 |
Frame Assy, Starter Commutator End
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28130-20020 |
Frame Assy, Starter Commutator End
2015-10 → 2017-03
ended
|
2ARFE ASA4# | — | |
| 28130-20020 |
Frame Assy, Starter Commutator End
2017-03 → 2017-05
ended
|
2ARFE ASA4# | — | |
| 28130-20020 |
Frame Assy, Starter Commutator End
2017-05 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28132A — Cover, Starter Commutator End Frame | ||||
| 28132-28040 |
Cover, Starter Commutator End Frame
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28132-28040 |
Cover, Starter Commutator End Frame
2015-10 → 2017-03
ended
|
2ARFE ASA4# | — | |
| 28132-28040 |
Cover, Starter Commutator End Frame
2017-03 → 2017-05
ended
|
2ARFE ASA4# | — | |
| 28132-28040 |
Cover, Starter Commutator End Frame
2017-05 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28150 — Switch Assy, Magnet Starter | ||||
| 28226-28051 |
Switch Assy, Magnet Starter
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28150-40090 |
Switch Assy, Magnet Starter
2017-03 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28226-28051 |
Switch Assy, Magnet Starter
2015-10 → 2017-03
ended
|
2ARFE ASA4# | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-28040 |
Armature Assy, Starter
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28160-28040 |
Armature Assy, Starter
2015-10 → 2017-03
ended
|
2ARFE ASA4# | — | |
| 28160-28040 |
Armature Assy, Starter
2017-03 → 2017-05
ended
|
2ARFE ASA4# | — | |
| 28160-28040 |
Armature Assy, Starter
2017-05 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28177 — Plate(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
Plate(FOR STARTER ARMATURE)
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28177-28040 |
Plate(FOR STARTER ARMATURE)
2017-03 → 2017-05
ended
|
2ARFE ASA4# | — | |
| 28177-28040 |
Plate(FOR STARTER ARMATURE)
2017-05 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28177-28040 |
Plate(FOR STARTER ARMATURE)
2015-10 → 2017-03
ended
|
2ARFE ASA4# | — | |
| 28226B — Starter Kit, Repair Service | ||||
| 28226-28041 |
Starter Kit, Repair Service
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28226-28041 |
Starter Kit, Repair Service
2015-10 → 2017-03
ended
|
2ARFE ASA4# | — | |
| 28226-28060 |
Starter Kit, Repair Service
2017-03 → 2018-10
ended
|
2ARFE ASA4# | — | |
| 28255 — Gear, Planet | ||||
| 28255-20020 |
Gear, Planet
2012-12 → 2015-10
ended
|
2ARFE ASA4# | — | |
| 28255-20020 |
Gear, Planet
2015-10 → 2017-03
ended
|
2ARFE ASA4# | — | |
| 28255-20020 |
Gear, Planet
2017-03 → 2017-05
ended
|
2ARFE ASA4# | — | |
| 28255-20020 |
Gear, Planet
2017-05 → 2018-10
ended
|
2ARFE ASA4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
