Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

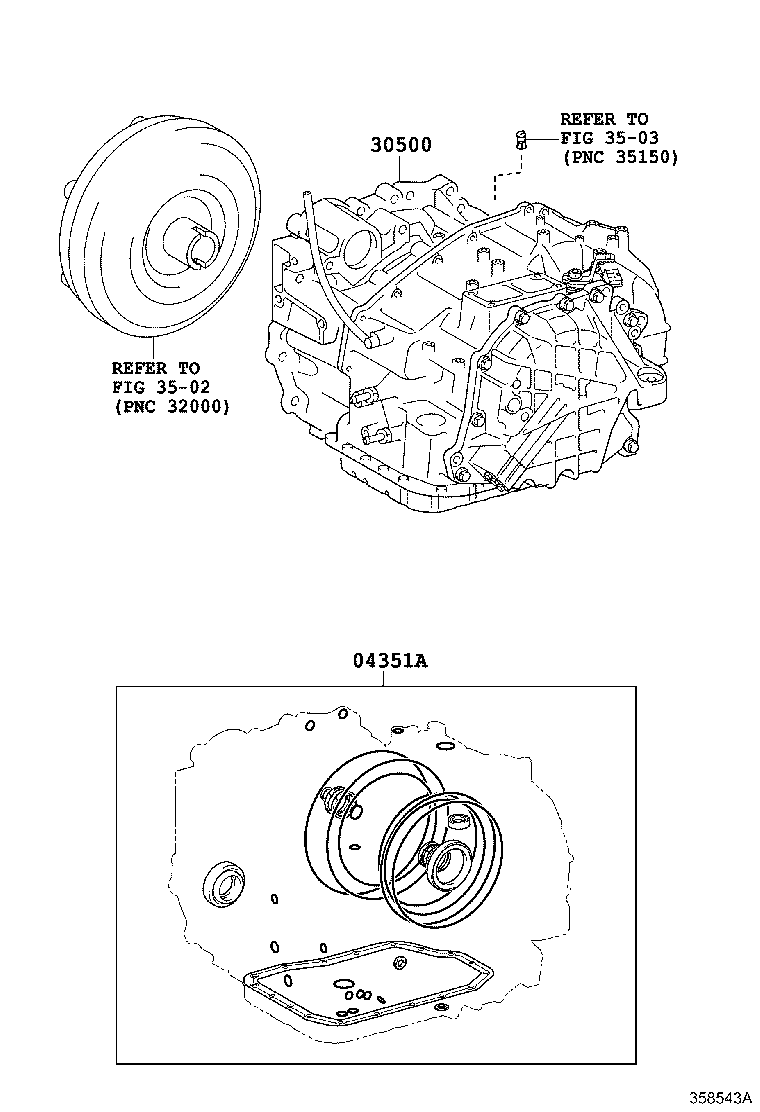

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04351A — Gasket Kit, Transaxle Overhaul(ATM) | ||||
| 04351-48183 |
Gasket Kit, Transaxle Overhaul(ATM)
2012-12 → 2015-10
ended
|
ASA42 | — | |
| 04351-73012 |
Gasket Kit, Transaxle Overhaul(ATM)
2012-12 → 2015-10
ended
|
ASA44 | — | |
| 30500 — Transaxle Assy, Automatic | ||||
| 30500-42270 note |
Transaxle Assy, Automatic
2012-12 → 2014-09
ended
|
ASA44 | — | |
| 30500-42271 note |
Transaxle Assy, Automatic
2014-10 → 2015-10
ended
|
ASA44 | — | |
| 30500-42340 note |
Transaxle Assy, Automatic
2012-12 → 2015-10
ended
|
ASA42 | — | |
| 30500-21250 note |
Transaxle Assy, Automatic
2016-08 → 2018-10
ended
|
ASA42 | — | |
| 30500-42271 note |
Transaxle Assy, Automatic
2015-10 → 2018-10
ended
|
ASA44 | — | |
| 30500-42310 note |
Transaxle Assy, Automatic
2017-09 → 2018-10
ended
|
ASA44 | — | |
| 30500-42340 note |
Transaxle Assy, Automatic
2015-10 → 2018-10
ended
|
ASA42 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
