Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

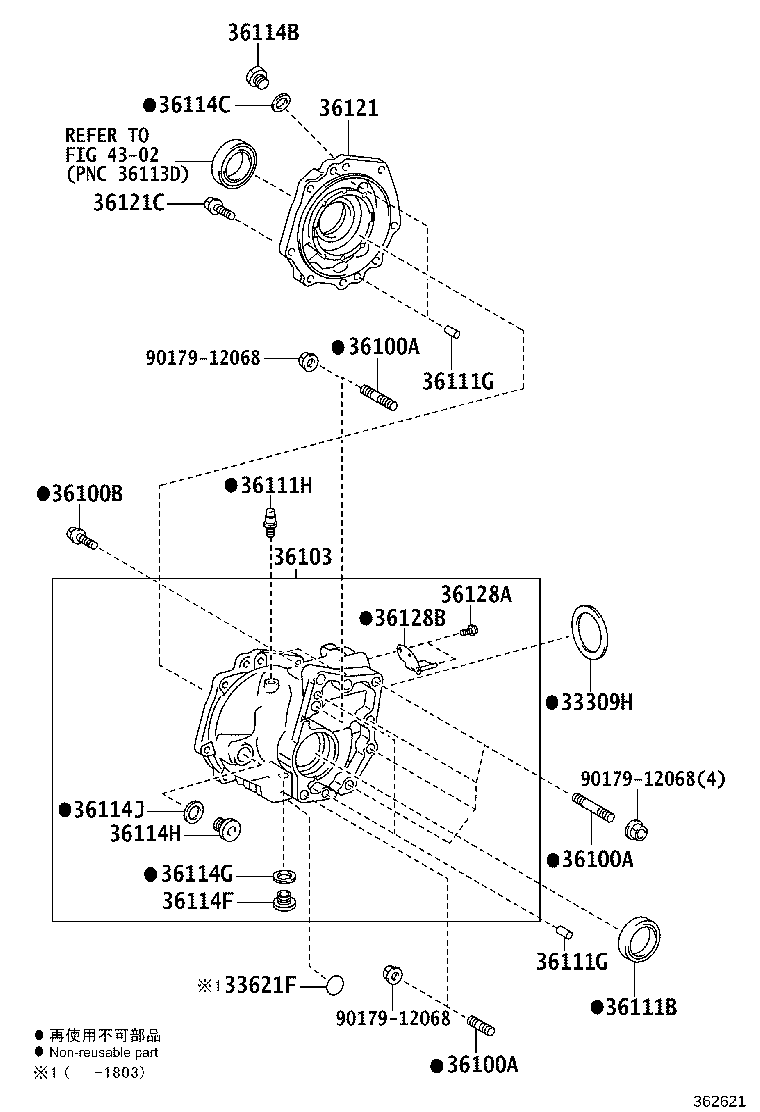

Exploded illustration 362621 33309H — WASHER, TRANSFER OUTPUT SHAFT (56 parts) 36100A — BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) (6 parts) 36100A — BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) (6 parts) 36100A — BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) (6 parts) 36103 — CASE SUB-ASSY, TRANSFER (4 parts) 36111B — SEAL, OIL (FOR TRANSFER CASE) (2 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (2 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (2 parts) 36111H — PLUG, BREATHER (FOR TRANSFER CASE) (2 parts) 36100B — BOLT (FOR TRANSFER & TRANSAXLE SETTING) (2 parts) 36114B — PLUG, NO.1 (FOR TRANSFER CASE) (2 parts) 36114C — GASKET, NO.1 (FOR TRANSFER CASE) (2 parts) 36114F — PLUG (FOR TRANSFER DRAIN) (2 parts) 33621F — LABEL, TRANSAXLE OIL INFORMATION (3 parts) 36114G — GASKET (FOR TRANSFER DRAIN PLUG) (2 parts) 36114H — PLUG, NO.2 (FOR TRANSFER CASE) (2 parts) 36114J — GASKET, NO.2 (FOR TRANSFER CASE) (2 parts) 36121 — COVER, TRANSFER CASE, NO.1 (2 parts) 36121C — BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER) (2 parts) 36128B — DEFLECTOR, BREATHER OIL (2 parts) 36128A — BOLT (FOR BREATHER OIL DEFLECTOR) (2 parts) 9017912068 — not listed in this catalogue 9017912068 — not listed in this catalogue 9017912068 — not listed in this catalogue 4302 — not listed in this catalogue
362621 · 21 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
97 parts on this figure
Part number Description Fitment Price
33309H — Washer, Transfer Output Shaft
36275-52010 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52020 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52030 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52040 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52050 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52060 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52070 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52080 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52090 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52100 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52110 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52120 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52130 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52140 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52150 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52160 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52170 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52180 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52190 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52200 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52210 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52220 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52230 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52240 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52250 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52260 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52270 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52280 note Washer, Transfer Output Shaft
2012-12 → 2015-10 ended
ASA44 —
36275-52010 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52020 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52030 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52040 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52050 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52060 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52070 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52080 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52090 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52100 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52110 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52120 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52130 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52140 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52150 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52160 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52170 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52180 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52190 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52200 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52210 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52220 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52230 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52240 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52250 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52260 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52270 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
36275-52280 note Washer, Transfer Output Shaft
2015-10 → 2018-10 ended
ASA44 —
33621F — Label, Transaxle Oil Information
33621-42030 Label, Transaxle Oil Information
2012-12 → 2015-08 ended
ASA44 —
33621-48020 Label, Transaxle Oil Information
2015-08 → 2015-10 ended
ASA44 —
33621-48020 Label, Transaxle Oil Information
2015-10 → 2018-03 ended
ASA44 —
36100A — Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2012-12 → 2015-10 ended
ASA44 —
90116-12034 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2012-12 → 2015-10 ended
ASA44 —
90116-12041 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2012-12 → 2015-10 ended
ASA44 —
90116-12028 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2015-10 → 2018-10 ended
ASA44 —
90116-12034 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2015-10 → 2018-10 ended
ASA44 —
90116-12041 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2015-10 → 2018-10 ended
ASA44 —
36100B — Bolt (FOR TRANSFER & TRANSAXLE SETTING)
90105-12298 note Bolt (FOR TRANSFER & TRANSAXLE SETTING)
2012-12 → 2015-10 ended
ASA44 —
90105-12298 note Bolt (FOR TRANSFER & TRANSAXLE SETTING)
2015-10 → 2018-10 ended
ASA44 —
36103 — Case Sub-assy, Transfer
36103-42040 Case Sub-assy, Transfer
2012-12 → 2015-08 ended
ASA44 —
36103-42041 Case Sub-assy, Transfer
2015-08 → 2015-10 ended
ASA44 —
36103-42041 Case Sub-assy, Transfer
2015-10 → 2018-09 ended
ASA44 —
36103-42070 Case Sub-assy, Transfer
2018-09 → 2018-10 ended
ASA44 —
36111B — Seal, Oil (FOR TRANSFER CASE)
90311-55002 Seal, Oil (FOR TRANSFER CASE)
2012-12 → 2015-10 ended
ASA44 —
90311-55002 Seal, Oil (FOR TRANSFER CASE)
2015-10 → 2018-10 ended
ASA44 —
36111G — Pin, Straight (FOR TRANSFER CASE)
90250-10017 note Pin, Straight (FOR TRANSFER CASE)
2012-12 → 2015-10 ended
ASA44 —
90250-10017 note Pin, Straight (FOR TRANSFER CASE)
2015-10 → 2018-10 ended
ASA44 —
36111H — Plug, Breather (FOR TRANSFER CASE)
90930-03133 Plug, Breather (FOR TRANSFER CASE)
2012-12 → 2015-10 ended
ASA44 —
90930-03133 Plug, Breather (FOR TRANSFER CASE)
2015-10 → 2018-10 ended
ASA44 —
36114B — Plug, NO.1 (FOR TRANSFER CASE)
90341-18006 Plug, NO.1 (FOR TRANSFER CASE)
2012-12 → 2015-10 ended
ASA44 —
90341-18006 Plug, NO.1 (FOR TRANSFER CASE)
2015-10 → 2018-10 ended
ASA44 —
36114C — Gasket, NO.1 (FOR TRANSFER CASE)
12157-10010 Gasket, NO.1 (FOR TRANSFER CASE)
2012-12 → 2015-10 ended
ASA44 —
12157-10010 Gasket, NO.1 (FOR TRANSFER CASE)
2015-10 → 2018-10 ended
ASA44 —
36114F — Plug (FOR TRANSFER DRAIN)
90341-18051 Plug (FOR TRANSFER DRAIN)
2012-12 → 2015-10 ended
ASA44 —
90341-18051 Plug (FOR TRANSFER DRAIN)
2015-10 → 2018-10 ended
ASA44 —
36114G — Gasket (FOR TRANSFER DRAIN PLUG)
12157-10010 Gasket (FOR TRANSFER DRAIN PLUG)
2012-12 → 2015-10 ended
ASA44 —
12157-10010 Gasket (FOR TRANSFER DRAIN PLUG)
2015-10 → 2018-10 ended
ASA44 —
36114H — Plug, NO.2 (FOR TRANSFER CASE)
90341-18023 Plug, NO.2 (FOR TRANSFER CASE)
2012-12 → 2015-10 ended
ASA44 —
90341-18023 Plug, NO.2 (FOR TRANSFER CASE)
2015-10 → 2018-10 ended
ASA44 —
36114J — Gasket, NO.2 (FOR TRANSFER CASE)
12157-10010 Gasket, NO.2 (FOR TRANSFER CASE)
2012-12 → 2015-10 ended
ASA44 —
12157-10010 Gasket, NO.2 (FOR TRANSFER CASE)
2015-10 → 2018-10 ended
ASA44 —
36121 — Cover, Transfer Case, NO.1
36121-52020 Cover, Transfer Case, NO.1
2012-12 → 2015-10 ended
ASA44 —
36121-52020 Cover, Transfer Case, NO.1
2015-10 → 2018-10 ended
ASA44 —
36121C — Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER)
91552-81030 Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER)
2012-12 → 2015-10 ended
ASA44 —
91552-81030 Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER)
2015-10 → 2018-10 ended
ASA44 —
36128A — Bolt (FOR BREATHER OIL DEFLECTOR)
91621-60614 Bolt (FOR BREATHER OIL DEFLECTOR)
2012-12 → 2015-10 ended
ASA44 —
91621-60614 Bolt (FOR BREATHER OIL DEFLECTOR)
2015-10 → 2018-10 ended
ASA44 —
36128B — Deflector, Breather Oil
36128-42010 Deflector, Breather Oil
2012-12 → 2015-10 ended
ASA44 —
36128-42010 Deflector, Breather Oil
2015-10 → 2018-10 ended
ASA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
