Exploded illustration 414449D 9020110068 — not listed in this catalogue 9017010191 — not listed in this catalogue 42330 — SHAFT ASSY, REAR DRIVE, RH (3 parts) 42340B — SHAFT ASSY, REAR DRIVE, LH (3 parts) 42360C — JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH (1 parts) 42360D — JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH (1 parts) 42347C — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) (3 parts) 42347D — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) (3 parts) 42346C — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) (2 parts) 42346D — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (2 parts) 42346E — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) (2 parts) 42346F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (2 parts) 42347E — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) (3 parts) 42347F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH (3 parts) 42341B — RING, SNAP (FOR REAR DRIVE SHAFT RH) (3 parts) 42341C — RING, SNAP (FOR REAR DRIVE SHAFT LH) (3 parts) 04438N — BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH (5 parts) 04438Q — BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH (5 parts) 42370A — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH (3 parts) 42380 — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH (3 parts) 04437D — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH (4 parts) 04437C — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH (4 parts)

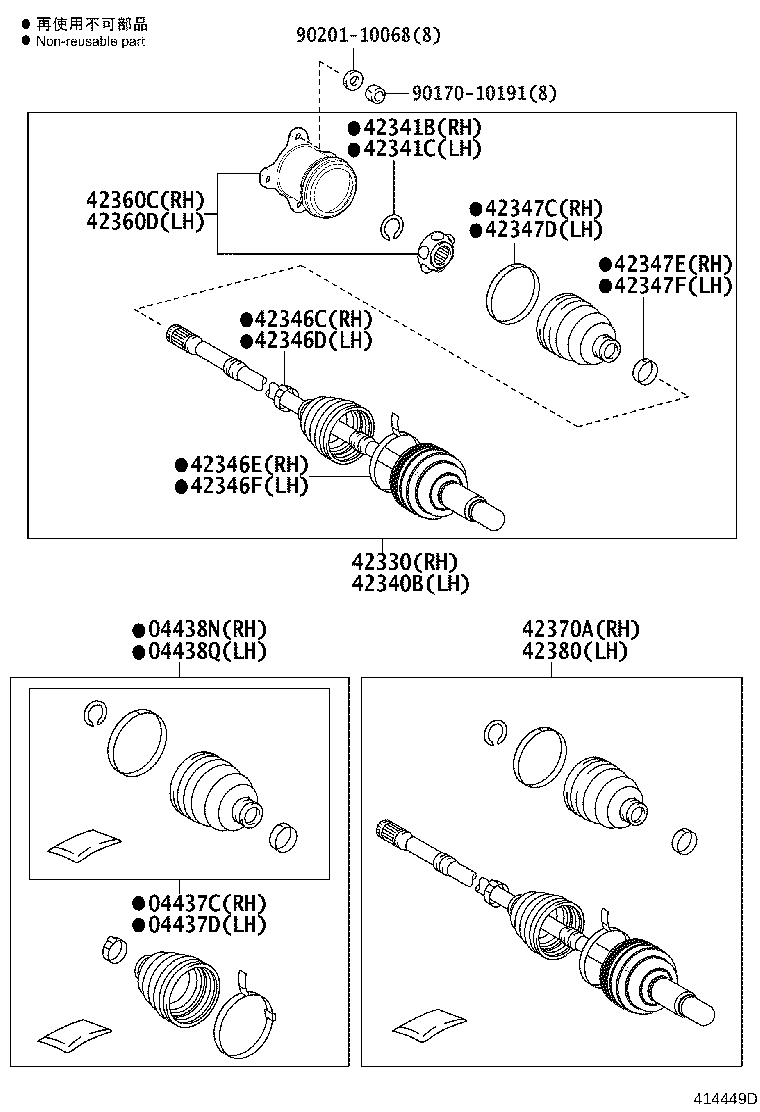

414449D · 20 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
04437C — Boot Kit, Rear Drive Shaft Inboard Joint, RH
04439-12020 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2012-12 → 2015-10 ended
ASA44 —
04439-12011 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2015-10 → 2017-11 ended
AVA44 —
04439-12012 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2017-11 → 2018-10 ended
AVA44 —
04439-12020 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2015-10 → 2018-10 ended
ASA44 —
04437D — Boot Kit, Rear Drive Shaft Inboard Joint, LH
04439-12020 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2012-12 → 2015-10 ended
ASA44 —
04439-12011 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2015-10 → 2017-11 ended
AVA44 —
04439-12012 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2017-11 → 2018-10 ended
AVA44 —
04439-12020 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2015-10 → 2018-10 ended
ASA44 —
04438N — Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
04429-12030 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2012-12 → 2015-10 ended
ASA44 —
04429-12030 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2015-10 → 2017-11 ended
ASA44 —
04429-12031 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2017-11 → 2018-10 ended
ASA44 —
04429-48060 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2015-10 → 2017-11 ended
AVA44 —
04429-48061 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2017-11 → 2018-10 ended
AVA44 —
04438Q — Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
04429-12030 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2012-12 → 2015-10 ended
ASA44 —
04429-12030 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2015-10 → 2017-11 ended
ASA44 —
04429-12031 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2017-11 → 2018-10 ended
ASA44 —
04429-48060 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2015-10 → 2017-11 ended
AVA44 —
04429-48061 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2017-11 → 2018-10 ended
AVA44 —
42330 — Shaft Assy, Rear Drive, RH
42330-42060 Shaft Assy, Rear Drive, RH
2012-12 → 2015-10 ended
ASA44 —
42330-42060 Shaft Assy, Rear Drive, RH
2015-10 → 2018-10 ended
ASA44 —
42340-48110 Shaft Assy, Rear Drive, RH
2015-10 → 2018-10 ended
AVA44 —
42340B — Shaft Assy, Rear Drive, LH
42330-42060 Shaft Assy, Rear Drive, LH
2012-12 → 2015-10 ended
ASA44 —
42330-42060 Shaft Assy, Rear Drive, LH
2015-10 → 2018-10 ended
ASA44 —
42340-48110 Shaft Assy, Rear Drive, LH
2015-10 → 2018-10 ended
AVA44 —
42341B — Ring, Snap (FOR REAR DRIVE SHAFT RH)
43425-12150 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2012-12 → 2015-10 ended
ASA44 —
43425-12150 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2015-10 → 2018-10 ended
ASA44 —
43425-48040 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2015-10 → 2018-10 ended
AVA44 —
42341C — Ring, Snap (FOR REAR DRIVE SHAFT LH)
43425-12150 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2012-12 → 2015-10 ended
ASA44 —
43425-12150 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2015-10 → 2018-10 ended
ASA44 —
43425-48040 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2015-10 → 2018-10 ended
AVA44 —
42346C — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-52270 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2012-12 → 2015-10 ended
ASA44 —
42345-52270 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2015-10 → 2018-10 ended
ASA44,AVA44 —
42346D — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-52270 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2012-12 → 2015-10 ended
ASA44 —
42345-52270 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2015-10 → 2018-10 ended
ASA44,AVA44 —
42346E — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-12280 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2012-12 → 2015-10 ended
ASA44 —
42345-12280 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2015-10 → 2018-10 ended
ASA44,AVA44 —
42346F — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-12280 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2012-12 → 2015-10 ended
ASA44 —
42345-12280 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2015-10 → 2018-10 ended
ASA44,AVA44 —
42347C — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-42070 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2012-12 → 2015-10 ended
ASA44 —
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-10 → 2018-10 ended
AVA44 —
42345-42070 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-10 → 2018-10 ended
ASA44 —
42347D — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-42070 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2012-12 → 2015-10 ended
ASA44 —
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2015-10 → 2018-10 ended
AVA44 —
42345-42070 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2015-10 → 2018-10 ended
ASA44 —
42347E — Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12290 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2012-12 → 2015-10 ended
ASA44 —
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-10 → 2018-10 ended
AVA44 —
42345-12290 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-10 → 2018-10 ended
ASA44 —
42347F — Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42345-12290 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2012-12 → 2015-10 ended
ASA44 —
42345-12130 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2015-10 → 2018-10 ended
AVA44 —
42345-12290 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2015-10 → 2018-10 ended
ASA44 —
42360C — Joint Assy, Rear Drive Shaft Inboard, RH
42360-28010 Joint Assy, Rear Drive Shaft Inboard, RH
2015-10 → 2018-10 ended
AVA44 CND —
42360D — Joint Assy, Rear Drive Shaft Inboard, LH
42360-28010 Joint Assy, Rear Drive Shaft Inboard, LH
2015-10 → 2018-10 ended
AVA44 CND —
42370A — Shaft Assy, Rear Drive Outboard Joint, RH
42370-49305 Shaft Assy, Rear Drive Outboard Joint, RH
2015-10 → 2017-11 ended
AVA44 CND —
42370-49305 Shaft Assy, Rear Drive Outboard Joint, RH
2017-05 → 2017-11 ended
AVA44 USA —
42370-49306 Shaft Assy, Rear Drive Outboard Joint, RH
2017-11 → 2018-10 ended
AVA44 CND —
42380 — Shaft Assy, Rear Drive Outboard Joint, LH
42370-49305 Shaft Assy, Rear Drive Outboard Joint, LH
2015-10 → 2017-11 ended
AVA44 CND —
42370-49305 Shaft Assy, Rear Drive Outboard Joint, LH
2017-05 → 2017-11 ended
AVA44 USA —
42370-49306 Shaft Assy, Rear Drive Outboard Joint, LH
2017-11 → 2018-10 ended
AVA44 CND —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
