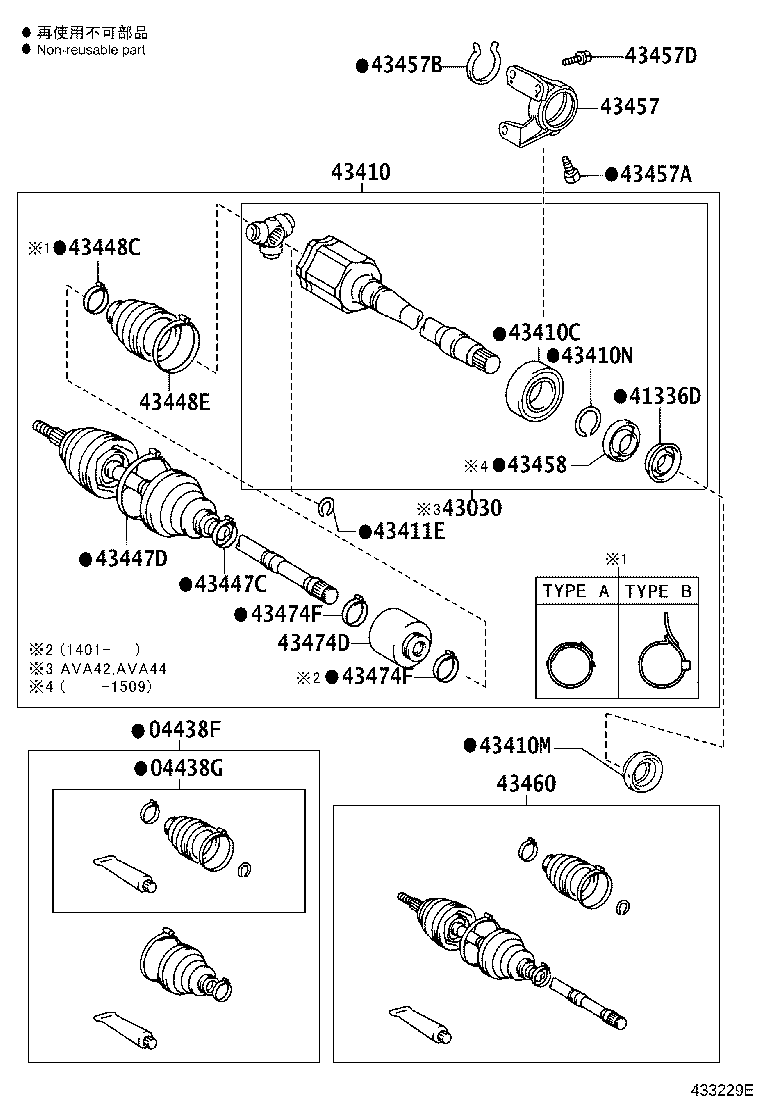

Exploded illustration 433229E 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (5 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (5 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (9 parts) 43410C — BEARING (FOR FRONT DRIVE SHAFT) (4 parts) 43457B — RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) (4 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (5 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (2 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (4 parts) 43457D — BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) (2 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (4 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (2 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (8 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (6 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (3 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (4 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (4 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (3 parts) 43458 — COVER, FRONT DRIVE SHAFT DUST (1 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (4 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (3 parts)
433229E · 22 callouts Full size ↗
82 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-42010 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2012-12 → 2014-09 ended
ASA44 —
04427-42011 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2014-10 → 2015-10 ended
ASA44 —
04427-42130 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2012-12 → 2014-10 ended
ASA42 —
04427-42131 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2014-10 → 2015-10 ended
ASA42 —
04427-42011 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2015-10 → 2017-11 ended
ASA44 —
04427-42131 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2015-10 → 2017-11 ended
ASA42,AVA44 —
04427-42132 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2017-11 → 2018-10 ended
ASA42,AVA44 —
04427-42161 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2017-11 → 2018-10 ended
ASA44 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-33070 Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-12 → 2015-10 ended
ASA42 —
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-12 → 2015-10 ended
ASA44 —
04437-33070 Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-10 → 2017-11 ended
ASA42,AVA44 —
04437-33090 Boot Kit, Front Drive Shaft Inboard Joint, RH
2017-11 → 2018-10 ended
ASA44 —
04437-44041 Boot Kit, Front Drive Shaft Inboard Joint, RH
2017-11 → 2018-10 ended
ASA42,AVA44 —
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-10 → 2017-11 ended
ASA44 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-12020 Cover, Front Drive Shaft Dust, RH
2012-12 → 2015-10 ended
ASA42 —
41336-52020 Cover, Front Drive Shaft Dust, RH
2012-12 → 2015-10 ended
ASA44 —
41336-12020 Cover, Front Drive Shaft Dust, RH
2015-10 → 2018-10 ended
ASA42,AVA44 —
41336-52020 Cover, Front Drive Shaft Dust, RH
2015-10 → 2018-10 ended
ASA44 —
43030 — Joint Assy, Front Drive Inboard, RH
43030-42130 Joint Assy, Front Drive Inboard, RH
2017-11 → 2018-10 ended
ASA44 —
43030-42160 Joint Assy, Front Drive Inboard, RH
2017-11 → 2018-10 ended
ASA42,AVA44 —
43030-58011 Joint Assy, Front Drive Inboard, RH
2015-10 → 2017-11 ended
AVA44 CND —
43410 — Shaft Assy, Front Drive, RH
43410-42200 Shaft Assy, Front Drive, RH
2012-12 → 2015-10 ended
ASA44 —
43410-42280 Shaft Assy, Front Drive, RH
2012-12 → 2015-10 ended
ASA42 —
43410-0R140 note Shaft Assy, Front Drive, RH
2016-11 → 2017-08 ended
ASA44 —
43410-42200 note Shaft Assy, Front Drive, RH
2016-11 → 2017-08 ended
ASA44 —
43410-42200 Shaft Assy, Front Drive, RH
2017-08 → 2017-10 ended
ASA44 —
43410-42200 Shaft Assy, Front Drive, RH
2015-10 → 2016-11 ended
ASA44 —
43410-42201 Shaft Assy, Front Drive, RH
2017-11 → 2018-10 ended
ASA44 —
43410-42280 Shaft Assy, Front Drive, RH
2015-10 → 2017-10 ended
ASA42,AVA44 —
43410-42281 Shaft Assy, Front Drive, RH
2017-11 → 2018-10 ended
ASA42,AVA44 —
43410C — Bearing (FOR FRONT DRIVE SHAFT)
90363-36006 Bearing (FOR FRONT DRIVE SHAFT)
2012-12 → 2015-10 ended
ASA44 —
90363-41003 Bearing (FOR FRONT DRIVE SHAFT)
2012-12 → 2015-10 ended
ASA42 —
90363-36006 Bearing (FOR FRONT DRIVE SHAFT)
2015-10 → 2018-10 ended
ASA44 —
90363-41003 Bearing (FOR FRONT DRIVE SHAFT)
2015-10 → 2018-10 ended
ASA42,AVA44 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-40038 Oil Seal, Front Drive Shaft, RH
2012-12 → 2015-10 ended
ASA42 —
90316-34001 Oil Seal, Front Drive Shaft, RH
2012-12 → 2015-10 ended
ASA44 —
90311-40038 Oil Seal, Front Drive Shaft, RH
2015-10 → 2018-10 ended
ASA42 —
90311-40039 Oil Seal, Front Drive Shaft, RH
2015-10 → 2018-10 ended
AVA44 —
90316-34001 Oil Seal, Front Drive Shaft, RH
2015-10 → 2018-10 ended
ASA44 —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2012-12 → 2015-10 ended
ASA44 —
90520-38015 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2012-12 → 2015-10 ended
ASA42 —
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2015-10 → 2018-10 ended
ASA44 —
90520-38015 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2015-10 → 2018-10 ended
ASA42,AVA44 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2012-12 → 2015-10 ended
ASA4# —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-12 → 2015-10 ended
ASA4# —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-12 → 2015-10 ended
ASA4# —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-12 → 2015-10 ended
ASA4# —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-12 → 2015-10 ended
ASA4# —
42345-33120 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2017-11 → 2018-10 ended
ASA4#,AVA44 —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-10 → 2017-11 ended
ASA4#,AVA44 —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-10 → 2017-11 ended
ASA4#,AVA44 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-12 → 2015-10 ended
ASA4# —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-10 → 2017-11 ended
ASA4#,AVA44 —
42345-33140 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2017-11 → 2018-10 ended
ASA4#,AVA44 —
43457 — Bracket, Drive Shaft Bearing
43457-42150 Bracket, Drive Shaft Bearing
2012-12 → 2015-10 ended
ASA44 —
43457-48010 Bracket, Drive Shaft Bearing
2012-12 → 2015-10 ended
ASA42 —
43457-33040 Bracket, Drive Shaft Bearing
2015-10 → 2018-10 ended
AVA44 —
43457-42150 Bracket, Drive Shaft Bearing
2015-10 → 2018-10 ended
ASA44 —
43457-48010 Bracket, Drive Shaft Bearing
2015-10 → 2018-10 ended
ASA42 —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2012-12 → 2015-10 ended
ASA4# —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43457B — Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2012-12 → 2015-10 ended
ASA44 —
90521-78004 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2012-12 → 2015-10 ended
ASA42 —
90521-75002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2015-10 → 2018-10 ended
ASA44 —
90521-78004 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2015-10 → 2018-10 ended
ASA42,AVA44 —
43457D — Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2012-12 → 2015-10 ended
ASA4# —
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43458 — Cover, Front Drive Shaft Dust
43458-12010 Cover, Front Drive Shaft Dust
2012-12 → 2015-09 ended
ASA42 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43470-49655 Shaft Assy, Front Drive Outboard Joint, RH
2014-08 → 2014-10 ended
ASA44 —
43470-80340 Shaft Assy, Front Drive Outboard Joint, RH
2014-08 → 2014-10 ended
ASA42 —
43470-80352 Shaft Assy, Front Drive Outboard Joint, RH
2015-10 → 2017-11 ended
AVA44 CND —
43470-80455 Shaft Assy, Front Drive Outboard Joint, RH
2017-11 → 2018-10 ended
AVA44 CND —
43474D — Damper, Front Drive Shaft, RH
43474-48030 Damper, Front Drive Shaft, RH
2012-12 → 2014-09 ended
ASA4# —
43474-48090 Damper, Front Drive Shaft, RH
2014-10 → 2015-10 ended
ASA4# —
43474-48090 Damper, Front Drive Shaft, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2012-12 → 2014-10 ended
ASA4# —
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2014-10 → 2015-10 ended
ASA4# —
42345-12090 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2017-11 → 2018-10 ended
ASA4#,AVA44 —
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2015-10 → 2017-11 ended
ASA4#,AVA44 —
