Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

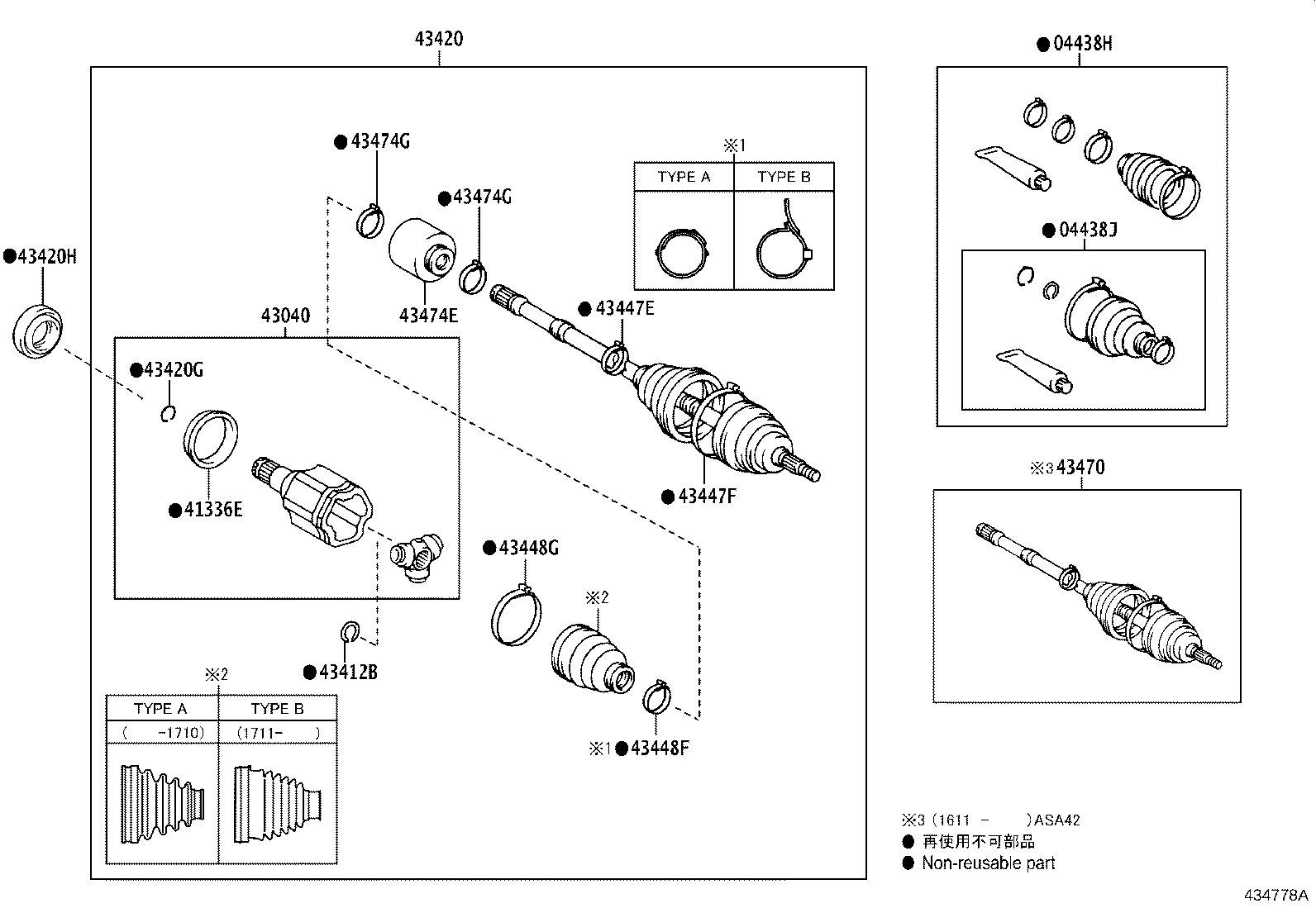

Exploded illustration 434778A 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (3 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (9 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (2 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (4 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (4 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (2 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (10 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (2 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (3 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (8 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (3 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (3 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (8 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (9 parts)
434778A · 16 callouts Full size ↗
70 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-42120 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2012-12 → 2014-07 ended
ASA4# —
04428-78030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2014-08 → 2015-10 ended
ASA4# —
04428-42151 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2017-11 → 2018-10 ended
AVA44 —
04428-42151 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
2017-11 → 2018-10 ended
ASA4# —
04428-78030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-11 → 2017-08 ended
ASA42 —
04428-78030 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-10 → 2016-11 ended
ASA42 —
04428-78030 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
2017-08 → 2017-11 ended
ASA42 —
04428-78030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-10 → 2017-11 ended
AVA44 —
04428-78030 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-10 → 2017-11 ended
ASA44 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint, LH
2012-12 → 2015-10 ended
ASA4# —
04438-42180 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2015-10 → 2016-11 ended
ASA42 —
04438-42180 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-11 → 2017-08 ended
ASA42 —
04438-42180 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2015-10 → 2017-11 ended
ASA44 —
04438-42180 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2015-10 → 2017-11 ended
AVA44 —
04438-42180 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2017-08 → 2017-11 ended
ASA42 —
04438-42181 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2017-11 → 2018-10 ended
ASA4# —
04438-42181 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2017-11 → 2018-10 ended
AVA44 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-28020 Cover, Front Drive Shaft Dust, LH
2012-12 → 2015-10 ended
ASA4# —
41336-28020 Cover, Front Drive Shaft Dust, LH
2015-10 → 2018-10 ended
ASA4# —
41336-28030 Cover, Front Drive Shaft Dust, LH
2015-10 → 2018-10 ended
AVA44 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-28021 Joint Assy, Front Drive Inboard, LH
2015-10 → 2017-11 ended
AVA44 CND —
43040-28040 Joint Assy, Front Drive Inboard, LH
2017-11 → 2018-10 ended
AVA44 —
43040-33050 note Joint Assy, Front Drive Inboard, LH
2017-11 → 2018-10 ended
ASA4# —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2012-12 → 2015-10 ended
ASA4# —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43420 — Shaft Assy, Front Drive, LH
43420-28090 Shaft Assy, Front Drive, LH
2012-12 → 2015-10 ended
ASA4# —
43420-0R120 note Shaft Assy, Front Drive, LH
2016-11 → 2017-08 ended
ASA44 —
43420-28090 Shaft Assy, Front Drive, LH
2015-10 → 2016-11 ended
ASA44 —
43420-28090 Shaft Assy, Front Drive, LH
2015-10 → 2017-08 ended
ASA42 —
43420-28090 note Shaft Assy, Front Drive, LH
2016-11 → 2017-08 ended
ASA44 —
43420-28090 note Shaft Assy, Front Drive, LH
2017-08 → 2017-10 ended
ASA4# —
43420-28091 note Shaft Assy, Front Drive, LH
2017-11 → 2018-10 ended
ASA4# —
43420-42190 Shaft Assy, Front Drive, LH
2015-10 → 2017-10 ended
AVA44 —
43420-42191 Shaft Assy, Front Drive, LH
2017-11 → 2018-10 ended
AVA44 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2012-12 → 2015-10 ended
ASA4# —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-50045 Oil Seal, Front Drive Shaft, LH
2012-12 → 2015-10 ended
ASA4# —
90311-50045 Oil Seal, Front Drive Shaft, LH
2015-10 → 2018-10 ended
ASA4# —
90311-50053 Oil Seal, Front Drive Shaft, LH
2015-10 → 2018-10 ended
AVA44 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2012-12 → 2015-10 ended
ASA4# —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2012-12 → 2015-10 ended
ASA4# —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2012-12 → 2015-10 ended
ASA4# —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2012-12 → 2015-10 ended
ASA4# —
42345-33120 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2017-11 → 2018-10 ended
ASA4# —
42345-33120 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2017-11 → 2018-10 ended
AVA44 —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → 2016-11 ended
ASA42 —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-11 → 2017-08 ended
ASA42 —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → 2017-11 ended
ASA44 —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → 2017-11 ended
AVA44 —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2017-08 → 2017-11 ended
ASA42 —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → 2017-11 ended
ASA4#,AVA44 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2012-12 → 2015-10 ended
ASA4# —
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → 2016-11 ended
ASA42 —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-11 → 2017-08 ended
ASA42 —
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → 2017-11 ended
ASA44 —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → 2017-11 ended
AVA44 —
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2017-08 → 2017-11 ended
ASA42 —
42345-33140 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2017-11 → 2018-10 ended
ASA4# —
42345-33140 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2017-11 → 2018-10 ended
ASA4#,AVA44 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-49676 Shaft Assy, Front Drive Outboard Joint, LH
2015-10 → 2017-11 ended
AVA44 CND —
43470-80353 Shaft Assy, Front Drive Outboard Joint, LH
2016-11 → 2017-08 ended
ASA42 —
43470-80461 Shaft Assy, Front Drive Outboard Joint, LH
2017-11 → 2018-10 ended
AVA44 CND —
43474E — Damper, Front Drive Shaft, LH
43474-42050 Damper, Front Drive Shaft, LH
2012-12 → 2015-10 ended
ASA4# —
43474-42050 Damper, Front Drive Shaft, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2012-12 → 2014-08 ended
ASA4# —
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2014-08 → 2015-10 ended
ASA4# —
42345-12090 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2017-11 → 2018-10 ended
ASA4#,AVA44 —
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2015-10 → 2017-11 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
