Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

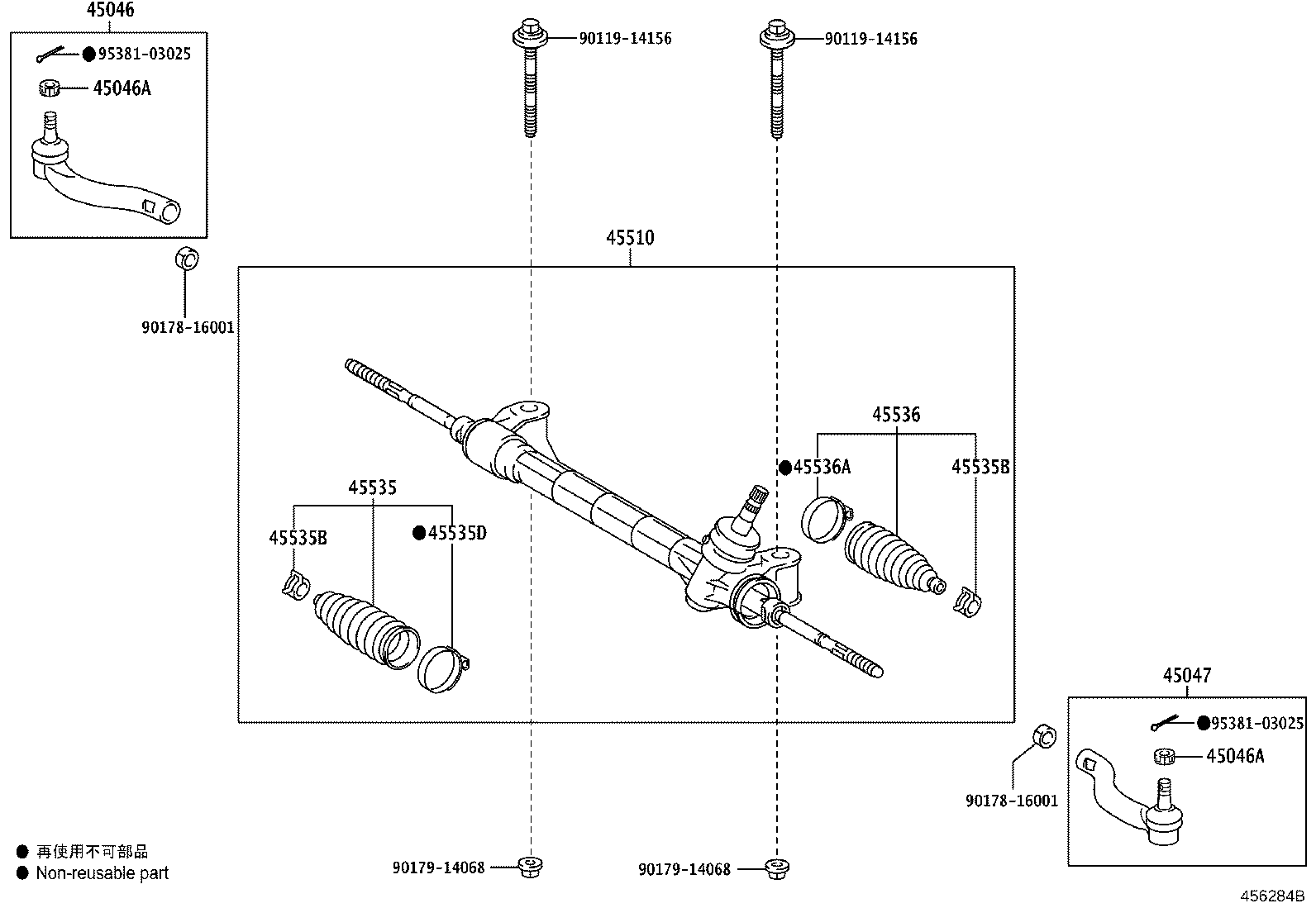

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45046 — End Sub-assy, Tie Rod, RH | ||||
| 45046-49195 |
End Sub-assy, Tie Rod, RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 45046-49195 |
End Sub-assy, Tie Rod, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 45046A — Nut, Castle(FOR TIE ROD END) | ||||
| 90171-12028 |
Nut, Castle(FOR TIE ROD END)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 90171-12028 |
Nut, Castle(FOR TIE ROD END)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 45047 — End Sub-assy, Tie Rod, LH | ||||
| 45047-49135 |
End Sub-assy, Tie Rod, LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 45047-49135 |
End Sub-assy, Tie Rod, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 45510 — Gear Assy, Steering | ||||
| 45510-42160 |
Gear Assy, Steering
2012-12 → 2015-10
ended
|
ASA4# LE,XLE | — | |
| 45510-42160 note |
Gear Assy, Steering
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 45510-42160 note |
Gear Assy, Steering
2014-08 → 2015-10
ended
|
ASA4# LIMD | — | |
| 45510-42170 |
Gear Assy, Steering
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 45510-42160 |
Gear Assy, Steering
2015-10 → 2018-03
ended
|
ASA4# LE,XLE | — | |
| 45510-42160 note |
Gear Assy, Steering
2015-10 → 2018-03
ended
|
ASA44 LIMD;ASA42 LIMD,SE | — | |
| 45510-42160 note |
Gear Assy, Steering
2015-10 → 2016-10
ended
|
ASA44 SE | — | |
| 45510-42161 |
Gear Assy, Steering
2018-04 → 2018-10
ended
|
ASA4# LE,XLE | — | |
| 45510-42161 note |
Gear Assy, Steering
2018-04 → 2018-10
ended
|
ASA44 LIMD;ASA42 LIMD,SE | — | |
| 45510-42170 |
Gear Assy, Steering
2015-10 → 2018-03
ended
|
ASA4# LIMD,SE | — | |
| 45510-42171 |
Gear Assy, Steering
2018-04 → 2018-10
ended
|
ASA4# LIMD,SE | — | |
| 45510-42250 |
Gear Assy, Steering
2015-10 → 2018-03
ended
|
AVA44 XLE | — | |
| 45510-42250 note |
Gear Assy, Steering
2015-10 → 2018-03
ended
|
AVA44 LIMD,SE | — | |
| 45510-42251 |
Gear Assy, Steering
2018-04 → 2018-10
ended
|
AVA44 XLE | — | |
| 45510-42251 note |
Gear Assy, Steering
2018-04 → 2018-10
ended
|
AVA44 LIMD,SE | — | |
| 45510-78022 |
Gear Assy, Steering
2015-10 → 2018-06
ended
|
AVA44 LIMD,SE | — | |
| 45510-78023 |
Gear Assy, Steering
2018-07 → 2018-10
ended
|
AVA44 LIMD,SE | — | |
| 45535 — Boot, Steering Rack, NO.1 | ||||
| 45535-49045 |
Boot, Steering Rack, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 45535-49045 |
Boot, Steering Rack, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 45535B — Clip(FOR STEERING RACK BOOT) | ||||
| 45537-42020 |
Clip(FOR STEERING RACK BOOT)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 45537-42020 |
Clip(FOR STEERING RACK BOOT)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 45535D — Clamp(FOR STEERING RACK BOOT NO.1) | ||||
| 45538-42010 |
Clamp(FOR STEERING RACK BOOT NO.1)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 45538-42010 |
Clamp(FOR STEERING RACK BOOT NO.1)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 45536 — Boot, Steering Rack, NO.2 | ||||
| 45535-49045 |
Boot, Steering Rack, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 45535-49045 |
Boot, Steering Rack, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 45536A — Clamp(FOR STEERING RACK BOOT NO.2) | ||||
| 45538-42010 |
Clamp(FOR STEERING RACK BOOT NO.2)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 45538-42010 |
Clamp(FOR STEERING RACK BOOT NO.2)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
