Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

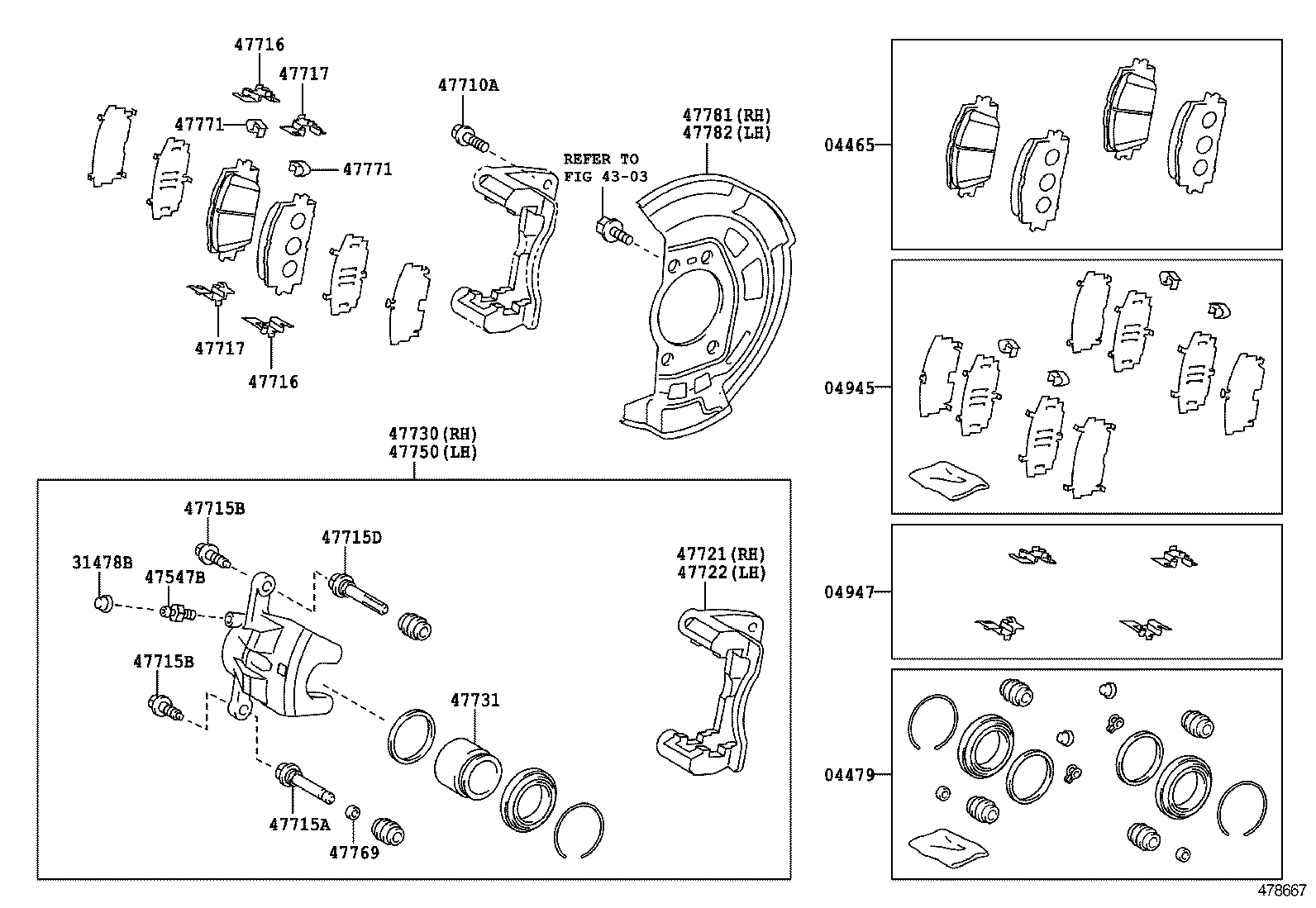

Exploded illustration 478667 04465 — PAD KIT, DISC BRAKE, FRONT (4 parts) 04945 — SHIM KIT, ANTI SQUEAL, FRONT (5 parts) 31478B — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (2 parts) 47547B — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (2 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (2 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (2 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (2 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (2 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (2 parts) 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47715D — PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 (2 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (2 parts) 47721 — MOUNTING, FRONT DISC BRAKE CYLINDER, RH (4 parts) 47715B — BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) (2 parts) 47715B — BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) (2 parts) 47722 — MOUNTING, FRONT DISC BRAKE CYLINDER, LH (4 parts) 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (4 parts) 47731 — PISTON, FRONT DISC BRAKE (2 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (4 parts) 47781 — COVER, DISC BRAKE DUST, FRONT RH (2 parts) 47782 — COVER, DISC BRAKE DUST, FRONT LH (2 parts) 04947 — FITTING KIT, DISC BRAKE, FRONT (2 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (2 parts) 4303 — not listed in this catalogue 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (2 parts)
478667 · 25 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
04465 — Pad Kit, Disc Brake, Front
04465-42180 note Pad Kit, Disc Brake, Front
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
04465-42200 note Pad Kit, Disc Brake, Front
2012-12 → 2015-10 ended
ASA4# LE —
04465-42180 note Pad Kit, Disc Brake, Front
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
04465-42200 note Pad Kit, Disc Brake, Front
2015-10 → 2018-10 ended
ASA4# LE —
04479 — Cylinder Kit, Disc Brake, Front
04478-33100 Cylinder Kit, Disc Brake, Front
2012-12 → 2015-10 ended
ASA4# —
04478-33100 Cylinder Kit, Disc Brake, Front
2015-10 → 2018-10 ended
ASA4#,AVA44 —
04945 — Shim Kit, Anti Squeal, Front
04945-12110 Shim Kit, Anti Squeal, Front
2012-12 → 2013-11 ended
ASA4# LE —
04945-12111 Shim Kit, Anti Squeal, Front
2013-11 → 2015-10 ended
ASA4# LE —
04945-42060 Shim Kit, Anti Squeal, Front
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
04945-12111 Shim Kit, Anti Squeal, Front
2015-10 → 2018-10 ended
ASA4# LE —
04945-42060 Shim Kit, Anti Squeal, Front
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
04947 — Fitting Kit, Disc Brake, Front
04947-42050 Fitting Kit, Disc Brake, Front
2012-12 → 2015-10 ended
ASA4# —
04947-42050 Fitting Kit, Disc Brake, Front
2015-10 → 2018-10 ended
ASA4#,AVA44 —
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2012-12 → 2015-10 ended
ASA4# —
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2012-12 → 2015-10 ended
ASA4# —
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90105-12208 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2012-12 → 2015-10 ended
ASA4# —
90105-12208 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
47715A — Pin, Front Disc Brake Cylinder Slide
47715-12A10 Pin, Front Disc Brake Cylinder Slide
2012-12 → 2015-10 ended
ASA4# —
47715-12A10 Pin, Front Disc Brake Cylinder Slide
2015-10 → 2018-10 ended
ASA4#,AVA44 —
47715B — Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164 Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
2012-12 → 2015-10 ended
ASA4# —
90105-08164 Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
47715D — Pin, Front Disc Brake Cylinder Slide, NO.2
47715-52190 Pin, Front Disc Brake Cylinder Slide, NO.2
2012-12 → 2015-10 ended
ASA4# —
47715-52190 Pin, Front Disc Brake Cylinder Slide, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
47716 — Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47716-52191 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
47716-52191 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
47717 — Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47717-52191 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
47717-52191 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-12A70 Mounting, Front Disc Brake Cylinder, RH
2012-12 → 2015-10 ended
ASA4# LE —
47721-42091 Mounting, Front Disc Brake Cylinder, RH
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
47721-12A70 Mounting, Front Disc Brake Cylinder, RH
2015-10 → 2018-10 ended
ASA4# LE —
47721-42091 Mounting, Front Disc Brake Cylinder, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
47722 — Mounting, Front Disc Brake Cylinder, LH
47722-12A70 Mounting, Front Disc Brake Cylinder, LH
2012-12 → 2015-10 ended
ASA4# LE —
47722-42091 Mounting, Front Disc Brake Cylinder, LH
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
47722-12A70 Mounting, Front Disc Brake Cylinder, LH
2015-10 → 2018-10 ended
ASA4# LE —
47722-42091 Mounting, Front Disc Brake Cylinder, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
47730 — Cylinder Assy, Front Disc Brake, RH
47730-12A70 Cylinder Assy, Front Disc Brake, RH
2012-12 → 2015-10 ended
ASA4# LE —
47730-42091 Cylinder Assy, Front Disc Brake, RH
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
47730-12A70 Cylinder Assy, Front Disc Brake, RH
2015-10 → 2018-10 ended
ASA4# LE —
47730-42091 Cylinder Assy, Front Disc Brake, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
47731 — Piston, Front Disc Brake
47731-12A70 Piston, Front Disc Brake
2012-12 → 2015-10 ended
ASA4# —
47731-12A70 Piston, Front Disc Brake
2015-10 → 2018-10 ended
ASA4#,AVA44 —
47750 — Cylinder Assy, Disc Brake, LH
47750-12A70 Cylinder Assy, Disc Brake, LH
2012-12 → 2015-10 ended
ASA4# LE —
47750-42091 Cylinder Assy, Disc Brake, LH
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
47750-12A70 Cylinder Assy, Disc Brake, LH
2015-10 → 2018-10 ended
ASA4# LE —
47750-42091 Cylinder Assy, Disc Brake, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2012-12 → 2015-10 ended
ASA4# LE —
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2015-10 → 2018-10 ended
ASA4# LE —
47771 — Plate, Pad Wear Indicator, NO.1
47771-52191 Plate, Pad Wear Indicator, NO.1
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
47771-52191 Plate, Pad Wear Indicator, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
47781 — Cover, Disc Brake Dust, Front RH
47781-42040 Cover, Disc Brake Dust, Front RH
2012-12 → 2015-10 ended
ASA4# —
47781-42040 Cover, Disc Brake Dust, Front RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
47782 — Cover, Disc Brake Dust, Front LH
47782-42040 Cover, Disc Brake Dust, Front LH
2012-12 → 2015-10 ended
ASA4# —
47782-42040 Cover, Disc Brake Dust, Front LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
