Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

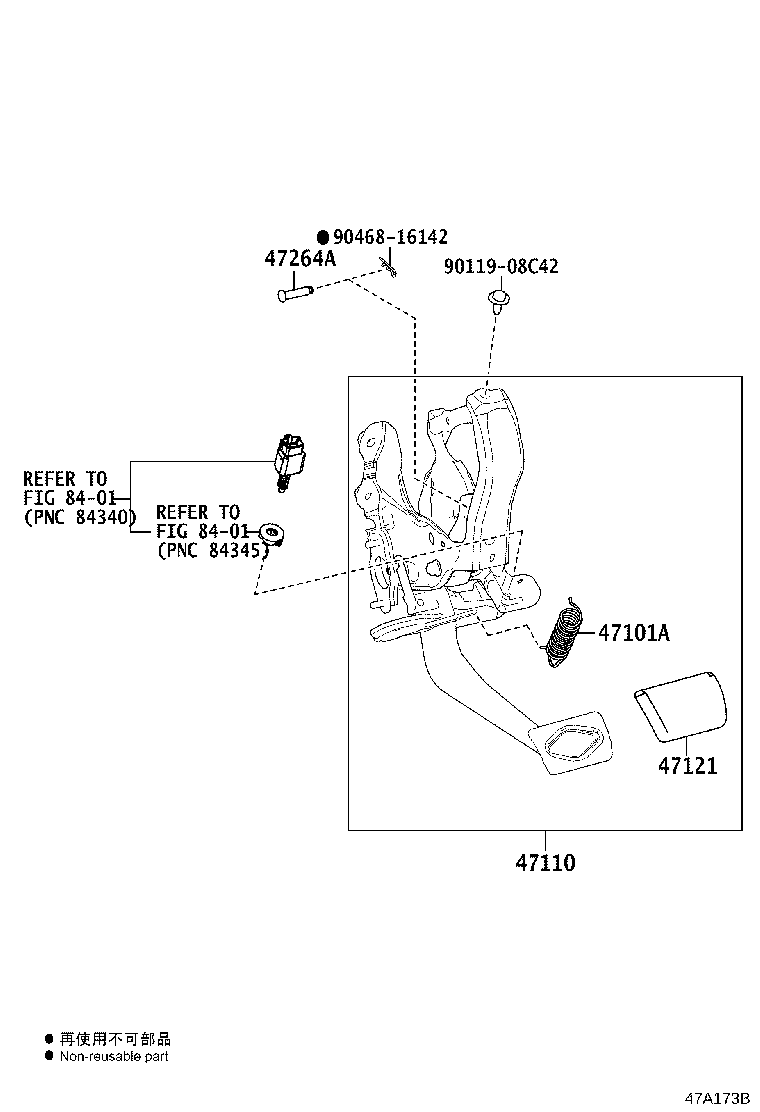

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 47146-42030 |
Spring(FOR BRAKE PEDAL RETURN)
2012-12 → 2014-05
ended
|
ASA4# | — | |
| 47146-78020 |
Spring(FOR BRAKE PEDAL RETURN)
2014-05 → 2015-10
ended
|
ASA4# | — | |
| 47146-78020 |
Spring(FOR BRAKE PEDAL RETURN)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 47110 — Support Assy, Brake Pedal | ||||
| 47110-42230 |
Support Assy, Brake Pedal
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 47110-42230 |
Support Assy, Brake Pedal
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 47110-78030 |
Support Assy, Brake Pedal
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-42010 |
Pad, Brake Pedal
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 47121-42010 |
Pad, Brake Pedal
2015-10 → 2016-08
ended
|
ASA4#,AVA44 | — | |
| 47121-42010 |
Pad, Brake Pedal
2015-10 → 2016-09
ended
|
AVA44 SE | — | |
| 47121-42020 |
Pad, Brake Pedal
2016-09 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 90249-08256 |
Pin(FOR PUSH ROD)
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 90249-08256 |
Pin(FOR PUSH ROD)
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
