Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

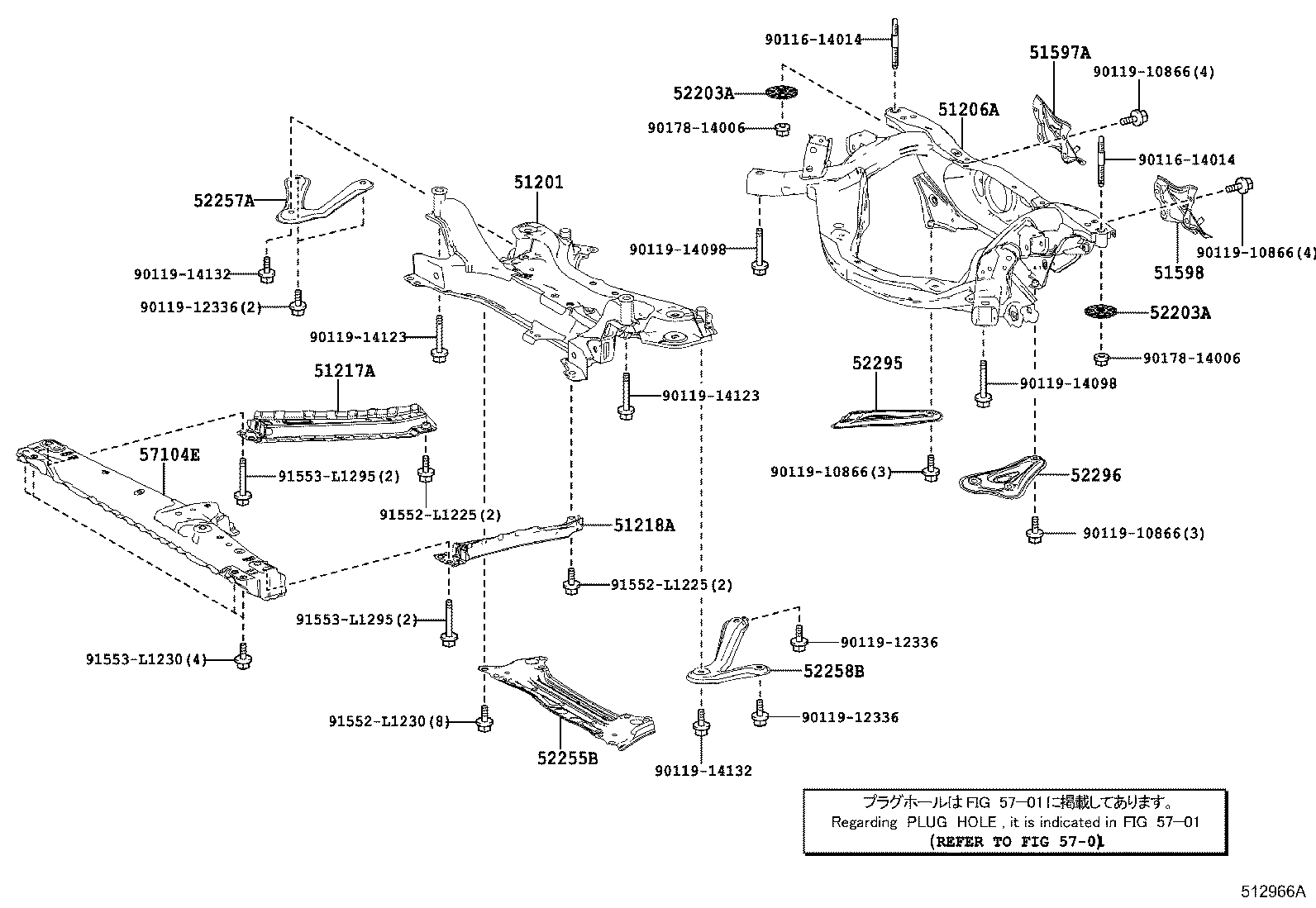

Exploded illustration 512966A 51201 — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION (4 parts) 51206A — MEMBER SUB-ASSY, REAR SUSPENSION (5 parts) 51597A — BRACKET, REAR STABILIZER SUPPORT, RH (1 parts) 51598 — BRACKET, REAR STABILIZER SUPPORT, LH (1 parts) 52203A — CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER (2 parts) 52203A — CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER (2 parts) 52296 — BRACE, REAR SUSPENSION MEMBER, LH (3 parts) 52295 — BRACE, REAR SUSPENSION MEMBER, RH (3 parts) 51217A — REINFORCEMENT, FRONT SUSPENSION MEMBER, RH (3 parts) 51218A — REINFORCEMENT, FRONT SUSPENSION MEMBER, LH (3 parts) 52255B — BRACE, FRONT SUSPENSION MEMBER (2 parts) 52257A — BRACE, FRONT SUSPENSION MEMBER, REAR RH (3 parts) 52258B — BRACE, FRONT SUSPENSION MEMBER, REAR LH (3 parts) 57104E — MEMBER SUB-ASSY, FRONT CROSS (2 parts) 9011614014 — not listed in this catalogue 9011614014 — not listed in this catalogue 9011910866 — not listed in this catalogue 9011910866 — not listed in this catalogue 9011910866 — not listed in this catalogue 9011912336 — not listed in this catalogue 9011912336 — not listed in this catalogue 9011912336 — not listed in this catalogue 9011914098 — not listed in this catalogue 9011914098 — not listed in this catalogue 9011914132 — not listed in this catalogue 9011914132 — not listed in this catalogue 9011914123 — not listed in this catalogue 9017814006 — not listed in this catalogue 9017814006 — not listed in this catalogue 91552L1225 — not listed in this catalogue 91552L1230 — not listed in this catalogue 91553L1230 — not listed in this catalogue 91553L1295 — not listed in this catalogue 91552L1225 — not listed in this catalogue 9011914123 — not listed in this catalogue 91553L1295 — not listed in this catalogue 5701 — not listed in this catalogue 9011910866 — not listed in this catalogue
512966A · 14 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
51201 — Crossmember Sub-assy, Front Suspension
51201-12441 Crossmember Sub-assy, Front Suspension
2012-12 → 2013-09 ended
ASA4# —
51201-12442 Crossmember Sub-assy, Front Suspension
2013-10 → 2015-10 ended
ASA4# —
51201-12442 Crossmember Sub-assy, Front Suspension
2015-10 → 2018-10 ended
ASA4# —
51201-12451 Crossmember Sub-assy, Front Suspension
2015-10 → 2018-10 ended
AVA44 —
51206A — Member Sub-assy, Rear Suspension
51206-42062 Member Sub-assy, Rear Suspension
2012-12 → 2013-09 ended
ASA4# —
51206-42063 Member Sub-assy, Rear Suspension
2013-10 → 2014-12 ended
ASA4# —
51206-78010 Member Sub-assy, Rear Suspension
2014-12 → 2015-10 ended
ASA4# —
51206-48060 Member Sub-assy, Rear Suspension
2015-10 → 2018-10 ended
AVA44 —
51206-78010 Member Sub-assy, Rear Suspension
2015-10 → 2018-10 ended
ASA4# —
51217A — Reinforcement, Front Suspension Member, RH
51107-42020 Reinforcement, Front Suspension Member, RH
2012-12 → 2015-10 ended
ASA4# —
51107-42020 Reinforcement, Front Suspension Member, RH
2015-10 → 2018-10 ended
ASA4# —
51107-48020 Reinforcement, Front Suspension Member, RH
2015-10 → 2018-10 ended
AVA44 —
51218A — Reinforcement, Front Suspension Member, LH
51108-42020 Reinforcement, Front Suspension Member, LH
2012-12 → 2015-10 ended
ASA4# —
51108-42020 Reinforcement, Front Suspension Member, LH
2015-10 → 2018-10 ended
ASA4# —
51108-48020 Reinforcement, Front Suspension Member, LH
2015-10 → 2018-10 ended
AVA44 —
51597A — Bracket, Rear Stabilizer Support, RH
51597-48010 Bracket, Rear Stabilizer Support, RH
2015-10 → 2018-10 ended
AVA44 —
51598 — Bracket, Rear Stabilizer Support, LH
51598-48010 Bracket, Rear Stabilizer Support, LH
2015-10 → 2018-10 ended
AVA44 —
52203A — Cushion Sub-assy, Body Mounting, Rear Upper
52203-42020 Cushion Sub-assy, Body Mounting, Rear Upper
2012-12 → 2015-10 ended
ASA4# —
52203-42020 Cushion Sub-assy, Body Mounting, Rear Upper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52255B — Brace, Front Suspension Member
52255-76010 Brace, Front Suspension Member
2012-12 → 2015-10 ended
ASA4# —
52255-76010 Brace, Front Suspension Member
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52257A — Brace, Front Suspension Member, Rear RH
52257-42010 Brace, Front Suspension Member, Rear RH
2012-12 → 2015-10 ended
ASA4# —
52257-42010 Brace, Front Suspension Member, Rear RH
2015-10 → 2018-10 ended
ASA4# —
52257-48040 Brace, Front Suspension Member, Rear RH
2015-10 → 2018-10 ended
AVA44 —
52258B — Brace, Front Suspension Member, Rear LH
52258-42010 Brace, Front Suspension Member, Rear LH
2012-12 → 2015-10 ended
ASA4# —
52258-42010 Brace, Front Suspension Member, Rear LH
2015-10 → 2018-10 ended
ASA4# —
52258-48050 Brace, Front Suspension Member, Rear LH
2015-10 → 2018-10 ended
AVA44 —
52295 — Brace, Rear Suspension Member, RH
52295-42010 Brace, Rear Suspension Member, RH
2012-12 → 2015-10 ended
ASA4# —
52295-42010 Brace, Rear Suspension Member, RH
2015-10 → 2018-10 ended
ASA4# —
53653-48020 Brace, Rear Suspension Member, RH
2015-10 → 2018-10 ended
AVA44 —
52296 — Brace, Rear Suspension Member, LH
52296-42010 Brace, Rear Suspension Member, LH
2012-12 → 2015-10 ended
ASA4# —
52296-42010 Brace, Rear Suspension Member, LH
2015-10 → 2018-10 ended
ASA4# —
53654-48010 Brace, Rear Suspension Member, LH
2015-10 → 2018-10 ended
AVA44 —
57104E — Member Sub-assy, Front Cross
57104-42070 Member Sub-assy, Front Cross
2012-12 → 2015-10 ended
ASA4# —
57104-42070 Member Sub-assy, Front Cross
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
