Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

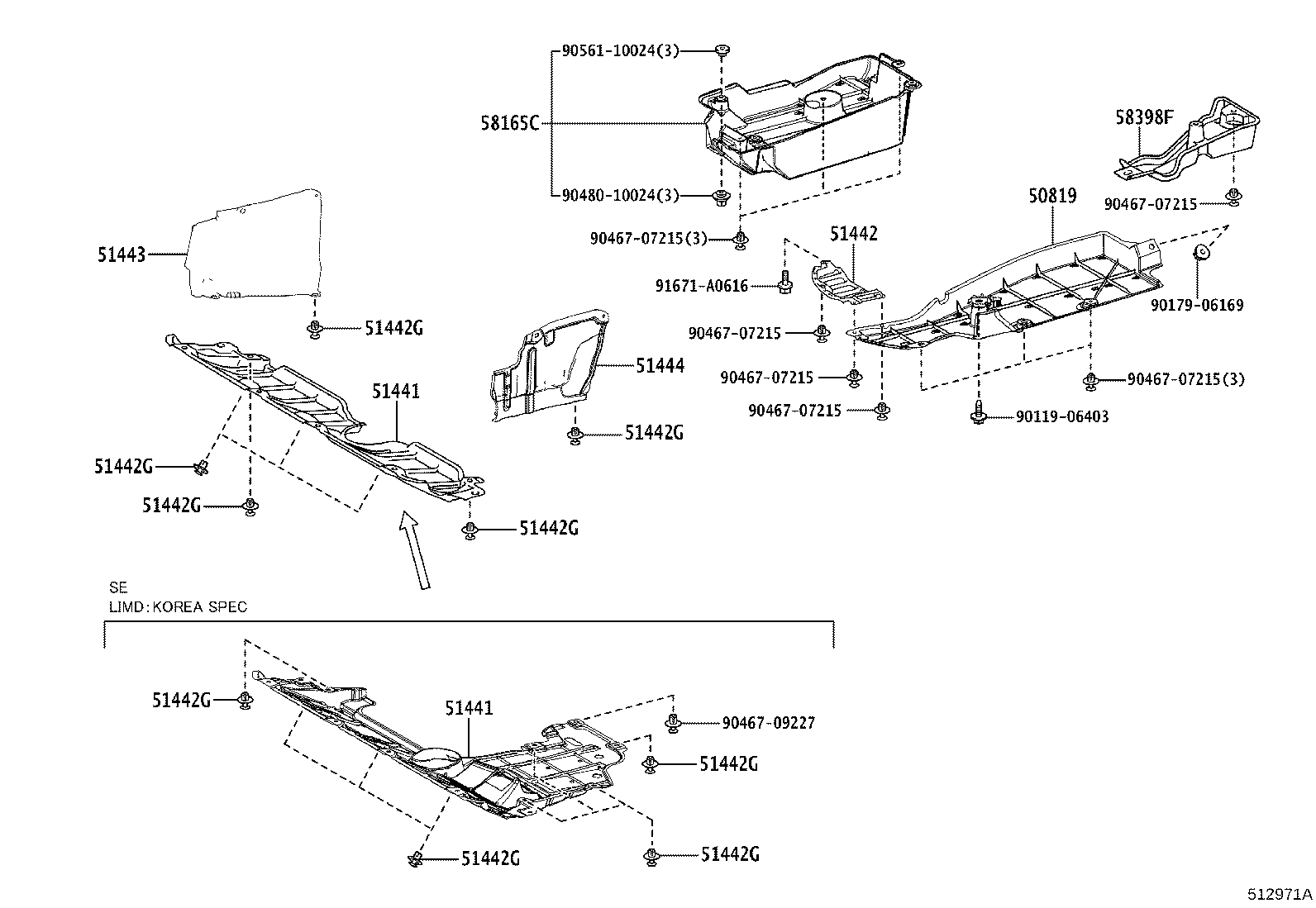

Exploded illustration 512971A 9046709227 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (10 parts) 9056110024 — not listed in this catalogue 9048010024 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9011906403 — not listed in this catalogue 91671A0616 — not listed in this catalogue 9017906169 — not listed in this catalogue 51443 — COVER, ENGINE UNDER, REAR RH (3 parts) 58165C — COVER, FRONT FLOOR, RH (3 parts) 51444 — COVER, ENGINE UNDER, REAR LH (3 parts) 50819 — COVER, FRONT FLOOR (4 parts) 51442 — COVER, ENGINE UNDER, NO.2 (2 parts) 9046707215 — not listed in this catalogue 58398F — COVER, FLOOR UNDER, NO.1 (2 parts) 51441 — COVER, ENGINE UNDER, NO.1 (10 parts) 51442G — CLIP, ENGINE UNDER COVER, NO.1 (8 parts) 51442G — CLIP, ENGINE UNDER COVER, NO.1 (8 parts) 51442G — CLIP, ENGINE UNDER COVER, NO.1 (8 parts) 51442G — CLIP, ENGINE UNDER COVER, NO.1 (8 parts) 51442G — CLIP, ENGINE UNDER COVER, NO.1 (8 parts) 51442G — CLIP, ENGINE UNDER COVER, NO.1 (8 parts) 51442G — CLIP, ENGINE UNDER COVER, NO.1 (8 parts) 51442G — CLIP, ENGINE UNDER COVER, NO.1 (8 parts) 51442G — CLIP, ENGINE UNDER COVER, NO.1 (8 parts)
512971A · 17 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
50819 — Cover, Front Floor
50819-42030 Cover, Front Floor
2012-12 → 2014-06 ended
ASA4# —
50819-42031 Cover, Front Floor
2014-06 → 2015-10 ended
ASA4# —
50819-42031 Cover, Front Floor
2015-10 → 2018-10 ended
ASA4# —
50819-48012 Cover, Front Floor
2015-10 → 2018-10 ended
AVA44 —
51441 — Cover, Engine Under, NO.1
51410-42100 Cover, Engine Under, NO.1
2012-12 → 2014-10 ended
ASA4# —
51410-42100 note Cover, Engine Under, NO.1
2014-10 → 2015-04 ended
ASA4# LIMD —
51410-42100 note Cover, Engine Under, NO.1
2015-04 → 2015-10 ended
ASA4# LIMD —
51441-42160 Cover, Engine Under, NO.1
2014-10 → 2015-10 ended
ASA4# —
51410-42100 Cover, Engine Under, NO.1
2015-10 → 2016-08 ended
ASA4# SE —
51410-42100 note Cover, Engine Under, NO.1
2015-10 → 2018-10 ended
ASA4# LIMD —
51410-42120 note Cover, Engine Under, NO.1
2015-10 → 2018-10 ended
AVA44 LIMD USA —
51441-42160 Cover, Engine Under, NO.1
2015-10 → 2018-10 ended
ASA4# LE,LIMD,XLE —
51441-42160 Cover, Engine Under, NO.1
2016-08 → 2018-10 ended
ASA4# SE —
51441-42170 Cover, Engine Under, NO.1
2015-10 → 2018-10 ended
AVA44 —
51442 — Cover, Engine Under, NO.2
51442-42090 Cover, Engine Under, NO.2
2014-10 → 2015-10 ended
ASA4# —
51442-42090 Cover, Engine Under, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
51442G — Clip, Engine Under Cover, NO.1
90467-07215 note Clip, Engine Under Cover, NO.1
2015-04 → 2015-10 ended
ASA4# LIMD —
90467-07215 note Clip, Engine Under Cover, NO.1
2014-10 → 2015-04 ended
ASA4# LIMD —
90467-07215 Clip, Engine Under Cover, NO.1
2012-12 → 2014-10 ended
ASA4# —
90467-07215 Clip, Engine Under Cover, NO.1
2014-10 → 2015-10 ended
ASA4# —
90467-07215 Clip, Engine Under Cover, NO.1
2015-10 → 2016-08 ended
ASA4# SE —
90467-07215 Clip, Engine Under Cover, NO.1
2015-10 → 2018-10 ended
AVA44;ASA4# LE,LIMD,XLE —
90467-07215 note Clip, Engine Under Cover, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
90467-07215 Clip, Engine Under Cover, NO.1
2016-08 → 2018-10 ended
ASA4# SE —
51443 — Cover, Engine Under, Rear RH
51443-42010 Cover, Engine Under, Rear RH
2012-12 → 2015-10 ended
ASA4# —
51443-42010 Cover, Engine Under, Rear RH
2015-10 → 2018-10 ended
ASA4# —
51443-48090 Cover, Engine Under, Rear RH
2015-10 → 2018-10 ended
AVA44 —
51444 — Cover, Engine Under, Rear LH
51444-42040 Cover, Engine Under, Rear LH
2012-12 → 2015-10 ended
ASA4# —
51444-42040 Cover, Engine Under, Rear LH
2015-10 → 2018-10 ended
ASA4# —
51444-48030 Cover, Engine Under, Rear LH
2015-10 → 2018-10 ended
AVA44 —
58165C — Cover, Front Floor, RH
58165-42020 Cover, Front Floor, RH
2012-12 → 2013-07 ended
ASA4# —
58165-42021 Cover, Front Floor, RH
2013-08 → 2015-10 ended
ASA4# —
58165-42021 Cover, Front Floor, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58398F — Cover, Floor Under, NO.1
58398-42022 Cover, Floor Under, NO.1
2012-12 → 2015-10 ended
ASA4# —
58398-42022 Cover, Floor Under, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
