Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

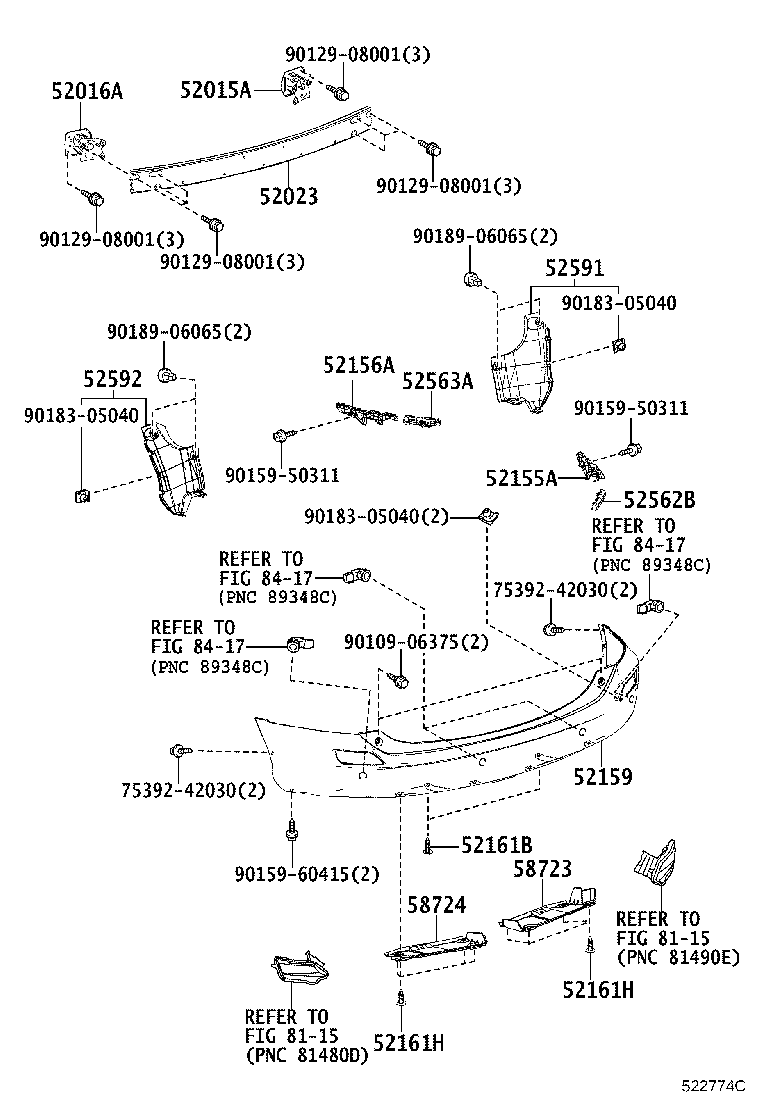

Exploded illustration 522774C 52015A — ARM SUB-ASSY, REAR BUMPER, RH (2 parts) 52016A — ARM SUB-ASSY, REAR BUMPER, LH (2 parts) 52023 — REINFORCEMENT SUB-ASSY, REAR BUMPER (2 parts) 52155A — SUPPORT, REAR BUMPER SIDE, RH (2 parts) 52156A — SUPPORT, REAR BUMPER SIDE, LH (2 parts) 52159 — COVER, REAR BUMPER (3 parts) 52161B — PIECE, REAR BUMPER (2 parts) 52161H — PIECE, REAR BUMPER (2 parts) 52161H — PIECE, REAR BUMPER (2 parts) 52562B — RETAINER, REAR BUMPER, UPPER RH (2 parts) 52563A — RETAINER, REAR BUMPER, UPPER LH (2 parts) 58723 — PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1 (4 parts) 58724 — PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2 (4 parts) 7539242030 — not listed in this catalogue 7539242030 — not listed in this catalogue 9010906375 — not listed in this catalogue 9012908001 — not listed in this catalogue 9012908001 — not listed in this catalogue 9012908001 — not listed in this catalogue 9012908001 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015960415 — not listed in this catalogue 8115 — not listed in this catalogue 8115 — not listed in this catalogue 52591 — SEAL, REAR BUMPER SIDE, RH (2 parts) 52592 — SEAL, REAR BUMPER SIDE, LH (2 parts) 9018305040 — not listed in this catalogue 9018305040 — not listed in this catalogue 9018906065 — not listed in this catalogue 9018906065 — not listed in this catalogue 9018305040 — not listed in this catalogue
522774C · 15 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
52015A — Arm Sub-assy, Rear Bumper, RH
52015-42011 Arm Sub-assy, Rear Bumper, RH
2012-12 → 2015-10 ended
ASA4# —
52015-42011 Arm Sub-assy, Rear Bumper, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52016A — Arm Sub-assy, Rear Bumper, LH
52016-42011 Arm Sub-assy, Rear Bumper, LH
2012-12 → 2015-10 ended
ASA4# —
52016-42011 Arm Sub-assy, Rear Bumper, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52023 — Reinforcement Sub-assy, Rear Bumper
52023-42040 Reinforcement Sub-assy, Rear Bumper
2012-12 → 2015-10 ended
ASA4# —
52023-42040 Reinforcement Sub-assy, Rear Bumper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52155A — Support, Rear Bumper Side, RH
52155-42030 Support, Rear Bumper Side, RH
2012-12 → 2015-10 ended
ASA4# —
52155-42040 Support, Rear Bumper Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52156A — Support, Rear Bumper Side, LH
52156-42010 Support, Rear Bumper Side, LH
2012-12 → 2015-10 ended
ASA4# —
52156-42020 Support, Rear Bumper Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52159 — Cover, Rear Bumper
52150-42830 Cover, Rear Bumper
2012-12 → 2015-10 ended
ASA4# —
52150-42840 note Cover, Rear Bumper
2012-12 → 2015-10 ended
ASA4# —
52159-42930 note Cover, Rear Bumper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52161B — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2012-12 → 2015-10 ended
ASA4# —
52161-16010 Piece, Rear Bumper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52161H — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2012-12 → 2015-10 ended
ASA4# —
52161-16010 Piece, Rear Bumper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52562B — Retainer, Rear Bumper, Upper RH
52562-42020 Retainer, Rear Bumper, Upper RH
2012-12 → 2015-10 ended
ASA4# —
52562-42050 Retainer, Rear Bumper, Upper RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52563A — Retainer, Rear Bumper, Upper LH
52563-42030 Retainer, Rear Bumper, Upper LH
2012-12 → 2015-10 ended
ASA4# —
52563-42040 Retainer, Rear Bumper, Upper LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52591 — Seal, Rear Bumper Side, RH
52591-42080 Seal, Rear Bumper Side, RH
2012-12 → 2015-10 ended
ASA4# —
52591-42090 Seal, Rear Bumper Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52592 — Seal, Rear Bumper Side, LH
52592-42080 Seal, Rear Bumper Side, LH
2012-12 → 2015-10 ended
ASA4# —
52592-42090 Seal, Rear Bumper Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58723 — Protector, Luggage Compartment Service Cover, NO.1
58723-42010 Protector, Luggage Compartment Service Cover, NO.1
2012-12 → 2015-10 ended
ASA4# —
58723-42020 Protector, Luggage Compartment Service Cover, NO.1
2015-10 → 2017-12 ended
ASA4#,AVA44 —
58723-42020 note Protector, Luggage Compartment Service Cover, NO.1
2017-12 → 2018-10 ended
ASA42,AVA44 USA;ASA44 LE,LIMD,XLE —
58723-42050 Protector, Luggage Compartment Service Cover, NO.1
2017-12 → 2018-10 ended
ASA4#,AVA44 —
58724 — Protector, Luggage Compartment Service Cover, NO.2
58724-42010 Protector, Luggage Compartment Service Cover, NO.2
2012-12 → 2015-10 ended
ASA4# —
58724-42020 Protector, Luggage Compartment Service Cover, NO.2
2015-10 → 2017-12 ended
ASA4#,AVA44 —
58724-42020 note Protector, Luggage Compartment Service Cover, NO.2
2017-12 → 2018-10 ended
ASA42,AVA44 USA;ASA44 LE,LIMD,XLE —
58724-42050 Protector, Luggage Compartment Service Cover, NO.2
2017-12 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
