Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

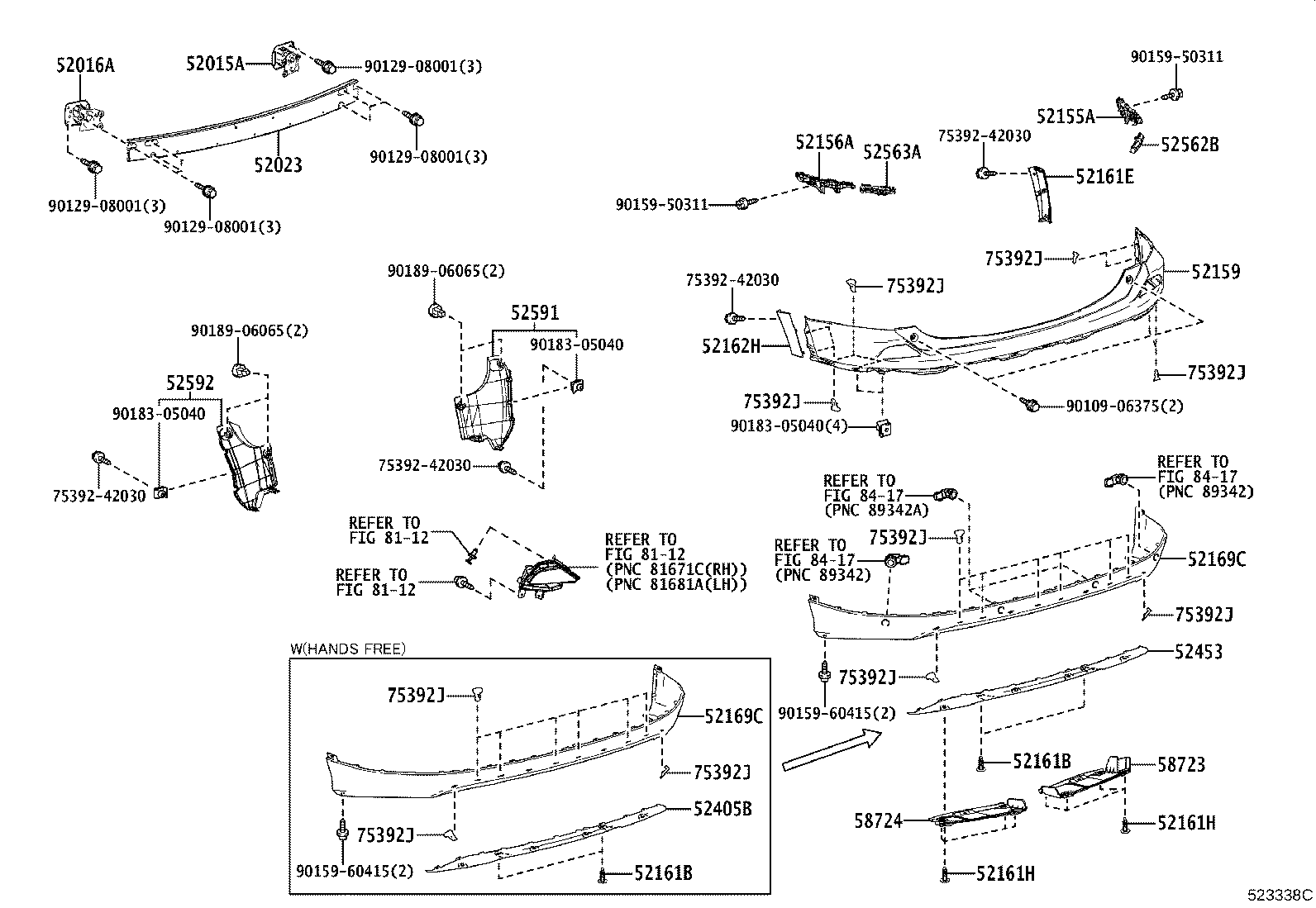

Exploded illustration 523338C 52015A — ARM SUB-ASSY, REAR BUMPER, RH (2 parts) 52016A — ARM SUB-ASSY, REAR BUMPER, LH (2 parts) 52023 — REINFORCEMENT SUB-ASSY, REAR BUMPER (2 parts) 52155A — SUPPORT, REAR BUMPER SIDE, RH (2 parts) 52156A — SUPPORT, REAR BUMPER SIDE, LH (2 parts) 52159 — COVER, REAR BUMPER (3 parts) 52169C — COVER, REAR BUMPER, LOWER (9 parts) 52453 — GUARD, REAR BUMPER, CENTER (2 parts) 75392J — RETAINER, OUTSIDE MOULDING (1 parts) 75392J — RETAINER, OUTSIDE MOULDING (1 parts) 75392J — RETAINER, OUTSIDE MOULDING (1 parts) 75392J — RETAINER, OUTSIDE MOULDING (1 parts) 75392J — RETAINER, OUTSIDE MOULDING (1 parts) 75392J — RETAINER, OUTSIDE MOULDING (1 parts) 75392J — RETAINER, OUTSIDE MOULDING (1 parts) 52161B — PIECE, REAR BUMPER (2 parts) 52161H — PIECE, REAR BUMPER (2 parts) 52161H — PIECE, REAR BUMPER (2 parts) 52562B — RETAINER, REAR BUMPER, UPPER RH (2 parts) 52161E — EXTENSION, REAR BUMPER SIDE, RH (4 parts) 52162H — EXTENSION, REAR BUMPER SIDE, LH (4 parts) 52563A — RETAINER, REAR BUMPER, UPPER LH (2 parts) 52591 — SEAL, REAR BUMPER SIDE, RH (2 parts) 52592 — SEAL, REAR BUMPER SIDE, LH (2 parts) 58723 — PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1 (4 parts) 58724 — PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2 (4 parts) 7539242030 — not listed in this catalogue 7539242030 — not listed in this catalogue 7539242030 — not listed in this catalogue 7539242030 — not listed in this catalogue 9010906375 — not listed in this catalogue 9012908001 — not listed in this catalogue 9012908001 — not listed in this catalogue 9012908001 — not listed in this catalogue 9012908001 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015960415 — not listed in this catalogue 9018305040 — not listed in this catalogue 9018305040 — not listed in this catalogue 9018305040 — not listed in this catalogue 9018906065 — not listed in this catalogue 9018906065 — not listed in this catalogue 8112 — not listed in this catalogue 8112 — not listed in this catalogue 8112 — not listed in this catalogue 52169C — COVER, REAR BUMPER, LOWER (9 parts) 52405B — GUARD SUB-ASSY, REAR BUMPER (5 parts) 75392J — RETAINER, OUTSIDE MOULDING (1 parts) 75392J — RETAINER, OUTSIDE MOULDING (1 parts) 75392J — RETAINER, OUTSIDE MOULDING (1 parts) 52161B — PIECE, REAR BUMPER (2 parts) 9015960415 — not listed in this catalogue 8417 — not listed in this catalogue 8417 — not listed in this catalogue 8417 — not listed in this catalogue
523338C · 32 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
52015A — Arm Sub-assy, Rear Bumper, RH
52015-42011 Arm Sub-assy, Rear Bumper, RH
2012-12 → 2015-10 ended
ASA4# —
52015-42011 Arm Sub-assy, Rear Bumper, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52016A — Arm Sub-assy, Rear Bumper, LH
52016-42011 Arm Sub-assy, Rear Bumper, LH
2012-12 → 2015-10 ended
ASA4# —
52016-42011 Arm Sub-assy, Rear Bumper, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52023 — Reinforcement Sub-assy, Rear Bumper
52023-42040 Reinforcement Sub-assy, Rear Bumper
2012-12 → 2015-10 ended
ASA4# —
52023-42040 Reinforcement Sub-assy, Rear Bumper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52155A — Support, Rear Bumper Side, RH
52155-42030 Support, Rear Bumper Side, RH
2012-12 → 2015-10 ended
ASA4# —
52155-42040 Support, Rear Bumper Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52156A — Support, Rear Bumper Side, LH
52156-42010 Support, Rear Bumper Side, LH
2012-12 → 2015-10 ended
ASA4# —
52156-42020 Support, Rear Bumper Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52159 — Cover, Rear Bumper
52150-42830 Cover, Rear Bumper
2012-12 → 2015-10 ended
ASA4# —
52150-42840 note Cover, Rear Bumper
2012-12 → 2015-10 ended
ASA4# —
52159-42930 note Cover, Rear Bumper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52161B — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2012-12 → 2015-10 ended
ASA4# —
52161-16010 Piece, Rear Bumper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52161E — Extension, Rear Bumper Side, RH
52161-42400 Extension, Rear Bumper Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52161-42942 note Extension, Rear Bumper Side, RH
2015-10 → 2016-08 ended
ASA4# SE —
52161-42942 note Extension, Rear Bumper Side, RH
2015-10 → 2016-10 ended
ASA4# SE —
52161-42942 note Extension, Rear Bumper Side, RH
2016-08 → 2016-10 ended
ASA4# SE —
52161H — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2012-12 → 2015-10 ended
ASA4# —
52161-16010 Piece, Rear Bumper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52162H — Extension, Rear Bumper Side, LH
52162-42420 Extension, Rear Bumper Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52162-42942 note Extension, Rear Bumper Side, LH
2015-10 → 2016-08 ended
ASA4# SE —
52162-42942 note Extension, Rear Bumper Side, LH
2015-10 → 2016-10 ended
ASA4# SE —
52162-42942 note Extension, Rear Bumper Side, LH
2016-08 → 2016-10 ended
ASA4# SE —
52169C — Cover, Rear Bumper, Lower
52169-42010 note Cover, Rear Bumper, Lower
2016-08 → 2018-10 ended
AVA44 SE CND —
52169-42010 note Cover, Rear Bumper, Lower
2015-10 → 2018-10 ended
ASA4#;AVA44 SE USA;AVA44 LIMD,XLE —
52169-42020 note Cover, Rear Bumper, Lower
2015-10 → 2017-08 ended
ASA4# LE —
52169-42020 note Cover, Rear Bumper, Lower
2015-10 → 2018-10 ended
AVA44 SE USA;AVA44 LIMD,XLE;ASA4# +1 —
52169-42020 note Cover, Rear Bumper, Lower
2016-08 → 2018-10 ended
AVA44 SE CND —
52169-42020 note Cover, Rear Bumper, Lower
2016-08 → 2018-10 ended
ASA42 SE;AVA44 LIMD CND;ASA44,AVA44 +2 —
52169-42901 note Cover, Rear Bumper, Lower
2015-10 → 2016-10 ended
ASA4# SE —
52169-42901 note Cover, Rear Bumper, Lower
2016-08 → 2016-10 ended
ASA4# SE —
52169-42902 note Cover, Rear Bumper, Lower
2015-10 → 2016-08 ended
ASA4# SE —
52405B — Guard Sub-assy, Rear Bumper
52405-42010-B0 note Guard Sub-assy, Rear Bumper
2016-08 → 2018-10 ended
AVA44 SE CND —
52405-42010-B0 note Guard Sub-assy, Rear Bumper
2016-08 → 2018-10 ended
AVA44 LIMD CND —
52405-42010-B0 note Guard Sub-assy, Rear Bumper
2016-08 → 2018-10 ended
ASA44,AVA44 LIMD USA —
52405-42010-B0 note Guard Sub-assy, Rear Bumper
2016-08 → 2018-10 ended
ASA4#,AVA44 SE USA —
52405-42010-C0 note Guard Sub-assy, Rear Bumper
2016-08 → 2016-10 ended
ASA4# SE —
52453 — Guard, Rear Bumper, Center
52453-42010 Guard, Rear Bumper, Center
2015-10 → 2018-10 ended
ASA4# LE —
52453-42900 Guard, Rear Bumper, Center
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE,XLE —
52562B — Retainer, Rear Bumper, Upper RH
52562-42020 Retainer, Rear Bumper, Upper RH
2012-12 → 2015-10 ended
ASA4# —
52562-42050 Retainer, Rear Bumper, Upper RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52563A — Retainer, Rear Bumper, Upper LH
52563-42030 Retainer, Rear Bumper, Upper LH
2012-12 → 2015-10 ended
ASA4# —
52563-42040 Retainer, Rear Bumper, Upper LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52591 — Seal, Rear Bumper Side, RH
52591-42080 Seal, Rear Bumper Side, RH
2012-12 → 2015-10 ended
ASA4# —
52591-42090 Seal, Rear Bumper Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52592 — Seal, Rear Bumper Side, LH
52592-42080 Seal, Rear Bumper Side, LH
2012-12 → 2015-10 ended
ASA4# —
52592-42090 Seal, Rear Bumper Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58723 — Protector, Luggage Compartment Service Cover, NO.1
58723-42010 Protector, Luggage Compartment Service Cover, NO.1
2012-12 → 2015-10 ended
ASA4# —
58723-42020 Protector, Luggage Compartment Service Cover, NO.1
2015-10 → 2017-12 ended
ASA4#,AVA44 —
58723-42020 note Protector, Luggage Compartment Service Cover, NO.1
2017-12 → 2018-10 ended
ASA42,AVA44 USA;ASA44 LE,LIMD,XLE —
58723-42050 Protector, Luggage Compartment Service Cover, NO.1
2017-12 → 2018-10 ended
ASA4#,AVA44 —
58724 — Protector, Luggage Compartment Service Cover, NO.2
58724-42010 Protector, Luggage Compartment Service Cover, NO.2
2012-12 → 2015-10 ended
ASA4# —
58724-42020 Protector, Luggage Compartment Service Cover, NO.2
2015-10 → 2017-12 ended
ASA4#,AVA44 —
58724-42020 note Protector, Luggage Compartment Service Cover, NO.2
2017-12 → 2018-10 ended
ASA42,AVA44 USA;ASA44 LE,LIMD,XLE —
58724-42050 Protector, Luggage Compartment Service Cover, NO.2
2017-12 → 2018-10 ended
ASA4#,AVA44 —
75392J — Retainer, Outside Moulding
75392-35220 Retainer, Outside Moulding
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
