Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

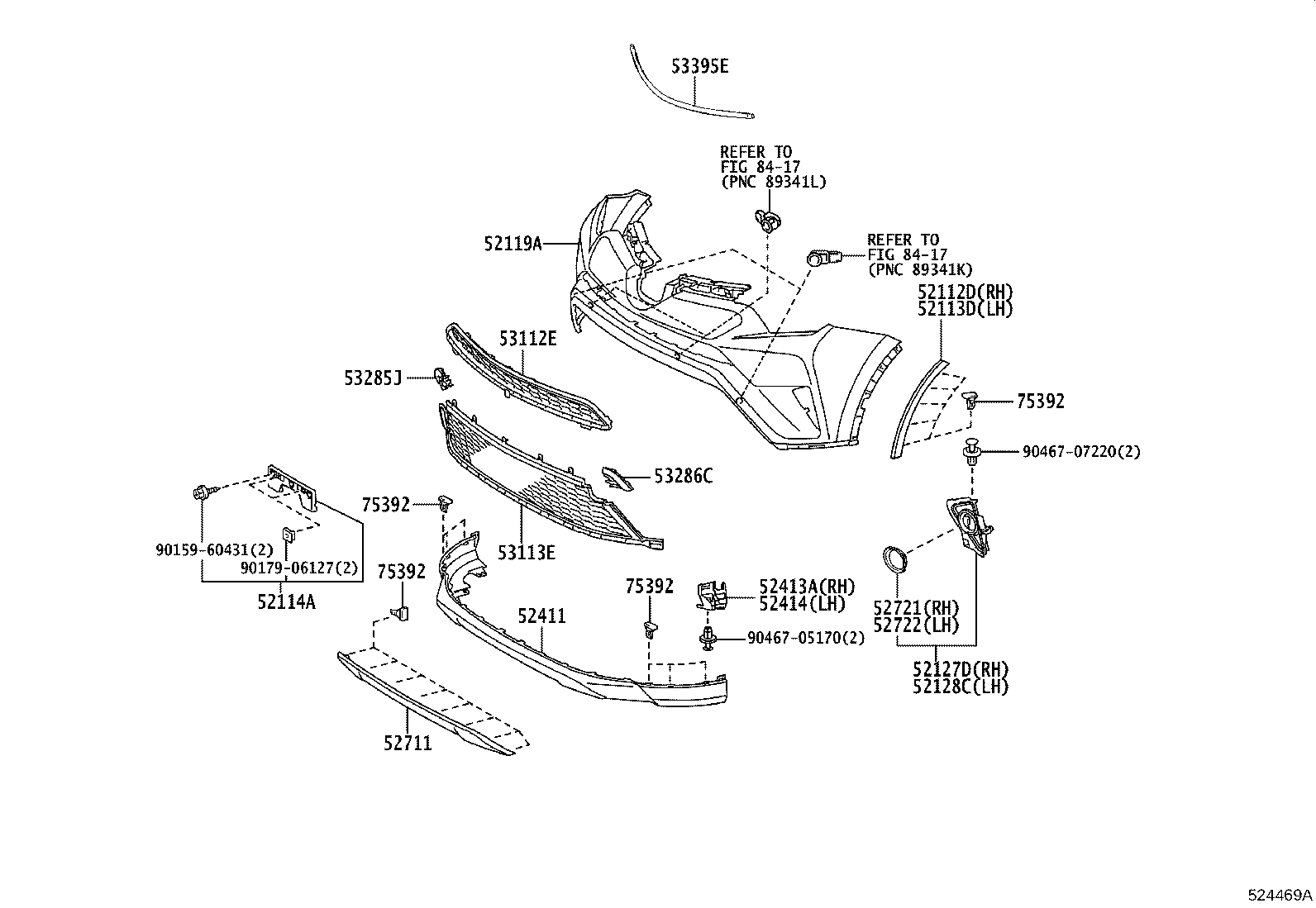

Exploded illustration 524469A 9046705170 — not listed in this catalogue 52127D — COVER, FRONT BUMPER HOLE, RH (8 parts) 52128C — COVER, FRONT BUMPER HOLE, LH (8 parts) 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (5 parts) 53112E — GRILLE, RADIATOR, LOWER NO.1 (11 parts) 53285J — COVER, FRONT BUMPER ARM HOLE, RH (6 parts) 53286C — COVER, FRONT BUMPER ARM HOLE, LH (6 parts) 52119A — COVER, FRONT BUMPER (21 parts) 53113E — GRILLE, RADIATOR, LOWER NO.2 (5 parts) 52413A — PAD, FRONT BUMPER GUARD, RH (1 parts) 52414 — PAD, FRONT BUMPER GUARD, LH (1 parts) 52411 — GUARD, FRONT BUMPER (15 parts) 52711 — MOULDING, FRONT BUMPER (14 parts) 75392 — RETAINER, OUTSIDE MOULDING (9 parts) 75392 — RETAINER, OUTSIDE MOULDING (9 parts) 75392 — RETAINER, OUTSIDE MOULDING (9 parts) 75392 — RETAINER, OUTSIDE MOULDING (9 parts) 9015960431 — not listed in this catalogue 9017906127 — not listed in this catalogue 52112D — EXTENSION, FRONT BUMPER, RH (8 parts) 52113D — EXTENSION, FRONT BUMPER, LH (8 parts) 53395E — SEAL, HOOD TO FRONT END PANEL (2 parts) 9046707220 — not listed in this catalogue 52721 — MOULDING, FRONT BUMPER EXTENSION, RH (2 parts) 52722 — MOULDING, FRONT BUMPER EXTENSION, LH (2 parts) 8417 — not listed in this catalogue 8417 — not listed in this catalogue
524469A · 21 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
132 parts on this figure
Part number Description Fitment Price
52112D — Extension, Front Bumper, RH
52112-42100 note Extension, Front Bumper, RH
2012-12 → 2015-10 ended
ASA4# —
52112-42110 note Extension, Front Bumper, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52112-42904 note Extension, Front Bumper, RH
2015-10 → 2016-08 ended
ASA4# SE —
52112-42904 note Extension, Front Bumper, RH
2016-08 → 2016-10 ended
ASA4# SE —
52112-42904 note Extension, Front Bumper, RH
2015-10 → 2016-10 ended
ASA4# SE —
52112-42904 note Extension, Front Bumper, RH
2015-10 → 2016-08 ended
ASA4# SE —
52112-42904 note Extension, Front Bumper, RH
2015-10 → 2016-08 ended
ASA4# SE —
52112-42904 note Extension, Front Bumper, RH
2015-10 → 2016-08 ended
ASA4# SE —
52113D — Extension, Front Bumper, LH
52113-42100 note Extension, Front Bumper, LH
2012-12 → 2015-10 ended
ASA4# —
52113-42120 Extension, Front Bumper, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52113-42903 note Extension, Front Bumper, LH
2016-08 → 2016-10 ended
ASA4# SE —
52113-42903 note Extension, Front Bumper, LH
2015-10 → 2016-10 ended
ASA4# SE —
52113-42903 note Extension, Front Bumper, LH
2015-10 → 2016-08 ended
ASA4# SE —
52113-42903 note Extension, Front Bumper, LH
2015-10 → 2016-08 ended
ASA4# SE —
52113-42903 note Extension, Front Bumper, LH
2015-10 → 2016-08 ended
ASA4# SE —
52113-42903 note Extension, Front Bumper, LH
2015-10 → 2016-08 ended
ASA4# SE —
52114A — Bracket, Front Bumper Extension Mounting
52114-42100 Bracket, Front Bumper Extension Mounting
2012-12 → 2015-10 ended
ASA4# —
52114-42110 Bracket, Front Bumper Extension Mounting
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
52114-42120 note Bracket, Front Bumper Extension Mounting
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
52114-42120 note Bracket, Front Bumper Extension Mounting
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
52114-42130 Bracket, Front Bumper Extension Mounting
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
52119A — Cover, Front Bumper
52119-4A904 note Cover, Front Bumper
2012-12 → 2015-10 ended
ASA4# —
52119-4A908 note Cover, Front Bumper
2016-08 → 2018-10 ended
AVA44 SE CND —
52119-4A908 note Cover, Front Bumper
2015-10 → 2018-10 ended
ASA4#;AVA44 SE USA;AVA44 LIMD,XLE —
52119-4A909 note Cover, Front Bumper
2015-10 → 2016-08 ended
ASA4# SE —
52119-4A909 note Cover, Front Bumper
2015-10 → 2016-08 ended
ASA4# SE —
52119-4A909 note Cover, Front Bumper
2016-08 → 2018-10 ended
AVA44 XLE USA —
52119-4A909 note Cover, Front Bumper
2016-08 → 2018-10 ended
AVA44 SE USA;ASA4# LIMD,SE,XLE —
52119-4A909 note Cover, Front Bumper
2016-08 → 2018-10 ended
ASA4#,AVA44 (LIMD,SE) USA —
52119-4A909 note Cover, Front Bumper
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
52119-4A909 note Cover, Front Bumper
2016-08 → 2018-10 ended
AVA44 SE CND —
52119-4A909 note Cover, Front Bumper
2015-10 → 2016-08 ended
AVA44 LIMD USA —
52119-4A909 note Cover, Front Bumper
2015-10 → 2018-10 ended
ASA4#,AVA44 (SE,XLE) USA —
52119-4A909 note Cover, Front Bumper
2015-10 → 2018-10 ended
AVA44 LIMD CND —
52119-4A909 note Cover, Front Bumper
2015-10 → 2018-10 ended
AVA44 (LIMD,XLE) CND —
52119-4A909 note Cover, Front Bumper
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
52119-4A909 note Cover, Front Bumper
2016-08 → 2016-10 ended
ASA4# SE —
52119-4A909 note Cover, Front Bumper
2015-10 → 2016-10 ended
ASA4# SE —
52119-4A909 note Cover, Front Bumper
2015-10 → 2016-08 ended
ASA4#,AVA44 (LIMD,SE) USA —
52119-4A909 note Cover, Front Bumper
2015-10 → 2016-08 ended
ASA4#,AVA44 (LIMD,SE,XLE) USA —
52119-4A911 note Cover, Front Bumper
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
52119-4A911 note Cover, Front Bumper
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
52127D — Cover, Front Bumper Hole, RH
52127-42090 Cover, Front Bumper Hole, RH
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
52127-42130 Cover, Front Bumper Hole, RH
2012-12 → 2015-10 ended
ASA4# LE —
52030-42040 Cover, Front Bumper Hole, RH
2015-10 → 2018-10 ended
ASA4# LE —
52030-42040 note Cover, Front Bumper Hole, RH
2016-08 → 2018-10 ended
AVA44 XLE USA —
52030-42040 note Cover, Front Bumper Hole, RH
2016-08 → 2018-10 ended
AVA44 XLE —
52030-42040 note Cover, Front Bumper Hole, RH
2016-08 → 2018-10 ended
AVA44 XLE USA —
52030-42050 Cover, Front Bumper Hole, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
52030-42060 Cover, Front Bumper Hole, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,XLE —
52128C — Cover, Front Bumper Hole, LH
52128-42090 Cover, Front Bumper Hole, LH
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
52128-42130 Cover, Front Bumper Hole, LH
2012-12 → 2015-10 ended
ASA4# LE —
52040-42040 note Cover, Front Bumper Hole, LH
2016-08 → 2018-10 ended
AVA44 XLE USA —
52040-42040 note Cover, Front Bumper Hole, LH
2016-08 → 2018-10 ended
AVA44 XLE USA —
52040-42040 note Cover, Front Bumper Hole, LH
2016-08 → 2018-10 ended
AVA44 XLE —
52040-42040 Cover, Front Bumper Hole, LH
2015-10 → 2018-10 ended
ASA4# LE —
52040-42050 Cover, Front Bumper Hole, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
52040-42060 Cover, Front Bumper Hole, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,XLE —
52411 — Guard, Front Bumper
52411-42010 Guard, Front Bumper
2012-12 → 2015-10 ended
ASA4# LE —
52411-42020 Guard, Front Bumper
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
52411-42040 note Guard, Front Bumper
2012-12 → 2015-10 ended
ASA4# LIMD —
52411-42050 Guard, Front Bumper
2015-10 → 2018-10 ended
ASA4# LE —
52411-42060 Guard, Front Bumper
2016-10 → 2018-10 ended
ASA4#,AVA44 SE —
52411-42060 Guard, Front Bumper
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,XLE —
52411-42080 note Guard, Front Bumper
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
52411-42080 Guard, Front Bumper
2015-10 → 2016-10 ended
ASA4#,AVA44 SE —
52411-42080 note Guard, Front Bumper
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
52411-42906 note Guard, Front Bumper
2015-10 → 2016-10 ended
ASA4# SE —
52411-42906 note Guard, Front Bumper
2016-08 → 2016-10 ended
ASA4# SE —
52411-42906 note Guard, Front Bumper
2015-10 → 2016-08 ended
ASA4# SE —
52411-42906 note Guard, Front Bumper
2015-10 → 2016-08 ended
ASA4# SE —
52411-42906 note Guard, Front Bumper
2015-10 → 2016-08 ended
ASA4# SE —
52411-42906 note Guard, Front Bumper
2015-10 → 2016-08 ended
ASA4# SE —
52413A — Pad, Front Bumper Guard, RH
52413-42010 Pad, Front Bumper Guard, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52414 — Pad, Front Bumper Guard, LH
52414-42010 Pad, Front Bumper Guard, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
52711 — Moulding, Front Bumper
52711-42030 note Moulding, Front Bumper
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
52711-42040 note Moulding, Front Bumper
2012-12 → 2015-10 ended
ASA4# LIMD —
52711-42100-B0 note Moulding, Front Bumper
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD,XLE —
52711-42100-B2 note Moulding, Front Bumper
2016-08 → 2018-10 ended
AVA44 LIMD USA —
52711-42100-B2 note Moulding, Front Bumper
2016-08 → 2018-10 ended
AVA44 (LIMD,XLE) CND —
52711-42100-B2 note Moulding, Front Bumper
2016-08 → 2018-10 ended
ASA4# LIMD,XLE;AVA44 XLE USA —
52711-42110-B0 note Moulding, Front Bumper
2015-10 → 2016-08 ended
ASA4# SE —
52711-42110-B0 note Moulding, Front Bumper
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
52711-42110-B2 note Moulding, Front Bumper
2016-08 → 2016-10 ended
ASA4#,AVA44 SE USA —
52711-42110-B2 note Moulding, Front Bumper
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
52711-42110-B2 note Moulding, Front Bumper
2016-08 → 2016-10 ended
AVA44 SE CND —
52711-42130-B0 note Moulding, Front Bumper
2016-10 → 2018-10 ended
ASA4# SE —
52711-42130-B0 note Moulding, Front Bumper
2016-10 → 2018-10 ended
AVA44 SE USA —
52711-42130-B0 note Moulding, Front Bumper
2016-10 → 2018-10 ended
AVA44 SE CND —
52721 — Moulding, Front Bumper Extension, RH
52721-42010 Moulding, Front Bumper Extension, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,XLE —
52721-42030 Moulding, Front Bumper Extension, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
52722 — Moulding, Front Bumper Extension, LH
52722-42010 Moulding, Front Bumper Extension, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,XLE —
52722-42030 Moulding, Front Bumper Extension, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
53112E — Grille, Radiator, Lower NO.1
53112-42090 note Grille, Radiator, Lower NO.1
2012-12 → 2015-10 ended
ASA4# —
53112-42100 Grille, Radiator, Lower NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
53112-42110 note Grille, Radiator, Lower NO.1
2015-10 → 2018-10 ended
AVA44 LIMD CND —
53112-42110 note Grille, Radiator, Lower NO.1
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
53112-42110 note Grille, Radiator, Lower NO.1
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
53112-42120 Grille, Radiator, Lower NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
53112-42130 note Grille, Radiator, Lower NO.1
2015-10 → 2016-08 ended
ASA4# SE —
53112-42130 note Grille, Radiator, Lower NO.1
2015-10 → 2016-08 ended
ASA4# SE —
53112-42130 note Grille, Radiator, Lower NO.1
2016-08 → 2018-10 ended
AVA44 SE CND —
53112-42130 note Grille, Radiator, Lower NO.1
2016-08 → 2018-10 ended
ASA4#,AVA44 SE USA —
53112-42130 note Grille, Radiator, Lower NO.1
2016-08 → 2016-10 ended
ASA4# SE —
53113E — Grille, Radiator, Lower NO.2
53113-42070 Grille, Radiator, Lower NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
53113-42080 note Grille, Radiator, Lower NO.2
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
53113-42080 note Grille, Radiator, Lower NO.2
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
53113-42100 Grille, Radiator, Lower NO.2
2015-10 → 2016-10 ended
ASA4#,AVA44 SE —
53113-42101 Grille, Radiator, Lower NO.2
2016-10 → 2018-10 ended
ASA4#,AVA44 SE —
53285J — Cover, Front Bumper Arm Hole, RH
53285-42070 Cover, Front Bumper Arm Hole, RH
2012-12 → 2015-10 ended
ASA4# —
53285-42080 note Cover, Front Bumper Arm Hole, RH
2012-12 → 2015-10 ended
ASA4# LIMD —
53285-42090 Cover, Front Bumper Arm Hole, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
53285-42100 note Cover, Front Bumper Arm Hole, RH
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
53285-42100 note Cover, Front Bumper Arm Hole, RH
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
53285-42110 Cover, Front Bumper Arm Hole, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
53286C — Cover, Front Bumper Arm Hole, LH
53286-42080 Cover, Front Bumper Arm Hole, LH
2012-12 → 2015-10 ended
ASA4# —
53286-42090 note Cover, Front Bumper Arm Hole, LH
2012-12 → 2015-10 ended
ASA4# LIMD —
53286-42100 Cover, Front Bumper Arm Hole, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LE,LIMD,XLE —
53286-42110 note Cover, Front Bumper Arm Hole, LH
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
53286-42110 note Cover, Front Bumper Arm Hole, LH
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
53286-42120 Cover, Front Bumper Arm Hole, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 SE —
53395E — Seal, Hood TO Front End Panel
53395-42060 Seal, Hood TO Front End Panel
2012-12 → 2015-10 ended
ASA4# —
53395-42070 Seal, Hood TO Front End Panel
2015-10 → 2018-10 ended
ASA4#,AVA44 —
75392 — Retainer, Outside Moulding
75392-35220 Retainer, Outside Moulding
2012-12 → 2015-10 ended
ASA4# LE —
75392-35220 note Retainer, Outside Moulding
2012-12 → 2015-10 ended
ASA4# LIMD —
75392-35220 Retainer, Outside Moulding
2012-12 → 2015-10 ended
ASA4# LIMD,XLE —
75392-35220 note Retainer, Outside Moulding
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
75392-35220 Retainer, Outside Moulding
2015-10 → 2016-10 ended
ASA4#,AVA44 SE —
75392-35220 Retainer, Outside Moulding
2015-10 → 2018-10 ended
ASA4# LE —
75392-35220 Retainer, Outside Moulding
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD,XLE —
75392-35220 note Retainer, Outside Moulding
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
75392-35220 Retainer, Outside Moulding
2016-10 → 2018-10 ended
ASA4#,AVA44 SE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
