Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

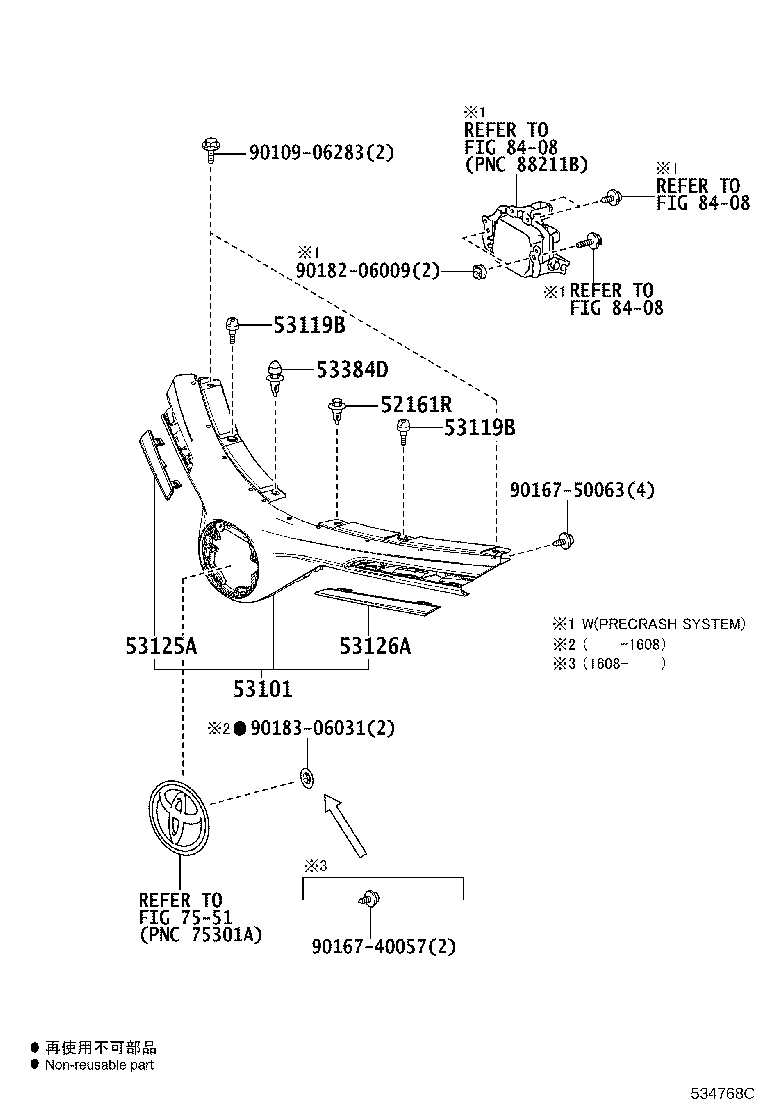

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52161R — Piece, Front Bumper | ||||
| 52161-16010 |
Piece, Front Bumper
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 53101 — Grille Sub-assy, Radiator | ||||
| 53101-42410 note |
Grille Sub-assy, Radiator
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LE,LIMD,XLE | — | |
| 53101-42411 note |
Grille Sub-assy, Radiator
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LE,LIMD,XLE | — | |
| 53101-42450 note |
Grille Sub-assy, Radiator
2015-10 → 2016-08
ended
|
ASA4# SE | — | |
| 53101-42451 note |
Grille Sub-assy, Radiator
2016-08 → 2018-10
ended
|
ASA4#,AVA44 SE | — | |
| 53119B — Protector, Radiator Grille | ||||
| 53119-12150 |
Protector, Radiator Grille
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 53125A — Moulding, Radiator Grille, Center RH | ||||
| 53125-42100 |
Moulding, Radiator Grille, Center RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,LIMD,XLE | — | |
| 53126A — Moulding, Radiator Grille, Center LH | ||||
| 53126-42090 |
Moulding, Radiator Grille, Center LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LE,LIMD,XLE | — | |
| 53384D — Cushion, Hood, Center | ||||
| 53384-68010 |
Cushion, Hood, Center
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
