Exploded illustration 553689A 8202 — not listed in this catalogue 55535B — COVER, SPEAKER HOLE, NO.2 (9 parts) 55525 — COVER, SPEAKER HOLE, NO.1 (9 parts) 55578A — SILENCER, GLOVE COMPARTMENT DOOR (2 parts) 55578A — SILENCER, GLOVE COMPARTMENT DOOR (2 parts) 58917B — MAT, BOX BOTTOM (2 parts) 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (2 parts) 55302A — PANEL SUB-ASSY, INSTRUMENT, UPPER (15 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (12 parts) 55833C — CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER (6 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (12 parts) 55355 — CUSHION, INSTRUMENT PANEL, NO.1 (2 parts) 55331 — REINFORCEMENT, INSTRUMENT PANEL (4 parts) 55312 — PANEL, INSTRUMENT, LOWER (6 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 9018305103 — not listed in this catalogue 91631J0612 — not listed in this catalogue 9017906278 — not listed in this catalogue 9046712080 — not listed in this catalogue 9356855014 — not listed in this catalogue 9010508460 — not listed in this catalogue 9167380816 — not listed in this catalogue 91621B0816 — not listed in this catalogue 9015960613 — not listed in this catalogue 9015950384 — not listed in this catalogue 9415180800 — not listed in this catalogue 9046710201 — not listed in this catalogue 55355 — CUSHION, INSTRUMENT PANEL, NO.1 (2 parts) 55356C — CUSHION, INSTRUMENT PANEL, NO.2 (1 parts)

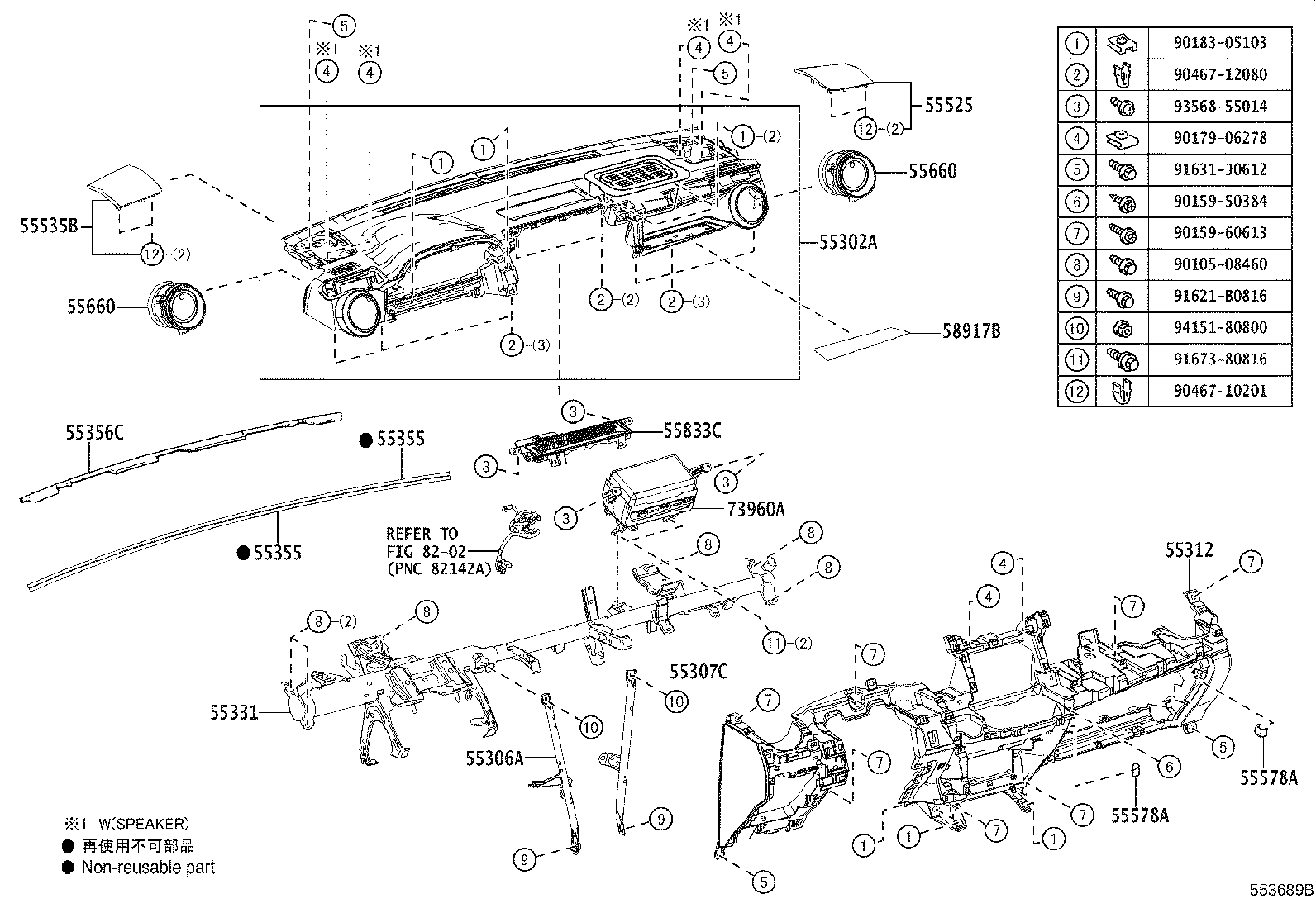

553689A · 17 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
74 parts on this figure
Part number Description Fitment Price
55302A — Panel Sub-assy, Instrument, Upper
55302-42904-C0 note Panel Sub-assy, Instrument, Upper
2012-12 → 2014-04 ended
ASA4# LIMD —
55302-42904-C0 note Panel Sub-assy, Instrument, Upper
2012-12 → 2013-11 ended
ASA4# LE —
55302-42904-C0 note Panel Sub-assy, Instrument, Upper
2013-11 → 2014-04 ended
ASA4# LE —
55302-42904-C0 note Panel Sub-assy, Instrument, Upper
2012-12 → 2014-04 ended
ASA4# XLE —
55302-42906-C0 note Panel Sub-assy, Instrument, Upper
2014-04 → 2015-10 ended
ASA4# LIMD —
55302-42906-C0 note Panel Sub-assy, Instrument, Upper
2014-04 → 2015-10 ended
ASA4# LE —
55302-42906-C0 note Panel Sub-assy, Instrument, Upper
2014-04 → 2015-10 ended
ASA4# XLE —
55302-42906-C0 note Panel Sub-assy, Instrument, Upper
2015-11 → 2018-10 ended
ASA4# LE —
55302-42906-C0 note Panel Sub-assy, Instrument, Upper
2015-11 → 2018-10 ended
ASA4#,AVA44 SE —
55302-42906-C0 note Panel Sub-assy, Instrument, Upper
2015-11 → 2018-10 ended
ASA4#,AVA44 LIMD —
55302-42906-C0 note Panel Sub-assy, Instrument, Upper
2015-11 → 2018-10 ended
ASA4#,AVA44 XLE —
55302-42906-C1 note Panel Sub-assy, Instrument, Upper
2015-10 → 2015-11 ended
ASA4#,AVA44 LIMD —
55302-42906-C1 note Panel Sub-assy, Instrument, Upper
2015-10 → 2015-11 ended
ASA4#,AVA44 XLE —
55302-42906-C1 note Panel Sub-assy, Instrument, Upper
2015-10 → 2015-11 ended
ASA4# LE —
55302-42906-C2 note Panel Sub-assy, Instrument, Upper
2015-10 → 2015-11 ended
ASA4# SE —
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-42130 Brace Sub-assy, Instrument Panel, NO.1
2012-12 → 2015-10 ended
ASA4# —
55306-42130 Brace Sub-assy, Instrument Panel, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-42070 Brace Sub-assy, Instrument Panel, NO.2
2012-12 → 2015-10 ended
ASA4# —
55307-42070 Brace Sub-assy, Instrument Panel, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55312 — Panel, Instrument, Lower
55312-42050-C0 note Panel, Instrument, Lower
2012-12 → 2015-10 ended
ASA4# LIMD —
55312-42050-C0 note Panel, Instrument, Lower
2012-12 → 2015-10 ended
ASA4# LE,XLE —
55312-42050-C0 note Panel, Instrument, Lower
2015-10 → 2018-10 ended
ASA4# LE —
55312-42050-C0 note Panel, Instrument, Lower
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
55312-42050-C0 note Panel, Instrument, Lower
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
55312-42050-C0 note Panel, Instrument, Lower
2016-08 → 2018-10 ended
AVA44 SE —
55331 — Reinforcement, Instrument Panel
55330-42250 Reinforcement, Instrument Panel
2012-12 → 2013-04 ended
ASA4# —
55330-42251 Reinforcement, Instrument Panel
2013-05 → 2014-08 ended
ASA4# —
55330-42252 Reinforcement, Instrument Panel
2014-09 → 2015-10 ended
ASA4# —
55330-42290 Reinforcement, Instrument Panel
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55355 — Cushion, Instrument Panel, NO.1
55355-42030 Cushion, Instrument Panel, NO.1
2012-12 → 2015-10 ended
ASA4# —
55355-42030 Cushion, Instrument Panel, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55356C — Cushion, Instrument Panel, NO.2
55356-42060 Cushion, Instrument Panel, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55525 — Cover, Speaker Hole, NO.1
55510-42010-C0 note Cover, Speaker Hole, NO.1
2012-12 → 2013-11 ended
ASA4# LE —
55525-42010-C0 note Cover, Speaker Hole, NO.1
2012-12 → 2013-11 ended
ASA4# LE —
55525-42010-C0 note Cover, Speaker Hole, NO.1
2012-12 → 2015-10 ended
ASA4# LIMD —
55525-42010-C0 note Cover, Speaker Hole, NO.1
2012-12 → 2015-10 ended
ASA4# XLE —
55525-42010-C0 note Cover, Speaker Hole, NO.1
2013-11 → 2015-10 ended
ASA4# LE —
55525-42010-C0 note Cover, Speaker Hole, NO.1
2015-10 → 2018-10 ended
ASA4# LE —
55525-42010-C0 note Cover, Speaker Hole, NO.1
2016-08 → 2018-10 ended
AVA44 SE —
55525-42010-C0 note Cover, Speaker Hole, NO.1
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
55525-42010-C0 note Cover, Speaker Hole, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
55535B — Cover, Speaker Hole, NO.2
55530-42010-C0 note Cover, Speaker Hole, NO.2
2012-12 → 2013-11 ended
ASA4# LE —
55535-42010-C0 note Cover, Speaker Hole, NO.2
2012-12 → 2013-11 ended
ASA4# LE —
55535-42010-C0 note Cover, Speaker Hole, NO.2
2012-12 → 2015-10 ended
ASA4# LIMD —
55535-42010-C0 note Cover, Speaker Hole, NO.2
2012-12 → 2015-10 ended
ASA4# XLE —
55535-42010-C0 note Cover, Speaker Hole, NO.2
2013-11 → 2015-10 ended
ASA4# LE —
55535-42010-C0 note Cover, Speaker Hole, NO.2
2015-10 → 2018-10 ended
ASA4# LE —
55535-42010-C0 note Cover, Speaker Hole, NO.2
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
55535-42010-C0 note Cover, Speaker Hole, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
55535-42010-C0 note Cover, Speaker Hole, NO.2
2016-08 → 2018-10 ended
AVA44 SE —
55578A — Silencer, Glove Compartment Door
55578-52040 Silencer, Glove Compartment Door
2012-12 → 2015-10 ended
ASA4# —
55578-52040 Silencer, Glove Compartment Door
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55660 — Register Assy, Instrument Panel, NO.2
55660-42030-C0 note Register Assy, Instrument Panel, NO.2
2012-12 → 2015-10 ended
ASA4# LIMD —
55660-42030-C0 note Register Assy, Instrument Panel, NO.2
2012-12 → 2015-10 ended
ASA4# LE,XLE —
55660-42040-C1 note Register Assy, Instrument Panel, NO.2
2015-10 → 2017-10 ended
ASA4#,AVA44 LIMD —
55660-42040-C1 note Register Assy, Instrument Panel, NO.2
2015-10 → 2017-10 ended
ASA4# LE —
55660-42040-C1 note Register Assy, Instrument Panel, NO.2
2015-10 → 2017-10 ended
ASA4#,AVA44 XLE —
55660-42040-C2 note Register Assy, Instrument Panel, NO.2
2015-10 → 2017-10 ended
ASA4#,AVA44 SE —
55660-42040-C3 note Register Assy, Instrument Panel, NO.2
2017-10 → 2018-10 ended
ASA4# LE —
55660-42040-C3 note Register Assy, Instrument Panel, NO.2
2017-10 → 2018-10 ended
ASA4#,AVA44 XLE —
55660-42040-C3 note Register Assy, Instrument Panel, NO.2
2017-10 → 2018-10 ended
ASA4#,AVA44 LIMD —
55660-42040-C3 note Register Assy, Instrument Panel, NO.2
2017-10 → 2018-10 ended
ASA4#,AVA44 SE —
55660-42040-C4 note Register Assy, Instrument Panel, NO.2
2017-10 → 2018-10 ended
ASA4#,AVA44 LE,XLE —
55660-42040-C4 note Register Assy, Instrument Panel, NO.2
2017-10 → 2018-10 ended
ASA4#,AVA44 LIMD,SE —
55833C — Connector, Instrument Panel Register, Center
55833-42010-C0 note Connector, Instrument Panel Register, Center
2012-12 → 2015-10 ended
ASA4# LIMD —
55833-42010-C0 note Connector, Instrument Panel Register, Center
2012-12 → 2015-10 ended
ASA4# LE,XLE —
55833-42010-C0 note Connector, Instrument Panel Register, Center
2015-10 → 2018-10 ended
ASA4# LE —
55833-42010-C0 note Connector, Instrument Panel Register, Center
2015-10 → 2018-10 ended
AVA44 LIMD;ASA4# LIMD,SE —
55833-42010-C0 note Connector, Instrument Panel Register, Center
2015-10 → 2018-10 ended
ASA4#,AVA44 XLE —
55833-42010-C0 note Connector, Instrument Panel Register, Center
2016-08 → 2018-10 ended
AVA44 SE —
58917B — Mat, Box Bottom
58917-42010 Mat, Box Bottom
2012-12 → 2015-10 ended
ASA4# —
58917-42010 Mat, Box Bottom
2015-10 → 2018-10 ended
ASA4#,AVA44 —
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-42040 Airbag Assy, Instrument Panel Passenger W/O Door
2012-12 → 2015-10 ended
ASA4# —
73960-42040 Airbag Assy, Instrument Panel Passenger W/O Door
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
