Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 554053E 7552 — not listed in this catalogue 53383 — SEAL, HOOD TO COWL TOP (2 parts) 55784D — BRACKET, COWL TOP VENTILATOR LOUVER, LH (2 parts) 53866J — SEAL, FRONT FENDER TO COWL SIDE, RH (2 parts) 53867H — SEAL, FRONT FENDER TO COWL SIDE, LH (2 parts) 55701J — PANEL SUB-ASSY, COWL TOP, OUTER (2 parts) 55705B — PANEL SUB-ASSY, COWL TOP SIDE, RH (2 parts) 55706B — PANEL SUB-ASSY, COWL TOP SIDE, LH (2 parts) 55701 — PANEL SUB-ASSY, COWL (2 parts) 55735C — REINFORCEMENT, COWL BODY MOUNTING, RH (2 parts) 55736D — REINFORCEMENT, COWL BODY MOUNTING, LH (2 parts) 55781E — LOUVER SUB-ASSY, COWL TOP VENTILATOR (4 parts) 55781G — CLIP, COWL TOP VENTILATOR LOUVER (4 parts) 55781G — CLIP, COWL TOP VENTILATOR LOUVER (4 parts) 55787C — INSULATOR, COWL TOP PANEL, NO.1 (2 parts) 55799C — CLIP, COWL TOP VENTILATOR LOUVER (2 parts) 55815E — SEAL, FRONT VENTILATOR, NO.1 (2 parts) 56111 — GLASS, WINDSHIELD (11 parts) 56165 — COVER, FRONT WINDOW INNER MOULDING, LH (4 parts) 56115A — STOPPER, WINDSHIELD GLASS, NO.1 (2 parts) 56116C — STOPPER, WINDSHIELD GLASS, NO.2 (2 parts) 56117A — DAM, WINDOW GLASS ADHESIVE (7 parts) 9011906786 — not listed in this catalogue 55742A — SHEET, COWL TOP INSULATOR (2 parts)

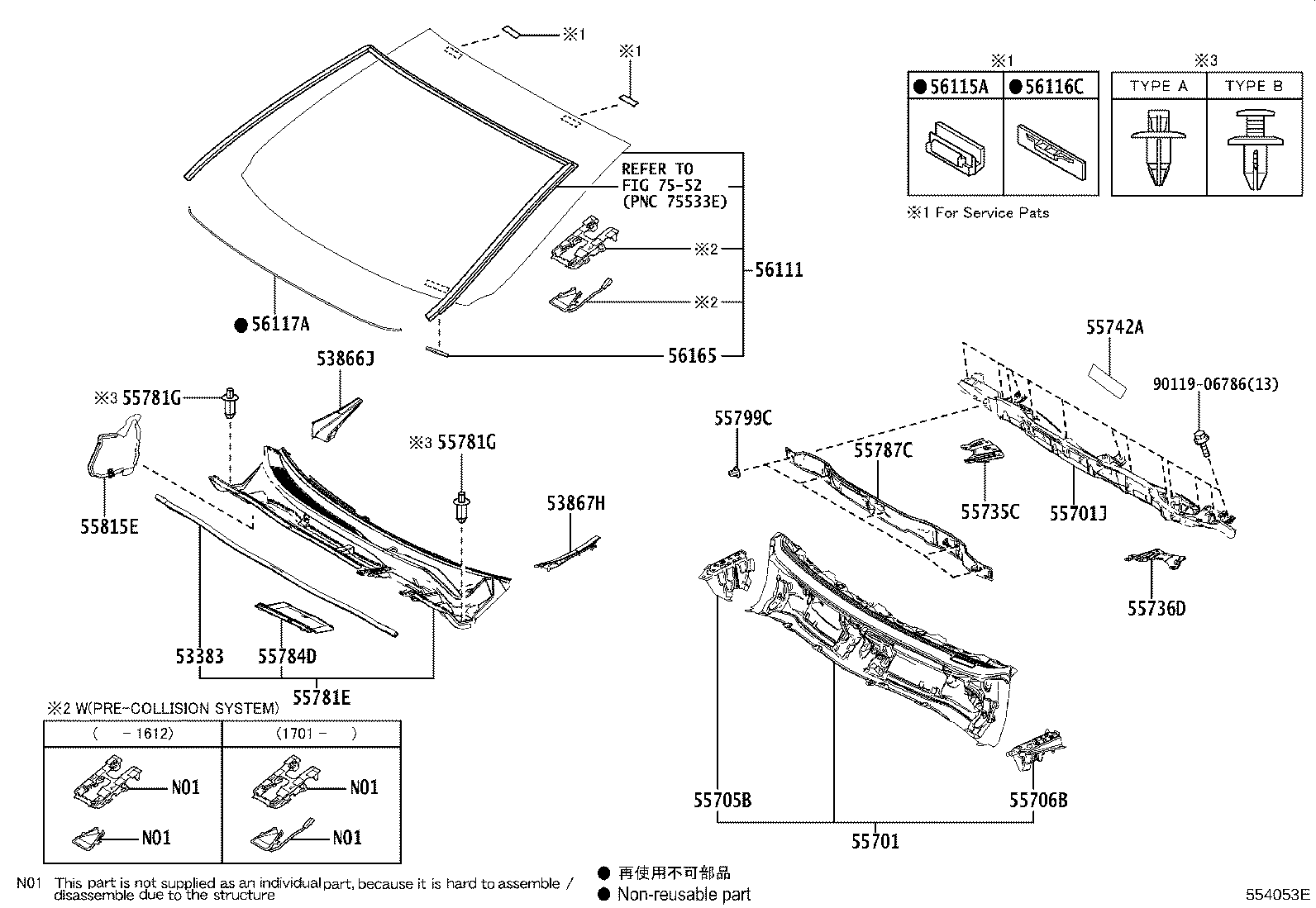

554053E · 22 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
53383 — Seal, Hood TO Cowl Top
53383-42040 Seal, Hood TO Cowl Top
2012-12 → 2015-10 ended
ASA4# —
53383-42040 Seal, Hood TO Cowl Top
2015-10 → 2018-10 ended
ASA4#,AVA44 —
53866J — Seal, Front Fender TO Cowl Side, RH
53866-42020 Seal, Front Fender TO Cowl Side, RH
2012-12 → 2015-10 ended
ASA4# —
53866-42020 Seal, Front Fender TO Cowl Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
53867H — Seal, Front Fender TO Cowl Side, LH
53867-42020 Seal, Front Fender TO Cowl Side, LH
2012-12 → 2015-10 ended
ASA4# —
53867-42020 Seal, Front Fender TO Cowl Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55701 — Panel Sub-assy, Cowl
55700-42480 Panel Sub-assy, Cowl
2012-12 → 2015-10 ended
ASA4# —
55700-42480 Panel Sub-assy, Cowl
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55701J — Panel Sub-assy, Cowl Top, Outer
55701-42390 Panel Sub-assy, Cowl Top, Outer
2012-12 → 2015-09 ended
ASA4# —
55701-42391 Panel Sub-assy, Cowl Top, Outer
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55705B — Panel Sub-assy, Cowl Top Side, RH
55705-42070 Panel Sub-assy, Cowl Top Side, RH
2012-12 → 2015-10 ended
ASA4# —
55705-42070 Panel Sub-assy, Cowl Top Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55706B — Panel Sub-assy, Cowl Top Side, LH
55706-42050 Panel Sub-assy, Cowl Top Side, LH
2012-12 → 2015-10 ended
ASA4# —
55706-42050 Panel Sub-assy, Cowl Top Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55735C — Reinforcement, Cowl Body Mounting, RH
55735-42020 Reinforcement, Cowl Body Mounting, RH
2012-12 → 2015-10 ended
ASA4# —
55735-42020 Reinforcement, Cowl Body Mounting, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55736D — Reinforcement, Cowl Body Mounting, LH
55736-42040 Reinforcement, Cowl Body Mounting, LH
2012-12 → 2015-10 ended
ASA4# —
55736-42040 Reinforcement, Cowl Body Mounting, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55742A — Sheet, Cowl Top Insulator
55742-42050 Sheet, Cowl Top Insulator
2012-12 → 2015-10 ended
ASA4# —
55742-42050 Sheet, Cowl Top Insulator
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55781E — Louver Sub-assy, Cowl Top Ventilator
55708-42180 Louver Sub-assy, Cowl Top Ventilator
2013-07 → 2015-10 ended
ASA4# —
55708-42190 Louver Sub-assy, Cowl Top Ventilator
2012-12 → 2013-07 ended
ASA4# —
55708-42180 Louver Sub-assy, Cowl Top Ventilator
2015-10 → 2016-06 ended
ASA4#,AVA44 —
55708-42181 Louver Sub-assy, Cowl Top Ventilator
2016-07 → 2018-10 ended
ASA4#,AVA44 —
55781G — Clip, Cowl Top Ventilator Louver
90467-07076-C0 note Clip, Cowl Top Ventilator Louver
2012-12 → 2015-10 ended
ASA4# —
90467-06165-C3 note Clip, Cowl Top Ventilator Louver
2017-11 → 2018-10 ended
ASA4#,AVA44 —
90467-07076-C0 note Clip, Cowl Top Ventilator Louver
2015-10 → 2017-03 ended
ASA4#,AVA44 —
90467-07076-C7 note Clip, Cowl Top Ventilator Louver
2017-03 → 2018-10 ended
ASA4#,AVA44 —
55784D — Bracket, Cowl Top Ventilator Louver, LH
55783-42050 Bracket, Cowl Top Ventilator Louver, LH
2012-12 → 2015-10 ended
ASA4# —
55783-42050 Bracket, Cowl Top Ventilator Louver, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55787C — Insulator, Cowl Top Panel, NO.1
55787-42050 Insulator, Cowl Top Panel, NO.1
2012-12 → 2015-09 ended
ASA4# —
55787-42051 Insulator, Cowl Top Panel, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55799C — Clip, Cowl Top Ventilator Louver
90467-06197 Clip, Cowl Top Ventilator Louver
2012-12 → 2015-10 ended
ASA4# —
90467-06197 Clip, Cowl Top Ventilator Louver
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55815E — Seal, Front Ventilator, NO.1
55815-42020 Seal, Front Ventilator, NO.1
2012-12 → 2015-10 ended
ASA4# —
55815-42040 Seal, Front Ventilator, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
56111 — Glass, Windshield
56101-42200 note Glass, Windshield
2012-12 → 2015-10 ended
ASA4# —
56101-42400 Glass, Windshield
2015-10 → 2016-08 ended
ASA4#,AVA44 USA —
56101-42400 note Glass, Windshield
2016-08 → 2018-10 ended
ASA4#,AVA44 USA —
56101-42430 Glass, Windshield
2015-10 → 2018-10 ended
AVA44 CND —
56101-42470 note Glass, Windshield
2015-10 → 2016-12 ended
AVA44 CND —
56101-42471 note Glass, Windshield
2017-01 → 2018-10 ended
AVA44 CND —
56101-42540 note Glass, Windshield
2015-10 → 2016-08 ended
ASA4#,AVA44 USA —
56101-42540 Glass, Windshield
2016-08 → 2016-12 ended
ASA4#,AVA44 USA —
56101-42541 Glass, Windshield
2017-01 → 2018-10 ended
ASA4#,AVA44 USA —
56101-42580 note Glass, Windshield
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
56101-42580 note Glass, Windshield
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
56115A — Stopper, Windshield Glass, NO.1
56115-30100 Stopper, Windshield Glass, NO.1
2012-12 → 2015-10 ended
ASA4# —
56115-30100 Stopper, Windshield Glass, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
56116C — Stopper, Windshield Glass, NO.2
56116-22050 Stopper, Windshield Glass, NO.2
2012-12 → 2015-10 ended
ASA4# —
56116-22050 Stopper, Windshield Glass, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
56117A — Dam, Window Glass Adhesive
56117-50140 note Dam, Window Glass Adhesive
2012-12 → 2015-10 ended
ASA4# —
56117-50140 note Dam, Window Glass Adhesive
2015-10 → 2016-08 ended
ASA4#,AVA44 LIMD USA —
56117-50140 note Dam, Window Glass Adhesive
2015-10 → 2016-08 ended
ASA4#,AVA44 USA —
56117-50140 note Dam, Window Glass Adhesive
2015-10 → 2018-10 ended
ASA4#,AVA44 —
56117-50140 note Dam, Window Glass Adhesive
2015-10 → 2018-10 ended
AVA44 CND —
56117-50140 note Dam, Window Glass Adhesive
2016-08 → 2018-10 ended
ASA4#,AVA44 USA —
56117-50140 note Dam, Window Glass Adhesive
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
56165 — Cover, Front Window Inner Moulding, LH
56165-30010 Cover, Front Window Inner Moulding, LH
2012-12 → 2015-10 ended
ASA4# —
56165-30010 Cover, Front Window Inner Moulding, LH
2015-10 → 2016-08 ended
ASA4#,AVA44 USA —
56165-30010 note Cover, Front Window Inner Moulding, LH
2016-08 → 2018-10 ended
ASA4#,AVA44 USA —
56165-30010 note Cover, Front Window Inner Moulding, LH
2016-08 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
