Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

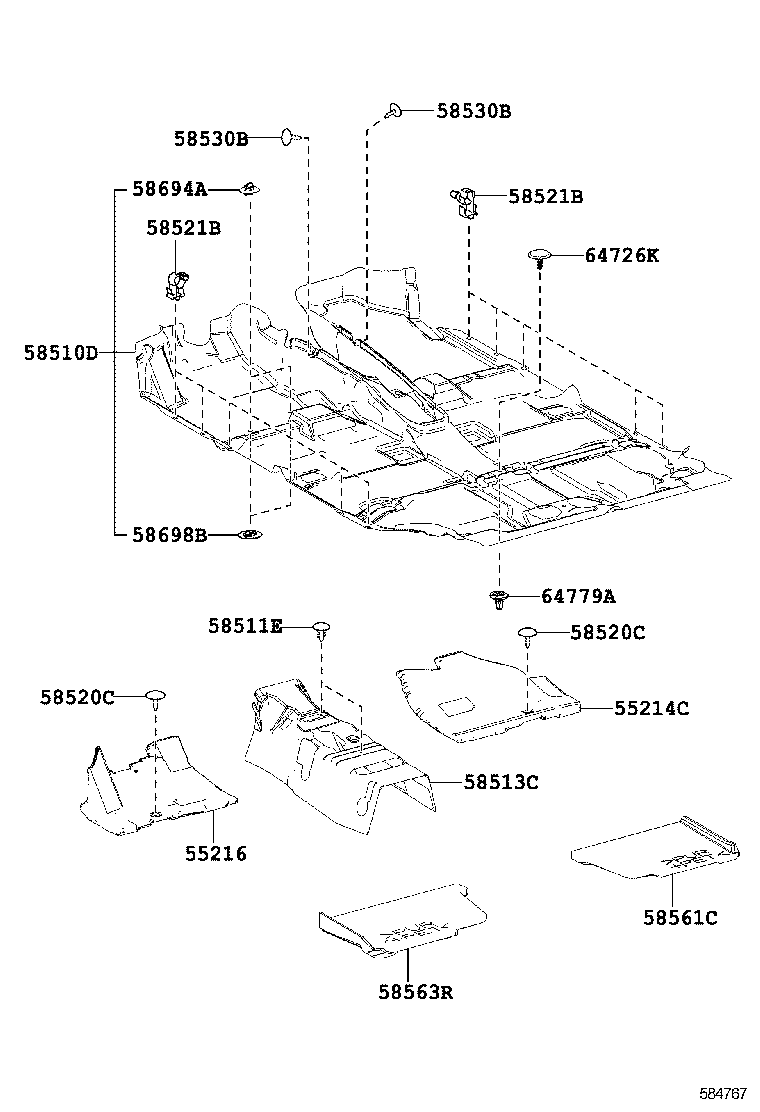

Exploded illustration 584767 58694A — PLATE, MAT SET, UPPER (3 parts) 58561C — SILENCER, FRONT FLOOR, NO.1 (3 parts) 58563R — SILENCER, FRONT FLOOR, NO.3 (3 parts) 55216 — PAD, DASH PANEL INSULATOR, NO.4 (4 parts) 58698B — PLATE, MAT SET, LOWER (3 parts) 64726K — CLIP, LUGGAGE TRIM, REAR (3 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (3 parts) 64779A — STOPPER, SPARE WHEEL COVER (2 parts) 55214C — PAD, DASH PANEL INSULATOR, NO.2 (2 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (2 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (2 parts) 58511E — CLIP(FOR FRONT FLOOR MAT) (5 parts) 58513C — MAT, FLOOR, FRONT CENTER (1 parts) 58510D — CARPET ASSY, FLOOR, FRONT (14 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (3 parts) 58521B — HOOK, FLOOR CARPET (3 parts) 58521B — HOOK, FLOOR CARPET (3 parts)
584767 · 17 callouts Full size ↗
51 parts on this figure
Part number Description Fitment Price
55214C — Pad, Dash Panel Insulator, NO.2
55214-42060 Pad, Dash Panel Insulator, NO.2
2012-12 → 2015-10 ended
ASA4# —
55214-42060 Pad, Dash Panel Insulator, NO.2
2015-10 → 2018-10 ended
ASA4#,AVA44 —
55216 — Pad, Dash Panel Insulator, NO.4
55216-42080 Pad, Dash Panel Insulator, NO.4
2012-12 → 2013-01 ended
ASA4# —
55216-42081 Pad, Dash Panel Insulator, NO.4
2013-02 → 2014-10 ended
ASA4# —
55216-42100 Pad, Dash Panel Insulator, NO.4
2014-10 → 2015-10 ended
ASA4# —
55216-42100 Pad, Dash Panel Insulator, NO.4
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58510D — Carpet Assy, Floor, Front
58510-42A10-C1 note Carpet Assy, Floor, Front
2012-12 → 2014-07 ended
ASA4# LIMD —
58510-42A10-C1 note Carpet Assy, Floor, Front
2012-12 → 2014-07 ended
ASA4# LE,XLE —
58510-42A11-C1 note Carpet Assy, Floor, Front
2014-10 → 2015-10 ended
ASA4# LIMD —
58510-42A11-C1 note Carpet Assy, Floor, Front
2014-10 → 2015-10 ended
ASA4# LE —
58510-42A11-C1 note Carpet Assy, Floor, Front
2014-10 → 2015-10 ended
ASA4# XLE —
58510-42C00-C0 note Carpet Assy, Floor, Front
2014-08 → 2014-10 ended
ASA4# LIMD —
58510-42C00-C0 note Carpet Assy, Floor, Front
2014-08 → 2014-10 ended
ASA4# LE —
58510-42C00-C0 note Carpet Assy, Floor, Front
2014-08 → 2014-10 ended
ASA4# XLE —
58510-42A80-C0 note Carpet Assy, Floor, Front
2015-10 → 2018-10 ended
ASA4# LE —
58510-42A80-C0 note Carpet Assy, Floor, Front
2015-10 → 2018-10 ended
ASA4# LIMD,SE —
58510-42A80-C0 note Carpet Assy, Floor, Front
2015-10 → 2018-10 ended
ASA4# XLE —
58510-42B30-C0 note Carpet Assy, Floor, Front
2015-10 → 2018-10 ended
AVA44 LIMD —
58510-42B30-C0 note Carpet Assy, Floor, Front
2015-10 → 2018-10 ended
AVA44 XLE —
58510-42B30-C0 note Carpet Assy, Floor, Front
2016-08 → 2018-10 ended
AVA44 SE —
58511E — Clip(FOR FRONT FLOOR MAT)
90467-05164-C0 note Clip(FOR FRONT FLOOR MAT)
2012-12 → 2015-10 ended
ASA4# —
90467-05164-C0 note Clip(FOR FRONT FLOOR MAT)
2015-10 → 2016-10 ended
AVA44 —
90467-05164-C0 note Clip(FOR FRONT FLOOR MAT)
2015-10 → 2016-10 ended
ASA4# —
90467-05164-C7 note Clip(FOR FRONT FLOOR MAT)
2016-10 → 2018-10 ended
AVA44 —
90467-05164-C7 note Clip(FOR FRONT FLOOR MAT)
2016-10 → 2018-10 ended
ASA4# —
58513C — Mat, Floor, Front Center
58513-42020 Mat, Floor, Front Center
2012-12 → 2015-10 ended
ASA4# —
58520C — Clip(FOR FRONT FLOOR CARPET)
63399-26050-B2 note Clip(FOR FRONT FLOOR CARPET)
2012-12 → 2015-10 ended
ASA4# —
63399-26050-B2 note Clip(FOR FRONT FLOOR CARPET)
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58521B — Hook, Floor Carpet
58521-12150 Hook, Floor Carpet
2012-12 → 2015-10 ended
ASA4# —
58521-12150 Hook, Floor Carpet
2015-10 → 2018-10 ended
AVA44 —
58521-12150 Hook, Floor Carpet
2015-10 → 2018-10 ended
ASA4# —
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-09050 Clip(FOR FRONT FLOOR CARPET)
2012-12 → 2015-10 ended
ASA4# —
90467-09050 Clip(FOR FRONT FLOOR CARPET)
2015-10 → 2018-10 ended
ASA4# —
90467-09050 Clip(FOR FRONT FLOOR CARPET)
2015-10 → 2018-10 ended
AVA44 —
58561C — Silencer, Front Floor, NO.1
58561-42050 Silencer, Front Floor, NO.1
2012-12 → 2013-04 ended
ASA4# —
58561-42051 Silencer, Front Floor, NO.1
2013-05 → 2015-10 ended
ASA4# —
58561-42051 Silencer, Front Floor, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58563R — Silencer, Front Floor, NO.3
58563-42060 Silencer, Front Floor, NO.3
2012-12 → 2013-04 ended
ASA4# —
58563-42061 Silencer, Front Floor, NO.3
2013-05 → 2015-10 ended
ASA4# —
58563-42061 Silencer, Front Floor, NO.3
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58694A — Plate, Mat Set, Upper
58694-76010 Plate, Mat Set, Upper
2012-12 → 2014-08 ended
ASA4# —
58694-78010 Plate, Mat Set, Upper
2014-08 → 2015-10 ended
ASA4# —
58694-78010 Plate, Mat Set, Upper
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58698B — Plate, Mat Set, Lower
58698-76010 Plate, Mat Set, Lower
2012-12 → 2014-08 ended
ASA4# —
58698-78010 Plate, Mat Set, Lower
2014-08 → 2015-10 ended
ASA4# —
58698-78010 Plate, Mat Set, Lower
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64726K — Clip, Luggage Trim, Rear
64726-26010-B1 note Clip, Luggage Trim, Rear
2012-12 → 2014-08 ended
ASA4# —
64726-26010-C1 note Clip, Luggage Trim, Rear
2014-08 → 2015-10 ended
ASA4# —
64726-26010-C1 note Clip, Luggage Trim, Rear
2015-10 → 2018-10 ended
ASA4#,AVA44 —
64779A — Stopper, Spare Wheel Cover
64779-26010 Stopper, Spare Wheel Cover
2012-12 → 2015-10 ended
ASA4# —
64779-26010 Stopper, Spare Wheel Cover
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
