Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

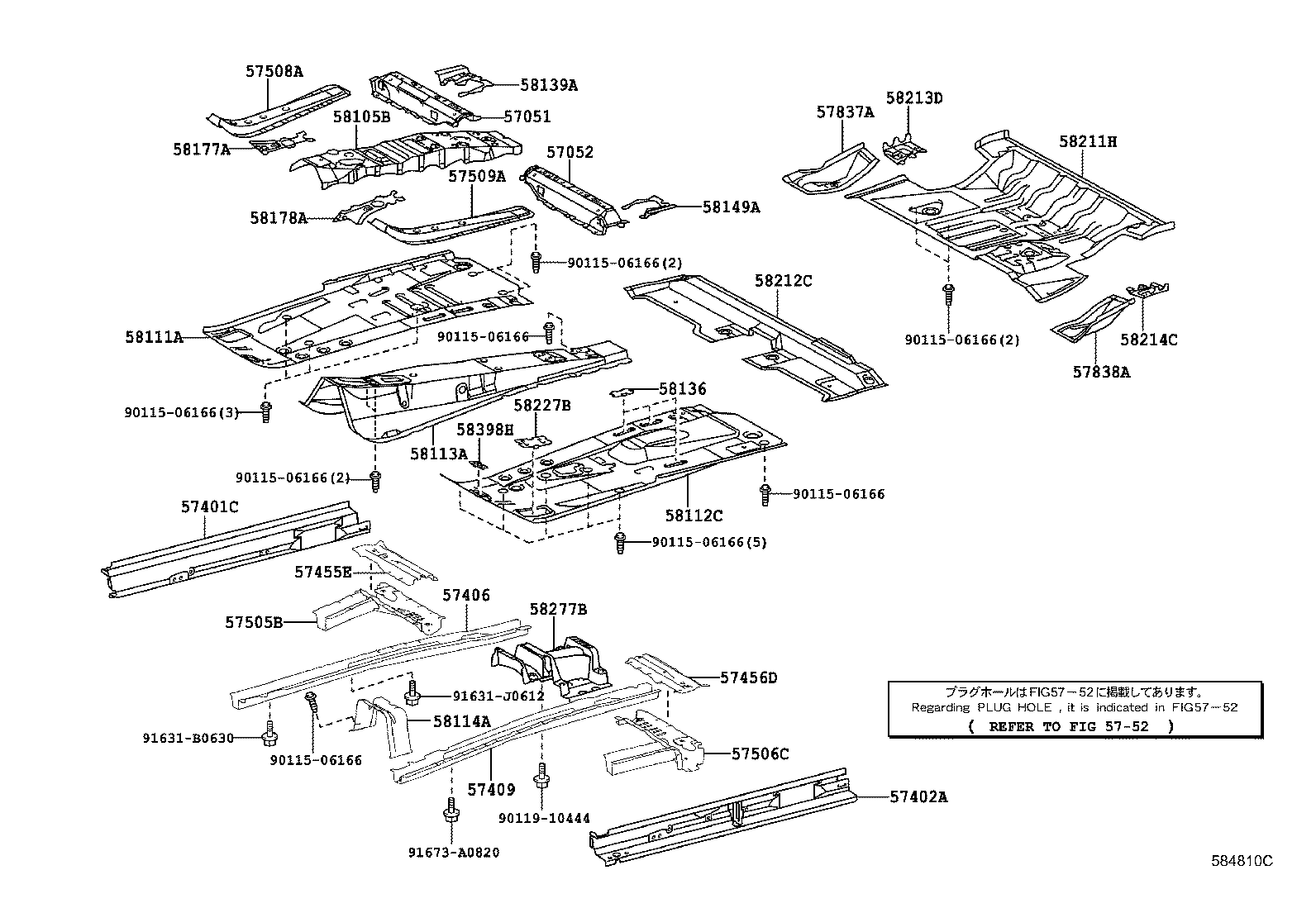

Exploded illustration 584810C 57051 — MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH (2 parts) 57052 — MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH (2 parts) 57401C — MEMBER SUB-ASSY, FLOOR SIDE, INNER RH (2 parts) 57402A — MEMBER SUB-ASSY, FLOOR SIDE, INNER LH (5 parts) 57406 — MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH (3 parts) 57409 — MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH (2 parts) 57505B — REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH (2 parts) 57506C — REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH (2 parts) 57456D — PLATE, FRONT FLOOR CROSSMEMBER, NO.3 LH (2 parts) 57455E — PLATE, FRONT FLOOR CROSSMEMBER, NO.3 RH (2 parts) 57508A — REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH (2 parts) 57509A — REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH (2 parts) 57837A — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 (3 parts) 57838A — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4 (3 parts) 58105B — PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB (3 parts) 58111A — PAN, FRONT FLOOR, RH (2 parts) 58112C — PAN, FRONT FLOOR, LH (2 parts) 58113A — PANEL, FRONT FLOOR, CENTER (4 parts) 58114A — REINFORCEMENT, FRONT FLOOR PANEL (2 parts) 58136 — COVER, FRONT FLOOR HOLE (2 parts) 58139A — PLATE, FRONT FLOOR SIDE, REAR RH (2 parts) 58149A — PLATE, FRONT FLOOR SIDE, REAR LH (2 parts) 58177A — EXTENSION, FRONT FLOOR PANEL, RH (2 parts) 58178A — EXTENSION, FRONT FLOOR PANEL, LH (2 parts) 58211H — PAN, CENTER FLOOR (3 parts) 58212C — PAN, CENTER FLOOR, FRONT (4 parts) 58213D — REINFORCEMENT, CENTER FLOOR PANEL (2 parts) 58214C — REINFORCEMENT, CENTER FLOOR PANEL, LH (2 parts) 58227B — PLATE, FRONT FLOOR PANEL SIDE, RH (2 parts) 58277B — REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT (3 parts) 58398H — COVER, FLOOR UNDER, NO.1 (2 parts) 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 5752 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 91631J0612 — not listed in this catalogue 91631B0630 — not listed in this catalogue 9011910444 — not listed in this catalogue 91673A0820 — not listed in this catalogue
584810C · 31 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
57051 — Member Sub-assy, Front Floor Cross, RH
57051-42011 Member Sub-assy, Front Floor Cross, RH
2012-12 → 2015-10 ended
ASA4# —
57051-42011 Member Sub-assy, Front Floor Cross, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57052 — Member Sub-assy, Front Floor Cross, LH
57052-42011 Member Sub-assy, Front Floor Cross, LH
2012-12 → 2015-10 ended
ASA4# —
57052-42011 Member Sub-assy, Front Floor Cross, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57401C — Member Sub-assy, Floor Side, Inner RH
57401-42150 Member Sub-assy, Floor Side, Inner RH
2012-12 → 2015-10 ended
ASA4# —
57401-42150 Member Sub-assy, Floor Side, Inner RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57402A — Member Sub-assy, Floor Side, Inner LH
57402-42150 Member Sub-assy, Floor Side, Inner LH
2012-12 → 2014-10 ended
ASA4# —
57402-42150 note Member Sub-assy, Floor Side, Inner LH
2014-10 → 2015-10 ended
ASA4# LIMD —
57402-42160 Member Sub-assy, Floor Side, Inner LH
2014-10 → 2015-10 ended
ASA4# —
57402-42150 note Member Sub-assy, Floor Side, Inner LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
57402-42160 Member Sub-assy, Floor Side, Inner LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57406 — Member Sub-assy, Main Floor Side, RH
57406-42010 Member Sub-assy, Main Floor Side, RH
2012-12 → 2013-01 ended
ASA4# —
57406-42011 Member Sub-assy, Main Floor Side, RH
2013-01 → 2015-10 ended
ASA4# —
57406-42011 Member Sub-assy, Main Floor Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57409 — Member Sub-assy, Main Floor Side, LH
57409-42010 Member Sub-assy, Main Floor Side, LH
2012-12 → 2015-10 ended
ASA4# —
57409-42010 Member Sub-assy, Main Floor Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57455E — Plate, Front Floor Crossmember, NO.3 RH
57455-42030 Plate, Front Floor Crossmember, NO.3 RH
2012-12 → 2015-10 ended
ASA4# —
57455-42030 Plate, Front Floor Crossmember, NO.3 RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57456D — Plate, Front Floor Crossmember, NO.3 LH
57456-42010 Plate, Front Floor Crossmember, NO.3 LH
2012-12 → 2015-10 ended
ASA4# —
57456-42010 Plate, Front Floor Crossmember, NO.3 LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57505B — Reinforcement Sub-assy, Front Floor Under, RH
57505-42110 Reinforcement Sub-assy, Front Floor Under, RH
2012-12 → 2015-10 ended
ASA4# —
57505-42110 Reinforcement Sub-assy, Front Floor Under, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57506C — Reinforcement Sub-assy, Front Floor Under, LH
57506-42050 Reinforcement Sub-assy, Front Floor Under, LH
2012-12 → 2015-10 ended
ASA4# —
57506-42050 Reinforcement Sub-assy, Front Floor Under, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57508A — Reinforcement Sub-assy, Front Floor, RH
57508-42010 Reinforcement Sub-assy, Front Floor, RH
2012-12 → 2015-10 ended
ASA4# —
57508-42010 Reinforcement Sub-assy, Front Floor, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57509A — Reinforcement Sub-assy, Front Floor, LH
57509-42010 Reinforcement Sub-assy, Front Floor, LH
2012-12 → 2015-10 ended
ASA4# —
57509-42010 Reinforcement Sub-assy, Front Floor, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57837A — Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
57837-42030 Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
2012-12 → 2015-10 ended
ASA4# —
57837-42030 Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
2015-10 → 2018-10 ended
ASA4# —
57837-78010 Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
2015-10 → 2018-10 ended
AVA44 —
57838A — Reinforcement, Rear NO.1 Seat Leg, Rear NO.4
57838-42020 Reinforcement, Rear NO.1 Seat Leg, Rear NO.4
2012-12 → 2015-10 ended
ASA4# —
57838-42020 Reinforcement, Rear NO.1 Seat Leg, Rear NO.4
2015-10 → 2018-10 ended
ASA4# —
57838-78010 Reinforcement, Rear NO.1 Seat Leg, Rear NO.4
2015-10 → 2018-10 ended
AVA44 —
58105B — Panel Sub-assy, Front Floor Rear Upper Sub
58105-42012 Panel Sub-assy, Front Floor Rear Upper Sub
2012-12 → 2013-02 ended
ASA4# —
58105-42013 Panel Sub-assy, Front Floor Rear Upper Sub
2013-02 → 2015-10 ended
ASA4# —
58105-42013 Panel Sub-assy, Front Floor Rear Upper Sub
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58111A — Pan, Front Floor, RH
58111-42201 Pan, Front Floor, RH
2012-12 → 2015-10 ended
ASA4# —
58111-42201 Pan, Front Floor, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58112C — Pan, Front Floor, LH
58112-42011 Pan, Front Floor, LH
2012-12 → 2015-10 ended
ASA4# —
58112-42011 Pan, Front Floor, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58113A — Panel, Front Floor, Center
58113-42010 Panel, Front Floor, Center
2012-12 → 2013-01 ended
ASA4# —
58113-42011 Panel, Front Floor, Center
2013-01 → 2013-07 ended
ASA4# —
58113-42012 Panel, Front Floor, Center
2013-08 → 2015-10 ended
ASA4# —
58113-42012 Panel, Front Floor, Center
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58114A — Reinforcement, Front Floor Panel
58114-42041 Reinforcement, Front Floor Panel
2012-12 → 2015-10 ended
ASA4# —
58114-42041 Reinforcement, Front Floor Panel
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58136 — Cover, Front Floor Hole
58136-42020 Cover, Front Floor Hole
2012-12 → 2015-10 ended
ASA4# —
58136-42020 Cover, Front Floor Hole
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58139A — Plate, Front Floor Side, Rear RH
58139-42010 Plate, Front Floor Side, Rear RH
2012-12 → 2015-10 ended
ASA4# —
58139-42010 Plate, Front Floor Side, Rear RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58149A — Plate, Front Floor Side, Rear LH
58149-42011 Plate, Front Floor Side, Rear LH
2012-12 → 2015-10 ended
ASA4# —
58149-42011 Plate, Front Floor Side, Rear LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58177A — Extension, Front Floor Panel, RH
58177-42010 Extension, Front Floor Panel, RH
2012-12 → 2015-10 ended
ASA4# —
58177-42010 Extension, Front Floor Panel, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58178A — Extension, Front Floor Panel, LH
58178-42010 Extension, Front Floor Panel, LH
2012-12 → 2015-10 ended
ASA4# —
58178-42010 Extension, Front Floor Panel, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58211H — Pan, Center Floor
58211-42011 Pan, Center Floor
2012-12 → 2015-10 ended
ASA4# —
58211-42011 Pan, Center Floor
2015-10 → 2018-10 ended
ASA4# —
58211-78010 Pan, Center Floor
2015-10 → 2018-10 ended
AVA44 —
58212C — Pan, Center Floor, Front
58202-42020 Pan, Center Floor, Front
2012-12 → 2014-07 ended
ASA4# —
58202-78020 Pan, Center Floor, Front
2014-07 → 2015-10 ended
ASA4# —
58202-78010 Pan, Center Floor, Front
2015-10 → 2018-10 ended
AVA44 —
58202-78020 Pan, Center Floor, Front
2015-10 → 2018-10 ended
ASA4# —
58213D — Reinforcement, Center Floor Panel
58213-42010 Reinforcement, Center Floor Panel
2012-12 → 2015-10 ended
ASA4# —
58213-42010 Reinforcement, Center Floor Panel
2015-10 → 2018-10 ended
ASA4# —
58214C — Reinforcement, Center Floor Panel, LH
58214-42010 Reinforcement, Center Floor Panel, LH
2012-12 → 2015-10 ended
ASA4# —
58214-42010 Reinforcement, Center Floor Panel, LH
2015-10 → 2018-10 ended
ASA4# —
58227B — Plate, Front Floor Panel Side, RH
58227-42010 Plate, Front Floor Panel Side, RH
2012-12 → 2015-10 ended
ASA4# —
58227-42010 Plate, Front Floor Panel Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58277B — Reinforcement, Drive Shaft Center Support
58209-42030 Reinforcement, Drive Shaft Center Support
2012-12 → 2013-01 ended
ASA4# —
58209-48010 Reinforcement, Drive Shaft Center Support
2013-01 → 2015-10 ended
ASA4# —
58209-48010 Reinforcement, Drive Shaft Center Support
2015-10 → 2018-10 ended
ASA4#,AVA44 —
58398H — Cover, Floor Under, NO.1
58398-42010 Cover, Floor Under, NO.1
2012-12 → 2015-10 ended
ASA4# —
58398-42010 Cover, Floor Under, NO.1
2015-10 → 2018-10 ended
ASA4#,AVA44 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
