Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

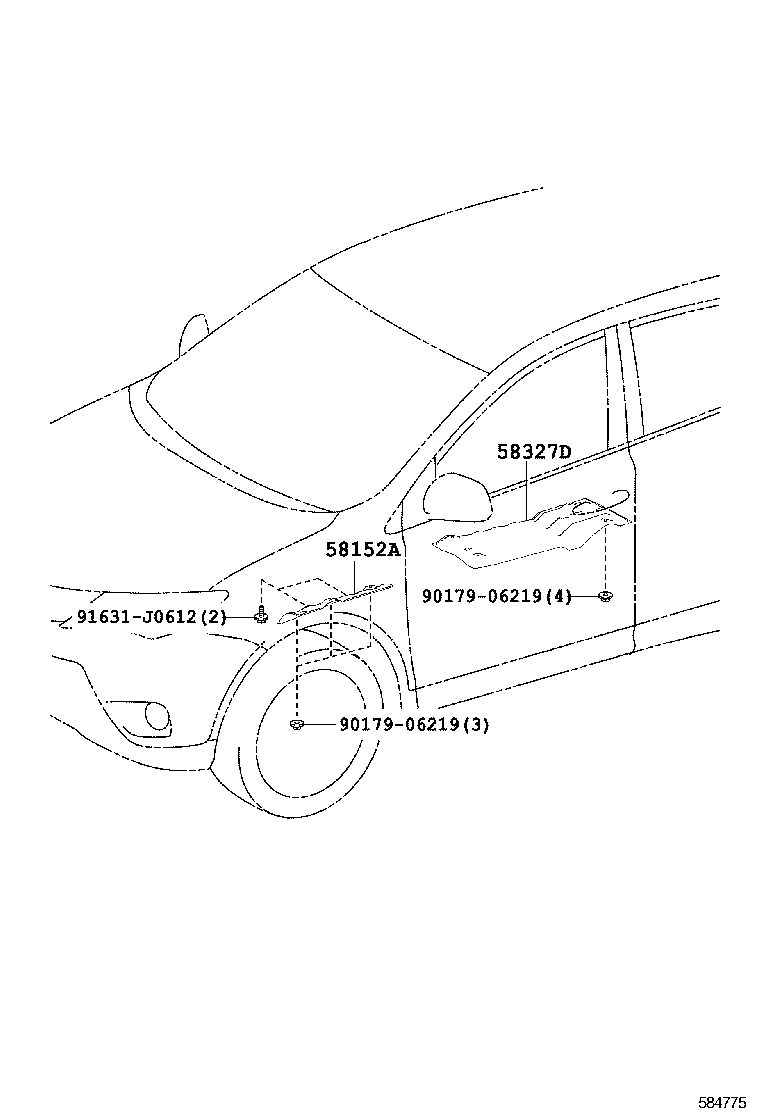

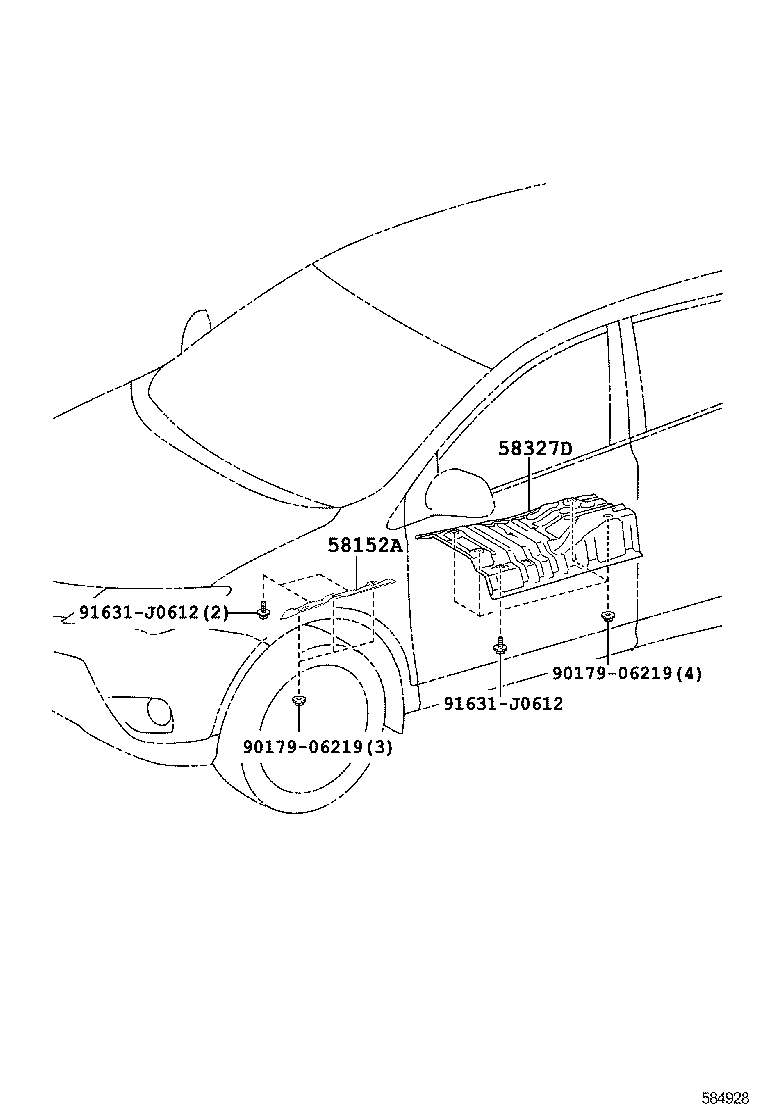

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58152A — Insulator, Front Floor Heat, NO.1 Lower | ||||
| 58152-42030 |
Insulator, Front Floor Heat, NO.1 Lower
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 58152-42030 |
Insulator, Front Floor Heat, NO.1 Lower
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 58152-48031 |
Insulator, Front Floor Heat, NO.1 Lower
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 58327D — Insulator, Main Muffler Heat, Upper | ||||
| 58327-42010 note |
Insulator, Main Muffler Heat, Upper
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 58327-42020 note |
Insulator, Main Muffler Heat, Upper
2013-09 → 2015-10
ended
|
ASA4# | — | |
| 58327-42020 |
Insulator, Main Muffler Heat, Upper
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 58327-48050 |
Insulator, Main Muffler Heat, Upper
2015-10 → 2018-10
ended
|
AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
