Toyota RAV4 (JPP)

2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

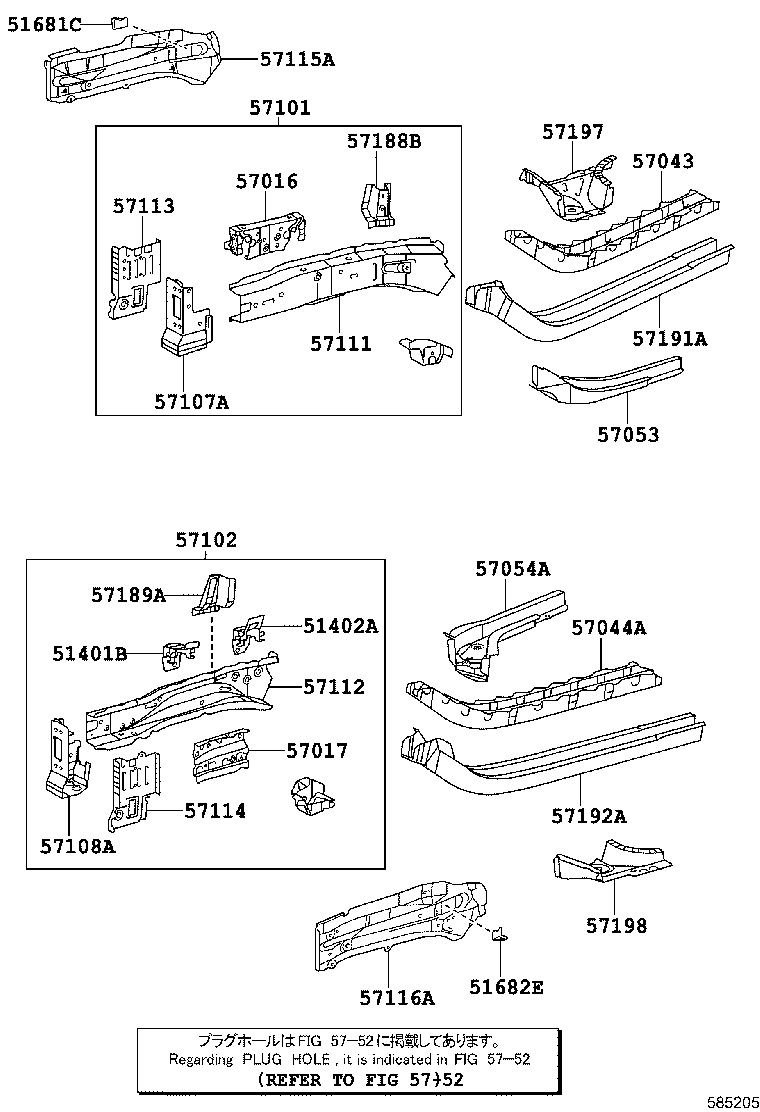

Exploded illustration 585205 5752 — not listed in this catalogue 51401B — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING (3 parts) 51402A — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH (2 parts) 57054A — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH (2 parts) 57044A — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH (2 parts) 57016 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH (2 parts) 57017 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH (2 parts) 57115A — PLATE, FRONT SIDE MEMBER, OUTER RH (1 parts) 57116A — PLATE, FRONT SIDE MEMBER, OUTER LH (2 parts) 57101 — MEMBER SUB-ASSY, FRONT SIDE, RH (3 parts) 57111 — MEMBER, FRONT SIDE, RH (2 parts) 57102 — MEMBER SUB-ASSY, FRONT SIDE, LH (6 parts) 57107A — PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH (2 parts) 57108A — PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH (3 parts) 57112 — MEMBER, FRONT SIDE, LH (2 parts) 57113 — EXTENSION, FRONT SIDE MEMBER, RH (2 parts) 57114 — EXTENSION, FRONT SIDE MEMBER, LH (4 parts) 57188B — GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH (2 parts) 57189A — GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH (2 parts) 57197 — BOX, TORQUE, FRONT RH (2 parts) 57043 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH (2 parts) 57191A — MEMBER, FRONT SIDE, INNER REAR RH (2 parts) 57053 — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH (1 parts) 57198 — BOX, TORQUE, FRONT LH (3 parts) 57192A — MEMBER, FRONT SIDE, INNER REAR LH (2 parts) 51681C — PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH (1 parts) 51682E — PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH (1 parts)
585205 · 26 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
51401B — Bracket Sub-assy, Engine Front Mounting
51401-42010 Bracket Sub-assy, Engine Front Mounting
2012-12 → 2013-08 ended
ASA4# —
51401-42020 Bracket Sub-assy, Engine Front Mounting
2013-08 → 2015-10 ended
ASA4# —
51401-42020 Bracket Sub-assy, Engine Front Mounting
2015-10 → 2018-10 ended
ASA4#,AVA44 —
51402A — Bracket Sub-assy, Engine Front Mounting, LH
51402-42010 Bracket Sub-assy, Engine Front Mounting, LH
2012-12 → 2015-10 ended
ASA4# —
51402-42010 Bracket Sub-assy, Engine Front Mounting, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
51681C — Plate, Front Brake Flexible Hose Support, RH
51681-12080 Plate, Front Brake Flexible Hose Support, RH
2012-12 → 2014-05 ended
ASA4# —
51682E — Plate, Front Brake Flexible Hose Support, LH
51682-12080 Plate, Front Brake Flexible Hose Support, LH
2012-12 → 2014-05 ended
ASA4# —
57016 — Reinforcement Sub-assy, Front Side Member, RH
57016-12110 Reinforcement Sub-assy, Front Side Member, RH
2012-12 → 2015-10 ended
ASA4# —
57016-12110 Reinforcement Sub-assy, Front Side Member, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57017 — Reinforcement Sub-assy, Front Side Member, LH
57017-12070 Reinforcement Sub-assy, Front Side Member, LH
2012-12 → 2015-10 ended
ASA4# —
57017-12070 Reinforcement Sub-assy, Front Side Member, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57043 — Reinforcement Sub-assy, Front Side Member, Rear RH
57043-42010 Reinforcement Sub-assy, Front Side Member, Rear RH
2014-01 → 2015-10 ended
ASA4# —
57043-42010 Reinforcement Sub-assy, Front Side Member, Rear RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57044A — Reinforcement Sub-assy, Front Side Member, Rear LH
57044-42010 Reinforcement Sub-assy, Front Side Member, Rear LH
2014-01 → 2015-10 ended
ASA4# —
57044-42010 Reinforcement Sub-assy, Front Side Member, Rear LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57053 — Reinforcement Sub-assy, Front Floor Crossmember, RH
57053-42011 Reinforcement Sub-assy, Front Floor Crossmember, RH
2014-01 → 2015-10 ended
ASA4# —
57054A — Reinforcement Sub-assy, Front Floor Crossmember, LH
57054-42010 Reinforcement Sub-assy, Front Floor Crossmember, LH
2014-01 → 2015-10 ended
ASA4# —
57054-42010 Reinforcement Sub-assy, Front Floor Crossmember, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57101 — Member Sub-assy, Front Side, RH
57101-42110 Member Sub-assy, Front Side, RH
2012-12 → 2014-01 ended
ASA4# —
57111-42900 Member Sub-assy, Front Side, RH
2014-01 → 2015-10 ended
ASA4# —
57111-42900 Member Sub-assy, Front Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57102 — Member Sub-assy, Front Side, LH
57102-42090 Member Sub-assy, Front Side, LH
2012-12 → 2014-01 ended
ASA4# —
57112-12904 Member Sub-assy, Front Side, LH
2014-09 → 2015-01 ended
ASA4# —
57112-12906 Member Sub-assy, Front Side, LH
2015-02 → 2015-10 ended
ASA4# —
57112-42900 Member Sub-assy, Front Side, LH
2014-01 → 2014-08 ended
ASA4# —
57112-12906 note Member Sub-assy, Front Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
57112-12907 Member Sub-assy, Front Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57107A — Plate Sub-assy, Front Side Member, NO.2 RH
57107-42030 Plate Sub-assy, Front Side Member, NO.2 RH
2012-12 → 2015-10 ended
ASA4# —
57107-42030 Plate Sub-assy, Front Side Member, NO.2 RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57108A — Plate Sub-assy, Front Side Member, NO.2 LH
57108-42030 Plate Sub-assy, Front Side Member, NO.2 LH
2012-12 → 2015-01 ended
ASA4# —
57108-42031 Plate Sub-assy, Front Side Member, NO.2 LH
2015-02 → 2015-10 ended
ASA4# —
57108-42031 Plate Sub-assy, Front Side Member, NO.2 LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57111 — Member, Front Side, RH
57111-12230 Member, Front Side, RH
2012-12 → 2015-10 ended
ASA4# —
57111-12230 Member, Front Side, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57112 — Member, Front Side, LH
57112-12190 Member, Front Side, LH
2012-12 → 2015-10 ended
ASA4# —
57112-12190 Member, Front Side, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57113 — Extension, Front Side Member, RH
57113-42050 Extension, Front Side Member, RH
2012-12 → 2015-10 ended
ASA4# —
57113-42050 Extension, Front Side Member, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57114 — Extension, Front Side Member, LH
57114-42051 Extension, Front Side Member, LH
2012-12 → 2014-08 ended
ASA4# —
57114-78010 Extension, Front Side Member, LH
2014-09 → 2014-10 ended
ASA4# —
57114-78010 note Extension, Front Side Member, LH
2014-10 → 2015-10 ended
ASA4# LIMD —
57114-78010 note Extension, Front Side Member, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
57115A — Plate, Front Side Member, Outer RH
57115-12090 Plate, Front Side Member, Outer RH
2012-12 → 2014-05 ended
ASA4# —
57116A — Plate, Front Side Member, Outer LH
57116-12090 Plate, Front Side Member, Outer LH
2012-12 → 2013-12 ended
ASA4# —
57116-12091 Plate, Front Side Member, Outer LH
2014-01 → 2014-05 ended
ASA4# —
57188B — Gusset, Front Side Member TO Spring Support, RH
57188-42030 Gusset, Front Side Member TO Spring Support, RH
2012-12 → 2015-10 ended
ASA4# —
57188-42030 Gusset, Front Side Member TO Spring Support, RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57189A — Gusset, Front Side Member TO Spring Support, LH
57189-42020 Gusset, Front Side Member TO Spring Support, LH
2012-12 → 2015-10 ended
ASA4# —
57189-42020 Gusset, Front Side Member TO Spring Support, LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57191A — Member, Front Side, Inner Rear RH
57191-42060 Member, Front Side, Inner Rear RH
2014-01 → 2015-10 ended
ASA4# —
57191-42060 Member, Front Side, Inner Rear RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57192A — Member, Front Side, Inner Rear LH
57192-42060 Member, Front Side, Inner Rear LH
2014-01 → 2015-10 ended
ASA4# —
57192-42060 Member, Front Side, Inner Rear LH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57197 — Box, Torque, Front RH
57197-42060 Box, Torque, Front RH
2012-12 → 2015-10 ended
ASA4# —
57197-42060 Box, Torque, Front RH
2015-10 → 2018-10 ended
ASA4#,AVA44 —
57198 — Box, Torque, Front LH
57198-42060 Box, Torque, Front LH
2012-12 → 2014-10 ended
ASA4# —
57198-42060 note Box, Torque, Front LH
2014-10 → 2015-10 ended
ASA4# LIMD —
57198-42060 note Box, Torque, Front LH
2015-10 → 2018-10 ended
ASA4#,AVA44 LIMD USA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
